ZGE21R-HPXGP (2010)

Toyota Wish

Production Jun 2010 - Apr 2012
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

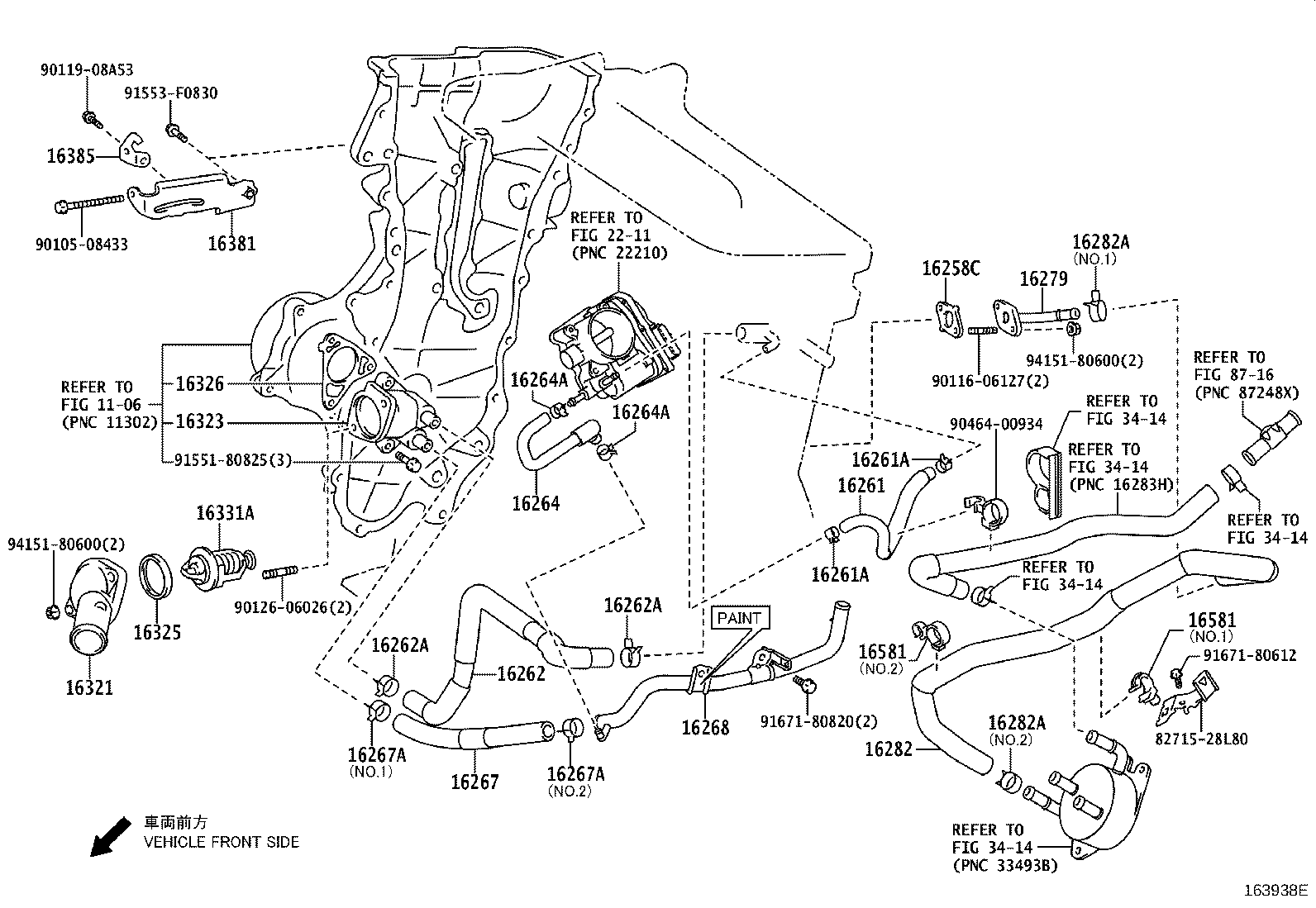

ILLUST NO. 2 OF 2(1006-1204)3ZRFAE

Click highlighted areas on diagram

diagram 1106 16258C 16261 16261A 16261A 16262 16262A 16262A 16264 16264A 16264A 16267 16267A 16267A 16268 16279 16282 16282A 16282A 16321 16323 16325 16326 16331A 16381 16385 16581 16581 2211 3414 3414 3414 3414 3414 8271528L80 8716 9010508433 9011606127 9011908A53 9012606026 9046400934 9155180825 91553F0830 9167180612 9167180820 9415180600 9415180600
Part # Description Qty Price
16258C - GASKET(FOR WATER BY-PASS PIPE)
16258-28040

3ZRFAE..ZGE21,22

 1
16261 - HOSE, WATER BY-PASS
16261-37052

2ZRFAE,3ZRFAE..ZGE2#

 1
16261-37051

2ZRFAE,3ZRFAE..ZGE2#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501

2ZRFAE,3ZRFAE..ZGE2#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501

2ZRFAE,3ZRFAE..ZGE2#

 2
16262 - HOSE, WATER INLET
16262-37010

2ZRFAE,3ZRFAE..ZGE2#

 1
16262A - CLIP(FOR WATER INLET HOSE)
96136-42501

2ZRFAE,3ZRFAE..ZGE2#

 2
16262A - CLIP(FOR WATER INLET HOSE)
96136-42501

2ZRFAE,3ZRFAE..ZGE2#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-37041

2ZRFAE,3ZRFAE..ZGE2#

 1
16264-37042

2ZRFAE,3ZRFAE..ZGE2#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501

2ZRFAE,3ZRFAE..ZGE2#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501

2ZRFAE,3ZRFAE..ZGE2#

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-37020

3ZRFAE..ZGE21,22

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-52701

3ZRFAE..ZGE21,22

NO.2

 1
96136-42501

3ZRFAE..ZGE21,22

NO.1

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-52701

3ZRFAE..ZGE21,22

NO.2

 1
96136-42501

3ZRFAE..ZGE21,22

NO.1

 1
16268 - PIPE, WATER BY-PASS, NO.1
16268-37080

3ZRFAE..ZGE21,22

NO PAINTED

 1
16268-37041

3ZRFAE..ZGE21,22

PAINTED=BULE

 1
16268-37041

3ZRFAE..ZGE21,22

 1
16279 - PIPE, WATER BY-PASS, NO.3
16279-37010

3ZRFAE..ZGE21,22

 1
16282 - HOSE, WATER BY-PASS, NO.5
16282-37040

3ZRFAE..ZGE21,22

 1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-42101

3ZRFAE..ZGE21,22

NO.2

 1
96136-52201

3ZRFAE..ZGE21,22

NO.1

 1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-42101

3ZRFAE..ZGE21,22

NO.2

 1
96136-52201

3ZRFAE..ZGE21,22

NO.1

 1
16321 - INLET, WATER
16321-37010

2ZRFAE,3ZRFAE..ZGE2#

 1
16323 - HOUSING, WATER INLET
16323-37031

3ZRFAE..ZGE21,22

 1
16323-37030

3ZRFAE..ZGE21,22

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-28010

2ZRFAE,3ZRFAE..ZGE2#

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-37010

2ZRFAE,3ZRFAE..ZGE2#

 1
16331A - THERMOSTAT
90916-03144

2ZRFAE,3ZR#..ZGE2#

*WAX 82-95,KUZEH

 1
16381 - BAR, FAN BELT ADJUSTING
16381-37040

3ZRFAE..ZGE21,22

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-37010

2ZRFAE,3ZRFAE..ZGE2#

 1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-21030

3ZRFAE..ZGE21,22

NO.1

 1
16581-37010

3ZRFAE..ZGE21,22

NO.2

 1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-21030

3ZRFAE..ZGE21,22

NO.1

 1
16581-37010

3ZRFAE..ZGE21,22

NO.2

 1
Common parts
82715-28L80
90105-08433
90116-06127
90119-08A53
90126-06026
90464-00934
91551-80825
91553-F0830
91671-80612
91671-80820
94151-80600
Linked diagrams
1106
2211
3414
8716

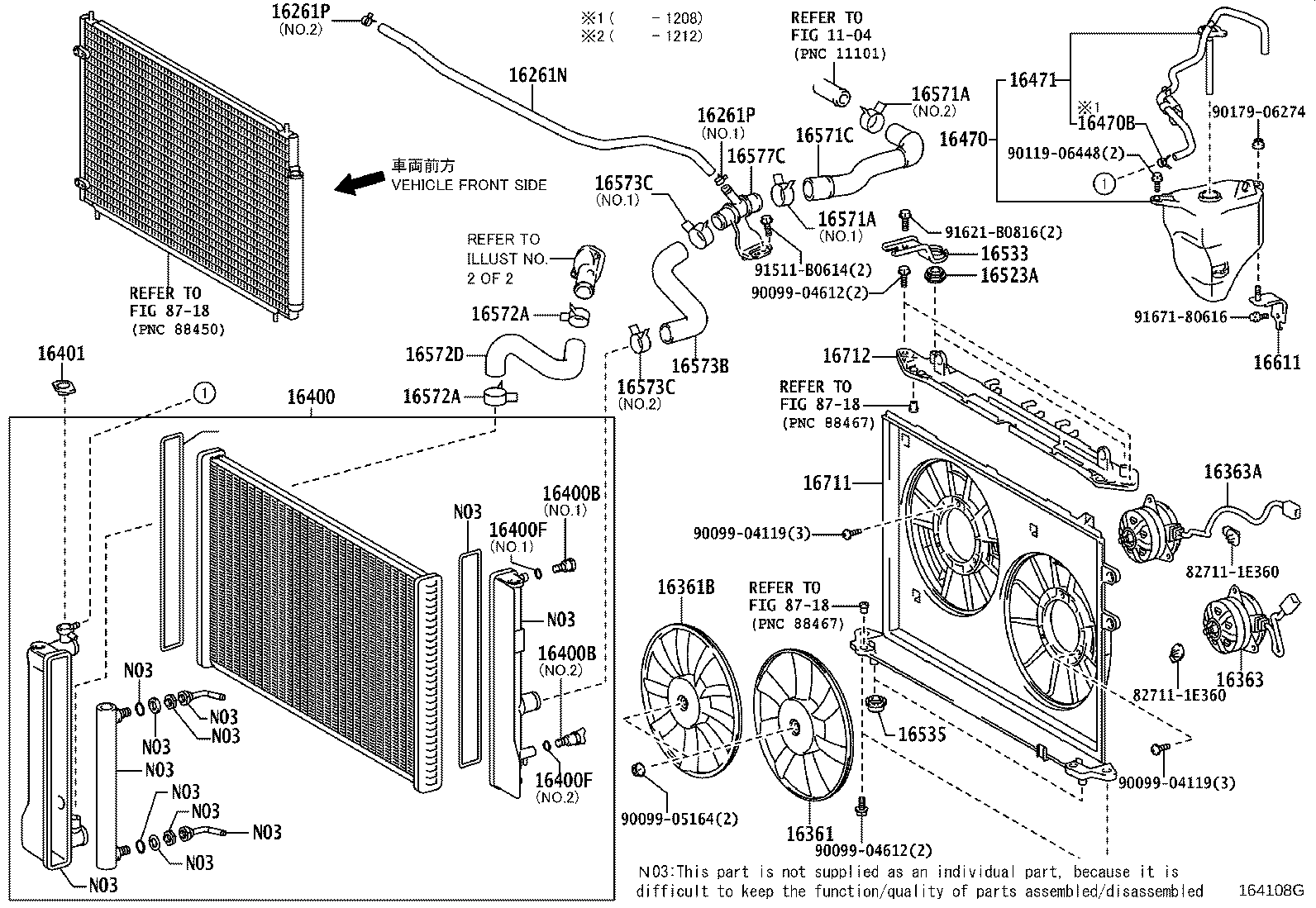

ILLUST NO. 1 OF 2(0911- )

Click highlighted areas on diagram

diagram 1104 16261N 16261P 16261P 16361 16361B 16363 16363A 16400 16400B 16400B 16400F 16400F 16401 16470 16470B 16471 16523A 16533 16535 16571A 16571A 16571C 16572A 16572A 16572D 16573B 16573C 16573C 16577C 16611 16711 16712 827111E360 827111E360 8718 8718 8718 9009904119 9009904119 9009904612 9009904612 9009905164 9011906448 9017906274 91511B0614 91621B0816 9167180616
Part # Description Qty Price
Common parts
82711-1E360
90099-04119
90099-04612
90099-05164
90119-06448
90179-06274
91511-B0614
91621-B0816
91671-80616
Linked diagrams
1104
8718

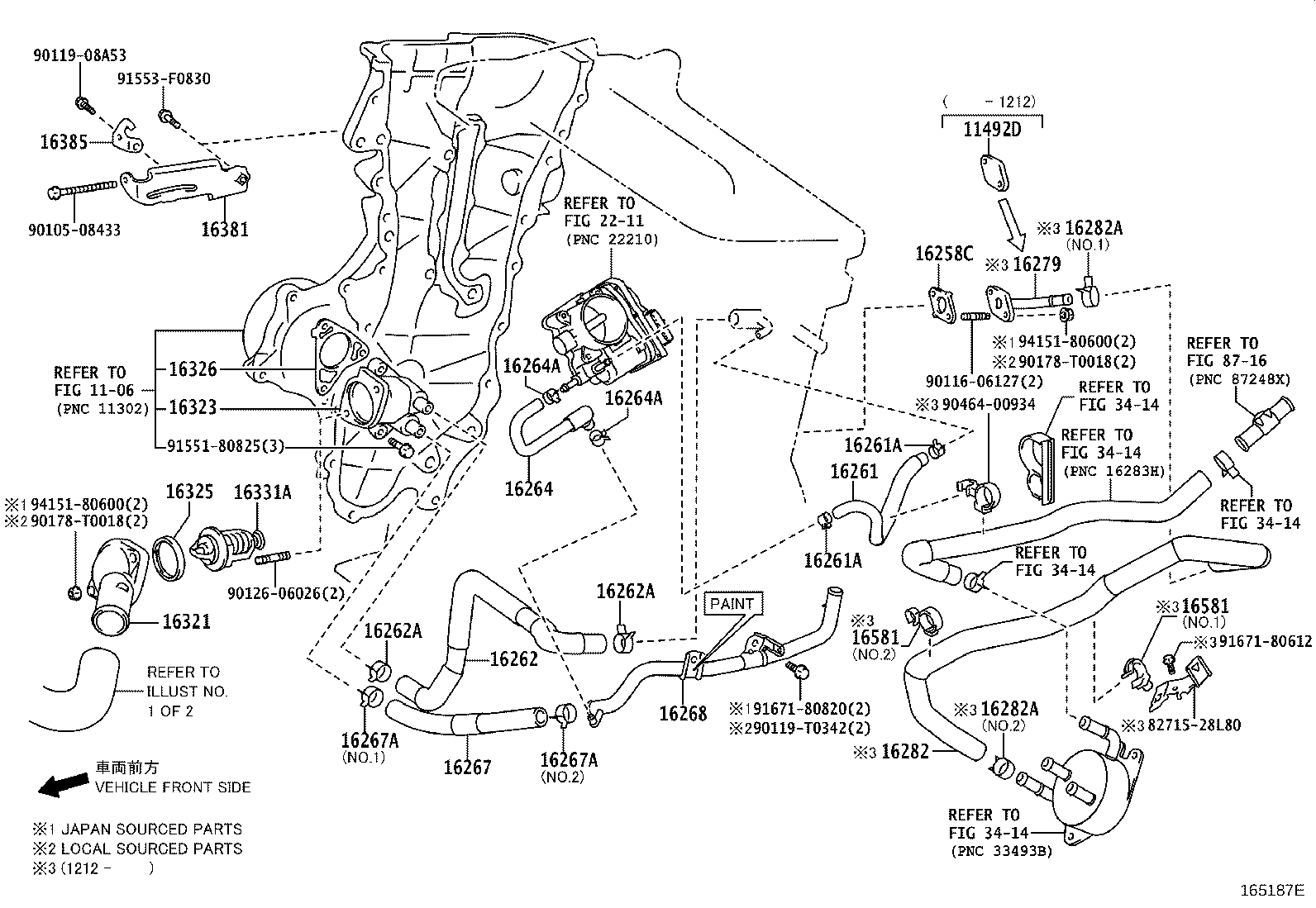

ILLUST NO. 2 OF 2(0911- )

Click highlighted areas on diagram

diagram 1106 11492D 16258C 16261 16261A 16261A 16262 16262A 16262A 16264 16264A 16264A 16267 16267A 16267A 16268 16279 16282 16282A 16282A 16321 16323 16325 16326 16331A 16381 16385 16581 16581 2211 3414 3414 3414 3414 3414 8271528L80 8716 9010508433 9011606127 9011908A53 90119T0342 9012606026 90178T0018 90178T0018 9046400934 9155180825 91553F0830 9167180612 9167180820 9415180600 9415180600
Part # Description Qty Price
Common parts
82715-28L80
90105-08433
90116-06127
90119-08A53
90119-T0342
90126-06026
90178-T0018
90464-00934
91551-80825
91553-F0830
91671-80612
91671-80820
94151-80600
Linked diagrams
1106
2211
3414
8716
