ZGE21R-HPXGP (2010)

Toyota Wish

Production Jun 2010 - Apr 2012
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0909- )

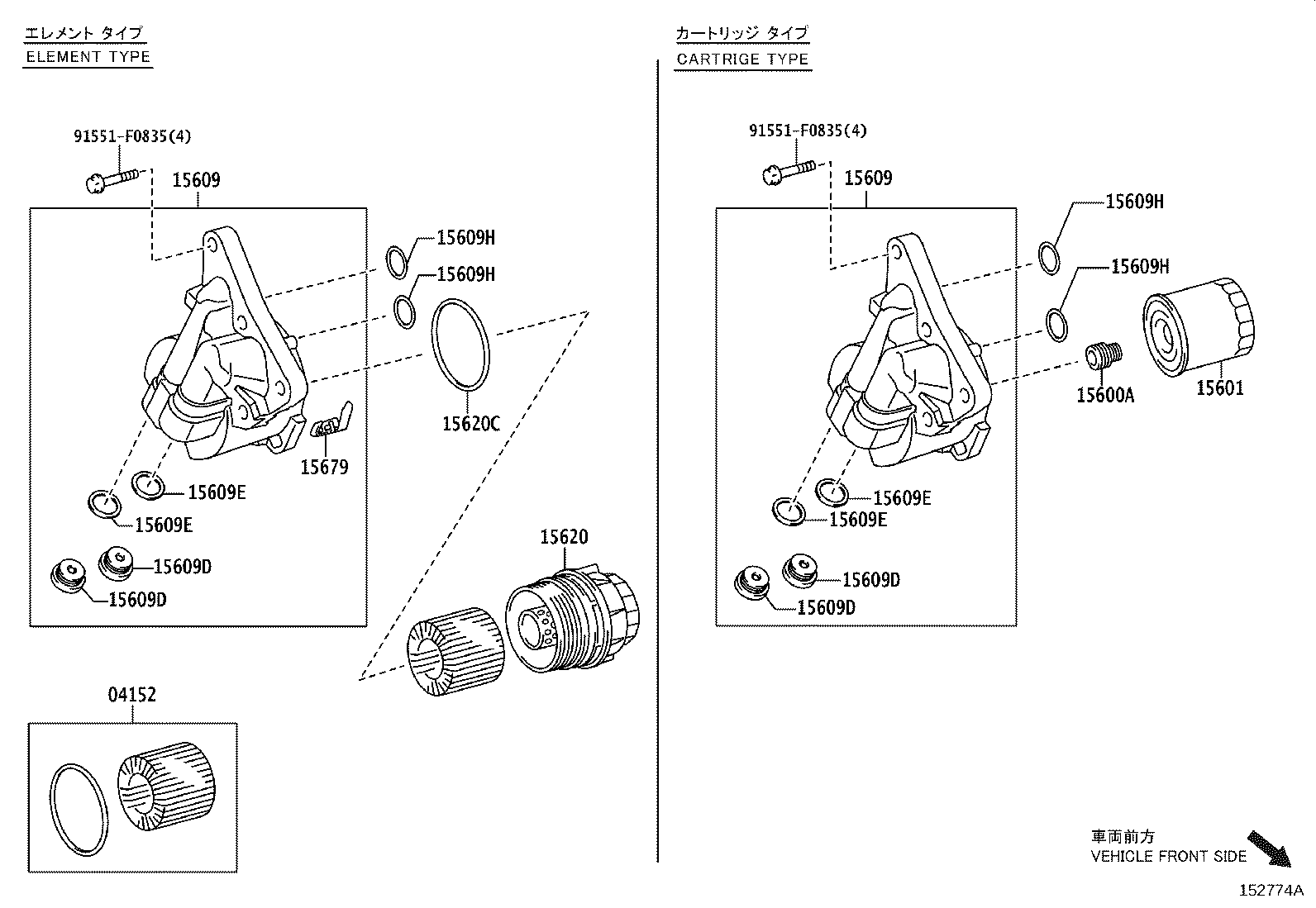

Click highlighted areas on diagram

diagram 04152 15600A 15601 15609 15609 15609D 15609D 15609D 15609D 15609E 15609E 15609E 15609E 15609H 15609H 15609H 15609H 15620 15620C 15679 91551F0835 91551F0835
Part # Description Qty Price
04152 - ELEMENT KIT, OIL FILTER
04152-37010

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-37040

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-37040

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-20004

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-20004

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-20004

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-20004

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24020

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24020

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24020

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24020

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 2
15620 - CAP ASSY, OIL FILTER
15620-37010

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 1
15620C - GASKET(FOR OIL FILTER CAP)
90301-69011

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 1
15679 - CLIP, OIL FILTER BRACKET
15679-37010

2ZRFAE,3ZR#..ZGE2#

ELEMENT TYPE

 1
Common parts
91551-F0835

(0911-1512)

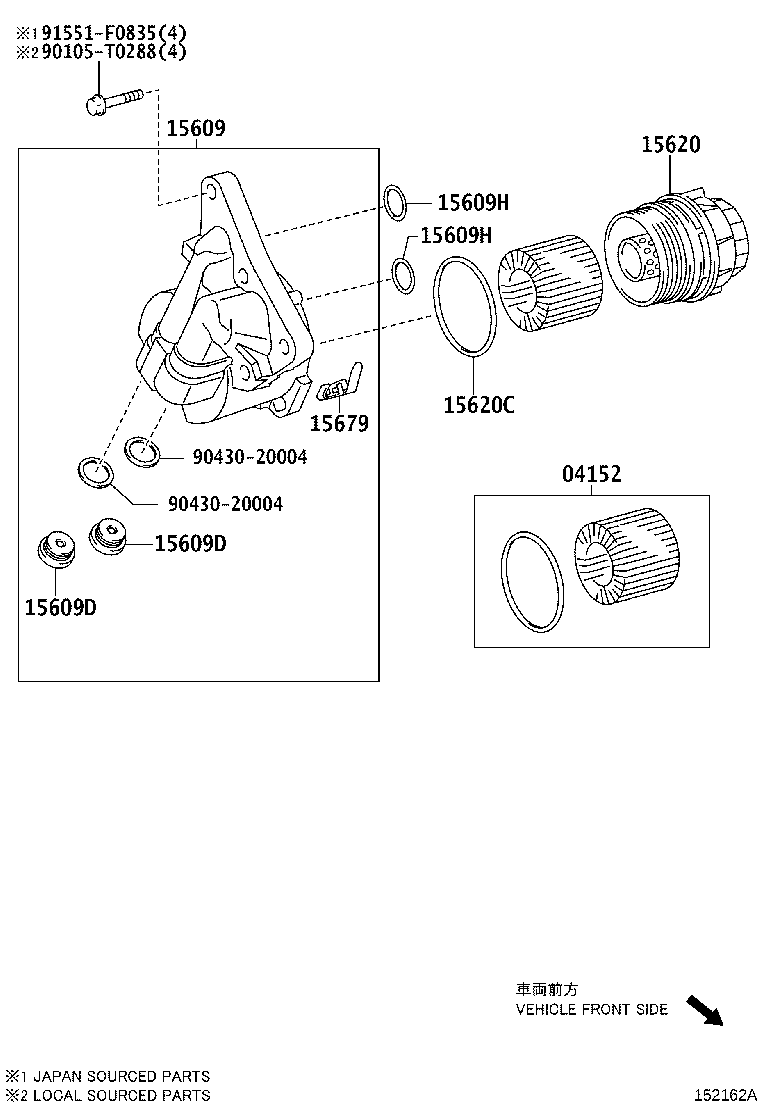

Click highlighted areas on diagram

diagram 04152 15609 15609D 15609D 15609H 15609H 15620 15620C 15679 90105T0288 9043020004 9043020004 91551F0835
Part # Description Qty Price
Common parts
90105-T0288
90430-20004
91551-F0835
