ZGE21R-HPXGP (2010)

Toyota Wish

Production Jun 2010 - Apr 2012
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0909- )

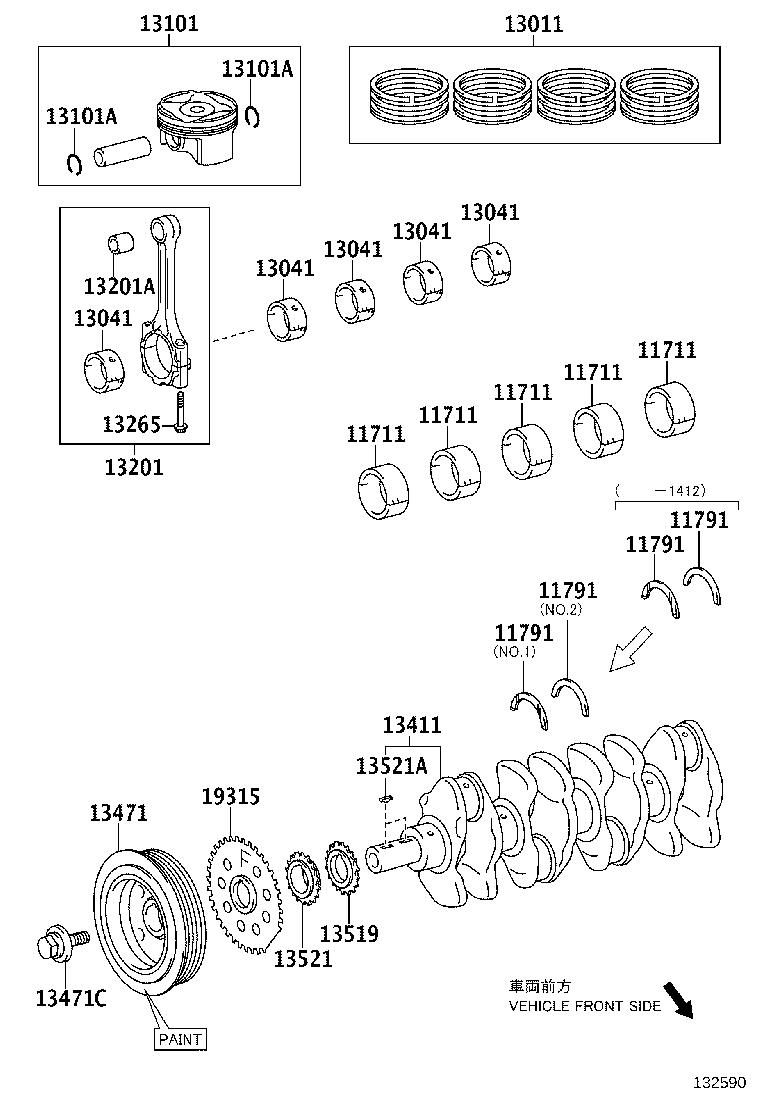

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11711 11791 11791 11791 11791 13011 13041 13041 13041 13041 13041 13101 13101A 13101A 13201 13201A 13265 13411 13471 13471C 13519 13521 13521A 19315
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11701-3702004

2ZRFAE,3ZRFAE..ZGE2#

MARK4,REFER REPAIR MANUAL

 5
11701-3702003

2ZRFAE,3ZRFAE..ZGE2#

MARK3,REFER REPAIR MANUAL

 5
11701-3702001

2ZRFAE,3ZRFAE..ZGE2#

MARK1,REFER REPAIR MANUAL

 5
11701-3702002

2ZRFAE,3ZRFAE..ZGE2#

MARK2,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702004

2ZRFAE,3ZRFAE..ZGE2#

MARK4,REFER REPAIR MANUAL

 5
11701-3702003

2ZRFAE,3ZRFAE..ZGE2#

MARK3,REFER REPAIR MANUAL

 5
11701-3702001

2ZRFAE,3ZRFAE..ZGE2#

MARK1,REFER REPAIR MANUAL

 5
11701-3702002

2ZRFAE,3ZRFAE..ZGE2#

MARK2,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702004

2ZRFAE,3ZRFAE..ZGE2#

MARK4,REFER REPAIR MANUAL

 5
11701-3702003

2ZRFAE,3ZRFAE..ZGE2#

MARK3,REFER REPAIR MANUAL

 5
11701-3702001

2ZRFAE,3ZRFAE..ZGE2#

MARK1,REFER REPAIR MANUAL

 5
11701-3702002

2ZRFAE,3ZRFAE..ZGE2#

MARK2,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702004

2ZRFAE,3ZRFAE..ZGE2#

MARK4,REFER REPAIR MANUAL

 5
11701-3702003

2ZRFAE,3ZRFAE..ZGE2#

MARK3,REFER REPAIR MANUAL

 5
11701-3702001

2ZRFAE,3ZRFAE..ZGE2#

MARK1,REFER REPAIR MANUAL

 5
11701-3702002

2ZRFAE,3ZRFAE..ZGE2#

MARK2,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-3702004

2ZRFAE,3ZRFAE..ZGE2#

MARK4,REFER REPAIR MANUAL

 5
11701-3702003

2ZRFAE,3ZRFAE..ZGE2#

MARK3,REFER REPAIR MANUAL

 5
11701-3702001

2ZRFAE,3ZRFAE..ZGE2#

MARK1,REFER REPAIR MANUAL

 5
11701-3702002

2ZRFAE,3ZRFAE..ZGE2#

MARK2,REFER REPAIR MANUAL

 5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-22020

2ZRFAE,3ZRFAE..ZGE2#

STD

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-22020

2ZRFAE,3ZRFAE..ZGE2#

STD

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-22020

2ZRFAE,3ZRFAE..ZGE2#

STD

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-22020

2ZRFAE,3ZRFAE..ZGE2#

STD

 2
13011 - RING SET, PISTON
13011-37130

3ZRFAE..ZGE21,22

STD

 1
13041 - BEARING, CONNECTING ROD
13041-3703002

3ZRFAE..ZGE21,22

MARK2,REFER REPAIR MANUAL

 4
13041-3703003

3ZRFAE..ZGE21,22

MARK3,REFER REPAIR MANUAL

 4
13041-3703001

3ZRFAE..ZGE21,22

MARK1,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3703002

3ZRFAE..ZGE21,22

MARK2,REFER REPAIR MANUAL

 4
13041-3703003

3ZRFAE..ZGE21,22

MARK3,REFER REPAIR MANUAL

 4
13041-3703001

3ZRFAE..ZGE21,22

MARK1,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3703002

3ZRFAE..ZGE21,22

MARK2,REFER REPAIR MANUAL

 4
13041-3703003

3ZRFAE..ZGE21,22

MARK3,REFER REPAIR MANUAL

 4
13041-3703001

3ZRFAE..ZGE21,22

MARK1,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3703002

3ZRFAE..ZGE21,22

MARK2,REFER REPAIR MANUAL

 4
13041-3703003

3ZRFAE..ZGE21,22

MARK3,REFER REPAIR MANUAL

 4
13041-3703001

3ZRFAE..ZGE21,22

MARK1,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-3703002

3ZRFAE..ZGE21,22

MARK2,REFER REPAIR MANUAL

 4
13041-3703003

3ZRFAE..ZGE21,22

MARK3,REFER REPAIR MANUAL

 4
13041-3703001

3ZRFAE..ZGE21,22

MARK1,REFER REPAIR MANUAL

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-37090

3ZRFAE..ZGE21,22

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

2ZRFAE,3ZRFAE..ZGE2#

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

2ZRFAE,3ZRFAE..ZGE2#

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-39205

3ZRFAE..ZGE21,22

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73151

2ZRFAE,3ZRFAE..ZGE2#

 4
13265 - BOLT, CONNECTING ROD
13265-22020

2ZRFAE,3ZRFAE..ZGE2#

 8
13411 - CRANKSHAFT
13401-37031

3ZRFAE..ZGE21,22

 1
13471 - PULLEY, CRANKSHAFT
13470-37020

2ZRFAE,3ZR#..ZGE2#

 1
13470-37050

2ZRFAE,3ZRFAE..ZGE2#

YELLOW,PINK PAINTED

 1
13470-37020

2ZRFAE,3ZRFAE..ZGE2#

YELLOW PAINTED

 1
13470-37050

2ZRFAE,3ZRFAE..ZGE2#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-14106

2ZRFAE,3ZRFAE..ZGE2#

 1
13519 - GEAR, OIL PUMP DRIVE
13519-37010

2ZRFAE,3ZRFAE..ZGE2#

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-37020

3ZRFAE..ZGE21,22

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-04003

2ZRFAE,3ZRFAE..ZGE2#

 2
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-37020

2ZRFAE,3ZRFAE..ZGE2#

 1

(0911- )

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11711 11791 11791 13011 13041 13041 13041 13041 13041 13101 13101A 13101A 13201 13201A 13265 13411 13471 13471C 13519 13521 13521A 19315
