ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

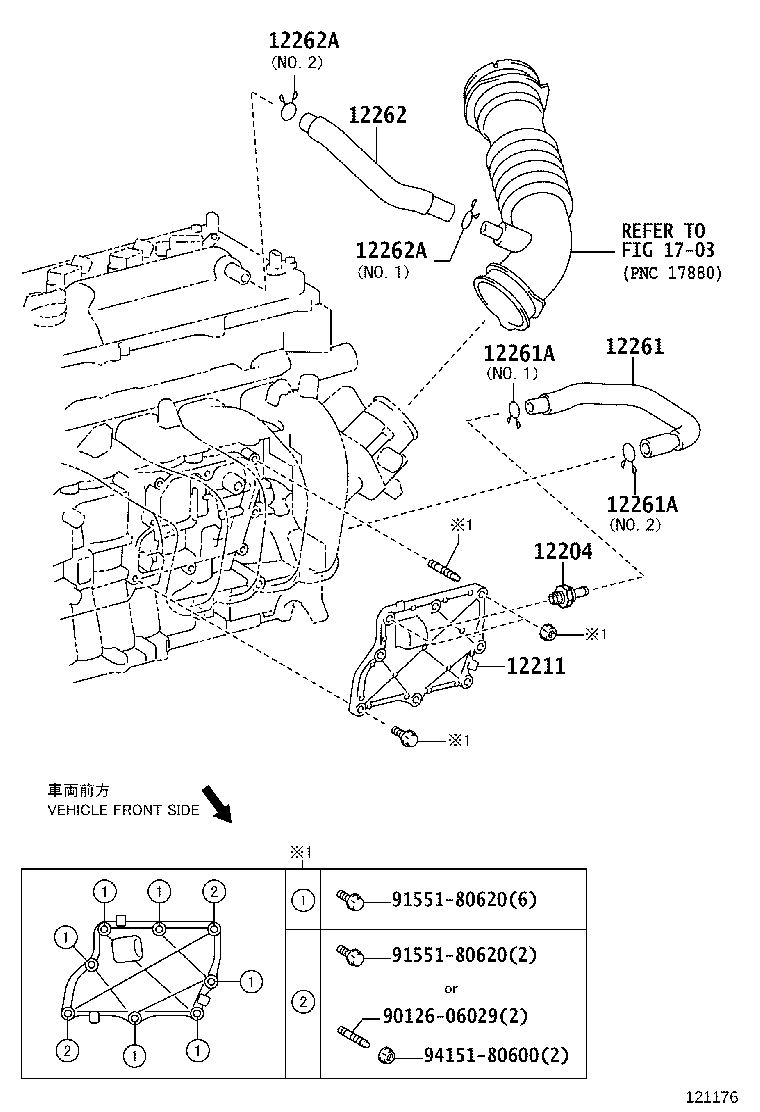

(0909-1204)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-37010 |
2ZRFAE,3ZRFAE..ZGE2# |
1 | ||
| 12211 - CASE, VENTILATION, NO.1 | ||||
| 12211-37010 |
2ZRFAE,3ZRFAE..ZGE2# |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-37050 |
2ZRFAE,3ZRFAE..ZGE2# |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15120 |
2ZRFAE,3ZRFAE..ZGE2# NO.1 |
1 | ||
| 90467-23002 |
2ZRFAE,3ZRFAE..ZGE2# NO.2 |
1 | ||
| 90466-22005 |
2ZRFAE,3ZRFAE..ZGE2# NO.2 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15120 |
2ZRFAE,3ZRFAE..ZGE2# NO.1 |
1 | ||
| 90467-23002 |
2ZRFAE,3ZRFAE..ZGE2# NO.2 |
1 | ||
| 90466-22005 |
2ZRFAE,3ZRFAE..ZGE2# NO.2 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-37030 |
2ZRFAE,3ZRFAE..ZGE2# |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-19003 |
2ZRFAE,3ZRFAE..ZGE2# NO.1 |
1 | ||
| 90467-21004 |
2ZRFAE,3ZRFAE..ZGE2# NO.2 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-19003 |
2ZRFAE,3ZRFAE..ZGE2# NO.1 |
1 | ||
| 90467-21004 |
2ZRFAE,3ZRFAE..ZGE2# NO.2 |
1 | ||
| Common parts | ||||
| 90126-06029 | ||||
| 91551-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1703 | ||||

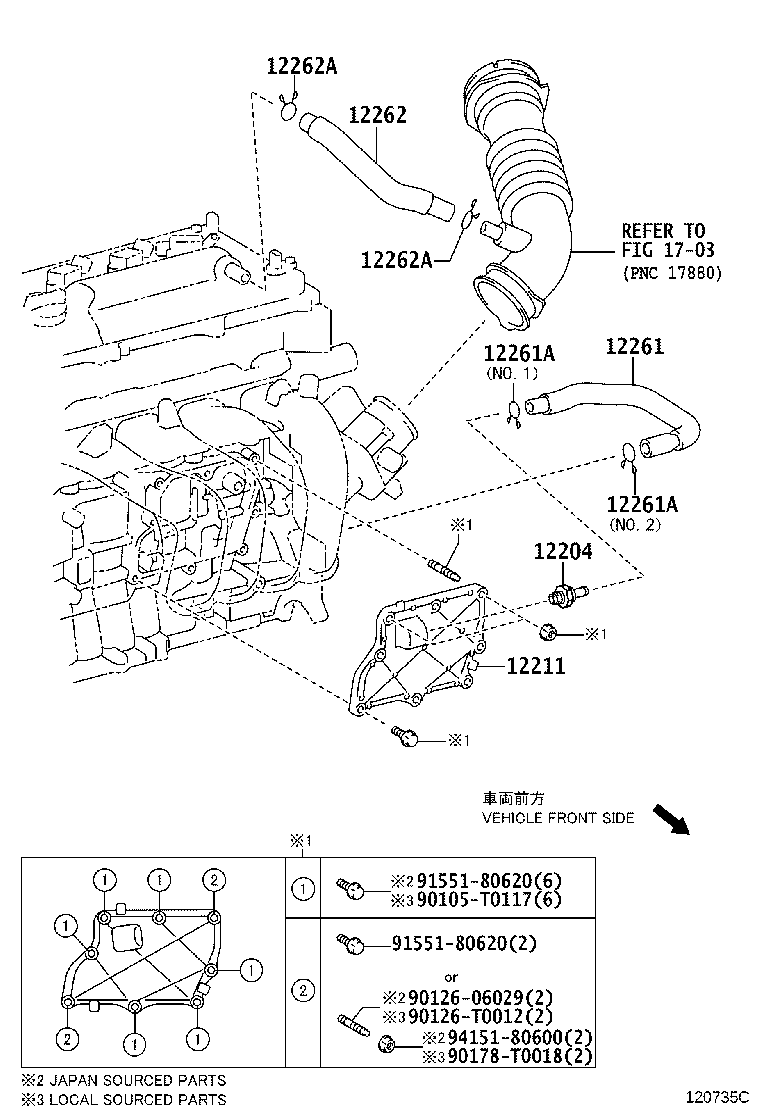

(0911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0117 | ||||
| 90126-06029 | ||||
| 90126-T0012 | ||||
| 90178-T0018 | ||||
| 91551-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1703 | ||||
