ZGE21R-HPXGP (2010)
Toyota Wish
Production
Jun 2010
-
Apr 2012
Engine
3ZRFAE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0909- )

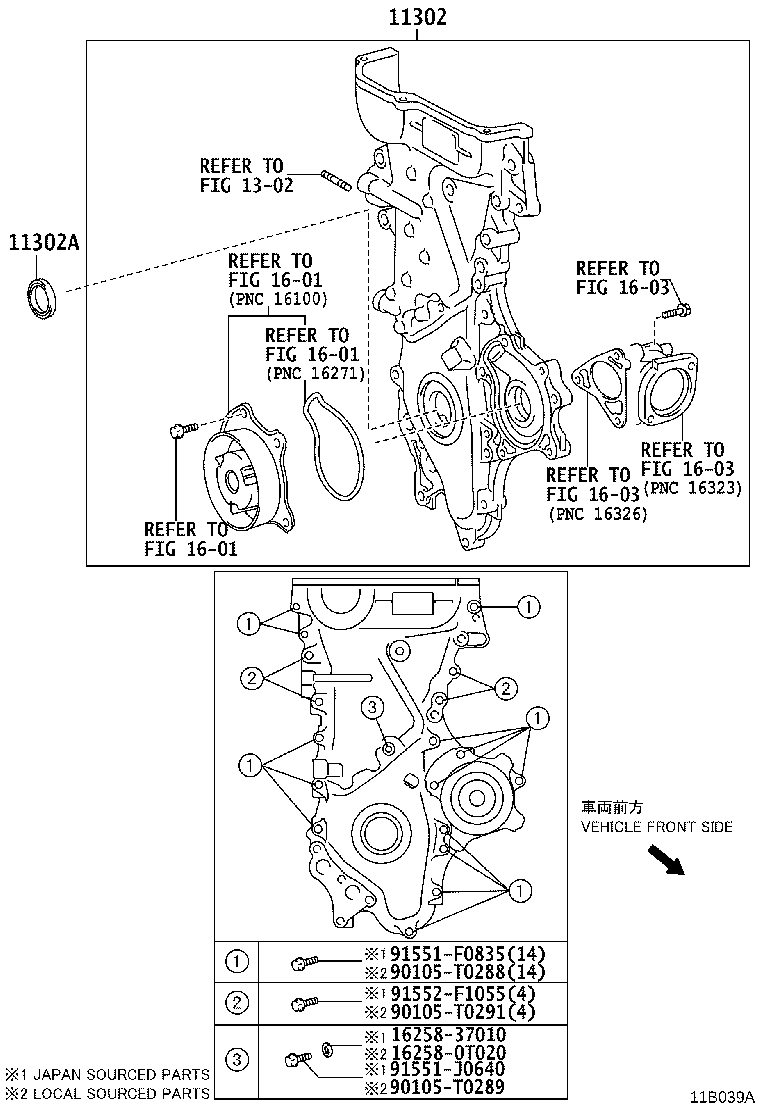

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11310-37032 |
3ZRFAE..ZGE21,22 |
1 | ||
| 11310-37031 |
3ZRFAE..ZGE21,22 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38096 |
2ZRFAE,3ZRFAE..ZGE2# |
1 | ||
| 90311-38089 |
2ZRFAE,3ZRFAE..ZGE2# |
1 | ||
| Common parts | ||||
| 16258-37010 | ||||
| 91551-F0835 | ||||
| 91551-J0640 | ||||
| 91552-F1055 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 1302 | ||||
| 1601 | ||||
| 1603 | ||||
(0911- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 16258-0T020 | ||||
| 16258-37010 | ||||
| 90105-T0288 | ||||
| 90105-T0289 | ||||
| 90105-T0291 | ||||
| 91551-F0835 | ||||
| 91551-J0640 | ||||
| 91552-F1055 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1601 | ||||
| 1603 | ||||
