ZGE21R-HPXGP (2010)

Toyota Wish

Production Jun 2010 - Apr 2012
Engine 3ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

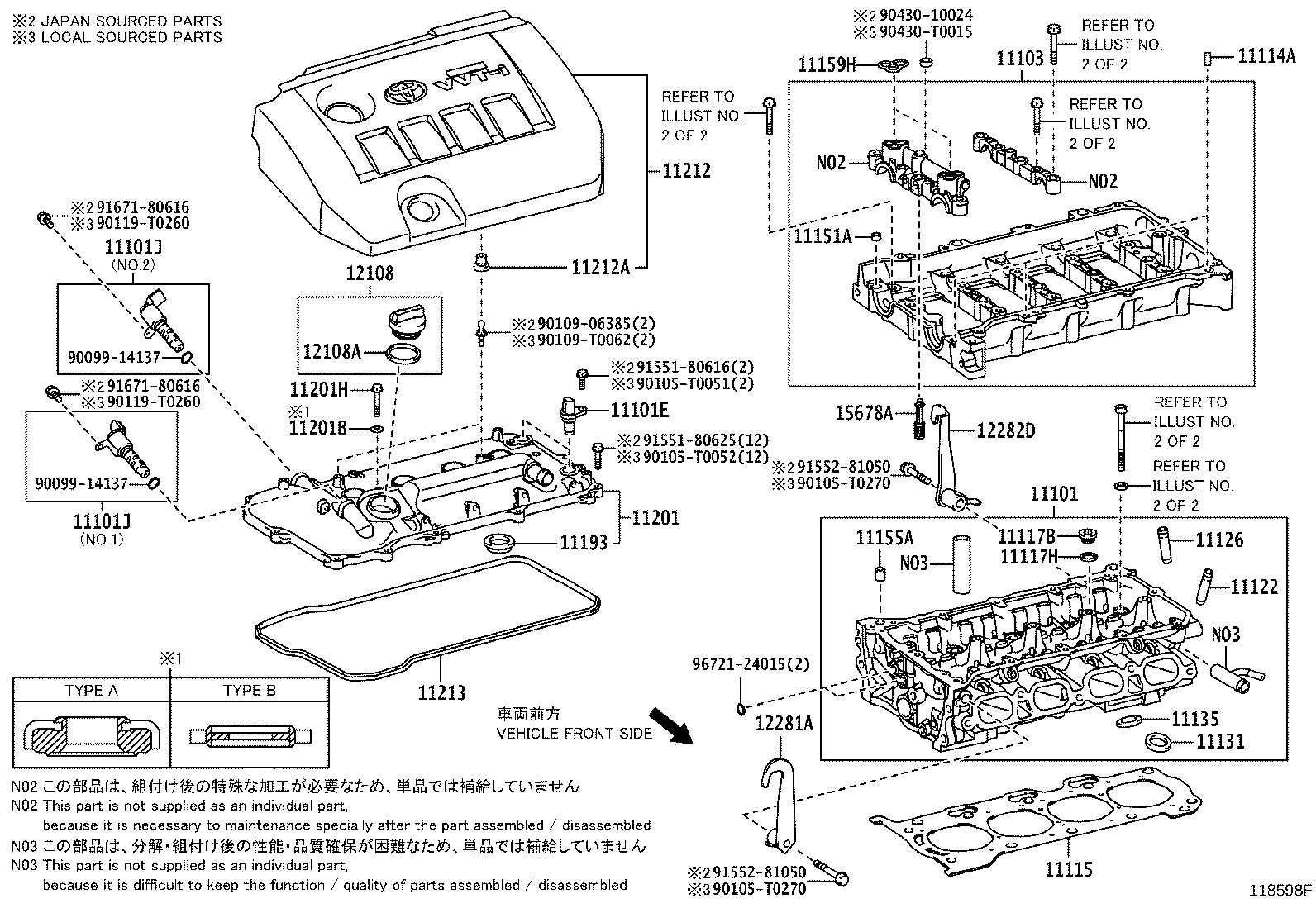

ILLUST NO. 1 OF 2(1006- )

Click highlighted areas on diagram

diagram 11101 11101E 11101J 11101J 11103 11114A 11115 11117B 11117H 11122 11126 11131 11135 11155A 11159H 11186B 11193 11201 11201B 11201H 11212 11212A 11213 12108 12108A 12281A 12282D 12551A 1302 1302 2211 2211 2211 2211 2211 8202 9009914137 9009914137 9010906385 9043010024 9155180616 9155180625 9155180825 9155281050 9155281050 9167180616 9167180616 9672124015
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-39686

2ZRFAE,3ZRFAE..ZGE2#

 1
11101E - SENSOR, CAM POSITION
90919-05060

2ZRFAE,3ZR#..ZGE2#

 2
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-37020

2ZRFAE,3ZRFAE..ZGE2#

NO.2

 1
15330-37010

2ZRFAE,3ZRFAE..ZGE2#

NO.1

 1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-37020

2ZRFAE,3ZRFAE..ZGE2#

NO.2

 1
15330-37010

2ZRFAE,3ZRFAE..ZGE2#

NO.1

 1
11103 - HOUSING SUB-ASSY, CAMSHAFT
11107-37013

2ZRFAE,3ZRFAE..ZGE2#

 1
11107-37014

2ZRFAE,3ZRFAE..ZGE2#

 1
11107-37012

2ZRFAE,3ZRFAE..ZGE2#

 1
11114A - PIN, STRAIGHT
90250-06001

2ZRFAE,3ZRFAE..ZGE2#

L=14,OD=6

 3
11115 - GASKET, CYLINDER HEAD
11115-37051

2ZRFAE,3ZRFAE..ZGE2#

 1
11115-37060

2ZRFAE,3ZRFAE..ZGE2#

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-20002

2ZRFAE,3ZRFAE..ZGE2#

 3
11117H - GASKET(FOR WATER HOLE)
90430-20004

2ZRFAE,3ZRFAE..ZGE2#

 3
11122 - BUSH, INTAKE VALVE GUIDE
11123-31050

2ZRFAE,3ZRFAE..ZGE2#

O/S 0.05

 8
11122-31050

2ZRFAE,3ZRFAE..ZGE2#

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11127-31030

2ZRFAE,3ZRFAE..ZGE2#

O/S 0.05

 8
11126-31030

2ZRFAE,3ZRFAE..ZGE2#

STD

 8
11131 - SEAT, INTAKE VALVE
11132-37020

2ZRFAE,3ZR#..ZGE2#

O/S 0.03

 8
11131-37020

2ZRFAE,3ZR#..ZGE2#

STD

 8
11135 - SEAT, EXHAUST VALVE
11135-37020

2ZRFAE,3ZR#..ZGE2#

STD

 8
11136-37020

2ZRFAE,3ZR#..ZGE2#

O/S 0.03

 8
11155A - PIN, RING W/HEAD
90253-12002

2ZRFAE,3ZRFAE..ZGE2#

 2
11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE
11159-37010

2ZRFAE,3ZRFAE..ZGE2#

 2
11186B - GASKET, CAMSHAFT HOUSING REAR COVER
11186-37010

2ZRFAE,3ZRFAE..ZGE2#

 1
11193 - GASKET, SPARK PLUG TUBE
11193-37020

2ZRFAE,3ZRFAE..ZGE2#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-37010

2ZRFAE,3ZRFAE..ZGE2#

 1
11201-37011

2ZRFAE,3ZRFAE..ZGE2#

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
16258-37010

2ZRFAE,3ZRFAE..ZGE2#

TYPE B:REFER ILLUST.

 1
90210-06013

2ZRFAE,3ZRFAE..ZGE2#

TYPE A:REFER ILLUST.

 1
11201H - BOLT(FOR CYLINDER HEAD COVER)
91551-80670

2ZRFAE,3ZRFAE..ZGE2#

 1
11212 - COVER, CYLINDER HEAD, NO.2
11212-37030

2ZRFAE,3ZRFAE..ZGE2#

 1
11212A - CUSHION, CYLINDER HEAD COVER
90480-16049

2ZRFAE,3ZRFAE..ZGE2#

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-37020

2ZRFAE,3ZRFAE..ZGE2#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-38010

2ZRFAE,3ZRFAE..ZGE2#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35001

2ZRFAE,3ZRFAE..ZGE2#

 1
12281A - HANGER, ENGINE, NO.1
12281-37021

2ZRFAE,3ZRFAE..ZGE2#

W/O(PAINTED)

 1
12281-37021

2ZRFAE,3ZR#..ZGE2#

 1
12281-37050

2ZRFAE,3ZRFAE..ZGE2#

W(PAINTED)

 1
12282D - HANGER, ENGINE, NO.2
12282-37040

2ZRFAE,3ZRFAE..ZGE2#

W(PAINTED)

 1
12282-37011

2ZRFAE,3ZR#..ZGE2#

 1
12282-37011

2ZRFAE,3ZRFAE..ZGE2#

W/O(PAINTED)

 1
12551A - BRACKET, VACUUM PUMP, NO.1
12551-37010

2ZRFAE,3ZRFAE..ZGE2#

 1
Common parts
90099-14137
90109-06385
90430-10024
91551-80616
91551-80625
91551-80825
91552-81050
91671-80616
96721-24015
Linked diagrams
1302
2211
8202

ILLUST NO. 2 OF 2(1006- )

Click highlighted areas on diagram

diagram 11101A 11101B 9010508455 9010508486
Part # Description Qty Price

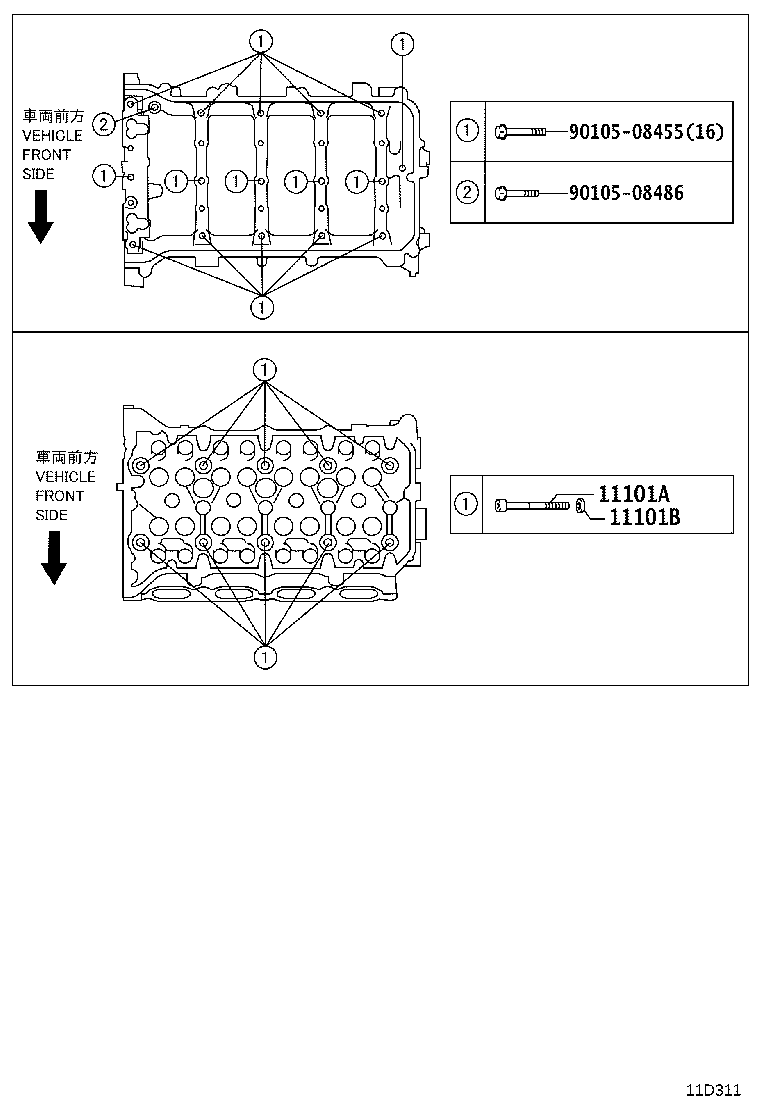

11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02166

2ZRFAE,3ZRFAE..ZGE2#

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

2ZRFAE,3ZRFAE..ZGE2#

 10
Common parts
90105-08455
90105-08486

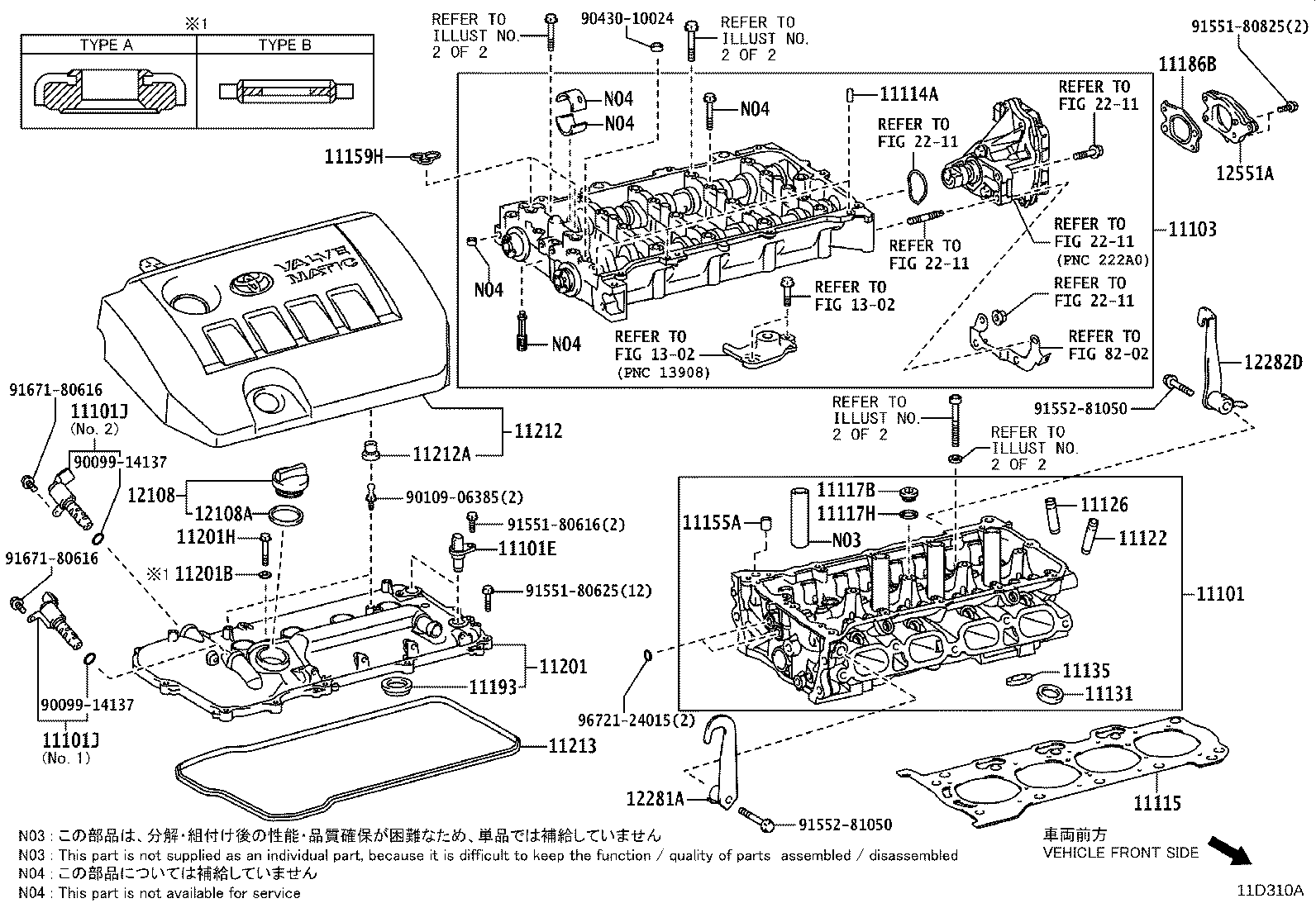

ILLUST NO. 1 OF 2(0911- )

Click highlighted areas on diagram

diagram 11101 11101E 11101J 11101J 11103 11114A 11115 11117B 11117H 11122 11126 11131 11135 11151A 11155A 11159H 11193 11201 11201B 11201H 11212 11212A 11213 12108 12108A 12281A 12282D 15678A 9009914137 9009914137 90105T0051 90105T0052 90105T0270 90105T0270 9010906385 90109T0062 90119T0260 90119T0260 9043010024 90430T0015 9155180616 9155180625 9155281050 9155281050 9167180616 9167180616 9672124015
Part # Description Qty Price
Common parts
90099-14137
90105-T0051
90105-T0052
90105-T0270
90109-06385
90109-T0062
90119-T0260
90430-10024
90430-T0015
91551-80616
91551-80625
91552-81050
91671-80616
96721-24015

ILLUST NO. 2 OF 2(0911- )

Click highlighted areas on diagram

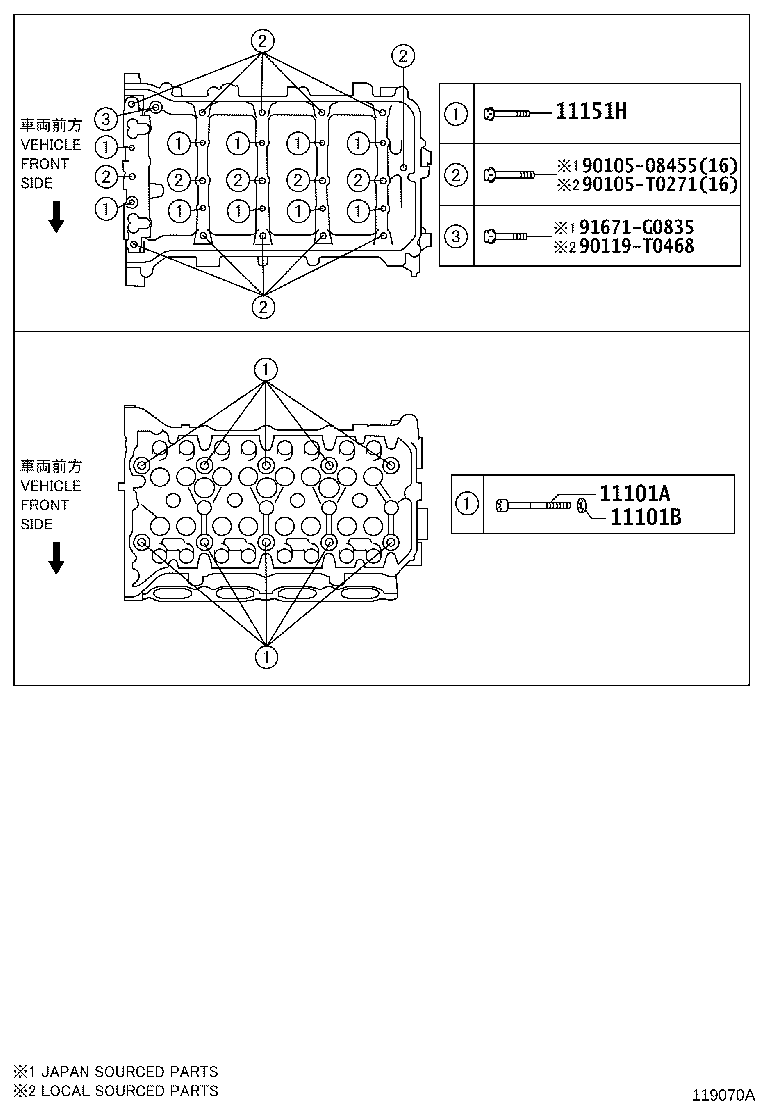

diagram 11101A 11101B 11151H 9010508455 90105T0271 90119T0468 91671G0835
Part # Description Qty Price
Common parts
90105-08455
90105-T0271
90119-T0468
91671-G0835
