ZGE21R-HPPNK (2009)

Toyota Wish

Production Sep 2009 - May 2010
Engine 3ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(0909- )

Click highlighted areas on diagram

REAR NO.2 SEAT (RH)

diagram 6777112080 6777128050 7104 7104 71701B 71843A 71844A 71848C 71931E 71931E 71970 72525E 72525J 72553A 72554A 72558A 72635 72681 7270268040 7270268040 72704C 79031B 79033 79303A 79305A 79319 79335A 79360A 79372 79372 79375A 9008416010 9008416010 9010510539 9010511039 9010906161 9010910164 9010910164 9010910164 9010910164 9010910164 9017906007 9020510008 9155281018
Part # Description Qty Price
71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH
71701-68010E0

ZGE20,21

GREGE,TRIM4#

 1
71701-68010B0

ZGE2#..18S,18X,20X,20Z

DARK GRAY,TRIM1#

 1
71843A - COVER, REAR SEAT RECLINING, NO.2 RH
71843-68030E0

ZGE20,21

GREGE,TRIM4#

 1
71843-68030C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
71844A - COVER, REAR SEAT RECLINING, NO.2 LH
71844-68010E0

ZGE20,21

GREGE,TRIM4#

 1
71844-68010C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST
71931-42020E1

ZGE20,21

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71930-52030E0

ZGE20,21

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71931-42020B4

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71930-52030B0

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST
71931-42020E1

ZGE20,21

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71930-52030E0

ZGE20,21

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71931-42020B4

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71930-52030B0

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71970 - HEADREST ASSY, REAR SEAT
71970-68010E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 2
71970-68010B0

ZGE2#..18S,18X,20X,20Z

DARK GRAY,TRIM1#

 2
72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH
72525-68010E0

ZGE20,21

GREGE,TRIM4#

 1
72525-68010C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
72525J - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-68060C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
72525-68060E0

ZGE20,21

GREGE,TRIM4#

 1
72553A - PROTECTOR, RECLINING COVER, RH
72553-68010C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
72553-68010E0

ZGE20,21

GREGE,TRIM4#

 1
72554A - PROTECTOR, RECLINING COVER, LH
72554-68020C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
72554-68020E0

ZGE20,21

GREGE,TRIM4#

 1
72558A - STOPPER, RECLINING
72558-44010

ZGE21

 1
72635 - HOOK, REAR SEAT BACK LOCK
72635-13010E2

ZGE20,21

GREGE,TRIM4#

 1
72635-13010B0

ZGE2#..18S,18X,20X,20Z

DK.GRAY,TRIM1#

 1
72681 - HOOK, REAR SEAT BACK LOCK, LOWER
72635-13020B0

ZGE2#..18S,18X,20X,20Z

DK.GRAY,TRIM1#

 1
72635-13020E2

ZGE20,21

GREGE,TRIM4#

 1
72704C - CABLE, REAR NO.2 SEAT RECLINING CONTROL
72704-68050

ZGE21

 1
79031B - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH
79031-68080E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
79031-68080B0

ZGE2#..18S,18X,20X,20Z

DARK GRAY,TRIM1#

 1
79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH
79033-68080B0

ZGE2#..18S,18X,20X,20Z

DARK GRAY,TRIM1#

 1
79033-68080E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH
79303-68030

ZGE21

 1
79305A - LEG SUB-ASSY, NO.3 SEAT, RH
79305-68020

ZGE21

 1
79319 - BRACKET, NO.3 SEAT LEG, RR RH
79319-68010

ZGE21

 1
79335A - PAD, NO.3 SEAT CUSHION, RH
79335-68020

ZGE21

 1
79360A - SPRING ASSY, NO.3 SEAT CUSHION, RH
79360-68020

ZGE21

 1
79372 - COVER, NO.3 SEAT FRONT BRACKET, RH
79372-68020B0

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#,4#

 2
79372 - COVER, NO.3 SEAT FRONT BRACKET, RH
79372-68020B0

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#,4#

 2
79375A - PAD, NO.3 SEAT BACK, RH
79375-68020

ZGE21

 1
Common parts
67771-12080
67771-28050
72702-68040
90084-16010
90105-10539
90105-11039
90109-06161
90109-10164
90179-06007
90205-10008
91552-81018
Linked diagrams
7104

ILLUST NO. 4 OF 4(0909- )

Click highlighted areas on diagram

REAR NO.2 SEAT (LH)

diagram 6777112080 6777128050 7104 7104 71702B 71843D 71844C 71849D 71931E 71931E 71970 72526C 72526E 72553C 72554B 72558 72653 72681C 7270268040 7270268040 72704D 79032 79034 79304A 79306 79329 79345A 79370A 79382 79382 79385A 9008416010 9008416010 9010510539 9010511039 9010906161 9010910164 9010910164 9010910164 9017906007 9020510008 9155281018
Part # Description Qty Price
71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH
71702-68010B0

ZGE2#..18S,18X,20X,20Z

DARK GRAY,TRIM1#

 1
71702-68010E0

ZGE20,21

GREGE,TRIM4#

 1
71843D - COVER, REAR SEAT RECLINING, NO.2 RH
71843-68040E0

ZGE20,21

GREGE,TRIM4#

 1
71843-68040C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
71844C - COVER, REAR SEAT RECLINING, NO.2 LH
71844-68020C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
71844-68020E0

ZGE20,21

GREGE,TRIM4#

 1
71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST
71931-42020E1

ZGE20,21

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71930-52030E0

ZGE20,21

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71931-42020B4

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71930-52030B0

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST
71931-42020E1

ZGE20,21

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71930-52030E0

ZGE20,21

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71931-42020B4

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71930-52030B0

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71970 - HEADREST ASSY, REAR SEAT
71970-68010E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 2
71970-68010B0

ZGE2#..18S,18X,20X,20Z

DARK GRAY,TRIM1#

 2
72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH
72525-68010E0

ZGE20,21

GREGE,TRIM4#

 1
72525-68010C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-68060E0

ZGE20,21

GREGE,TRIM4#

 1
72525-68060C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
72553C - PROTECTOR, RECLINING COVER, RH
72553-68020E0

ZGE20,21

GREGE,TRIM4#

 1
72553-68020C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
72554B - PROTECTOR, RECLINING COVER, LH
72554-68030E0

ZGE20,21

GREGE,TRIM4#

 1
72554-68030C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
72558 - STOPPER, RECLINING
72558-44010

ZGE21

 1
72653 - HOOK, REAR SEAT BACK REAR LOCK
72635-13010B0

ZGE2#..18S,18X,20X,20Z

DK.GRAY,TRIM1#

 1
72635-13010E2

ZGE20,21

GREGE,TRIM4#

 1
72681C - HOOK, REAR SEAT BACK LOCK, LOWER
72635-13020B0

ZGE2#..18S,18X,20X,20Z

DK.GRAY,TRIM1#

 1
72635-13020E2

ZGE20,21

GREGE,TRIM4#

 1
72704D - CABLE, REAR NO.2 SEAT RECLINING CONTROL
72704-68050

ZGE21

 1
79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH
79032-68080B0

ZGE2#..18S,18X,20X,20Z

DARK GRAY,TRIM1#

 1
79032-68080E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH
79034-68080B0

ZGE2#..18S,18X,20X,20Z

DARK GRAY,TRIM1#

 1
79034-68080E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH
79304-68030

ZGE21

 1
79306 - LEG SUB ASSY, NO.3 SEAT, LH
79306-68020

ZGE21

 1
79329 - BRACKET, NO.3 SEAT LEG, RR LH
79329-68010

ZGE21

 1
79345A - PAD, NO.3 SEAT CUSHION, LH
79345-68020

ZGE21

 1
79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH
79370-68020

ZGE21

 1
79382 - COVER, NO.3 SEAT FRONT BRACKET, LH
79372-68020B0

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#,4#

 2
79382 - COVER, NO.3 SEAT FRONT BRACKET, LH
79372-68020B0

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#,4#

 2
79385A - PAD, NO.3 SEAT BACK, LH
79385-68020

ZGE21

 1
Common parts
67771-12080
67771-28050
72702-68040
90084-16010
90105-10539
90105-11039
90109-06161
90109-10164
90179-06007
90205-10008
91552-81018
Linked diagrams
7104

(0909- )

Click highlighted areas on diagram

CLIP

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008

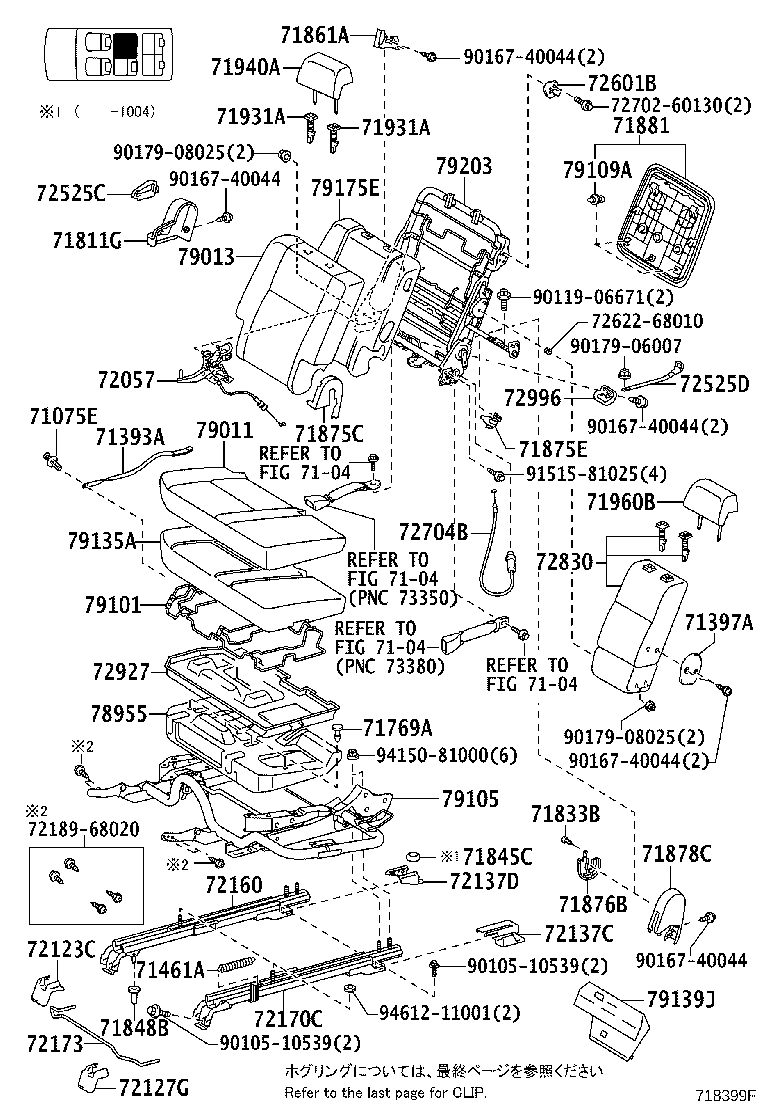

ILLUST NO. 1 OF 4(0909-1005) ; (1006- )ZGE20,21

Click highlighted areas on diagram

REAR NO.1 SEAT (RH)

diagram 7104 7104 7104 7104 71075E 71393A 71397A 71461A 71769A 71811G 71833B 71845C 71848B 71861A 71875C 71875E 71876B 71878C 71881 71931A 71931A 71940A 71960B 72057 72123C 72127G 72137C 72137D 72160 72170C 72173 7218968020 72525C 72525D 72601B 7262268010 7270260130 72704B 72830 72927 72996 78955 79011 79013 79101 79105 79109A 79135A 79139J 79175E 79203 9010510539 9010510539 9011906671 9016740044 9016740044 9016740044 9016740044 9016740044 9017906007 9017908025 9017908025 9017908025 9151581025 9415081000 9461211001
Part # Description Qty Price
71075E - CLIP(FOR REAR SEAT)
90467-06151C0

ZGE21..20X;ZGE2#..CVFC

BLACK

 2
71393A - BAND, REAR SEAT CUSHION, RH
71393-68020C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
71393-68020E0

ZGE20,21

GREGE,TRIM4#

 1
71397A - COVER, CENTER SEAT HINGE
71397-68010E0

ZGE20,21

GREGE,TRIM4#

 1
71397-68010C0

ZGE20,21..18S,18X,20X

BLACK,TRIM1#

 1
71461A - SPRING, REAR SEAT CUSHION, NO.1
71461-68011

ZGE2#

 1
71769A - CLIP, REAR SEAT BACK BOARD
71769-60010E3

ZGE20,21

GREGE,TRIM4#

 5
71769-60010C0

ZGE20,21..18S,18X,20X

BLACK,TRIM1#

 5
71811G - SHIELD, REAR SEAT CUSHION, RH
71811-68040E0

ZGE20,21

GREGE,TRIM4#

 1
71811-68040C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
71833B - CLIP (FOR REAR SEAT RECLINING COVER)
90467-05164C0

ZGE20,21..18S,18X,20X

BLACK,TRIM1#

 1
90467-05164E2

ZGE20,21

GREGE,TRIM4#

 1
71845C - CAP, REAR SEAT COVER
71845-68030

ZGE21

 2
71848B - CAP, SEAT ADJUSTER COVER, RH
71848-68010

ZGE2#

 2
71861A - SHIELD, REAR SEAT CUSHION, INNER RH
71861-68060C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
71861-68060E1

ZGE20,21

GREGE,TRIM4#

 1
71875C - COVER, RECLINING ADJUSTER INSIDE, RH
71875-68050C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
71875-68050E0

ZGE20,21

GREGE,TRIM4#

 1
71875E - COVER, RECLINING ADJUSTER INSIDE, RH
71875-68070

ZGE20,21

 1
71876B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-68010B0

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#,4#

 1
71878C - COVER, REAR SEAT RECLINING, INNER RH
71878-68010C0

ZGE20,21..18S,18X,20X

BLACK,TRIM1#

 1
71878-68010E0

ZGE20,21

GREGE,TRIM4#

 1
71881 - BOARD, REAR SEAT BACK, RH
71881-68010E0

ZGE20,21

GREGE,TRIM4#

 1
71881-68010C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-52030E0

ZGE20,21

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71930-52030B0

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020B4

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020E1

ZGE20,21

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-52030E0

ZGE20,21

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71930-52030B0

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020B4

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020E1

ZGE20,21

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-68120B0

ZGE2#..18S,18X,20X,20Z

DARK GRAY,TRIM1#

 2
71940-68120E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-68080E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
71960-68080B0

ZGE20,21..18S,18X,20X

DARK GRAY,TRIM1#

 1
72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
72057-68030

ZGE2#

 1
72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72137-68110B0

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#,4#

 1
72127G - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72137-68080B0

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#,4#

 1
72137C - COVER, SEAT TRACK INNER, RH
72137-68090B0

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#,4#

 1
72137D - COVER, REAR SEAT TRACK, RH
72137-68120

ZGE2#

 1
72160 - TRACK ASSY, REAR SEAT, OUTER RH
72160-68050

ZGE2#

 1
72170C - TRACK ASSY, REAR NO.1 SEAT, INNER RH
72170-68050

ZGE20,21

 1
72173 - HANDLE, REAR SEAT TRACK ADJUSTING
72173-68030

ZGE2#

 1
72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH
72525-47020C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
72525-47020E2

ZGE20,21

GREGE,TRIM4#

 1
72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH
72525-68070E0

ZGE20,21..18S,18X,20X

GREGE,TRIM1#,4#

 1
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72601-68020C0

ZGE20,21..18S,18X,20X

BLACK,TRIM1#

 1
72601-68020E0

ZGE20,21

GREGE,TRIM4#

 1
72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2
72704-68060

ZGE2#

 1
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-68090C0

ZGE20,21..18S,18X,20X

BLACK,TRIM1#

 1
72830-68090E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
72927 - COVER, REAR SEAT CUSHION UNDER, RH
72927-68010E0

ZGE20,21

GREGE,TRIM4#

 1
72927-68010C0

ZGE20,21..18S,18X,20X

BLACK,TRIM1#

 1
72996 - COVER, REAR SEAT BACK, RH
72996-68020C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
72996-68020E0

ZGE20,21

GREGE,TRIM4#

 1
78955 - COVER, REAR SEAT UNDER TRAY RH
78955-68011E0

ZGE20,21

GREGE,TRIM4#

 1
78955-68011C0

ZGE20,21..18S,18X,20X

BLACK,TRIM1#

 1
79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
79011-68080B0

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#

 1
79011-68080E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH
79013-68130E1

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
79013-68130B1

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#

 1
79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION
79101-68030

ZGE20,21

 1
79105 - LEG SUB-ASSY, NO.1 SEAT, RH
79105-68040

ZGE20,21

 1
79109A - CLIP (FOR NO.1 SEAT BACK BOARD)
67771-12080

ZGE2#

 2
79135A - PAD, NO.1 SEAT CUSHION, RH
79135-68030

ZGE20,21

 1
79139J - CLOTH, NO.1 SEAT CUSHION RH
79139-68040

ZGE2#

 1
79175E - PAD, NO.1 SEAT BACK, RH
79175-68040

ZGE20,21

 1
79203 - FRAME SUB-ASSY, NO.2 SEAT BACK
79203-68070

ZGE20,21

 1
Common parts
72189-68020
72622-68010
72702-60130
90105-10539
90119-06671
90167-40044
90179-06007
90179-08025
91515-81025
94150-81000
94612-11001
Linked diagrams
7104

ILLUST NO. 2 OF 4(0909-1005) ; (1006- )ZGE20,21

Click highlighted areas on diagram

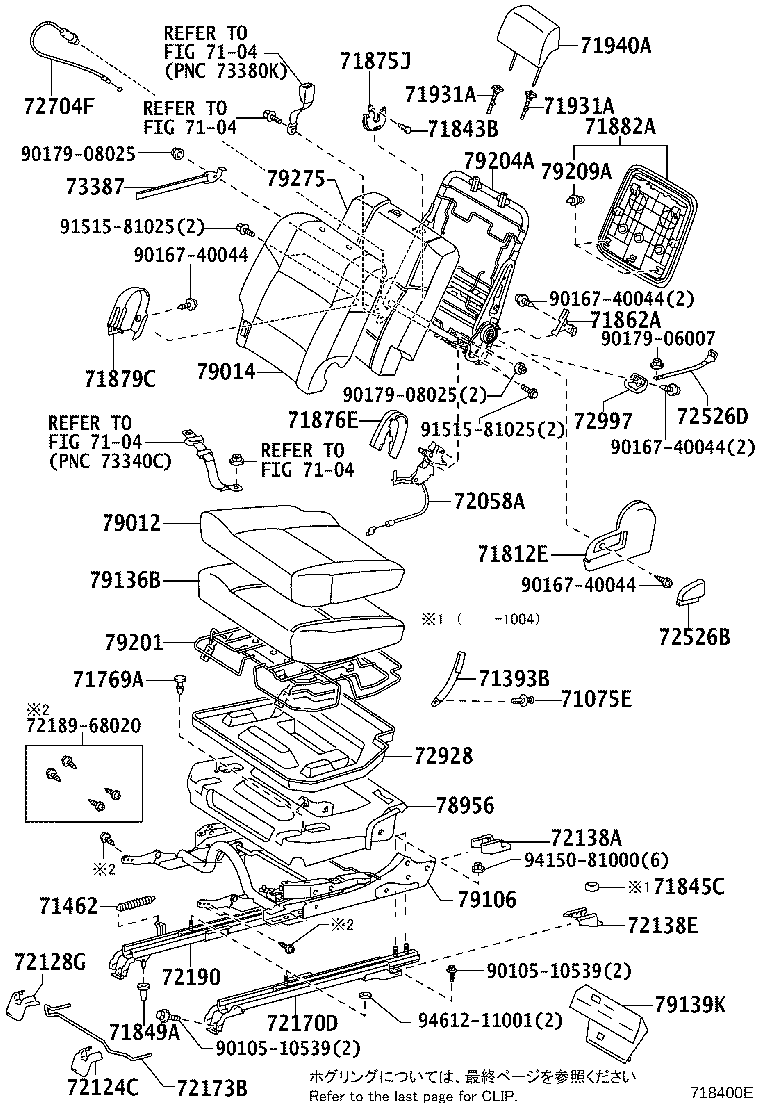

REAR NO.1 SEAT (LH)

diagram 7104 7104 7104 7104 71075E 71393B 71462 71769A 71812E 71843B 71845C 71849A 71862A 71875J 71876E 71879C 71882A 71931A 71931A 71940A 72058A 72124C 72128G 72138A 72138E 72170D 72173B 7218968020 72190 72526B 72526D 72704F 72928 72997 73387 78956 79012 79014 79106 79136B 79139K 79201 79204A 79209A 79275 9010510539 9010510539 9016740044 9016740044 9016740044 9016740044 9017906007 9017908025 9017908025 9151581025 9151581025 9415081000 9461211001
Part # Description Qty Price
71075E - CLIP(FOR REAR SEAT)
90467-06151C0

ZGE21..20X;ZGE2#..CVFC

BLACK

 2
71393B - BAND, REAR SEAT CUSHION, LH
71393-68020E0

ZGE20,21

GREGE,TRIM4#

 1
71393-68020C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
71462 - SPRING, REAR SEAT CUSHION, NO.2
71461-68011

ZGE2#

 1
71769A - CLIP, REAR SEAT BACK BOARD
71769-60010E3

ZGE20,21

GREGE,TRIM4#

 5
71769-60010C0

ZGE20,21..18S,18X,20X

BLACK,TRIM1#

 5
71812E - COVER, RECLINING ADJUSTER, LH
71812-68040C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
71812-68040E0

ZGE20,21

GREGE,TRIM4#

 1
71843B - CLIP, REAR SEAT RECLINING COVER
90467-05164E2

ZGE20,21

GREGE,TRIM4#

 1
90467-05164C0

ZGE20,21..18S,18X,20X

BLACK,TRIM1#

 1
71845C - CAP, REAR SEAT COVER
71845-68030

ZGE21

 2
71849A - CAP, SEAT ADJUSTER COVER, LH
71848-68010

ZGE2#

 2
71862A - SHIELD, REAR SEAT CUSHION, INNER LH
71862-68030C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
71862-68030E1

ZGE20,21

GREGE,TRIM4#

 1
71875J - COVER, RECLINING ADJUSTER INSIDE, RH
71875-68020B0

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#,4#

 1
71876E - COVER, RECLINING ADJUSTER INSIDE, LH
71876-68060E0

ZGE20,21

GREGE,TRIM4#

 1
71876-68060C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
71879C - COVER, REAR SEAT RECLINING, INNER LH
71879-68010C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
71879-68010E0

ZGE20,21

GREGE,TRIM4#

 1
71882A - BOARD, REAR SEAT BACK, LH
71881-68010E0

ZGE20,21

GREGE,TRIM4#

 1
71881-68010C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-52030E0

ZGE20,21

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71930-52030B0

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020B4

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020E1

ZGE20,21

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-52030E0

ZGE20,21

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71930-52030B0

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020B4

ZGE2#..18S,18X,20X,20Z

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

 2
71931-42020E1

ZGE20,21

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-68120B0

ZGE2#..18S,18X,20X,20Z

DARK GRAY,TRIM1#

 2
71940-68120E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 2
72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH
72058-68030

ZGE2#

 1
72124C - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72137-68080B0

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#,4#

 1
72128G - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72137-68110B0

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#,4#

 1
72138A - COVER, REAR SEAT TRACK, LH
72138-68020B0

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#,4#

 1
72138E - COVER, SEAT TRACK, INNER LH
72137-68120

ZGE2#

 1
72170D - TRACK ASSY, REAR SEAT, OUTER LH
72210-68010

ZGE2#

 1
72173B - HANDLE, REAR SEAT TRACK ADJUSTING, LH
72173-68030

ZGE2#

 1
72190 - TRACK ASSY, REAR SEAT INNER, LH
72220-68010

ZGE20,21

 1
72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH
72526-47020C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
72526-47020E2

ZGE20,21

GREGE,TRIM4#

 1
72526D - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH
72525-68070E0

ZGE20,21..18S,18X,20X

GREGE,TRIM1#,4#

 1
72704F - CABLE, REAR SEAT RECLINING CONTROL, NO.3
72704-68060

ZGE2#

 1
72928 - COVER, REAR SEAT CUSHION UNDER, LH
72928-68010C0

ZGE20,21..18S,18X,20X

BLACK,TRIM1#

 1
72928-68010E0

ZGE20,21

GREGE,TRIM4#

 1
72997 - COVER, REAR SEAT BACK, LH
72996-68020C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
72996-68020E0

ZGE20,21

GREGE,TRIM4#

 1
73387 - BAND, RR SEAT BELT GUIDE, NO.1
73387-68020

ZGE20,21

 1
78956 - COVER, REAR SEAT UNDER TRAY LH
78955-68021C0

ZGE2#..18S,18X,20X,20Z

BLACK,TRIM1#

 1
78955-68021E0

ZGE20,21

GREGE,TRIM4#

 1
79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79021-68080E0

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
79021-68080B0

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#

 1
79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79023-68100B1

ZGE20,21..18S,18X,20X

DK.GRAY,TRIM1#

 1
79023-68100E1

ZGE21..20X;ZGE20,21..CVFC

GREGE,TRIM4#

 1
79106 - LEG SUB ASSY, NO.1 SEAT, LH
79105-68060

ZGE2#

 1
79136B - PAD, NO.1 SEAT CUSHION, LH
79235-68030

ZGE20,21

 1
79139K - CLOTH, NO.1 SEAT CUSHION LH
79139-68040

ZGE2#

 1
79201 - FRAME SUB-ASSY, NO.2 SEAT CUSHION
79201-68030

ZGE20,21

 1
79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH
79204-68050

ZGE20,21

 1
79209A - CLIP (FOR NO.2 SEAT BACK BOARD)
67771-12080

ZGE2#

 2
79275 - PAD, NO.2 SEAT BACK
79275-68040

ZGE20,21

 1
Common parts
72189-68020
90105-10539
90167-40044
90179-06007
90179-08025
91515-81025
94150-81000
94612-11001
Linked diagrams
7104

ILLUST NO. 2 OF 4(0911- )

Click highlighted areas on diagram

REAR NO.1 SEAT (RH)

diagram 7104 7104 7104 7104 71075E 71393A 71461A 71811G 71812E 71843B 71875C 71875E 71876B 71931A 71931A 71940A 72057 72137C 72137D 72137Q 72137R 72160 72170 72173 721890M010 721890M010 721890M010 72507B 72525C 72595 72704A 72927 73115A 73387 78955 79011 79013 79101 79105 79109 79109A 79135A 79139J 79175E 79180A 9010506216 9011910886 9016845002 9017908025 9017908025 9046816019 9046816019 9151581025 9151581025 9321056008 9415081000
Part # Description Qty Price
Common parts
72189-0M010
90105-06216
90119-10886
90168-45002
90179-08025
90468-16019
91515-81025
93210-56008
94150-81000
Linked diagrams
7104

ILLUST NO. 3 OF 4(0911- )

Click highlighted areas on diagram

REAR NO.2 SEAT (LH)

diagram 6777112080 7104 7104 71628H 71628H 71628H 71702B 71769A 71843D 71844C 71931E 71931E 71970 72068 72526C 72526E 72553C 72554B 727020M010 727020M010 72704D 79032 79034 79304A 79306 79329 79345A 79370A 79382D 79382D 79385A 9008416010 9008416010 9010906292 9010910164 9010910164 9010910164 9011910886 9011910886 9014940012 9016840046 9017906007 9020510008 9046816019 9151281016 91611G0612
Part # Description Qty Price
Common parts
67771-12080
72702-0M010
90084-16010
90109-06292
90109-10164
90119-10886
90149-40012
90168-40046
90179-06007
90205-10008
90468-16019
91512-81016
91611-G0612
Linked diagrams
7104

ILLUST NO. 4 OF 4(0911- )

Click highlighted areas on diagram

REAR NO.2 SEAT (RH)

diagram 6777112080 7104 7104 71628G 71628G 71628G 71628G 71628G 71701B 71769A 71843A 71844A 71931E 71931E 71970 72067 72525D 72525E 72553A 72554A 727020M010 727020M010 72704C 79031B 79033 79303A 79305A 79319 79335A 79360A 79372B 79372B 79375A 9008416010 9008416010 9010906292 9010910164 9010910164 9010910164 9010910164 9010910164 9011910886 9014940012 9016840046 9017906007 9020510008 9046816019 9151281016 91611G0612
Part # Description Qty Price
Common parts
67771-12080
72702-0M010
90084-16010
90109-06292
90109-10164
90119-10886
90149-40012
90168-40046
90179-06007
90205-10008
90468-16019
91512-81016
91611-G0612
Linked diagrams
7104

ILLUST NO. 1 OF 4(0911- )

Click highlighted areas on diagram

REAR NO.1 SEAT (LH)

diagram 7104 7104 7104 7104 71075E 71393B 71462 71485 71811H 71812F 71843B 71875J 71876E 71876J 71931A 71931A 71940A 72058A 72138A 72138E 72138K 72138L 72170D 72173 721890M010 721890M010 721890M010 721890M010 72220 72261B 72507C 72526B 72596 72601B 72622C 72704B 72830 72928 73115A 78955A 79012 79014 79106 79136B 79139K 79185 79190A 79201 79209 79209A 9010506216 9011910886 9016845002 9017908025 9017908025 9017908025 9046816019 9046816019 9151581025 9151581025 9165140620 9321056008 9415081000 9461211001
Part # Description Qty Price
Common parts
72189-0M010
90105-06216
90119-10886
90168-45002
90179-08025
90468-16019
91515-81025
91651-40620
93210-56008
94150-81000
94612-11001
Linked diagrams
7104
