ZGE21L-JPXEKR (2012)
Toyota Wish
Production
Dec 2012
-
Jun 2016
Engine
3ZRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

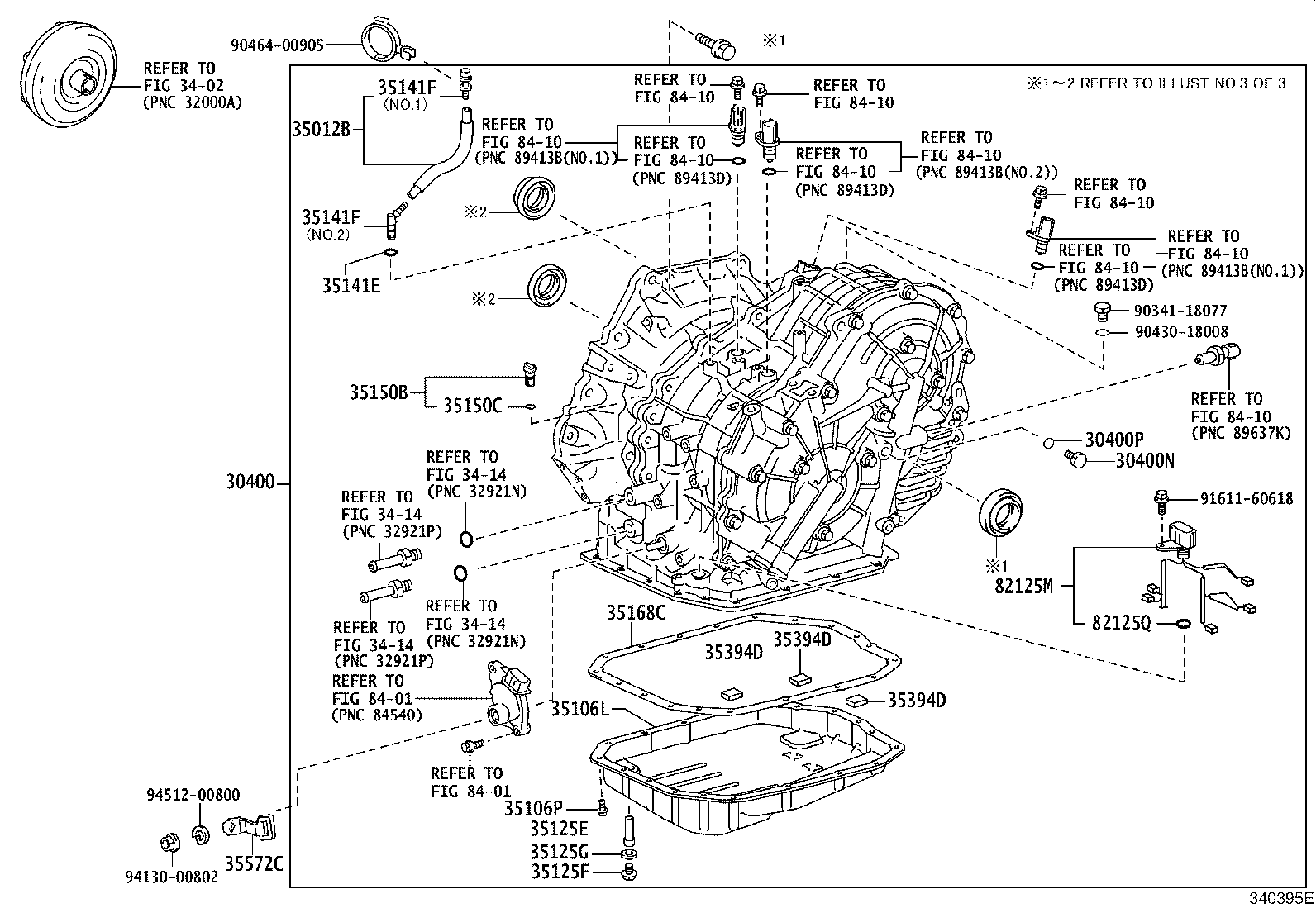

ILLUST NO. 1 OF 3(1212- )
Click highlighted areas on diagram
K111
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-20030 |
ZGE21 K111 |
1 | ||
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18077 |
ZGE21 |
1 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
ZGE21 |
1 | ||
| 35012B - HOSE SUB-ASSY, TRANSMISSION BREATHER | ||||
| 3510A-44012 |
ZGE21 |
1 | ||
| 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) | ||||
| 35106-20031 |
ZGE21 |
1 | ||
| 35106-20032 |
ZGE21 |
1 | ||
| 35106P - BOLT(FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
ZGE21 |
19 | ||
| 35125E - TUBE, OVERFLOW(CVT) | ||||
| 35125-44071 |
ZGE21 |
1 | ||
| 35125-44070 |
ZGE21 |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90341-12034 |
ZGE21 |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90430-12008 |
ZGE21 |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-06021 |
ZGE21 |
1 | ||
| 90301-06005 |
ZGE21 |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03149 |
ZGE21 NO.1 |
1 | ||
| 90930-03164 |
ZGE21 NO.2 |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03149 |
ZGE21 NO.1 |
1 | ||
| 90930-03164 |
ZGE21 NO.2 |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-48010 |
ZGE21 |
1 | ||
| 35150C - RING, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
ZGE21 |
1 | ||
| 35168C - GASKET, TRANSAXLE OIL PAN(CVT) | ||||
| 35168-20010 |
ZGE21 |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZGE21 |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZGE21 |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZGE21 |
3 | ||
| 35572C - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-42030 |
ZGE21 |
1 | ||
| 82125M - WIRE, TRANSMISSION | ||||
| 82125-44020 |
ZGE21 |
1 | ||
| 82125Q - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
ZGE21 |
1 | ||
| Common parts | ||||
| 90341-18077 | ||||
| 90430-18008 | ||||
| 90464-00905 | ||||
| 91611-60618 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 3402 | ||||
| 3414 | ||||
| 8401 | ||||
| 8410 | ||||

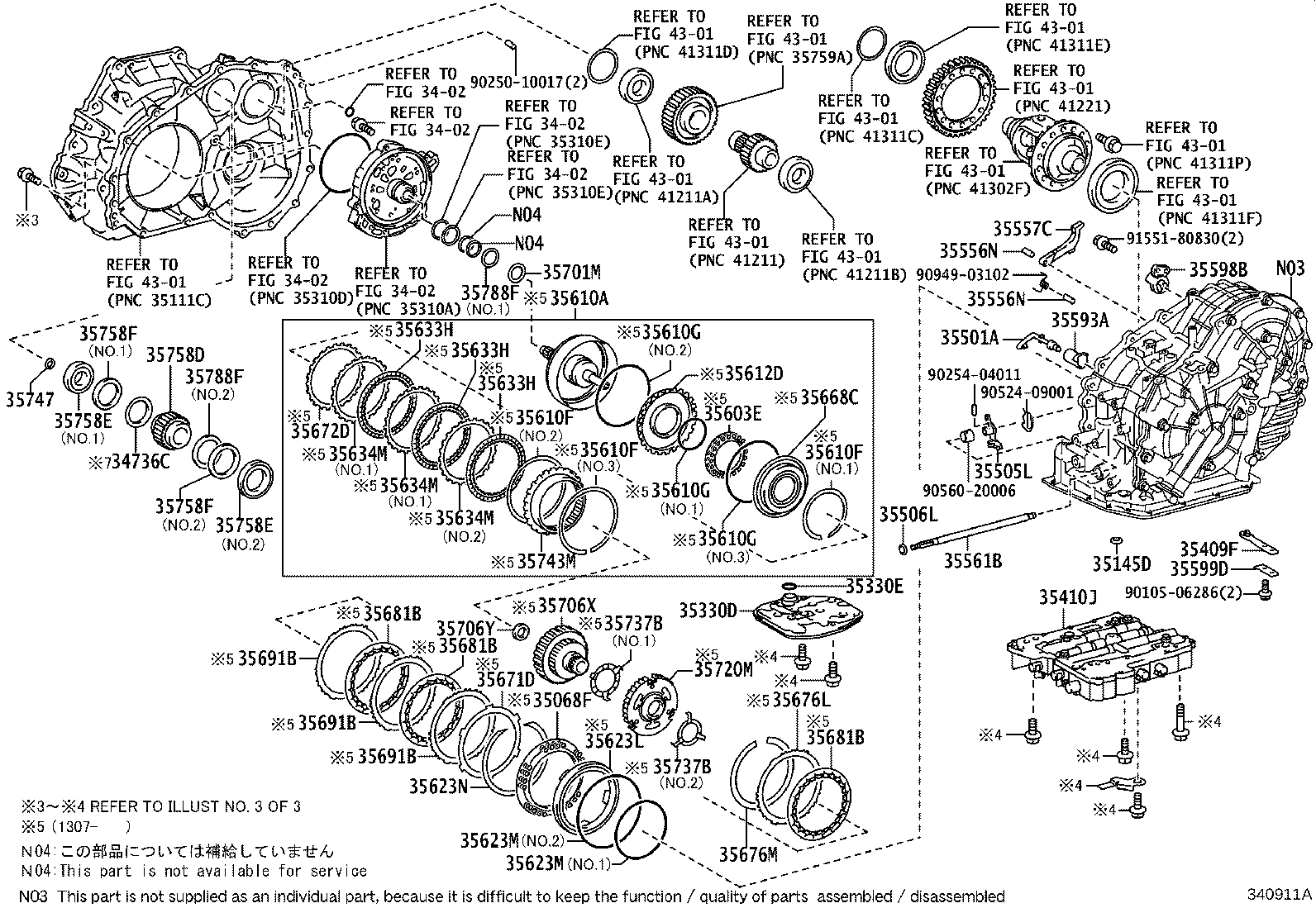

ILLUST NO. 2 OF 3(1212- )
Click highlighted areas on diagram
K111
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34736C - RACE, THRUST BEARING UNDERDRIVE, NO.2 | ||||
| 34736-44010 |
ZGE21 |
1 | ||
| 34736-44011 |
ZGE21 |
1 | ||
| 35068F - SPRING SUB-ASSY, REVERSE BRAKE RETURN | ||||
| 35068-28020 |
ZGE21 |
1 | ||
| 35145D - GASKET, TRANSAXLE CASE | ||||
| 35145-21010 |
ZGE21 |
1 | ||
| 35145-33010 |
ZGE21 |
1 | ||
| 35330D - STRAINER ASSY, OIL | ||||
| 35330-0W090 |
ZGE21 |
1 | ||
| 35330E - RING, O (FOR OIL STRAINER) | ||||
| 90301-24013 |
ZGE21 |
1 | ||
| 35409F - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-44010 |
ZGE21 |
1 | ||
| 35410J - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-20571 |
ZGE21 |
1 | ||
| 35501A - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-63012 |
ZGE21 |
1 | ||
| 35505L - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-44030 |
ZGE21 |
1 | ||
| 35506L - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
ZGE21 |
1 | ||
| 35556N - SHAFT, PARKING LOCK PAWL | ||||
| 35556-63010 |
ZGE21 |
2 | ||
| 35556N - SHAFT, PARKING LOCK PAWL | ||||
| 35556-63010 |
ZGE21 |
2 | ||
| 35557C - PAWL, PARKING LOCK | ||||
| 35557-28030 |
ZGE21 |
1 | ||
| 35561B - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-63010 |
ZGE21 |
1 | ||
| 35593A - SLEEVE, CAM GUIDE | ||||
| 35593-63010 |
ZGE21 |
1 | ||
| 35598B - SLEEVE, PARKING LOCK | ||||
| 35598-63010 |
ZGE21 |
1 | ||
| 35599D - COVER, MANUAL DETENT SPRING | ||||
| 35599-44010 |
ZGE21 |
1 | ||
| 35603E - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-44020 |
ZGE21 |
1 | ||
| 35610A - CLUTCH ASSY, FORWARD MULTIPLE DISC | ||||
| 35610-44030 |
ZGE21 |
1 | ||
| 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90520-48011 |
ZGE21 NO.1 |
1 | ||
| 90520-99092 |
ZGE21 NO.3 |
1 | ||
| 90520-99091 |
ZGE21 NO.2 |
1 | ||
| 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90520-48011 |
ZGE21 NO.1 |
1 | ||
| 90520-99092 |
ZGE21 NO.3 |
1 | ||
| 90520-99091 |
ZGE21 NO.2 |
1 | ||
| 35610F - RING, SNAP (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90520-48011 |
ZGE21 NO.1 |
1 | ||
| 90520-99092 |
ZGE21 NO.3 |
1 | ||
| 90520-99091 |
ZGE21 NO.2 |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90301-99199 |
ZGE21 NO.3 |
1 | ||
| 90301-99110 |
ZGE21 NO.2 |
1 | ||
| 90301-56007 |
ZGE21 NO.1 |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90301-99199 |
ZGE21 NO.3 |
1 | ||
| 90301-99110 |
ZGE21 NO.2 |
1 | ||
| 90301-56007 |
ZGE21 NO.1 |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90301-99199 |
ZGE21 NO.3 |
1 | ||
| 90301-99110 |
ZGE21 NO.2 |
1 | ||
| 90301-56007 |
ZGE21 NO.1 |
1 | ||
| 35612D - PISTON, FORWARD CLUTCH | ||||
| 35612-28020 |
ZGE21 |
1 | ||
| 35623L - PISTON, REVERSE BRAKE | ||||
| 35623-28040 |
ZGE21 |
1 | ||
| 35623M - RING, O (FOR REVERSE BRAKE PISTON) | ||||
| 90301-99126 |
ZGE21 NO.2 |
1 | ||
| 90301-99084 |
ZGE21 NO.1 |
1 | ||
| 35623M - RING, O (FOR REVERSE BRAKE PISTON) | ||||
| 90301-99126 |
ZGE21 NO.2 |
1 | ||
| 90301-99084 |
ZGE21 NO.1 |
1 | ||
| 35623N - RING, SNAP (FOR REVERSE BRAKE PISTON) | ||||
| 90520-99060 |
ZGE21 |
1 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-28020 |
ZGE21 |
3 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-28020 |
ZGE21 |
3 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-28020 |
ZGE21 |
3 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-28020 |
ZGE21 NO.2,T=1.8 |
1 | ||
| 35634-28040 |
ZGE21 NO.2,T=2.1 |
1 | ||
| 35634-28050 |
ZGE21 NO.2,T=2.4 |
1 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-28020 |
ZGE21 NO.2,T=1.8 |
1 | ||
| 35634-28040 |
ZGE21 NO.2,T=2.1 |
1 | ||
| 35634-28050 |
ZGE21 NO.2,T=2.4 |
1 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-28020 |
ZGE21 NO.2,T=1.8 |
1 | ||
| 35634-28040 |
ZGE21 NO.2,T=2.1 |
1 | ||
| 35634-28050 |
ZGE21 NO.2,T=2.4 |
1 | ||
| 35668C - BALANCER, CLUTCH, NO.1 | ||||
| 35668-28010 |
ZGE21 |
1 | ||
| 35671D - PLATE, BRAKE CUSHION | ||||
| 35671-28010 |
ZGE21 |
1 | ||
| 35672D - PLATE, CLUTCH CUSHION | ||||
| 35672-44020 |
ZGE21 |
1 | ||
| 35676L - FLANGE, BRAKE | ||||
| 35676-28150 |
ZGE21 |
1 | ||
| 35676M - RING, SNAP (FOR BRAKE FLANGE) | ||||
| 90520-99061 |
ZGE21 |
1 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-28020 |
ZGE21 |
3 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-28020 |
ZGE21 |
3 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-28020 |
ZGE21 |
3 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35691-28020 |
ZGE21 |
3 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35691-28020 |
ZGE21 |
3 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35691-28020 |
ZGE21 |
3 | ||
| 35701M - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT) | ||||
| 90374-26006 |
ZGE21 OD=43.0 |
1 | ||
| 35706X - GEAR SUB-ASSY, PLANETARY SUN | ||||
| 35706-28010 |
ZGE21 |
1 | ||
| 35706Y - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) | ||||
| 90374-17001 |
ZGE21 |
1 | ||
| 35720M - GEAR ASSY, PLANETARY | ||||
| 35720-28060 |
ZGE21 |
1 | ||
| 35737B - WASHER, PLANETARY CARRIER THRUST | ||||
| 35737-28040 |
ZGE21 NO.2 |
1 | ||
| 35737-28030 |
ZGE21 NO.1 |
1 | ||
| 35737B - WASHER, PLANETARY CARRIER THRUST | ||||
| 35737-28040 |
ZGE21 NO.2 |
1 | ||
| 35737-28030 |
ZGE21 NO.1 |
1 | ||
| 35743M - GEAR, PLANETARY RING | ||||
| 35743-44010 |
ZGE21 |
1 | ||
| 35747 - RING, SHEAVE SHAFT OIL SEAL | ||||
| 35748-63010 |
ZGE21 |
1 | ||
| 35758D - GEAR, REDUCTION DRIVE | ||||
| 35758-44011 |
ZGE21 |
1 | ||
| 35758-44010 |
ZGE21 |
1 | ||
| 35758E - BEARING, CYLINDRICAL ROLLER (FOR REDUCTION DRIVE GEAR) | ||||
| 90365-42004 |
ZGE21 NO.1 |
1 | ||
| 90365-55002 |
ZGE21 NO.2 |
1 | ||
| 35758E - BEARING, CYLINDRICAL ROLLER (FOR REDUCTION DRIVE GEAR) | ||||
| 90365-42004 |
ZGE21 NO.1 |
1 | ||
| 90365-55002 |
ZGE21 NO.2 |
1 | ||
| 35758F - BEARING, THRUST NEEDLE ROLLER (FOR REDUCTION DRIVE GEAR | ||||
| 90374-42013 |
ZGE21 NO.1 |
1 | ||
| 90374-55001 |
ZGE21 NO.2 |
1 | ||
| 90374-42014 |
ZGE21 NO.1 |
1 | ||
| 90374-42015 |
ZGE21 NO.1 |
1 | ||
| 35758F - BEARING, THRUST NEEDLE ROLLER (FOR REDUCTION DRIVE GEAR | ||||
| 90374-42013 |
ZGE21 NO.1 |
1 | ||
| 90374-55001 |
ZGE21 NO.2 |
1 | ||
| 90374-42014 |
ZGE21 NO.1 |
1 | ||
| 90374-42015 |
ZGE21 NO.1 |
1 | ||
| 35788F - RACE, THRUST BEARING | ||||
| 35789-63010 |
ZGE21 NO.1,OD=43.7 |
1 | ||
| 35789-63031 |
ZGE21 NO.2 |
1 | ||
| 35789-63020 |
ZGE21 NO.1,OD=44.5 |
1 | ||
| 35788F - RACE, THRUST BEARING | ||||
| 35789-63010 |
ZGE21 NO.1,OD=43.7 |
1 | ||
| 35789-63031 |
ZGE21 NO.2 |
1 | ||
| 35789-63020 |
ZGE21 NO.1,OD=44.5 |
1 | ||
| Common parts | ||||
| 90105-06286 | ||||
| 90250-10017 | ||||
| 90254-04011 | ||||
| 90524-09001 | ||||
| 90560-20006 | ||||
| 90949-03102 | ||||
| 91551-80830 | ||||
| Linked diagrams | ||||
| 3402 | ||||
| 4301 | ||||

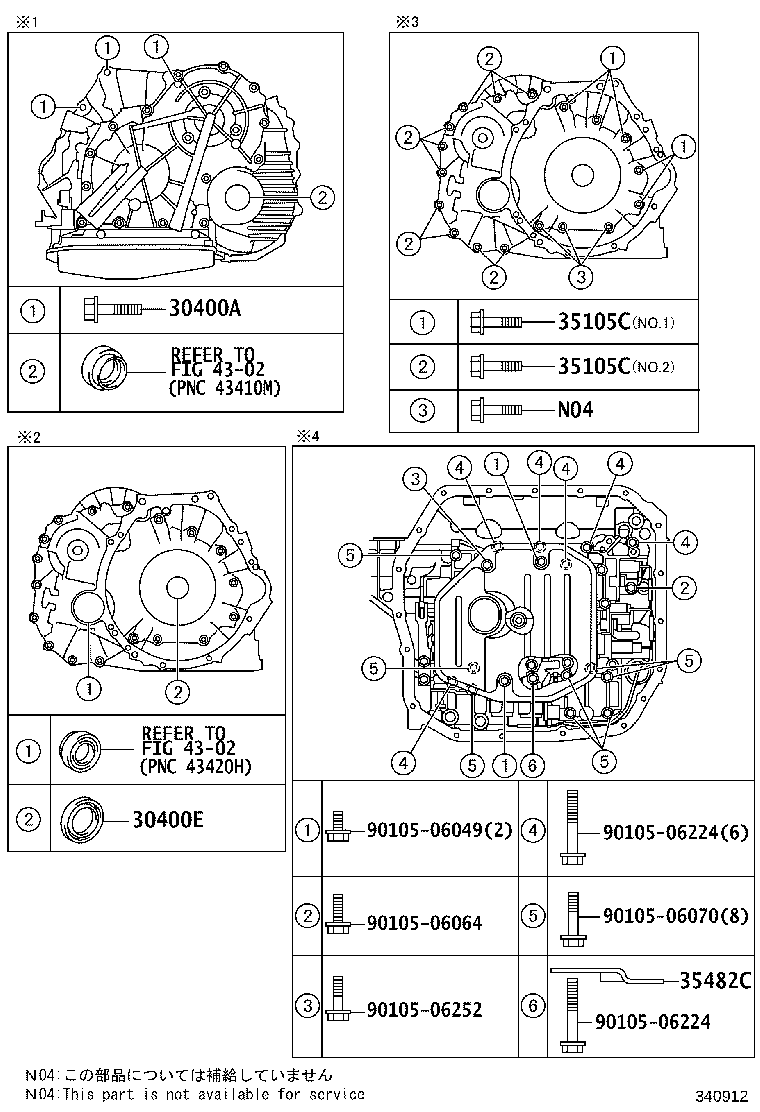

ILLUST NO. 3 OF 3(1212- )
Click highlighted areas on diagram
K111
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91512-61045 |
ZGE21 |
3 | ||
| 30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP) | ||||
| 90311-45027 |
ZGE21 |
1 | ||
| 35105C - BOLT(FOR TRANSAXLE HOUSING & CASE SET) | ||||
| 90105-08234 |
ZGE21 NO.2 |
10 | ||
| 91551-00830 |
ZGE21 NO.1 |
5 | ||
| 90105-08071 |
ZGE21 NO.1 |
5 | ||
| 35105C - BOLT(FOR TRANSAXLE HOUSING & CASE SET) | ||||
| 90105-08234 |
ZGE21 NO.2 |
10 | ||
| 91551-00830 |
ZGE21 NO.1 |
5 | ||
| 90105-08071 |
ZGE21 NO.1 |
5 | ||
| 35482C - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-44010 |
ZGE21 |
1 | ||
| Common parts | ||||
| 90105-06049 | ||||
| 90105-06064 | ||||
| 90105-06070 | ||||
| 90105-06224 | ||||
| 90105-06252 | ||||
| Linked diagrams | ||||
| 4302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
