ZGE21L-JPPJKR (2009)

Toyota Wish

Production Nov 2009 - Dec 2012
Engine 3ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0909-1005)

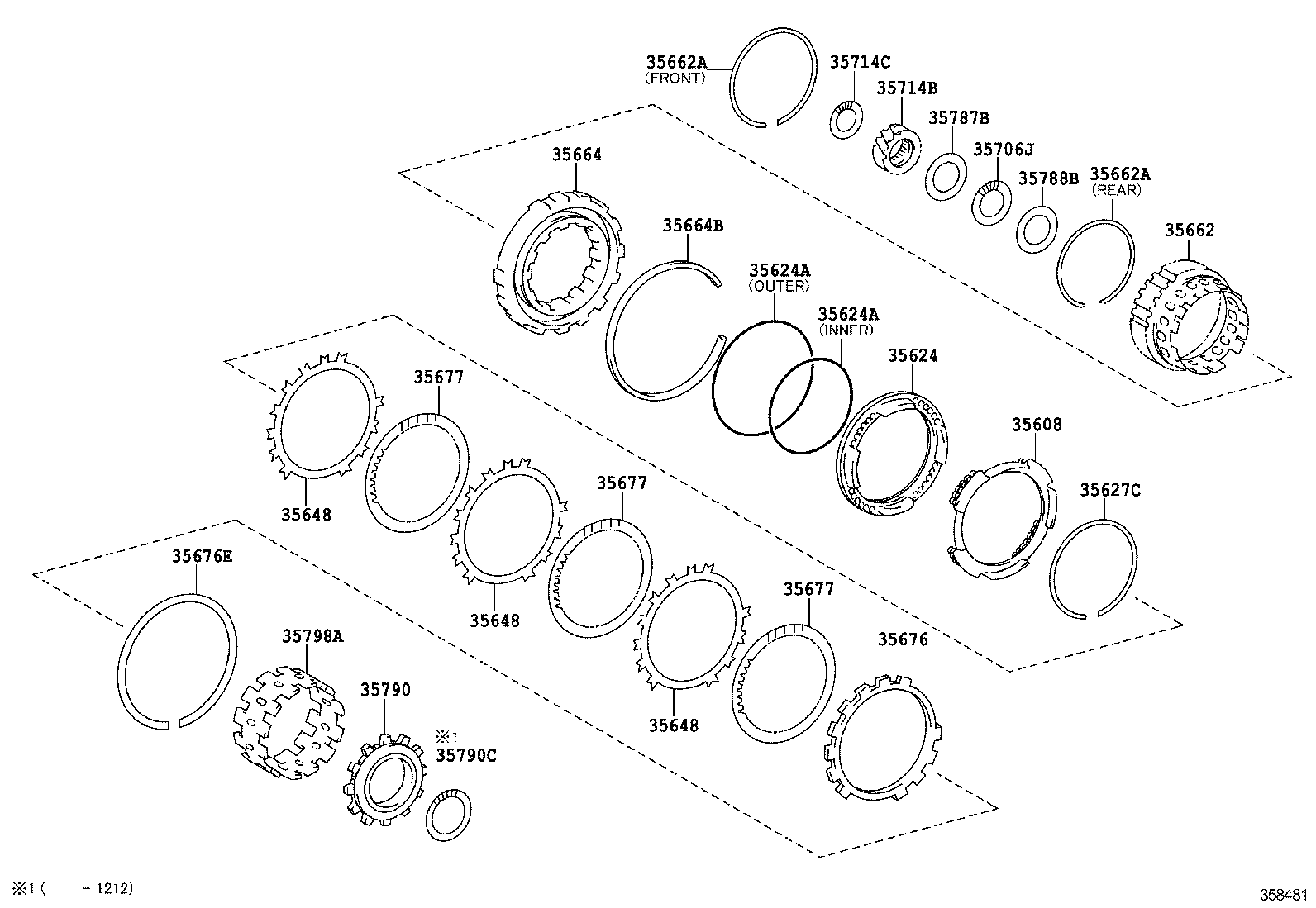

Click highlighted areas on diagram

U241E

diagram 35608 35624 35624A 35624A 35627C 35648 35648 35648 35662 35662A 35662A 35664 35664B 35676 35676E 35677 35677 35677 35706J 35714B 35714C 35787B 35788B 35790 35790C 35798A
Part # Description Qty Price

(0911- )4FC

Click highlighted areas on diagram

U241E

diagram 35608 35624 35624A 35624A 35627C 35648 35648 35648 35662 35662A 35662A 35664 35664B 35676 35676E 35677 35677 35677 35706J 35714B 35714C 35787B 35788B 35790 35790C 35798A
Part # Description Qty Price
35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608-21010

ZGE21..4FC

 1
35624 - PISTON, 2ND BRAKE
35624-33030

ZGE21..4FC

 1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99095

ZGE21..4FC

INNER

 1
90301-99093

ZGE21..4FC

OUTER

 1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99095

ZGE21..4FC

INNER

 1
90301-99093

ZGE21..4FC

OUTER

 1
35627C - RING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEA
90520-99036

ZGE21..4FC

 1
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35691-21010

ZGE21..4FC

T=2.0

 3
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35691-21010

ZGE21..4FC

T=2.0

 3
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35691-21010

ZGE21..4FC

T=2.0

 3
35662 - HUB, BRAKE
35662-21010

ZGE21..4FC

 1
35662A - RING, SNAP (FOR BRAKE HUB)
90520-99033

ZGE21..4FC

FRONT

 1
90520-99024

ZGE21..4FC

REAR

 1
35662A - RING, SNAP (FOR BRAKE HUB)
90520-99033

ZGE21..4FC

FRONT

 1
90520-99024

ZGE21..4FC

REAR

 1
35664 - CYLINDER, 2ND BRAKE
35664-33010

ZGE21..4FC

 1
35664B - RING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)
90520-99027

ZGE21..4FC

 1
35676 - FLANGE, BRAKE (FOR 2ND BRAKE)
35676-21090

ZGE21..4FC

T=3.2,MARK 3

 1
35676-21100

ZGE21..4FC

T=3.3,MARK 4

 1
35676-21110

ZGE21..4FC

T=3.4,MARK 5

 1
35676-21130

ZGE21..4FC

T=3.6,MARK 7

 1
35676-21010

ZGE21..4FC

T=3.7,MARK 8

 1
35676-21070

ZGE21..4FC

T=3.0,MARK 1

 1
35676-21120

ZGE21..4FC

T=3.5,MARK 6

 1
35676-21020

ZGE21..4FC

T=2.9,MARK 0

 1
35676-21080

ZGE21..4FC

T=3.1,MARK 2

 1
35676E - RING, HOLE SNAP (FOR 2ND BRAKE)
90520-99026

ZGE21..4FC

 1
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35681-21010

ZGE21..4FC

 3
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35681-21010

ZGE21..4FC

 3
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35681-21010

ZGE21..4FC

 3
35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
90374-38002

ZGE21..4FC

 1
35714B - GEAR, INPUT SUN
35714-21010

ZGE21..4FC

 1
35714C - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SUN GEAR)
90374-34006

ZGE21..4FC

 1
35787B - RACE, THRUST BEARING, NO.2
35787-21010

ZGE21..4FC

 1
35788B - RACE, THRUST BEARING, NO.3
35788-21010

ZGE21..4FC

 1
35790 - CLUTCH ASSY, 1 WAY
35790-33020

ZGE21..4FC

 1
35790C - BEARING, THRUST NEEDLE ROLLER
90374-53001

ZGE21

 1
90374-53006

ZGE21

 1
35798A - SLEEVE, 1WAY CLUTCH, OUTER
35798-21011

ZGE21..4FC

 1
