ZGE21L-JPPGKR (2009)
Toyota Wish
ILLUST NO. 1 OF 2(0909-1005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-06959 | ||||
| 90179-06274 | ||||
| 91515-80620 | ||||
| 91621-B0816 | ||||
| Linked diagrams | ||||
| 8718 | ||||
ILLUST NO. 2 OF 2(0909-1005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08433 | ||||
| 90116-06127 | ||||
| 90119-08A53 | ||||
| 90126-06026 | ||||
| 91551-80825 | ||||
| 91553-F0830 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 8716 | ||||

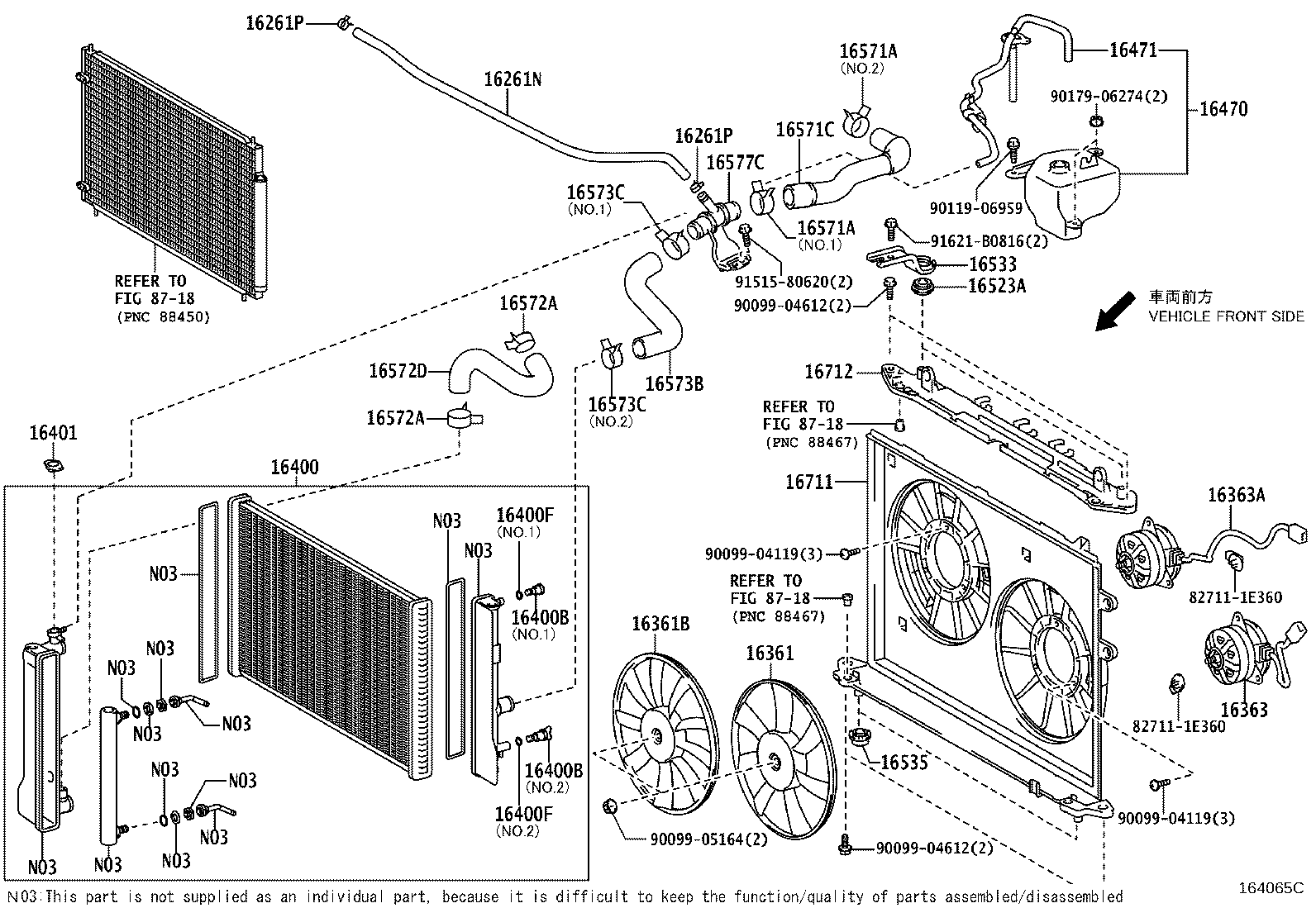

ILLUST NO. 1 OF 2(0911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-0T050 |
3ZRFE..ZGE21 |
1 | ||
| 16261-0T051 |
3ZRFE..ZGE21 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
3ZRFE..ZGE21 NO.1 |
1 | ||
| 96136-41901 |
3ZRFE..ZGE21 NO.1 |
1 | ||
| 90467-15022 |
3ZRFE..ZGE21 NO.2 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
3ZRFE..ZGE21 NO.1 |
1 | ||
| 96136-41901 |
3ZRFE..ZGE21 NO.1 |
1 | ||
| 90467-15022 |
3ZRFE..ZGE21 NO.2 |
1 | ||
| 16361 - FAN | ||||
| 16361-0T070 |
3ZRFE..ZGE21 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-0T080 |
3ZRFE..ZGE21 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0T050 |
3ZRFE..ZGE21 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-0H060 |
3ZRFE..ZGE21 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-0D430 |
3ZRFE..ZGE21 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-28530 |
3ZRFE..ZGE21 NO.1 |
1 | ||
| 16417-21280 |
3ZRFE..ZGE21 NO.2 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-28530 |
3ZRFE..ZGE21 NO.1 |
1 | ||
| 16417-21280 |
3ZRFE..ZGE21 NO.2 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
3ZRFE..ZGE21 NO.2 |
1 | ||
| 16418-20290 |
3ZRFE..ZGE21 NO.1 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
3ZRFE..ZGE21 NO.2 |
1 | ||
| 16418-20290 |
3ZRFE..ZGE21 NO.1 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-20353 |
3ZRFE..ZGE21 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0T050 |
3ZRFE..ZGE21 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-11003 |
3ZRFE..ZGE21 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0T030 |
3ZRFE..ZGE21 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0D070 |
3ZRFE..ZGE21 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-0T030 |
3ZRFE..ZGE21 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0T030 |
3ZRFE..ZGE21 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
3ZRFE..ZGE21 NO.1 |
1 | ||
| 96136-43901 |
3ZRFE..ZGE21 NO.2 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
3ZRFE..ZGE21 NO.1 |
1 | ||
| 96136-43901 |
3ZRFE..ZGE21 NO.2 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0T100 |
3ZRFE..ZGE21 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
3ZRFE..ZGE21 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
3ZRFE..ZGE21 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0T090 |
3ZRFE..ZGE21 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-0T050 |
3ZRFE..ZGE21 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
3ZRFE..ZGE21 NO.2 |
1 | ||
| 90466-35001 |
3ZRFE..ZGE21 NO.1 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96136-44301 |
3ZRFE..ZGE21 NO.2 |
1 | ||
| 90466-35001 |
3ZRFE..ZGE21 NO.1 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-22031 |
3ZRFE..ZGE21 |
1 | ||
| 16577-22040 |
3ZRFE..ZGE21 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-0T010 |
3ZRFE..ZGE21 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0T060 |
3ZRFE..ZGE21 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-0T030 |
3ZRFE..ZGE21 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-06448 | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| 91621-B0816 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8718 | ||||

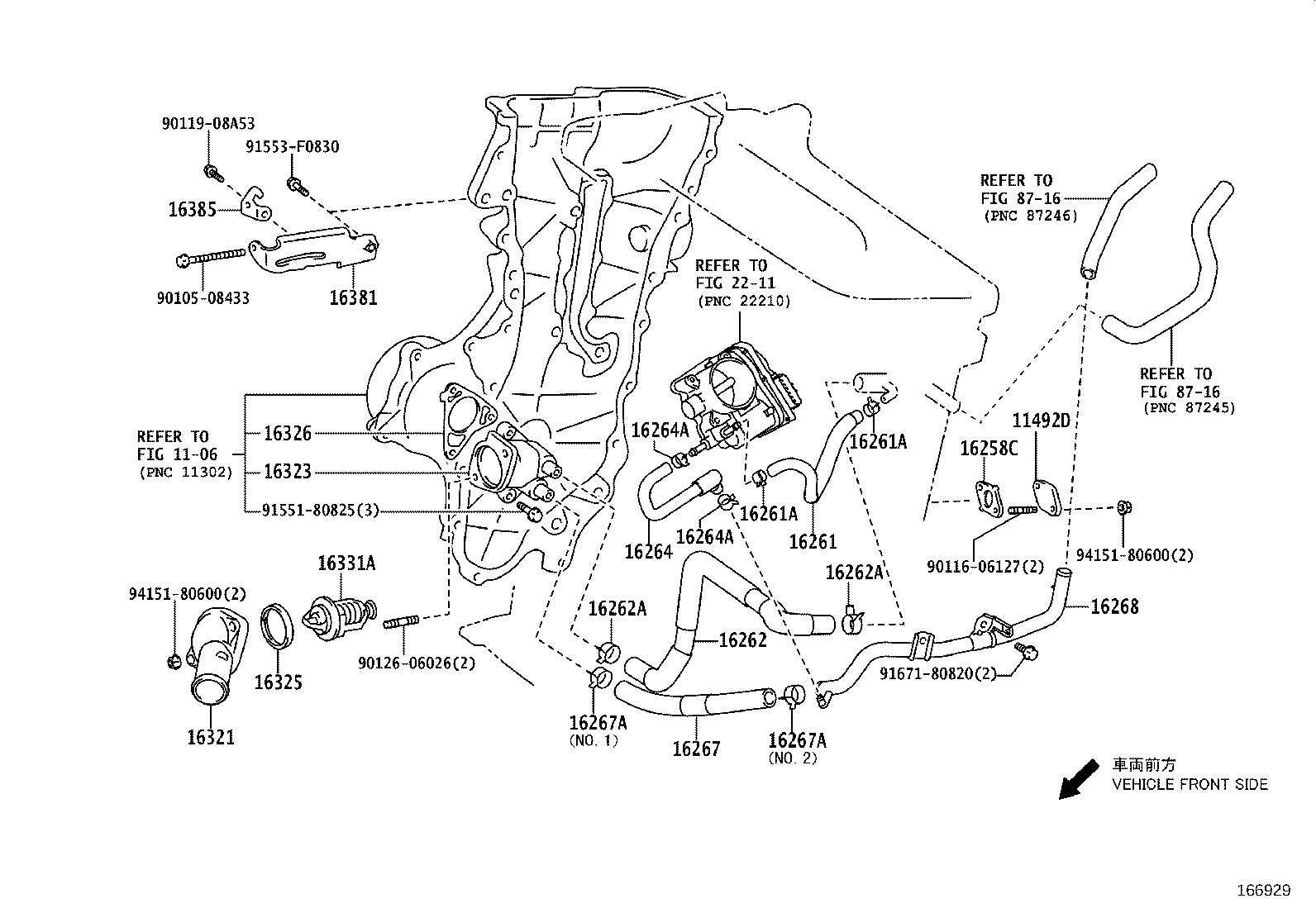

ILLUST NO. 2 OF 2(0911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11492D - PLATE, SEAL, NO.1 | ||||
| 11492-37010 |
3ZRFE..ZGE21 |
1 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-28040 |
3ZRFE..ZGE21 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-37022 |
3ZRFE..ZGE21 |
1 | ||
| 16261-37021 |
3ZRFE..ZGE21 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
3ZRFE..ZGE21 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
3ZRFE..ZGE21 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-37010 |
3ZRFE..ZGE21 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
3ZRFE..ZGE21 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
3ZRFE..ZGE21 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37022 |
3ZRFE..ZGE21 |
1 | ||
| 16264-37021 |
3ZRFE..ZGE21 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
3ZRFE..ZGE21 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
3ZRFE..ZGE21 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37020 |
3ZRFE..ZGE21 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
3ZRFE..ZGE21 NO.1 |
1 | ||
| 96136-52701 |
3ZRFE..ZGE21 NO.2 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-52701 |
3ZRFE..ZGE21 NO.2 |
1 | ||
| 96136-42501 |
3ZRFE..ZGE21 NO.1 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-37041 |
3ZRFE..ZGE21 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-37010 |
3ZRFE..ZGE21 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-37030 |
3ZRFE..ZGE21 |
1 | ||
| 16323-37031 |
3ZRFE..ZGE21 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
3ZRFE..ZGE21 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37010 |
3ZRFE..ZGE21 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03145 |
3ZRFE..ZGE21 *WAX 82-95,FUJISEIKO |
1 | ||
| 90916-03144 |
3ZRFE..ZGE21 *WAX 82-95,KUZEH |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-37040 |
3ZRFE..ZGE21 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-37010 |
3ZRFE..ZGE21 |
1 | ||
| Common parts | ||||
| 82715-28L80 | ||||
| 90105-08433 | ||||
| 90116-06127 | ||||
| 90119-08A53 | ||||
| 90119-T0342 | ||||
| 90126-06026 | ||||
| 90178-T0018 | ||||
| 90464-00934 | ||||
| 91551-80825 | ||||
| 91553-F0830 | ||||
| 91671-80612 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 3414 | ||||
| 8716 | ||||
