ZGE21L-JPPEKR (2009)

Toyota Wish

Production Nov 2009 - Dec 2012
Engine 3ZRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

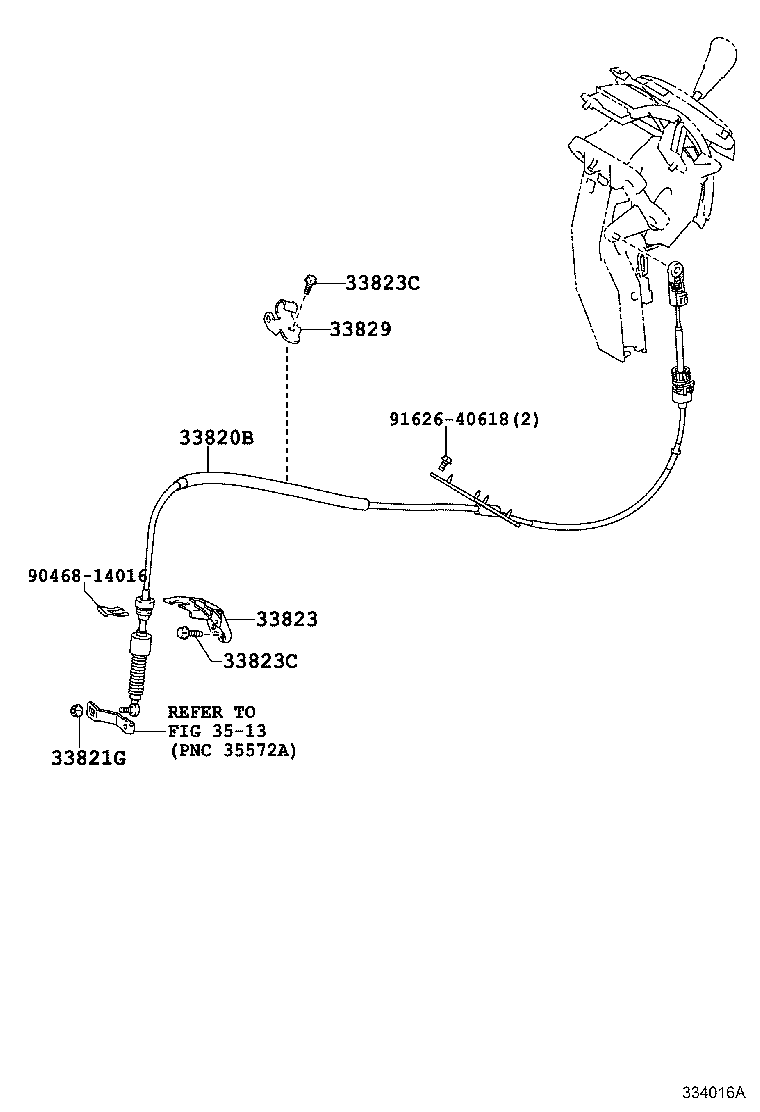

ILLUST NO. 2 OF 2(0909-1005)

Click highlighted areas on diagram

diagram 33820B 33821G 33823 33823C 33823C 33829 3513 9046814016 9162640618
Part # Description Qty Price
Common parts
90468-14016
91626-40618
Linked diagrams
3513

ILLUST NO. 2 OF 2(1006- )

Click highlighted areas on diagram

diagram 33820B 33821G 33823 33823 33823C 33829 9017906178 9046814016 9155180614 9162640618
Part # Description Qty Price
Common parts
90179-06178
90468-14016
91551-80614
91626-40618

ILLUST NO. 2 OF 2(0911- )

Click highlighted areas on diagram

diagram 33820B 33821G 33823 33823 33823C 33823C 33829 33829 3401 3513 9046814016 9155180614 9167180616
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-68070

ZGE21

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-08061

ZGE21

(J)

 1
90080-17130

ZGE21

(L)

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-02180

ZGE21

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-02180

ZGE21

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-B0816

ZGE21

(J)

 3
90119-T0029

ZGE21

(L)

 3
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-B0816

ZGE21

(J)

 3
90119-T0029

ZGE21

(L)

 3
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-0M011

ZGE21

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-0M011

ZGE21

 1
Common parts
90468-14016
91551-80614
91671-80616
Linked diagrams
3401
3513

ILLUST NO. 1 OF 2(0911- )

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33560 33563 33866 35906 35907 35953 35971E 35974 35975 35976 8401 9017908247 9354013008
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0M010B0

ZGE21..J

DK.GRAY,TRIM1#

 1
33504-0M020B0

ZGE21..E,G

DK.GRAY,TRIM1#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

ZGE21

12V 1.2W W/O SOCKET

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-68020

ZGE21

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-0M010

ZGE21..E

 1
33560-0M020

ZGE21..E

2.0E-OPTION

 1
33560-0M010

ZGE21..J

 1
33560-0M020

ZGE21..G

 1
33560-0M020

ZGE21..E

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-0M010

ZGE21

 1
33866 - SPRING, SHIFT LOCK RELEASE
33866-33010

ZGE21

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-42050

ZGE21

 1
35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35907-0M020

ZGE21..E

2.0E-OPTION

 1
35907-0M020

ZGE21..G

 1
35907-0M010

ZGE21..E,J

 1
35953 - GUIDE, POSITION INDICATOR LIGHT
35953-0M010

ZGE21

 1
35971E - HOUSING, POSITION INDICATOR
35971-0M010

ZGE21

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-0M010

ZGE21

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-0M010

ZGE21

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-0M010

ZGE21

 1
Common parts
90179-08247
93540-13008
Linked diagrams
8401
