ZGE20R-HPXSP (2012)

Toyota Wish

Production Apr 2012 - Nov 2017
Engine 2ZRFAE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

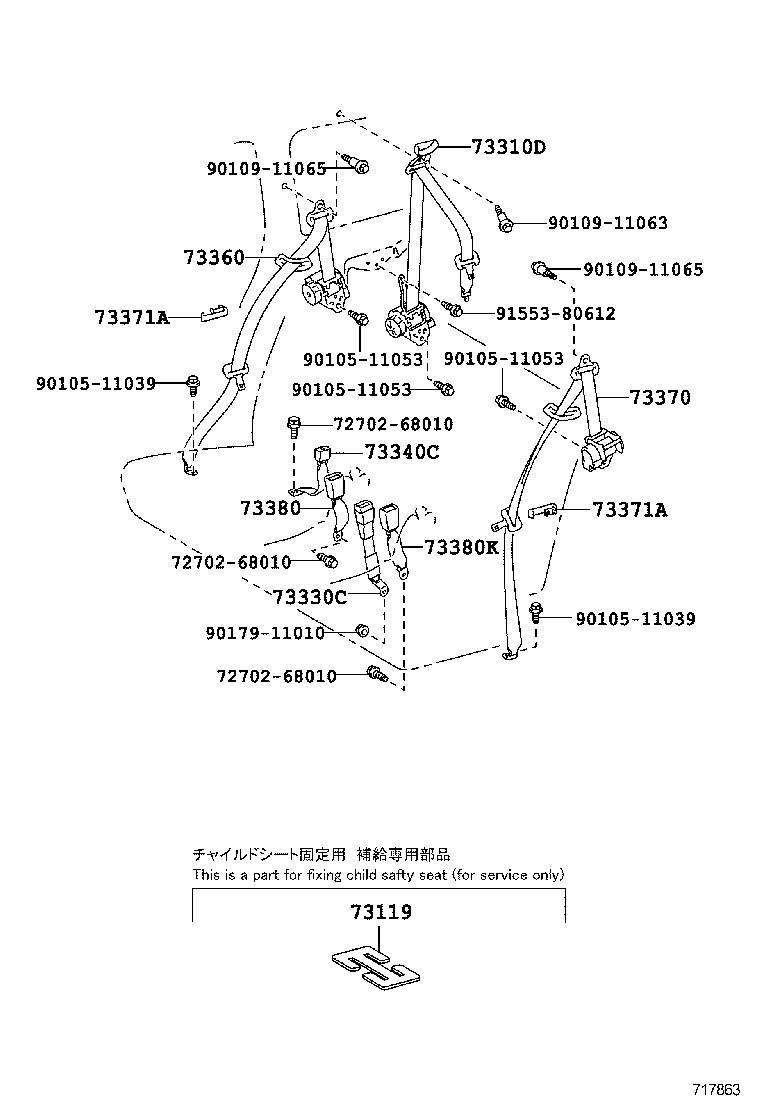

ILLUST NO. 2 OF 3(1204- )ZGE20

Click highlighted areas on diagram

diagram 7270268010 7270268010 7270268010 73119 73310D 73330C 73340C 73360 73370 73371A 73371A 73380 73380K 9010511039 9010511039 9010511053 9010511053 9010511053 9010911063 9010911065 9010911065 9017911010 9155380612
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

ZGE2#

 1
73119-22010

ZGE2#..CVFC

 1
73310D - BELT ASSY, REAR SEAT 3 POINT TYPE, CENTER
73310-68010E2

ZGE20

GREGE,TRIM4#

 1
73310-68010C0

ZGE20

BLACK,TRIM1#

 1
73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH
73330-68010E4

ZGE20

GREGE,TRIM4#

 1
73330-68010C2

ZGE20

BLACK,TRIM1#

 1
73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH
73340-68020E0

ZGE20,21

CLOVEBROWN/GREGE,TRIM4#

 1
73340-68020B0

ZGE20,21..18S,18X,20X

GRAY/BLACK,TRIM1#

 1
73340-68030E1

ZGE20

GREGE,TRIM4#

 1
73340-68030C0

ZGE20

BLACK,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-68030C0

ZGE2#

BLACK,TRIM1#

 1
73360-68030E0

ZGE20

GREGE,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-68030C0

ZGE2#

BLACK,TRIM1#

 1
73370-68030E0

ZGE20

GREGE,TRIM4#

 1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020E3

ZGE20,21

GREGE,TRIM4#

 2
73371-44020E3

ZGE20

GREGE,TRIM4#

 2
73371-44020P0

ZGE2#..18S,18X,20X,20Z

GRAY,TRIM1#

 2
73371-44020P0

ZGE2#

GRAY,TRIM1#

 2
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020E3

ZGE20,21

GREGE,TRIM4#

 2
73371-44020E3

ZGE20

GREGE,TRIM4#

 2
73371-44020P0

ZGE2#..18S,18X,20X,20Z

GRAY,TRIM1#

 2
73371-44020P0

ZGE2#

GRAY,TRIM1#

 2
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-68050E0

ZGE20

GREGE,TRIM4#

 1
73380-68040E0

ZGE20,21

GREGE,TRIM4#

 1
73380-68040C0

ZGE20,21..18S,18X,20X

BLACK,TRIM1#

 1
73380-68050C0

ZGE20

BLACK,TRIM1#

 1
73380K - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-68040E0

ZGE20,21

GREGE,TRIM4#

 1
73380-68040C0

ZGE20,21..18S,18X,20X

BLACK,TRIM1#

 1
73380-68050C0

ZGE20

BLACK,TRIM1#

 1
73380-68050E0

ZGE20

GREGE,TRIM4#

 1
Common parts
72702-68010
90105-11039
90105-11053
90109-11063
90109-11065
90179-11010
91553-80612
