ANE12L-JPPNKR (2004)
Toyota Wish
Production
Aug 2004
-
Mar 2007
Engine
1AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

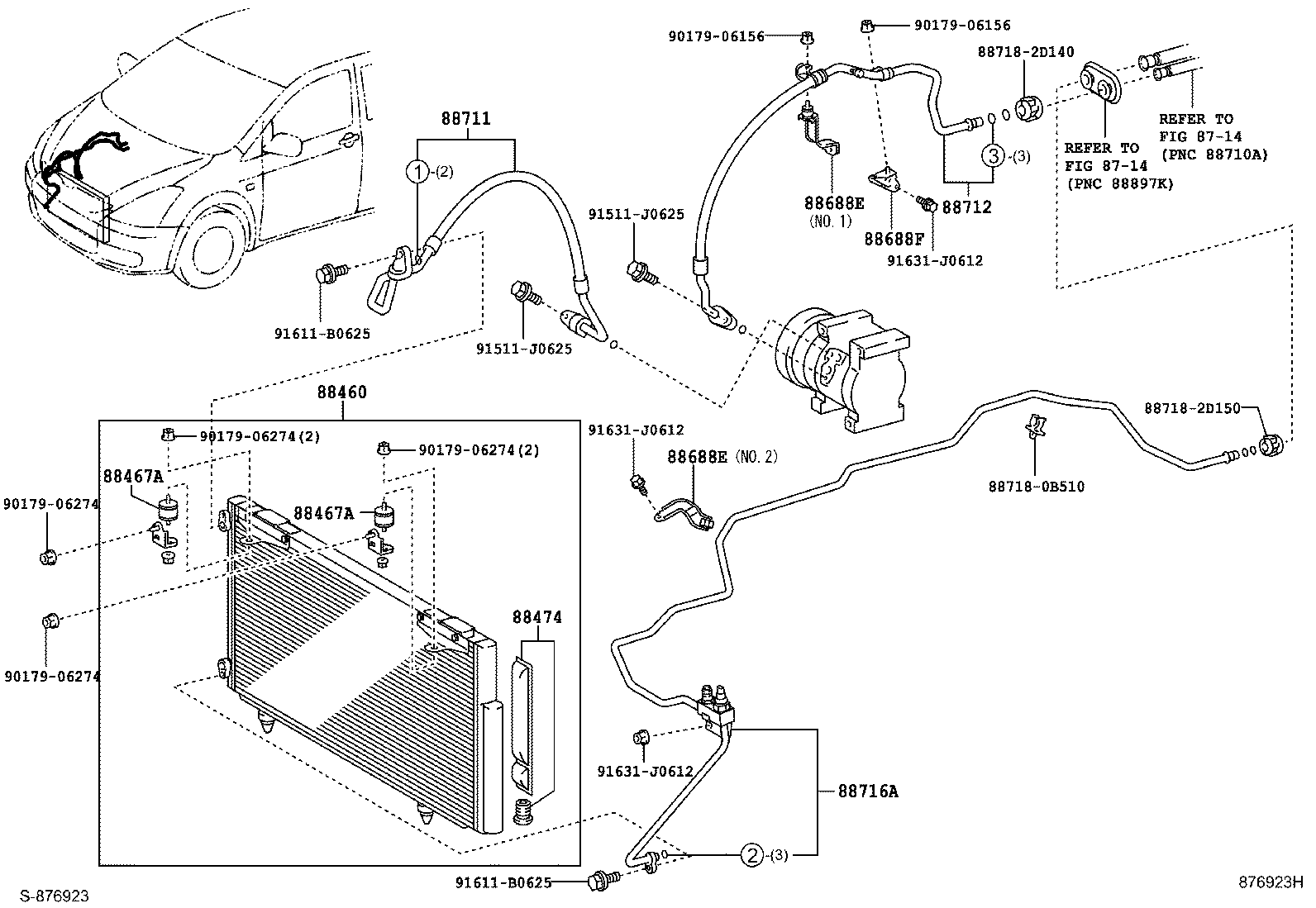

ILLUST NO. 1 OF 2(0408- )TAIW
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0M010 |
ANE1#..TAIW |
1 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12030 |
ANE1#,ZNE10 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-12030 |
ANE1#,ZNE10 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
ANE12;ANE11..06S |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-0M030 |
ANE1#..TAIW NO.2 |
1 | ||
| 88688-0M020 |
ANE1#..TAIW NO.1 |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-0M030 |
ANE1#..TAIW NO.2 |
1 | ||
| 88688-0M020 |
ANE1#..TAIW NO.1 |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-0M010 |
ANE1#..TAIW |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-0M010 |
ANE1#..TAIW |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88704-0M010 |
ANE1#..TAIW |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-0M020 |
ANE1#..TAIW |
1 | ||
| Common parts | ||||
| 88718-0B510 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 90179-06156 | ||||
| 90179-06274 | ||||
| 91511-J0625 | ||||
| 91611-B0625 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 8714 | ||||
