ANE12L-JPPGKR (2007)

Toyota Wish

Production Mar 2007 - Sep 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0703- )TAIW

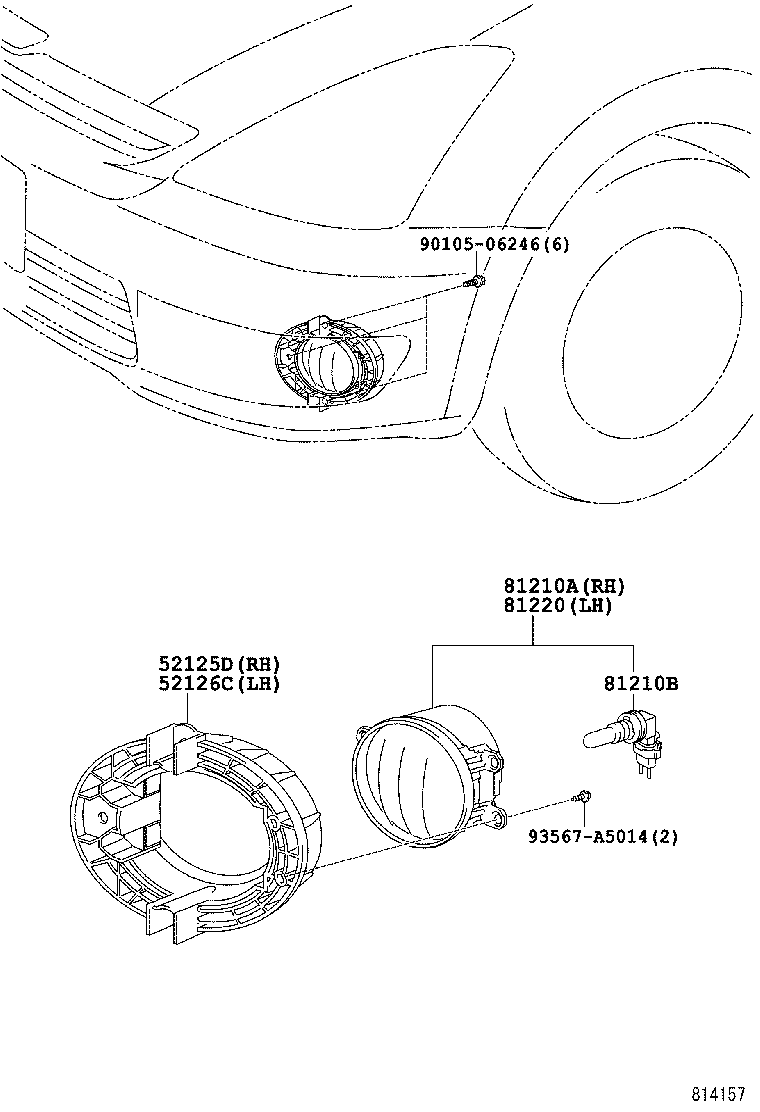

Click highlighted areas on diagram

diagram 52125D 52126C 81210A 81210B 81220 9010506246 93567A5014
Part # Description Qty Price
52125D - BRACKET, FOG LAMP MOUNTING, RH
52125-0M010

ANE1#..TAIW

 1
52126C - BRACKET, FOG LAMP MOUNTING, LH
52126-0M010

ANE1#..TAIW

 1
81210A - LAMP ASSY, FOG, RH
81210-02130

ANE1#..TAIW

 1
81210-0D041

ANE1#..TAIW

 1
81210B - BULB, FOG LAMP
90981-13075

ANE1#..TAIW

12V 55W,HALOGEN,PHILIPS

 2
90981-13075

ANE1#..TAIW

12V 55W,HALOGEN

 2
90981-13081

ANE1#..TAIW

12V 55W,HALOGEN,OSRAM

 2
81220 - LAMP ASSY, FOG, LH
81220-0D041

ANE1#..TAIW

 1
81220-02130

ANE1#..TAIW

 1
Common parts
90105-06246
93567-A5014
