ANE12L-JPPGKR (2004)

Toyota Wish

Production Aug 2004 - Mar 2007
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )20E,ZAER

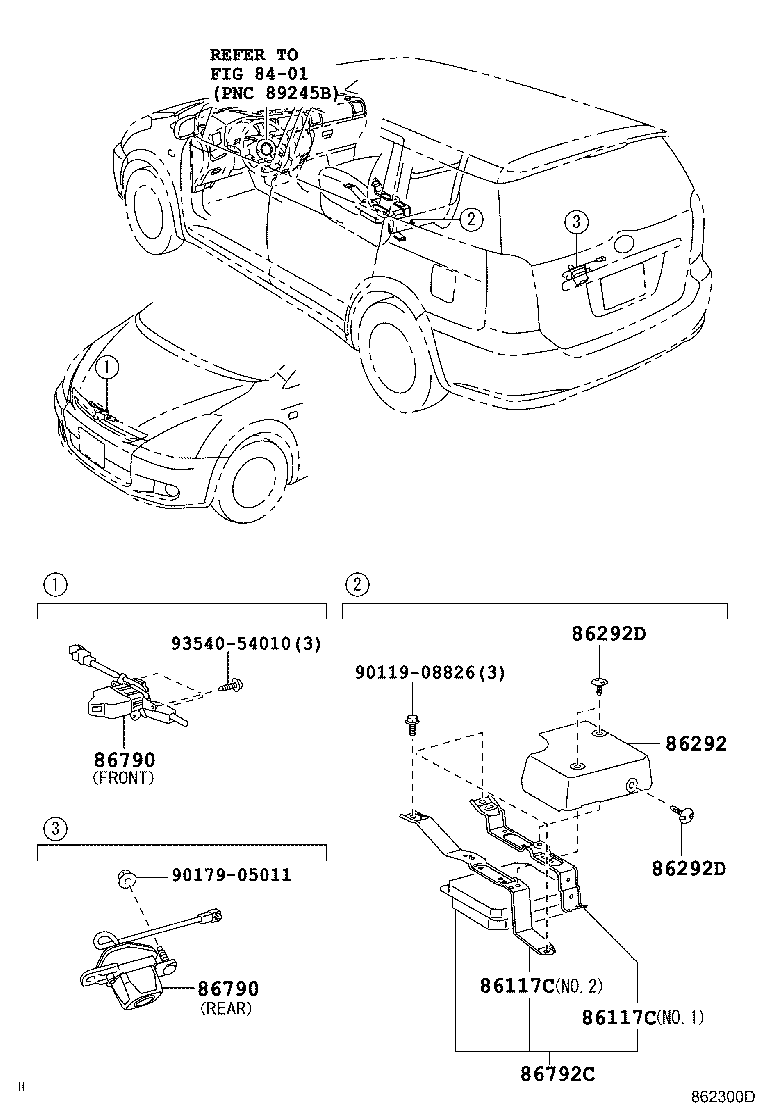

Click highlighted areas on diagram

diagram 8401 86117C 86117C 86292 86292D 86292D 86790 86790 86792C 9011908826 9017905011 9354054010
Part # Description Qty Price
86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2
86117-68090

ANE1#..20E,ZAER

2.0G,N0.2

 1
86117-68050

ANE1#..20E,ZAER

2.0G,N0.1

 1
86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2
86117-68090

ANE1#..20E,ZAER

2.0G,N0.2

 1
86117-68050

ANE1#..20E,ZAER

2.0G,N0.1

 1
86292 - COVER, TELEVISION SET
86292-68020

ANE1#..20E,ZAER

2.0G

 1
86292D - CLIP(FOR TELEVISION SET COVER)
90467-08186C0

ANE1#..20E,ZAER

2.0G,BLACK

 3
86292D - CLIP(FOR TELEVISION SET COVER)
90467-08186C0

ANE1#..20E,ZAER

2.0G,BLACK

 3
86790 - CAMERA ASSY, TELEVISION
86790-68020

ANE1#..20E,ZAER

2.0G,REAR

 1
86790-68030

ANE1#..20E,ZAER

2.0G,FRONT

 1
86790-68030

ANE12..20E

2.0G,FRONT

 1
86790-68020

ANE12..20E

2.0G,REAR

 1
86790 - CAMERA ASSY, TELEVISION
86790-68020

ANE1#..20E,ZAER

2.0G,REAR

 1
86790-68030

ANE1#..20E,ZAER

2.0G,FRONT

 1
86790-68030

ANE12..20E

2.0G,FRONT

 1
86790-68020

ANE12..20E

2.0G,REAR

 1
86792C - COMPUTER, PARKING ASSIST
86792-68050

ANE12..20E

2.0G

 1
86792-68050

ANE1#..20E,ZAER

2.0G

 1
Common parts
90119-08826
90179-05011
93540-54010
Linked diagrams
8401
