ANE12L-JPPGKR (2004)
Toyota Wish
ILLUST NO. 4 OF 4(0312-0910)
SEAT ASSY, CHILD RESTRAINT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73700 - SEAT ASSY, CHILD RESTRAINT | ||||
| 73700-68010 |
ANE1#..TAIW |
1 | ||
| 73715 - PROTECTOR, CHILD RESTRAINT SEAT BELT | ||||
| 73715-68010 |
ANE1#..TAIW |
1 | ||
| 73715 - PROTECTOR, CHILD RESTRAINT SEAT BELT | ||||
| 73715-68010 |
ANE1#..TAIW |
1 | ||
| 73721 - BELT, CHILD RESTRAINT SEAT | ||||
| 73721-68020 |
ANE1#..TAIW NO.2 |
1 | ||
| 73721-68010 |
ANE1#..TAIW NO.1 |
1 | ||
| 73721 - BELT, CHILD RESTRAINT SEAT | ||||
| 73721-68020 |
ANE1#..TAIW NO.2 |
1 | ||
| 73721-68010 |
ANE1#..TAIW NO.1 |
1 | ||
| 73725 - CLIP, CHILD RESTRAINT SEAT BELT | ||||
| 73725-68010 |
ANE1#..TAIW |
1 | ||
| 73725A - CLIP, CHILD RESTRAINT SEAT BELT | ||||
| 73725-68020 |
ANE1#..TAIW |
1 | ||
| 73725A - CLIP, CHILD RESTRAINT SEAT BELT | ||||
| 73725-68020 |
ANE1#..TAIW |
1 | ||
| 73730 - BASE ASSY, CHILD RESTRAINT SEAT | ||||
| 73730-68010 |
ANE1#..TAIW |
1 | ||
| 73731B - COVER, CHILD RESTRAINT SEAT, NO.1 | ||||
| 73731-68010 |
ANE1#..TAIW |
1 | ||
| 73731C - COVER, CHILD RESTRAINT SEAT, NO.2 | ||||
| 73731-68020 |
ANE1#..TAIW |
1 | ||
| 73735 - CUP, CHILD RESTRAINT SEAT GUIDE | ||||
| 73735-68010 |
ANE1#..TAIW |
1 | ||
| 73735 - CUP, CHILD RESTRAINT SEAT GUIDE | ||||
| 73735-68010 |
ANE1#..TAIW |
1 | ||
ILLUST NO. 1 OF 4(0312-0910)
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-34010A1 |
ANE1#..20E,ZAER IVORY,TRIM0# |
2 | ||
| 73178-34010B8 |
ANE1#..TAIW LT.GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-34010A1 |
ANE1#..20E,ZAER IVORY,TRIM0# |
2 | ||
| 73178-34010B8 |
ANE1#..TAIW LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02040A0 |
ANE1#..20E,ZAER IVORY,TRIM0# |
2 | ||
| 73200-02040B0 |
ANE1#..TAIW LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02040A0 |
ANE1#..20E,ZAER IVORY,TRIM0# |
2 | ||
| 73200-02040B0 |
ANE1#..TAIW LT.GRAY,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0M010A0 |
ANE1#..20E,ZAER IVORY,TRIM0# |
1 | ||
| 73210-0M010C0 |
ANE1#..TAIW BLACK,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ANE1#..TAIW GRAY |
1 | ||
| 73219-33030 |
ANE1#..TAIW BEIGE |
1 | ||
| 73219-33010 |
ANE1#..TAIW BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0M010A0 |
ANE1#..20E,ZAER IVORY,TRIM0# |
1 | ||
| 73220-0M010C0 |
ANE1#..TAIW BLACK,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0M020A0 |
ANE1#..20E,ZAER IVORY,TRIM0# |
1 | ||
| 73230-0M020C0 |
ANE1#..TAIW BLACK,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-06020A0 |
ANE1#..20E,ZAER IVORY,TRIM0# |
2 | ||
| 73233-06020B1 |
ANE1#..TAIW DK.GRAY,TRIM1# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-06020A0 |
ANE1#..20E,ZAER IVORY,TRIM0# |
2 | ||
| 73233-06020B1 |
ANE1#..TAIW DK.GRAY,TRIM1# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0M030C0 |
ANE1#..20E,ZAER BLACK,TRIM1# |
1 | ||
| 73230-0M030A0 |
ANE1#..20E,ZAER IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-T0002 | ||||
| 90105-T0063 | ||||
| 90109-11027 | ||||
| 90109-11036 | ||||
| 90109-T0013 | ||||
| 90901-19040 | ||||
| 91511-B0614 | ||||
| 91512-G1025 | ||||
| Linked diagrams | ||||
| 6401 | ||||

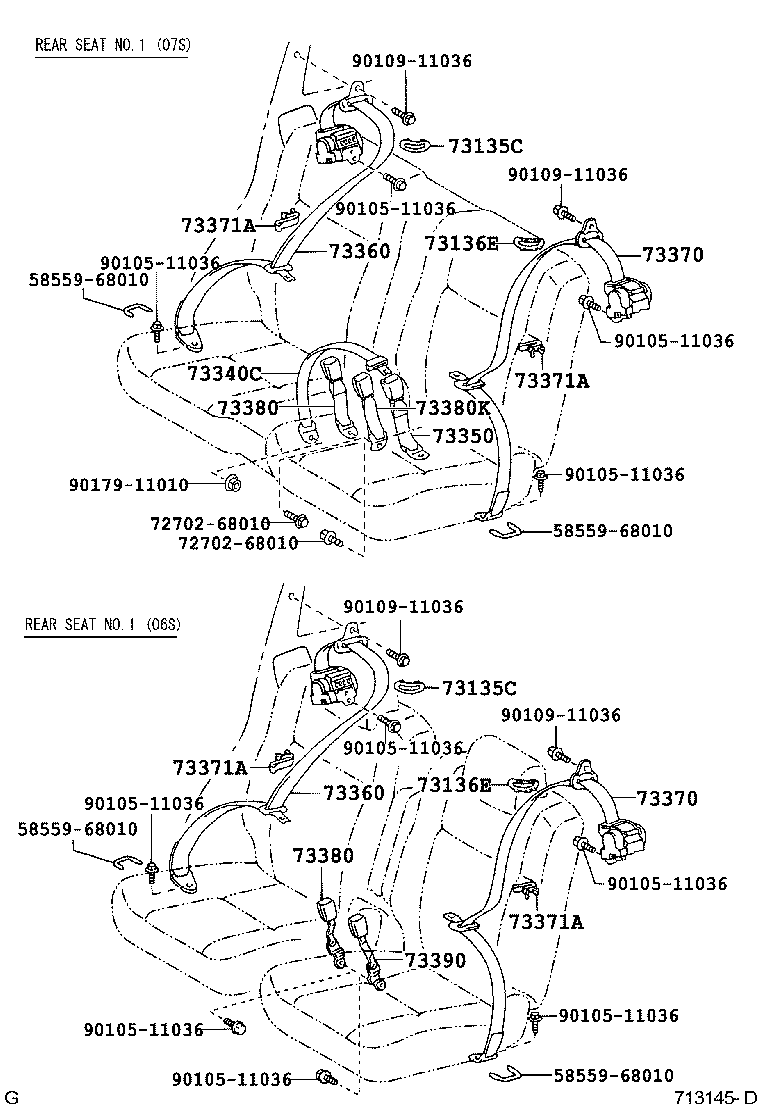

ILLUST NO. 2 OF 4(0312-0909)TAIW
REAR NO.1 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135C - COVER, SHOULDER BELT ANCHOR, NO.2, RH | ||||
| 73135-0M010A0 |
ANE12..20E IVORY,TRIM0# |
1 | ||
| 73135-0M010 |
ANE12 |
1 | ||
| 73135-0M010B0 |
ANE1#..TAIW LT.GRAY,TRIM1# |
1 | ||
| 73135C - COVER, SHOULDER BELT ANCHOR, NO.2, RH | ||||
| 73135-0M010A0 |
ANE12..20E IVORY,TRIM0# |
1 | ||
| 73135-0M010 |
ANE12 |
1 | ||
| 73135-0M010B0 |
ANE1#..TAIW LT.GRAY,TRIM1# |
1 | ||
| 73136E - COVER, SHOULDER BELT ANCHOR, NO.2, LH | ||||
| 73136-0M010A0 |
ANE12..20E IVORY,TRIM0# |
1 | ||
| 73136-0M010 |
ANE12 |
1 | ||
| 73136-0M010B0 |
ANE1#..TAIW LT.GRAY,TRIM1# |
1 | ||
| 73136E - COVER, SHOULDER BELT ANCHOR, NO.2, LH | ||||
| 73136-0M010A0 |
ANE12..20E IVORY,TRIM0# |
1 | ||
| 73136-0M010 |
ANE12 |
1 | ||
| 73136-0M010B0 |
ANE1#..TAIW LT.GRAY,TRIM1# |
1 | ||
| 73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH | ||||
| 73340-0M010A0 |
ANE12..20E IVORY,TRIM0# |
1 | ||
| 73340-0M010C0 |
ANE12 BLACK,TRIM1# |
1 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73350-0M010A0 |
ANE12..20E IVORY,TRIM0# |
1 | ||
| 73350-0M010C0 |
ANE12 BLACK,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-0M010A0 |
ANE12..20E IVORY,TRIM0# |
1 | ||
| 73360-0M010C0 |
ANE1#..TAIW BLACK,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-0M010A0 |
ANE12..20E IVORY,TRIM0# |
1 | ||
| 73360-0M010C0 |
ANE1#..TAIW BLACK,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-0M010C0 |
ANE1#..TAIW BLACK,TRIM1# |
1 | ||
| 73370-0M010A0 |
ANE12..20E IVORY,TRIM0# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-0M010C0 |
ANE1#..TAIW BLACK,TRIM1# |
1 | ||
| 73370-0M010A0 |
ANE12..20E IVORY,TRIM0# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-0M010B0 |
ANE1#..TAIW DK.GRAY,TRIM1# |
2 | ||
| 73371-0M010A0 |
ANE12..20E IVORY,TRIM0# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-0M010B0 |
ANE1#..TAIW DK.GRAY,TRIM1# |
2 | ||
| 73371-0M010A0 |
ANE12..20E IVORY,TRIM0# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-0M010B0 |
ANE1#..TAIW DK.GRAY,TRIM1# |
2 | ||
| 73371-0M010A0 |
ANE12..20E IVORY,TRIM0# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-0M010B0 |
ANE1#..TAIW DK.GRAY,TRIM1# |
2 | ||
| 73371-0M010A0 |
ANE12..20E IVORY,TRIM0# |
2 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-0M010A0 |
ANE12..20E IVORY,TRIM0# |
1 | ||
| 73380-0M010C0 |
ANE12 BLACK,TRIM1# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-0M010A0 |
ANE12..20E IVORY,TRIM0# |
1 | ||
| 73380-0M010C0 |
ANE12 BLACK,TRIM1# |
1 | ||
| 73380K - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-0M010A0 |
ANE12..20E IVORY,TRIM0# |
1 | ||
| 73380-0M010C0 |
ANE12 BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 58559-68010 | ||||
| 72702-68010 | ||||
| 90105-11036 | ||||
| 90109-11036 | ||||
| 90179-11010 | ||||
ILLUST NO. 3 OF 4(0312-0910)
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135D - COVER, SHOULDER BELT ANCHOR, NO.1 RH | ||||
| 73135-68020A0 |
ANE1#..20E,ZAER IVORY,TRIM0# |
1 | ||
| 73135-68020B0 |
ANE12;ANE11..06S LT.GRAY,TRIM1# |
1 | ||
| 73136F - COVER, SHOULDER BELT ANCHOR, NO.1 LH | ||||
| 73136-68020B0 |
ANE12;ANE11..06S LT.GRAY,TRIM1# |
1 | ||
| 73136-68020A0 |
ANE1#..20E,ZAER IVORY,TRIM0# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-0M010A0 |
ANE1#..20E,ZAER IVORY,TRIM0# |
1 | ||
| 73560-0M010C0 |
ANE1#..TAIW LT.GRAY,TRIM1# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-0M010C0 |
ANE1#..TAIW LT.GRAY,TRIM1# |
1 | ||
| 73570-0M010A0 |
ANE1#..20E,ZAER IVORY,TRIM0# |
1 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-0M010A0 |
ANE1#..20E,ZAER IVORY,TRIM0# |
2 | ||
| 73580-0M010C0 |
ANE1#..TAIW LT.GRAY,TRIM1# |
2 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-0M010A0 |
ANE1#..20E,ZAER IVORY,TRIM0# |
2 | ||
| 73580-0M010C0 |
ANE1#..TAIW LT.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11039 | ||||
| 90105-T0063 | ||||
| 90109-11036 | ||||
