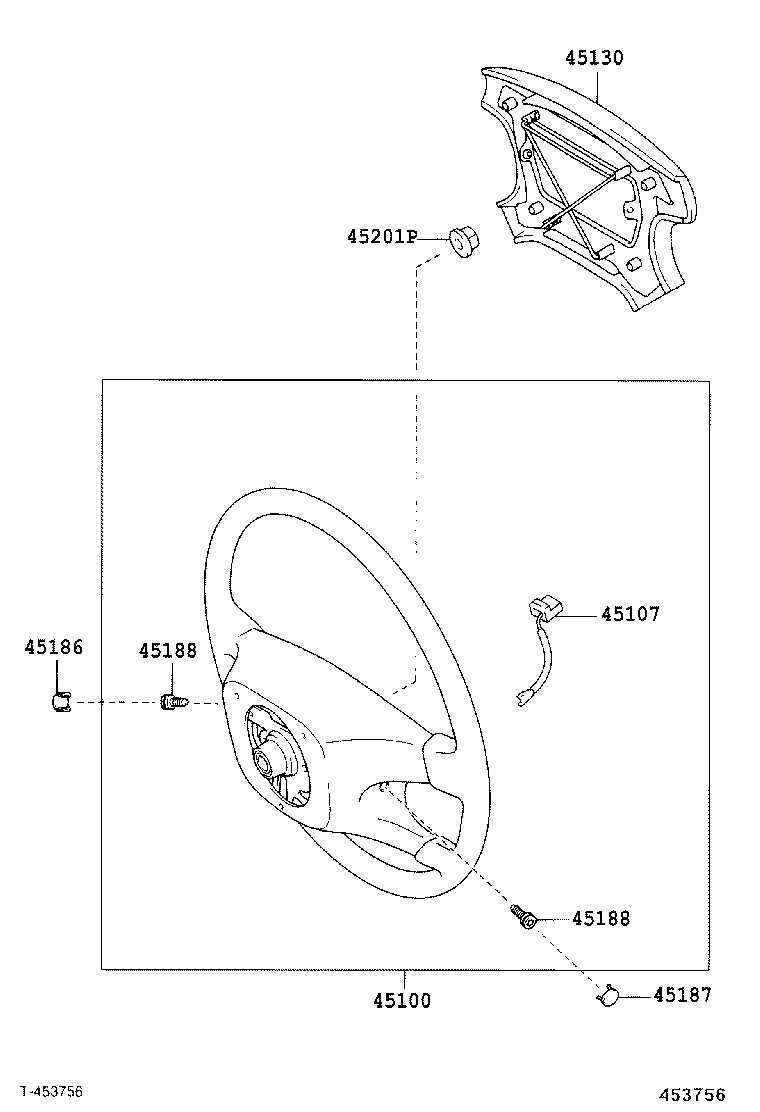

ANE12L-JPPGKR (2004)
Toyota Wish
(0408-0703)20E
4-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-0M040C0 |
ANE12..20E 4-SPOKE,LEATHER,2.0G&HEATER CONT. PANEL-METALIC,BLACK,TRIM1# |
1 | ||
| 45100-0M010C0 |
ANE12..20E 4-SPOKE,LEATHER,BLACK,TRIM1# |
1 | ||
| 45100-0M010 |
ANE12..20E 4-SPOKE,LEATHER |
1 | ||
| 45100-0M050C0 |
ANE12..20E 4-SPOKE,LEATHER,2.0G&HEATER CONT. PANEL-METALIC,BLACK,TRIM1# |
1 | ||
| 45100-0M020E0 |
ANE12..20E 4-SPOKE,WOOD&LEATHER,2.0G,ORCHID BROWN,TRIM0# |
1 | ||
| 45100-0M010E0 |
ANE12..20E 4-SPOKE,LEATHER,ORCHID BROWN,TRIM0# |
1 | ||
| 45100-0M020 |
ANE12..20E 4-SPOKE,WOOD&LEATHER,2.0G |
1 | ||
| 45100-0M030E0 |
ANE12..20E 4-SPOKE,WOOD&LEATHER,2.0G,ORCHID BROWN,TRIM0# |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-26010 |
ANE12..20E |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-0M011E0 |
ANE12..20E 2.0G,ORCHID BROWN,TRIM0# |
2 | ||
| 45130-0M011C0 |
ANE12..20E 2.0G,BLACK,TRIM1# |
2 | ||
| 45130-0M011E0 |
ANE1#..20E,ZAER 2.0G,ORCHID BROWN,TRIM0# |
1 | ||
| 45130-0M011C0 |
ANE1#..20E,ZAER 2.0G,BLACK,TRIM1# |
1 | ||
| 45130-06240C0 |
ANE1#..20E,ZAER BLACK,TRIM1# |
1 | ||
| 45130-06240E1 |
ANE1#..20E,ZAER ORCHID BROWN,TRIM0# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-06110C0 |
ANE1#..20E,ZAER BLACK,TRIM1# |
1 | ||
| 45186-06110E1 |
ANE1#..20E,ZAER ORCHID BROWN,TRIM0# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-06060E1 |
ANE1#..20E,ZAER ORCHID BROWN,TRIM0# |
1 | ||
| 45187-06060C0 |
ANE1#..20E,ZAER BLACK,TRIM1# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ANE1#..20E,ZAER L=18 |
2 | ||
| 45188-60010 |
ANE1#,ZNE10 L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ANE1#..20E,ZAER L=18 |
2 | ||
| 45188-60010 |
ANE1#,ZNE10 L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ANE1#..TAIW |
1 | ||
| 90179-12071 |
ANE1#,ZNE10 |
1 | ||

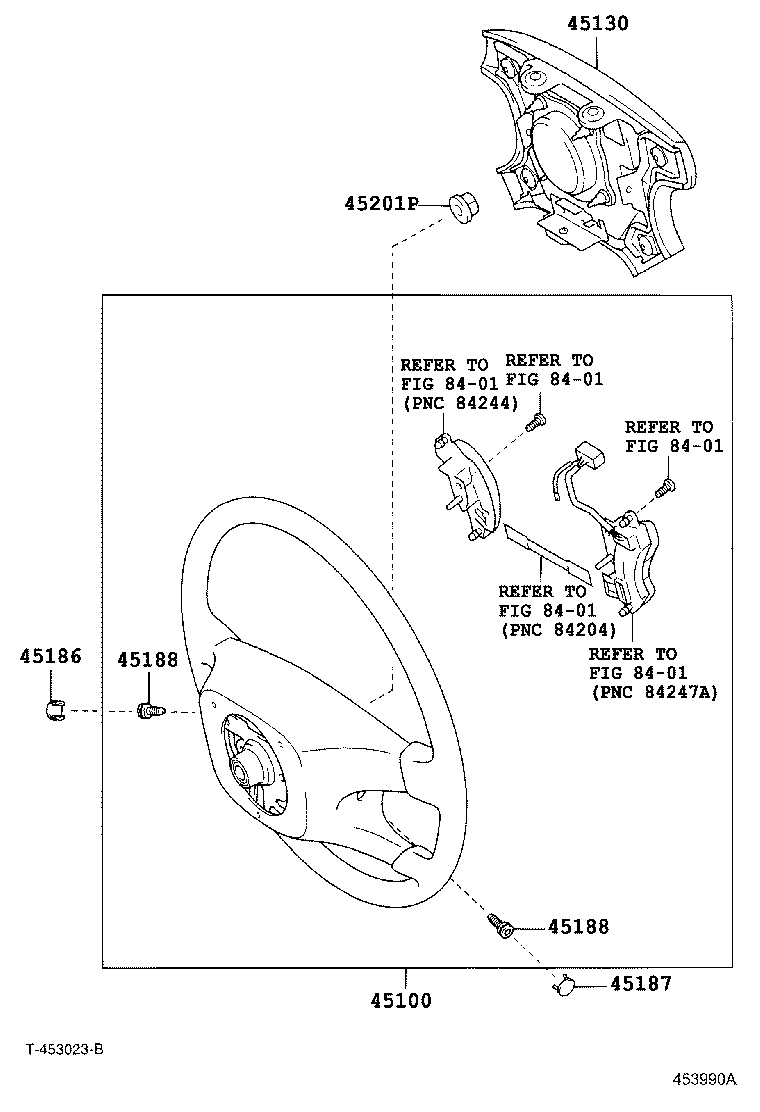

(0408-0703)20E,ZAER
4-SPOKE,W(STEERING AUDIO SWITCH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-0M040C0 |
ANE12..20E 4-SPOKE,LEATHER,2.0G&HEATER CONT. PANEL-METALIC,BLACK,TRIM1# |
1 | ||
| 45100-0M010C0 |
ANE12..20E 4-SPOKE,LEATHER,BLACK,TRIM1# |
1 | ||
| 45100-0M010 |
ANE12..20E 4-SPOKE,LEATHER |
1 | ||
| 45100-0M050C0 |
ANE12..20E 4-SPOKE,LEATHER,2.0G&HEATER CONT. PANEL-METALIC,BLACK,TRIM1# |
1 | ||
| 45100-0M020E0 |
ANE12..20E 4-SPOKE,WOOD&LEATHER,2.0G,ORCHID BROWN,TRIM0# |
1 | ||
| 45100-0M010E0 |
ANE12..20E 4-SPOKE,LEATHER,ORCHID BROWN,TRIM0# |
1 | ||
| 45100-0M020 |
ANE12..20E 4-SPOKE,WOOD&LEATHER,2.0G |
1 | ||
| 45100-0M030E0 |
ANE12..20E 4-SPOKE,WOOD&LEATHER,2.0G,ORCHID BROWN,TRIM0# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-0M011E0 |
ANE12..20E 2.0G,ORCHID BROWN,TRIM0# |
2 | ||
| 45130-0M011C0 |
ANE12..20E 2.0G,BLACK,TRIM1# |
2 | ||
| 45130-0M011E0 |
ANE1#..20E,ZAER 2.0G,ORCHID BROWN,TRIM0# |
1 | ||
| 45130-0M011C0 |
ANE1#..20E,ZAER 2.0G,BLACK,TRIM1# |
1 | ||
| 45130-06240C0 |
ANE1#..20E,ZAER BLACK,TRIM1# |
1 | ||
| 45130-06240E1 |
ANE1#..20E,ZAER ORCHID BROWN,TRIM0# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-06110C0 |
ANE1#..20E,ZAER BLACK,TRIM1# |
1 | ||
| 45186-06110E1 |
ANE1#..20E,ZAER ORCHID BROWN,TRIM0# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-06060E1 |
ANE1#..20E,ZAER ORCHID BROWN,TRIM0# |
1 | ||
| 45187-06060C0 |
ANE1#..20E,ZAER BLACK,TRIM1# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ANE1#..20E,ZAER L=18 |
2 | ||
| 45188-60010 |
ANE1#,ZNE10 L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ANE1#..20E,ZAER L=18 |
2 | ||
| 45188-60010 |
ANE1#,ZNE10 L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ANE1#..TAIW |
1 | ||
| 90179-12071 |
ANE1#,ZNE10 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
