ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

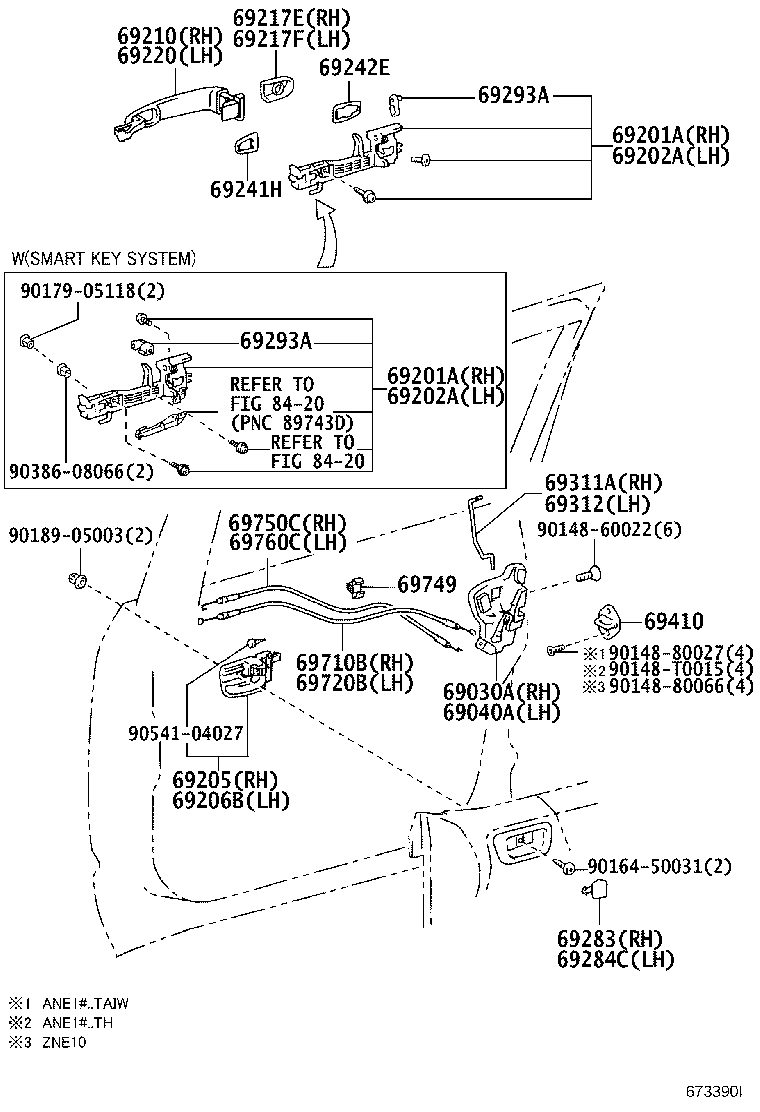

diagram 69030A 69040A 69201A 69201A 69202A 69202A 69205 69206B 69210 69217E 69217F 69220 69241H 69242E 69283 69284C 69293A 69293A 69311A 69312 69410 69710B 69720B 69749 69750C 69760C 8420 8420 9014860022 9014880027 9014880066 90148T0015 9016450031 9017905118 9018905003 9038608066 9054104027
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-33241

ANE11,ZNE10..RHD

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-33271

ANE11..TH

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-0D080B0

ANE1#..20E,20Q

DK.GRAY,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-0D080B0

ANE1#..20E,20Q

DK.GRAY,TRIM1#

 1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69217-60030

ANE1#..20J,20Q,ZAER

BLACK(LESS COLOR)

 1
69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH
69217-60010

ANE1#..20J,20Q,ZAER

BLACK(LESS COLOR)

 1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-28060

ANE1#,ZNE10

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-28020

ANE1#

 2
69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69283-13010B0

ANE1#,ZNE10

DK.GRAY,TRIM1#

 1
69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69283-13010B0

ANE1#,ZNE10

DK.GRAY,TRIM1#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040

ANE1#,ZNE10

LH

 1
69293-12030

ANE1#,ZNE10

RH

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040

ANE1#,ZNE10

LH

 1
69293-12030

ANE1#,ZNE10

RH

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-68010

ANE11,ZNE10..RHD

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-68010

ANE11,ZNE10..RHD

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-33010

ANE11,ZNE10..RHD

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-68010

ANE11,ZNE10..RHD

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-68010

ANE11,ZNE10..RHD

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-32040

ANE1#,ZNE10

 2
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-68010

ANE11,ZNE10..RHD

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69760-68010

ANE11,ZNE10..RHD

 1
Common parts
90148-60022 None epc.PartDetail.None
90148-80027 None epc.PartDetail.None
90148-80066 None epc.PartDetail.None
90148-T0015 None epc.PartDetail.None
90164-50031 None epc.PartDetail.None
90179-05118 None epc.PartDetail.None
90189-05003 None epc.PartDetail.None
90386-08066 None epc.PartDetail.None
90541-04027 None epc.PartDetail.None
Linked diagrams
8420

(0909- )

diagram 69030A 69040A 69201A 69202A 69205 69205B 69206B 69210 69217D 69220 6923730010 69241H 69242E 69283 69284C 69293G 69294B 6929630010 69311A 69312 69318C 69410 69710B 69720B 69750C 69760C 9014850003 9014860022 9014880066 9018905003 9356755020
Part # Description Qty Price
Common parts
69237-30010 None epc.PartDetail.None
69296-30010 None epc.PartDetail.None
90148-50003 None epc.PartDetail.None
90148-60022 None epc.PartDetail.None
90148-80066 None epc.PartDetail.None
90189-05003 None epc.PartDetail.None
93567-55020 None epc.PartDetail.None
