ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

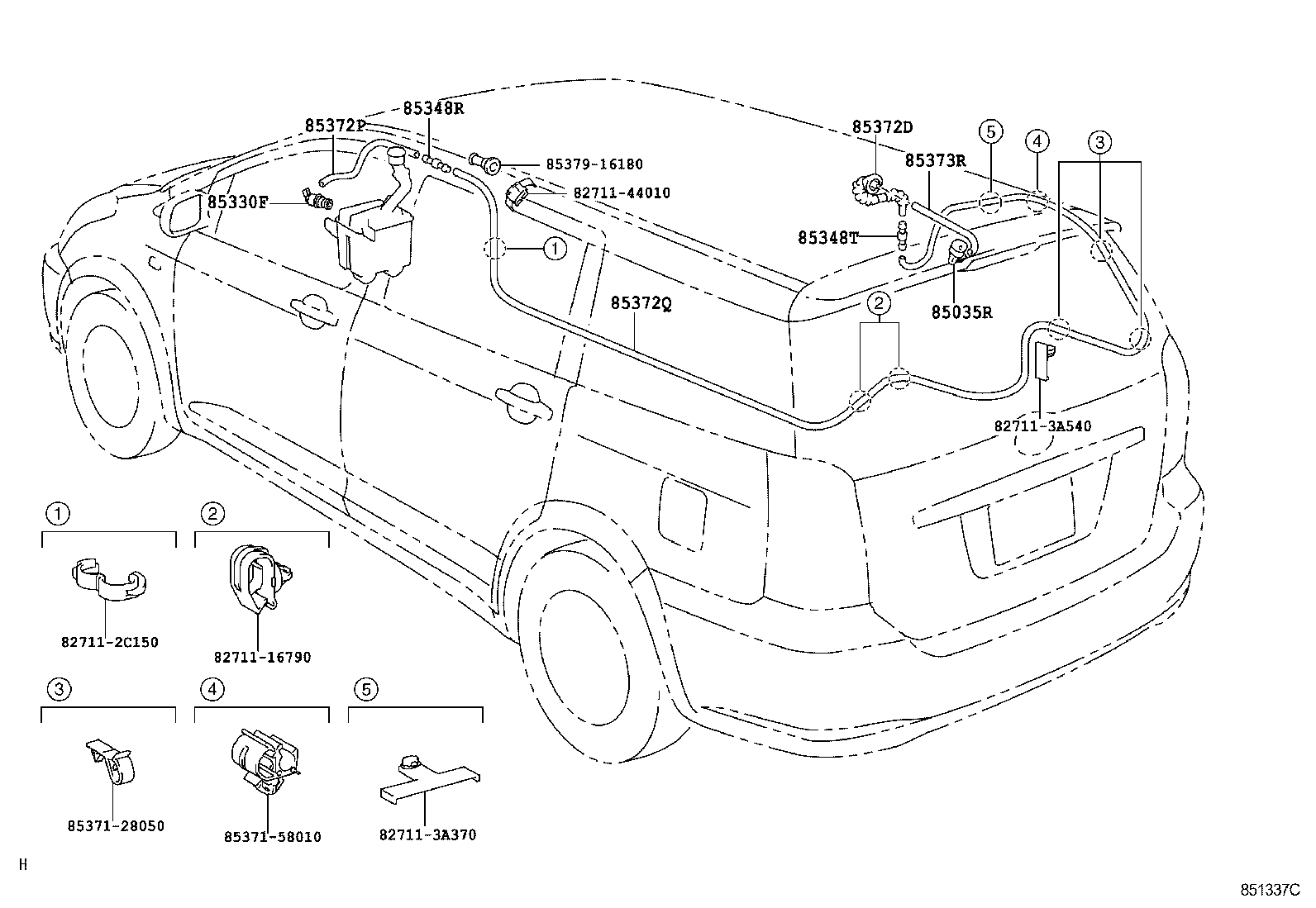

Click highlighted areas on diagram

diagram 8271116790 827112C150 827113A370 827113A540 8271144010 85035R 85330F 85348R 85348T 8537128050 8537158010 85372D 85372P 85372Q 85373R 8537916180
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-68010

ANE11..TH

 1
85391-68010

ANE1#,ZNE10

 1
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-60160

ANE12;ANE11..06S

 1
85330-60160

ANE1#,ZNE10

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ANE1#,ZNE10

 1
85349-89122

ANE11..TH

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ANE1#,ZNE10

 1
85349-89122

ANE11..TH

 1
85372D - GROMMET, REAR WASHER HOSE
85373-44010

ANE1#,ZNE10

 1
85373-44010

ANE11..TH

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33299

ANE11..TH

*H,L=80

 1
90099-33299

ANE1#,ZNE10

*H,L=80

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-59326

ANE11..TH

L=5750

 1
90099-59326

ANE1#,ZNE10

L=5750

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

ANE1#,ZNE10

*H,L=340

 1
90099-33299

ANE11..TH

*H,L=340

 1
Common parts
82711-16790
82711-2C150
82711-3A370
82711-3A540
82711-44010
85371-28050
85371-58010
85379-16180
