ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )06S ; (0312- )20E

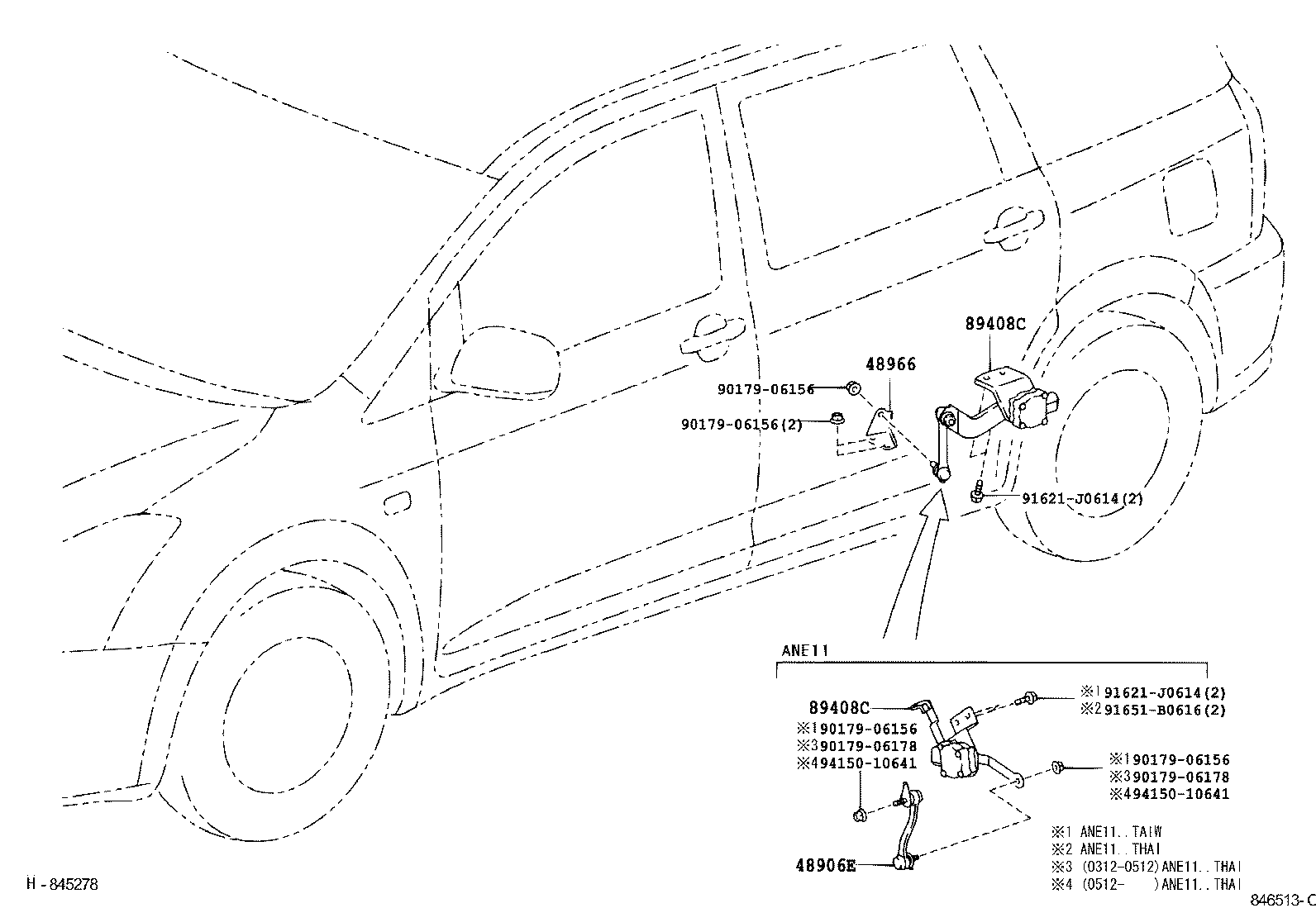

Click highlighted areas on diagram

diagram 48906E 48966 89408C 89408C 9017906156 9017906156 9017906156 9017906156 9017906178 9017906178 91621J0614 91621J0614 91651B0616 9415010641 9415010641
Part # Description Qty Price
48906E - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR
48906-68010

ANE11..TH

 1
48906-68010

ANE11..06S

 1
48906-68010

ANE11..TH

S PACKAGE

 1
48906-68010

ANE11..06S..TH

S PACKAGE

 1
89408C - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH
89408-68020

ANE11..TH

 1
89408-68020

ANE11..TH

S PACKAGE

 1
89408-68020

ANE11..06S..TH

S PACKAGE

 1
89408-68020

ANE11..06S

 1
89408C - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH
89408-68020

ANE11..TH

 1
89408-68020

ANE11..TH

S PACKAGE

 1
89408-68020

ANE11..06S..TH

S PACKAGE

 1
89408-68020

ANE11..06S

 1
Common parts
90179-06156
90179-06178
91621-J0614
91651-B0616
94150-10641
