ANE11R-JWPQKT (2005)
Toyota Wish
Production
Dec 2005
-
Oct 2009
Engine
1AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312- )

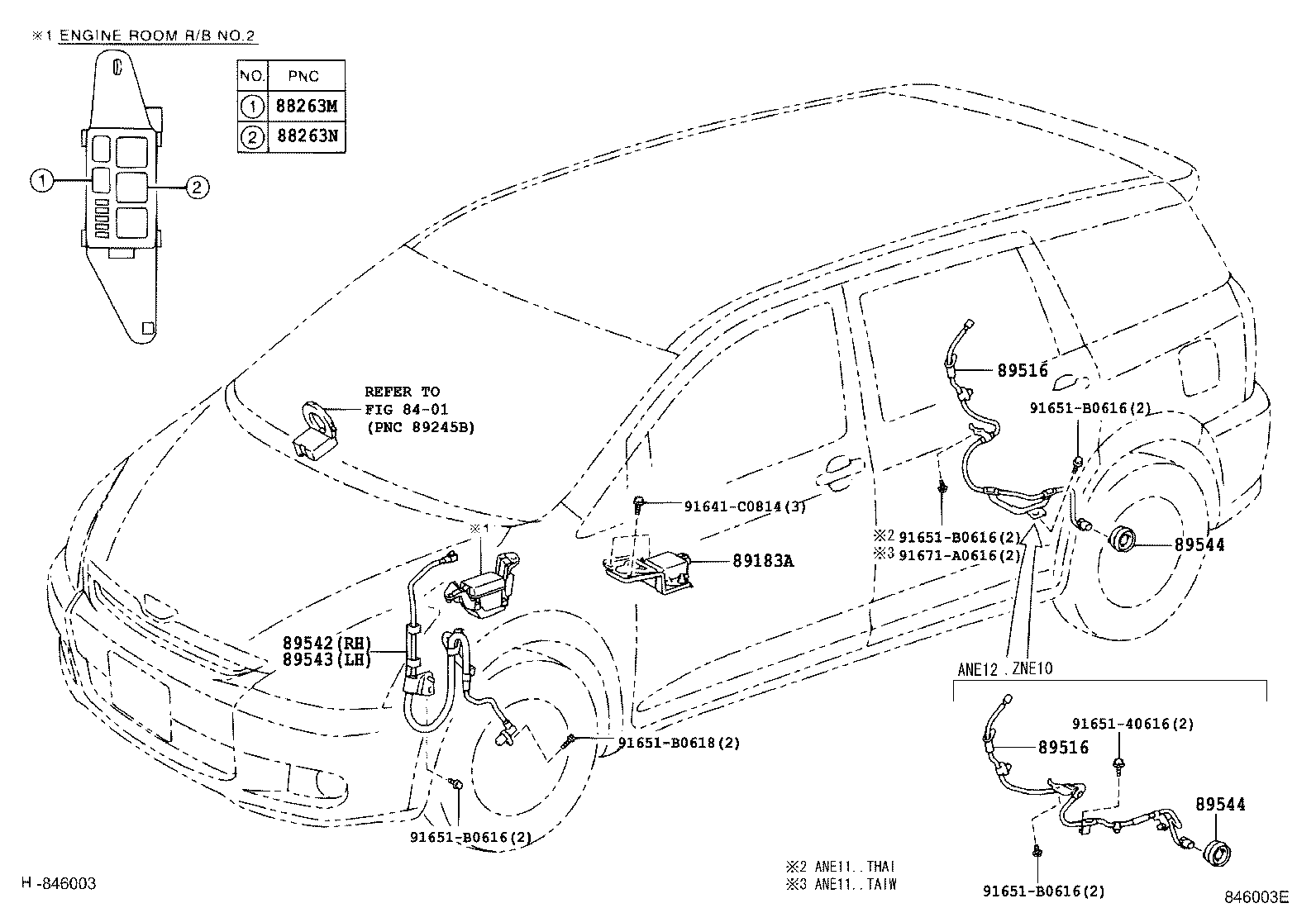

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88263M - RELAY, ABS SOLENOID | ||||
| 88263-32070 |
ANE11..06S;ANE12..20E |
1 | ||
| 88263-32070 |
ANE1#..20E,20Q,ZAER |
1 | ||
| 88263N - RELAY, ABS MOTOR | ||||
| 88263-21010 |
ANE11..06S;ANE12..20E |
1 | ||
| 88263-21010 |
ANE1#..20E,20Q,ZAER |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89180-68010 |
ANE11..TH |
1 | ||
| 89180-68010 |
ANE1#..20E,20Q,ZAER |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-68040 |
ANE11..TH LH |
1 | ||
| 89516-68030 |
ANE11..TH RH |
1 | ||
| 89516-68030 |
ANE11 RH |
1 | ||
| 89516-68040 |
ANE11 LH |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-68040 |
ANE11..TH LH |
1 | ||
| 89516-68030 |
ANE11..TH RH |
1 | ||
| 89516-68030 |
ANE11 RH |
1 | ||
| 89516-68040 |
ANE11 LH |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-20170 |
ANE1#,ZNE10 |
1 | ||
| 89542-20170 |
ANE11..TH |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-20170 |
ANE11..TH |
1 | ||
| 89543-20170 |
ANE1#,ZNE10 |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-32040 |
ANE1#,ZNE10 KOYO |
2 | ||
| 89544-32040 |
ANE12;ANE11..06S |
2 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-32040 |
ANE1#,ZNE10 KOYO |
2 | ||
| 89544-32040 |
ANE12;ANE11..06S |
2 | ||
| Common parts | ||||
| 91641-C0814 | ||||
| 91651-40616 | ||||
| 91651-B0616 | ||||
| 91651-B0618 | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
