Toyota Wish ANE11 WIRING & CLAMP

ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009

Engine 1AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

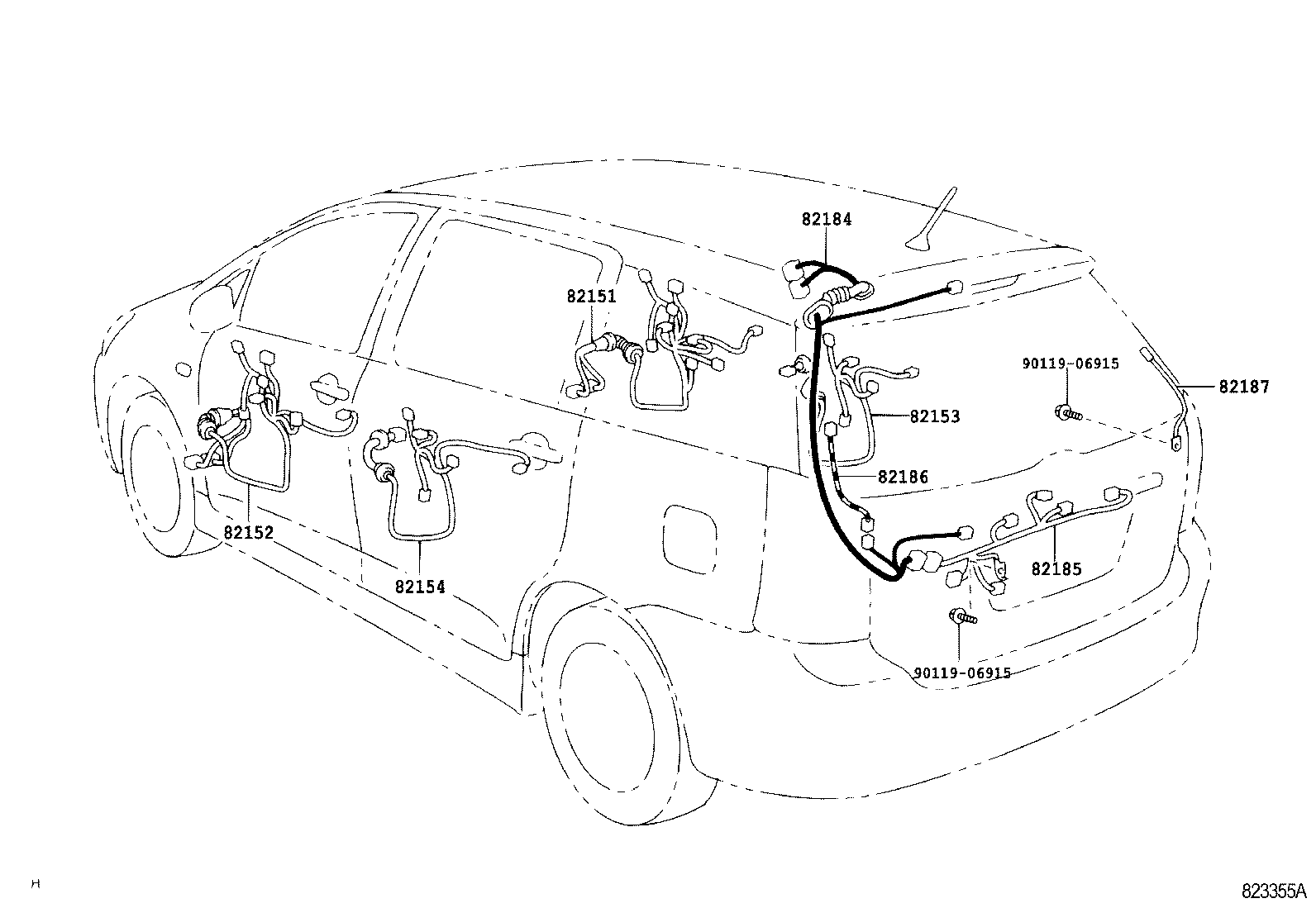

ILLUST NO. 4 OF 9(0312- )RHD

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-0M011	ANE11..06S..TH S PACKAGE	12/2005 - 10/2009	1
82151-0M021	ANE11..06S..TH	12/2005 - 10/2009	1
82151-0M020	ANE11..TH	12/2003 - 12/2005	1
82151-0M010	ANE11..TH S PACKAGE	12/2003 - 12/2005	1
82152 - WIRE, FRONT DOOR, LH
82152-0M011	ANE11..06S..TH S PACKAGE	12/2005 - 10/2009	1
82152-0M010	ANE11..TH	12/2003 - 12/2005	1
82152-0M030	ANE11..06S..TH	12/2005 - 10/2009	1
82153 - WIRE, REAR DOOR, NO.1
82153-0M010	ANE11..TH	12/2003 - 12/2005	1
82153-0M011	ANE11..TH	12/2005 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82154-0M010	ANE11..TH	12/2003 - 12/2005	1
82154-0M011	ANE11..TH	12/2005 - 12/2999	1
82184 - WIRE, BACK DOOR, NO.1
82184-0M010	ANE11..TH	12/2003 - 12/2005	1
82184-0M040	ANE11..06S..TH WITH(BACK MONITOR)	12/2005 - 12/2999	1
82184-0M011	ANE11..TH	12/2005 - 12/2999	1
82185 - WIRE, BACK DOOR, NO.2
82185-0M010	ANE11..TH	12/2005 - 12/2999	1
82185-0M010	ANE11..TH	12/2003 - 12/2005	1
82186 - WIRE, REAR WINDOW, NO.1
82186-68010	ANE12;ANE11..06S	12/2003 - 03/2007	1
82186-68010	ANE1#,ZNE10	12/2005 - 10/2009	1
82187 - WIRE, REAR WINDOW, NO.2
82187-68010	ANE1#,ZNE10	12/2005 - 10/2009	1
82187-68010	ANE12;ANE11..06S	12/2003 - 03/2007	1
Common parts
90119-06915

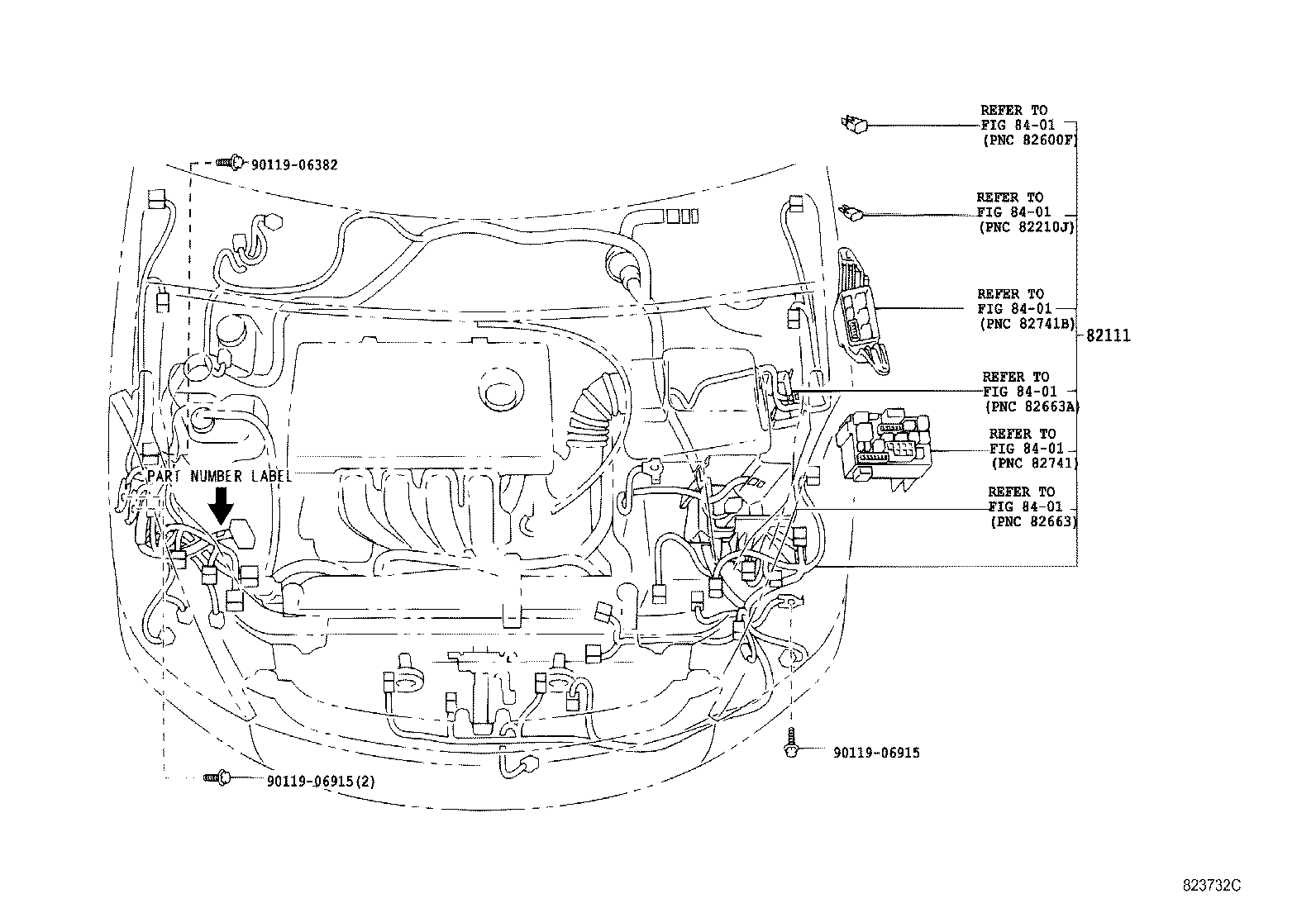

ILLUST NO. 1 OF 9(0312- )RHD

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-0M020	ANE11	12/2003 - 05/2005	1
82111-0M010	ANE11 S PACKAGE	12/2003 - 05/2005	1
82111-0M022	ANE11..06S..TH	12/2005 - 10/2009	1
82111-0M012	ANE11..06S..TH S PACKAGE	12/2005 - 10/2009	1
82111-0M020	ANE11 PART NUMBER LABEL=82111-0M020	12/2003 - 05/2005	1
82111-0M010	ANE11 PART NUMBER LABEL=82111-0M010	12/2003 - 05/2005	1
82111-0M022	ANE11..06S..TH PART NUMBER LABEL=82111-0M022	12/2005 - 10/2009	1
82111-0M012	ANE11..06S..TH PART NUMBER LABEL=82111-0M012	12/2005 - 10/2009	1
Common parts
90119-06382
90119-06915
Linked diagrams
8401

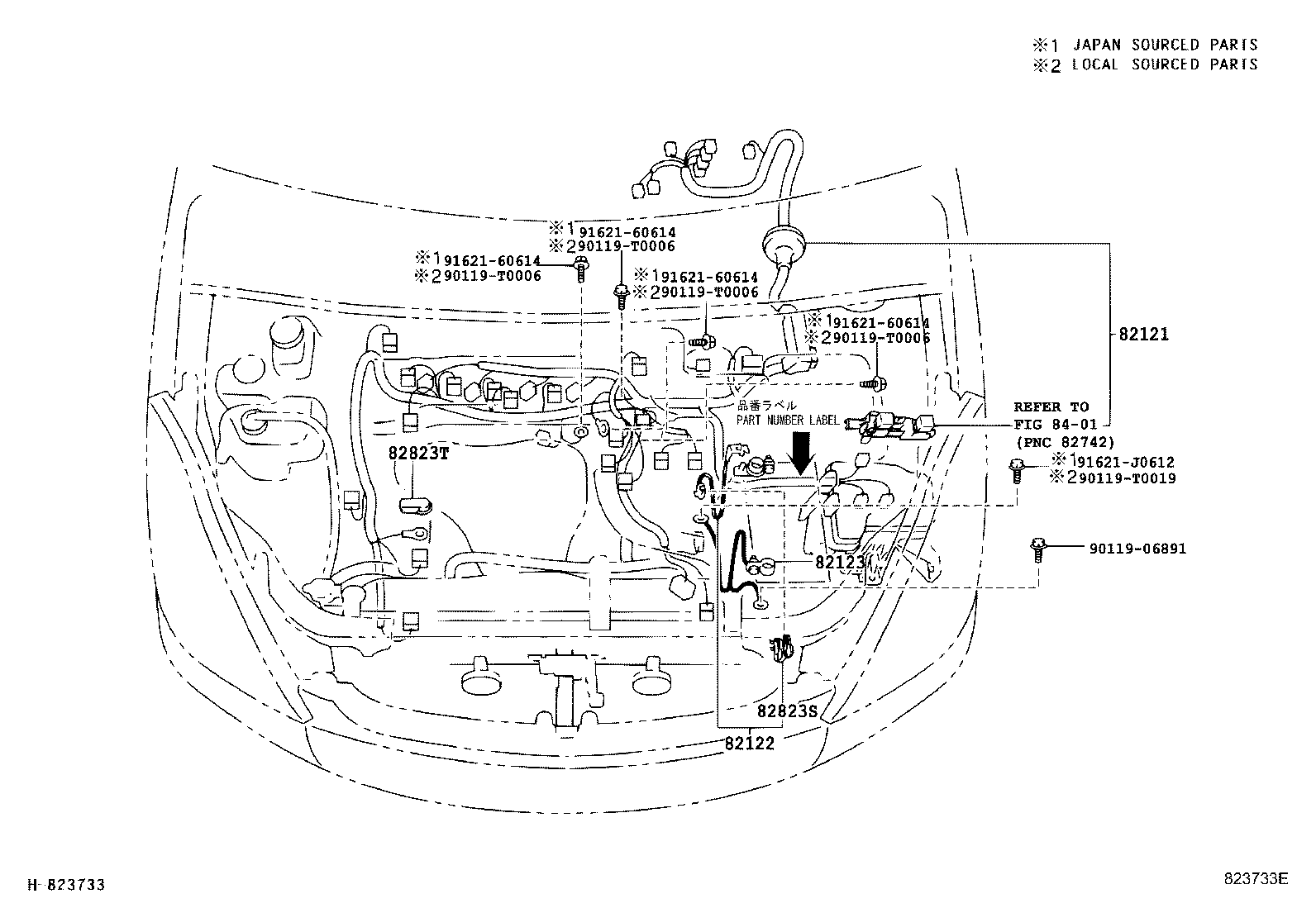

ILLUST NO. 2 OF 9(0312- )TH

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-0M010	ANE11..TH	12/2003 - 12/2005	1
82121-0M010	ANE11..TH	12/2005 - 10/2009	1
82122 - WIRE, ENGINE, NO.2
82122-0M010	ANE11..TH	12/2005 - 10/2009	1
82122-0M010	ANE11..TH	12/2003 - 12/2005	1
82123 - WIRE, ENGINE, NO.3
82123-0M010	ANE11..TH	12/2003 - 12/2005	1
82123-0M010	ANE11..TH	12/2005 - 12/2999	1
82823S - CAP, STARTER TERMINAL
82823-20080	ANE1#	12/2005 - 10/2009	1
82823-20080	ANE12;ANE11..06S	12/2003 - 03/2007	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	ANE12;ANE11..06S	12/2003 - 03/2007	1
82823-22050	ANE1#,ZNE10	12/2005 - 10/2009	1
Common parts
90119-06891
90119-T0006
90119-T0019
91621-60614
91621-J0612
Linked diagrams
8401

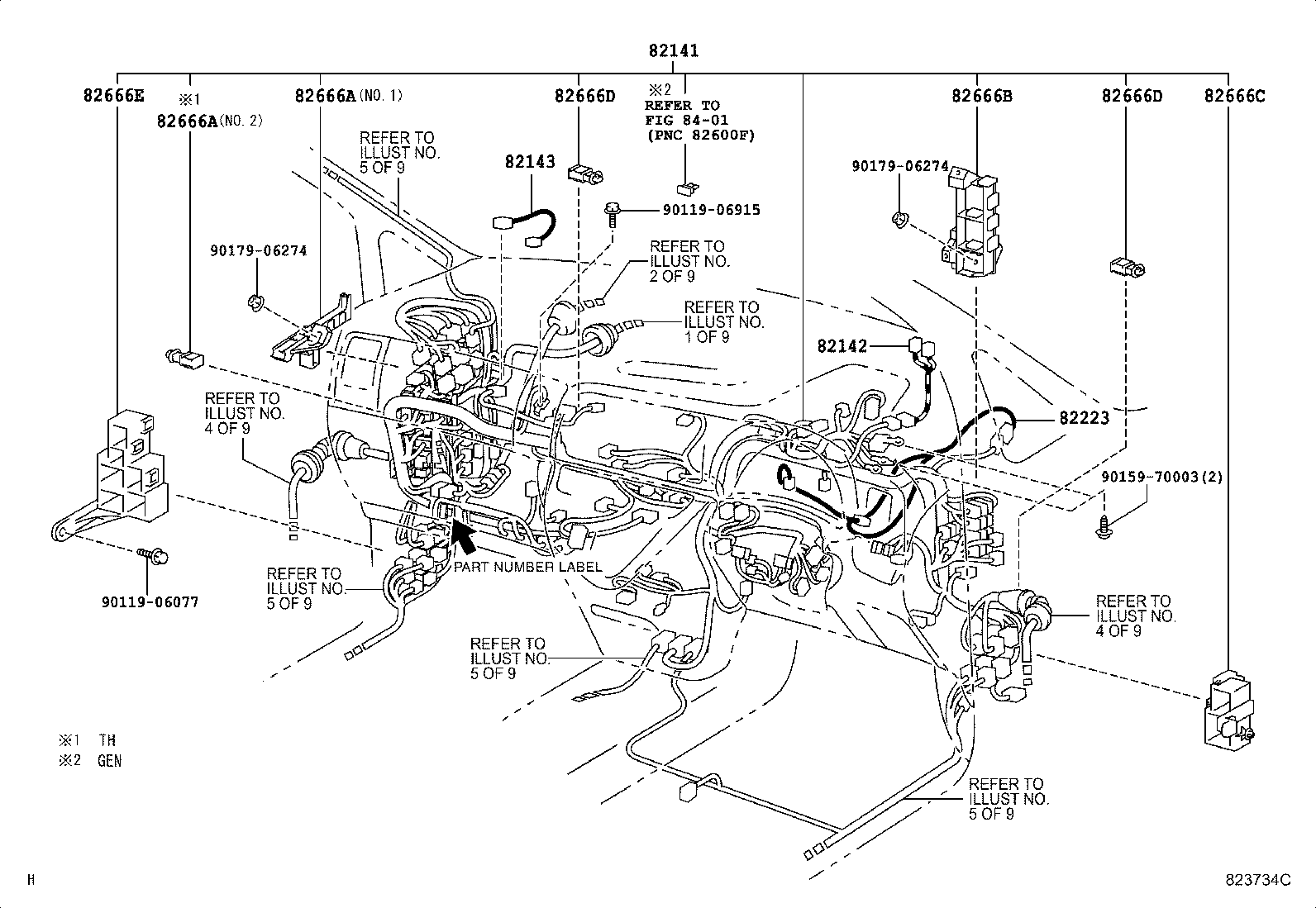

ILLUST NO. 3 OF 9(0312- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-0M020	ANE11	12/2003 - 05/2005	1
82141-0M010	ANE11 S PACKAGE	12/2003 - 05/2005	1
82141-0M012	ANE11..06S..TH S PACKAGE	12/2005 - 04/2008	1
82141-0M022	ANE11..06S..TH	12/2005 - 04/2008	1
82141-0M013	ANE11..06S..TH S PACKAGE	04/2008 - 12/2999	1
82141-0M020	ANE11 PART NUMBER LABEL=82141-0M020	12/2003 - 05/2005	1
82141-0M010	ANE11 PART NUMBER LABEL=82141-0M010	12/2003 - 05/2005	1
82141-0M023	ANE11..06S..TH	04/2008 - 12/2999	1
82141-0M012	ANE11..06S..TH PART NUMBER LABEL=82141-0M012	12/2005 - 04/2008	1
82141-0M022	ANE11..06S..TH PART NUMBER LABEL=82141-0M022	12/2005 - 04/2008	1
82141-0M013	ANE11..06S..TH PART NUMBER LABEL=82141-0M013	04/2008 - 12/2999	1
82141-0M023	ANE11..06S..TH PART NUMBER LABEL=82141-0M023	04/2008 - 12/2999	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-0M010	ANE11..TH	12/2005 - 12/2999	1
82142-0M010	ANE11..TH	12/2003 - 12/2005	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-0M010	ANE11..TH	12/2005 - 12/2999	1
82143-0M010	ANE11..TH	12/2003 - 12/2005	1
82223 - WIRE, SWITCH
82223-0M011	ANE11..TH	04/2008 - 12/2999	1
82223-0M010	ANE11..TH	12/2005 - 04/2008	1
82223-0M010	ANE11..TH	12/2003 - 12/2005	1
82666A - HOLDER, CONNECTOR NO.2
82666-68010	ANE11..TH NO.1	12/2003 - 12/2005	1
82666-68010	ANE11..TH NO.1	12/2005 - 10/2009	1
82666-20270	ANE11..TH NO.2	12/2005 - 10/2009	1
82666-20270	ANE11..TH NO.2	12/2003 - 12/2005	1
82666A - HOLDER, CONNECTOR NO.2
82666-68010	ANE11..TH NO.1	12/2003 - 12/2005	1
82666-68010	ANE11..TH NO.1	12/2005 - 10/2009	1
82666-20270	ANE11..TH NO.2	12/2005 - 10/2009	1
82666-20270	ANE11..TH NO.2	12/2003 - 12/2005	1
82666B - HOLDER, CONNECTOR NO.3
82666-68020	ANE11..TH	12/2003 - 12/2005	1
82666-68020	ANE11,ZNE10..RHD	12/2005 - 10/2009	1
82666C - HOLDER, CONNECTOR NO.4
82666-12260	ANE11,ZNE10..RHD	12/2005 - 12/2999	1
82666-12260	ANE11..TH	12/2003 - 12/2005	1
82666D - HOLDER, CONNECTOR NO.5
82666-16030	ANE11..TH	12/2003 - 12/2005	2
82666-16030	ANE11,ZNE10..RHD	12/2005 - 12/2999	2
82666D - HOLDER, CONNECTOR NO.5
82666-16030	ANE11..TH	12/2003 - 12/2005	2
82666-16030	ANE11,ZNE10..RHD	12/2005 - 12/2999	2
82666E - HOLDER, CONNECTOR NO.6
82666-47060	ANE11,ZNE10..RHD	12/2005 - 12/2999	1
82666-47060	ANE11..TH	12/2003 - 12/2005	1
Common parts
90119-06077
90119-06915
90159-70003
90179-06274
Linked diagrams
8401

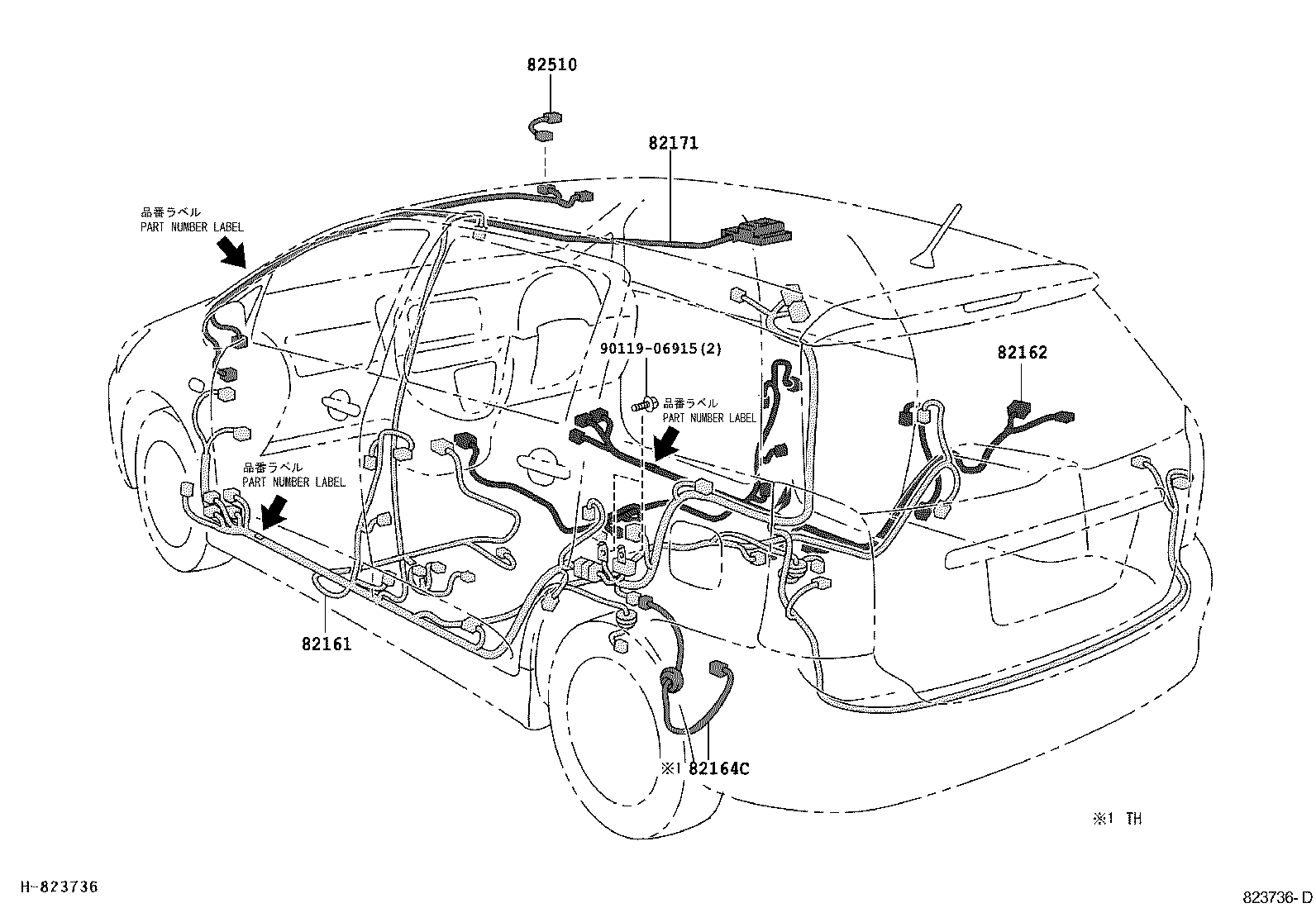

ILLUST NO. 5 OF 9(0312- )RHD

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-0M020	ANE11..TH	12/2003 - 12/2005	1
82161-0M021	ANE11..06S..TH	12/2005 - 04/2008	1
82161-0M011	ANE11..06S..TH S PACKAGE	12/2005 - 04/2008	1
82161-0M010	ANE11..TH S PACKAGE	12/2003 - 12/2005	1
82161-0M020	ANE11..TH PART NUMBER LABEL=82161-0M020	12/2003 - 12/2005	1
82161-0M022	ANE11..06S..TH	04/2008 - 10/2009	1
82161-0M012	ANE11..06S..TH S PACKAGE	04/2008 - 10/2009	1
82161-0M010	ANE11..TH PART NUMBER LABEL=82161-0M010	12/2003 - 12/2005	1
82161-0M021	ANE11..06S..TH PART NUMBER LABEL=82161-0M021	12/2005 - 04/2008	1
82161-0M022	ANE11..06S..TH PART NUMBER LABEL=82161-0M022	04/2008 - 10/2009	1
82161-0M012	ANE11..06S..TH PART NUMBER LABEL=82161-0M012	04/2008 - 10/2009	1
82161-0M011	ANE11..06S..TH PART NUMBER LABEL=82161-0M011	12/2005 - 04/2008	1
82162 - WIRE, FLOOR, NO.2
82162-0M020	ANE11..TH	12/2003 - 12/2005	1
82162-0M010	ANE11..TH S PACKAGE	12/2003 - 12/2005	1
82162-0M011	ANE11..06S..TH S PACKAGE	12/2005 - 10/2009	1
82162-0M040	ANE11..06S..TH LIMITED PACKAGE	12/2005 - 10/2009	1
82162-0M020	ANE11..TH PART NUMBER LABEL=82162-0M020	12/2003 - 12/2005	1
82162-0M021	ANE11..06S..TH	12/2005 - 10/2009	1
82162-0M011	ANE11..06S..TH PART NUMBER LABEL=82162-0M011	12/2005 - 10/2009	1
82162-0M010	ANE11..TH PART NUMBER LABEL=82162-0M010	12/2003 - 12/2005	1
82162-0M040	ANE11..06S..TH PART NUMBER LABEL=82162-0M040	12/2005 - 10/2009	1
82162-0M021	ANE11..06S..TH PART NUMBER LABEL=82162-0M021	12/2005 - 10/2009	1
82164C - WIRE, FLOOR, NO.4
82164-0M010	ANE11..TH	12/2003 - 12/2005	1
82164-0M010	ANE11..06S..TH	12/2005 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-68010	ANE11..TH	12/2003 - 12/2005	1
82171-68020	ANE11..TH LIMITED PACKAGE	12/2003 - 12/2005	1
82171-68050	ANE11,ZNE10..RHD	12/2005 - 10/2009	1
82171-68010	ANE11..TH PART NUMBER LABEL=82171-68010	12/2003 - 12/2005	1
82171-68050	ANE11,ZNE10..RHD PART NUMBER LABEL=82171-68050	12/2005 - 10/2009	1
82171-68070	ANE11..06S..TH LIMITED PACKAGE	12/2005 - 10/2009	1
82171-68070	ANE11..06S..TH PART NUMBER LABEL=82171-68070	12/2005 - 10/2009	1
82171-68020	ANE11..TH PART NUMBER LABEL=82171-68020	12/2003 - 12/2005	1
82510 - WIRING ASSY, ROOF
82510-68010	ANE11..TH LIMITED PACKAGE	12/2003 - 12/2005	1
82510-68010	ANE11..06S..TH LIMITED PACKAGE	12/2005 - 10/2009	1
Common parts
90119-06915

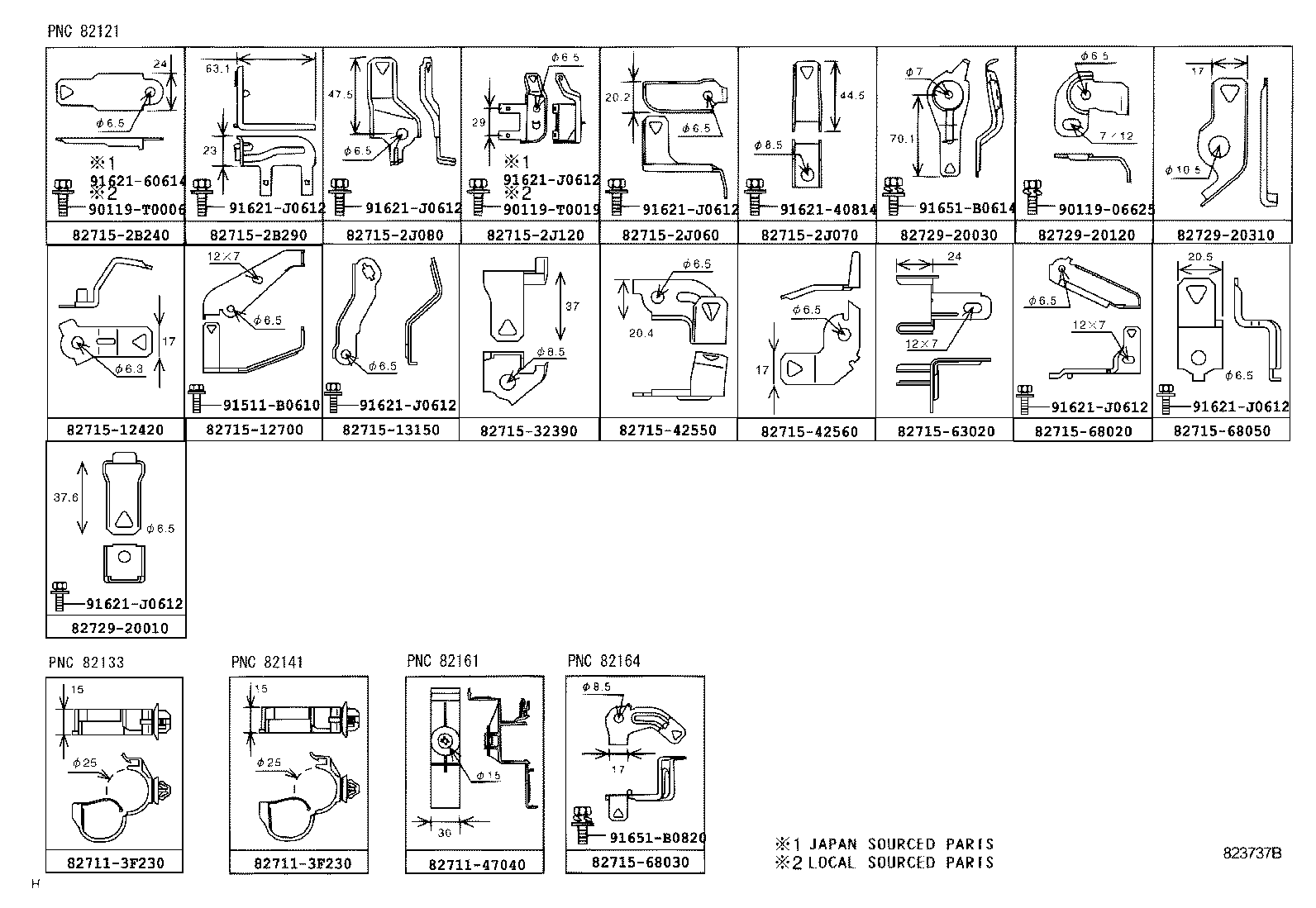

ILLUST NO. 7 OF 9(0312- )RHD

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-3F230
82711-47040
82715-12420
82715-12700
82715-13150
82715-2B240
82715-2B290
82715-2J060
82715-2J070
82715-2J080
82715-2J120
82715-32390
82715-42550
82715-42560
82715-63020
82715-68020
82715-68030
82715-68050
82729-20010
82729-20030
82729-20120
82729-20310
90119-06625
90119-T0006
90119-T0019
91511-B0610
91621-40814
91621-60614
91621-J0612
91651-B0614
91651-B0820

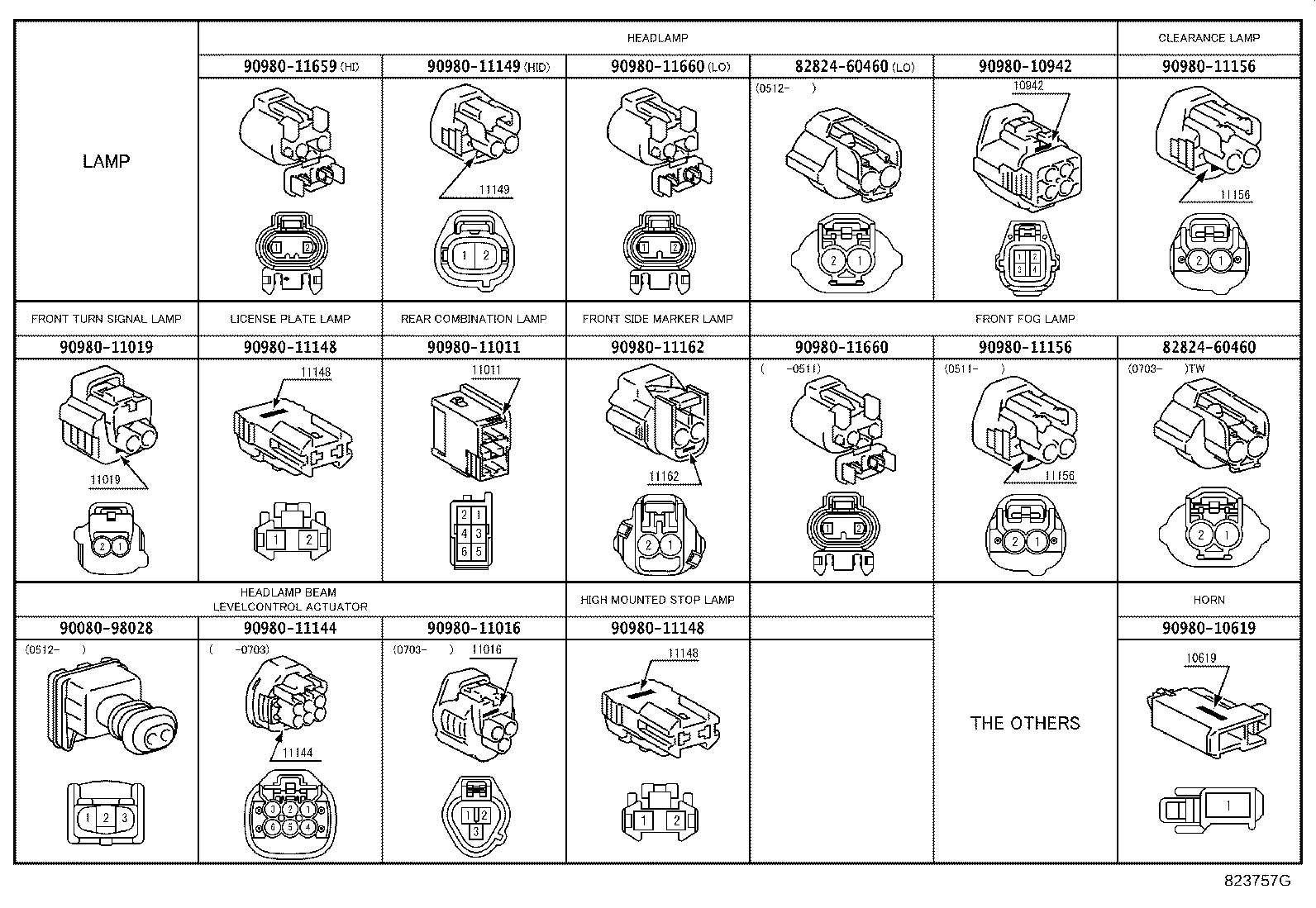

ILLUST NO. 9 OF 9(0312- )

Click highlighted areas on diagram

CONNECTOR

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90080-98028
90980-10619
90980-10942
90980-11011
90980-11016
90980-11019
90980-11144
90980-11148
90980-11149
90980-11156
90980-11162
90980-11659
90980-11660

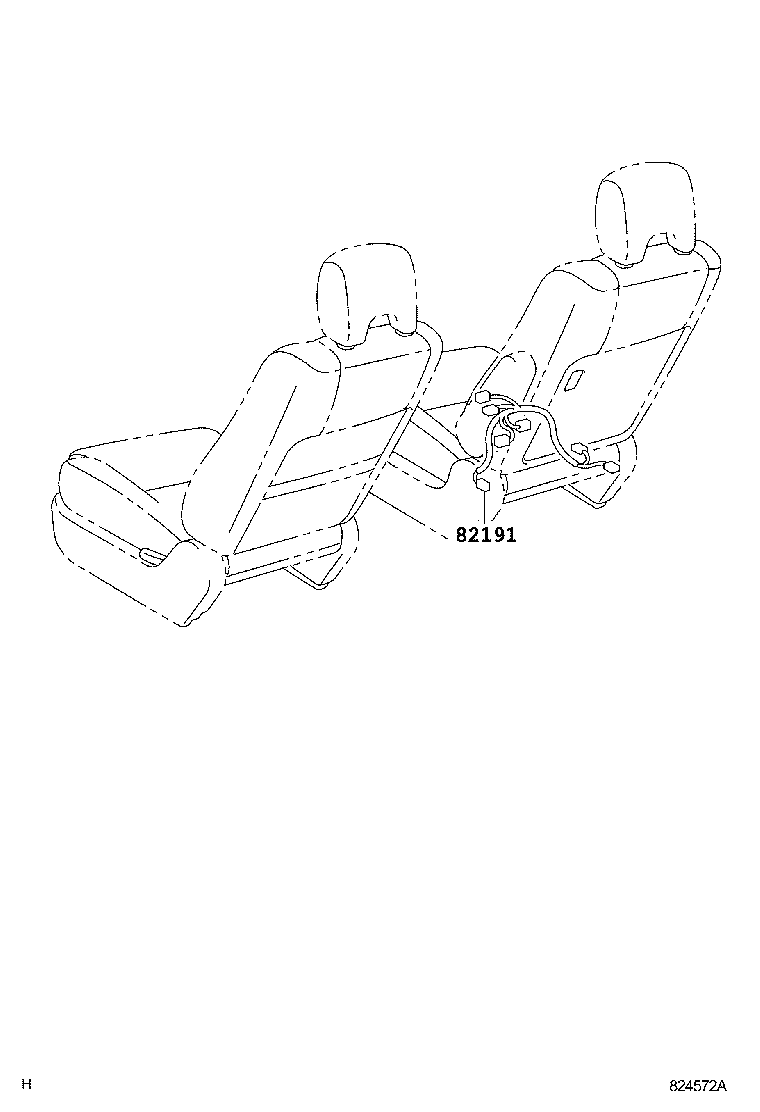

ILLUST NO. 6 OF 9(0512- )TH

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty	Price
82191 - WIRE, FRONT SEAT, RH
82191-0M010	ANE11..06S..TH LIMITED PACKAGE	12/2005 - 10/2009	1

Part #

Description

Qty

Price

82191 - WIRE, FRONT SEAT, RH

82191-0M010

ANE11..06S..TH

LIMITED PACKAGE
