ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

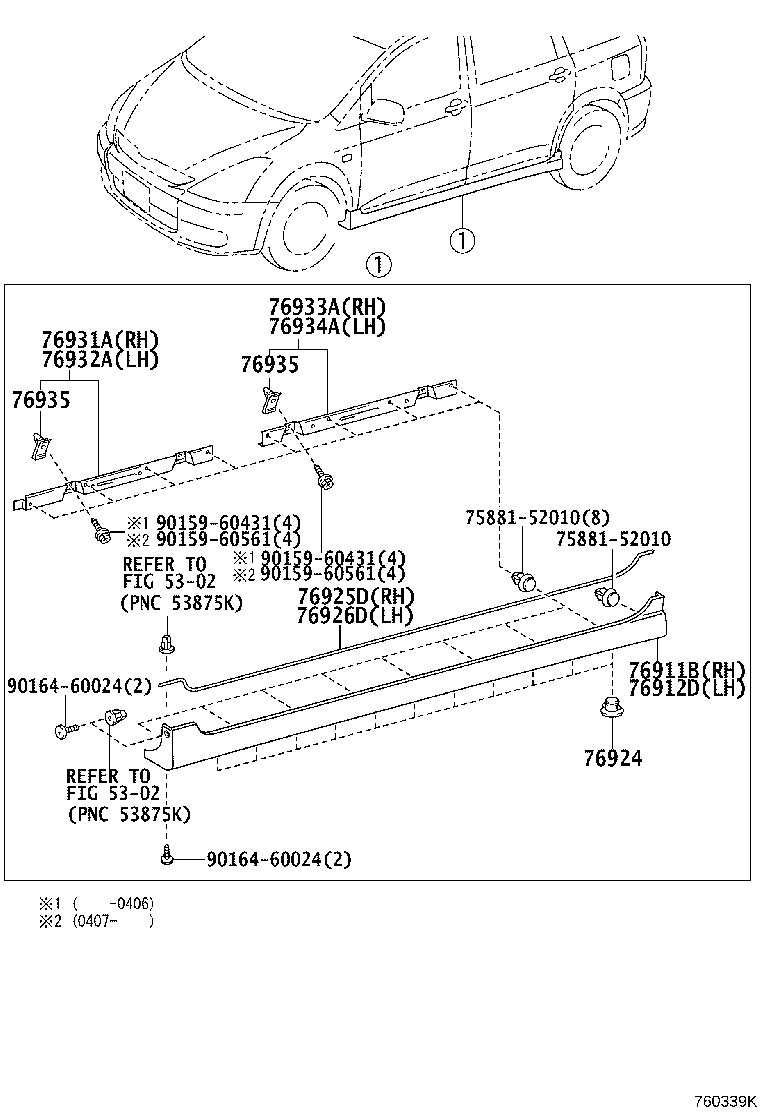

ILLUST NO. 1 OF 2(0312- )ANE11

Click highlighted areas on diagram

diagram 5302 5302 7588152010 7588152010 76911B 76912D 76924 76925D 76926D 76931A 76932A 76933A 76934A 76935 76935 9015960431 9015960431 9015960561 9015960561 9016460024 9016460024
Part # Description Qty Price
76911B - MUDGUARD, SIDE, RH
76911-68900

ANE11

 1
76911-68900

ANE11..06S

 1
76912D - MUDGUARD, SIDE, LH
76912-68900

ANE11

 1
76912-68900

ANE11..06S

 1
76924 - RETAINER, SIDE MUDGUARD, NO.2
76924-52021

ANE11..06S

 22
76924-52021

ANE11

 22
76925D - PROTECTOR, SIDE MUDGUARD, RH
76925-68010B0

ANE11..TH

LT. GRAY,070 ,1E7

 1
76925-68010C0

ANE11..TH

BLACK,1E9 ,209 ,3M8 ,3N8 ,3P0 ,8L4 ,8N8 ,8P4

 1
76925-68010C0

ANE11..TH

BLACK,209 ,3N8 ,3P0 ,8N8

 1
76925-68010B2

ANE11..TH

GRAY,1D0 ,1D4 ,4R0 ,586

 1
76926D - PROTECTOR, SIDE MUDGUARD, LH
76925-68010B0

ANE11..TH

LT. GRAY,070 ,1E7

 1
76925-68010C0

ANE11..TH

BLACK,1E9 ,209 ,3M8 ,3N8 ,3P0 ,8L4 ,8N8 ,8P4

 1
76925-68010C0

ANE11..TH

BLACK,209 ,3N8 ,3P0 ,8N8

 1
76925-68010B2

ANE11..TH

GRAY,1D0 ,1D4 ,4R0 ,586

 1
76931A - BRACKET, SIDE MUDGUARD, NO.1 RH
76931-68010

ANE11..06S

 1
76931-68010

ANE11

 1
76932A - BRACKET, SIDE MUDGUARD, NO.1 LH
76932-68010

ANE11..06S

 1
76932-68010

ANE11

 1
76933A - BRACKET, SIDE MUDGUARD, NO.2 RH
76933-68010

ANE11

 1
76933-68010

ANE11..06S

 1
76934A - BRACKET, SIDE MUDGUARD, NO.2 LH
76933-68010

ANE11..06S

 1
76933-68010

ANE11

 1
76935 - RETAINER, SIDE MUDGUARD, NO.7
76935-68010

ANE11

 8
76935-68010

ANE11..06S

 8
76935 - RETAINER, SIDE MUDGUARD, NO.7
76935-68010

ANE11

 8
76935-68010

ANE11..06S

 8
Common parts
75881-52010
90159-60431
90159-60561
90164-60024
Linked diagrams
5302

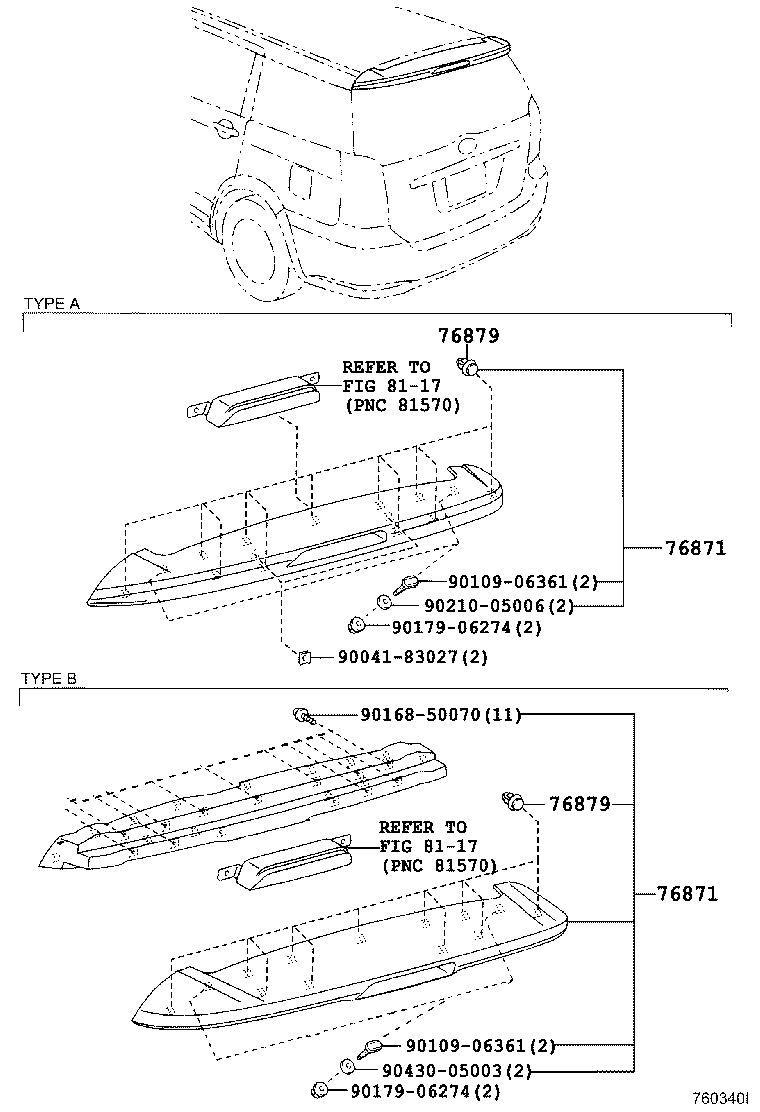

ILLUST NO. 2 OF 2(0312- )

Click highlighted areas on diagram

diagram 76871 76871 76879 76879 8117 8117 9004183027 9010906361 9010906361 9016850070 9017906274 9017906274 9021005006 9043005003
Part # Description Qty Price
76871 - SPOILER, REAR
76085-68903

ANE11..TH

PAINT REQ.,TYPE B:REFER ILLUST.

 1
76085-68903

ANE11..TH

PAINT REQ.,TYPE B:REFER ILLUST.

 1
76871 - SPOILER, REAR
76085-68903

ANE11..TH

PAINT REQ.,TYPE B:REFER ILLUST.

 1
76085-68903

ANE11..TH

PAINT REQ.,TYPE B:REFER ILLUST.

 1
76879 - CLIP, REAR SPOILER, NO.1
76817-68010

ANE1#,ZNE10

 11
76817-68010

ANE12;ANE11..06S

 11
76879 - CLIP, REAR SPOILER, NO.1
76817-68010

ANE1#,ZNE10

 11
76817-68010

ANE12;ANE11..06S

 11
Common parts
90041-83027
90109-06361
90168-50070
90179-06274
90210-05006
90430-05003
Linked diagrams
8117
