ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

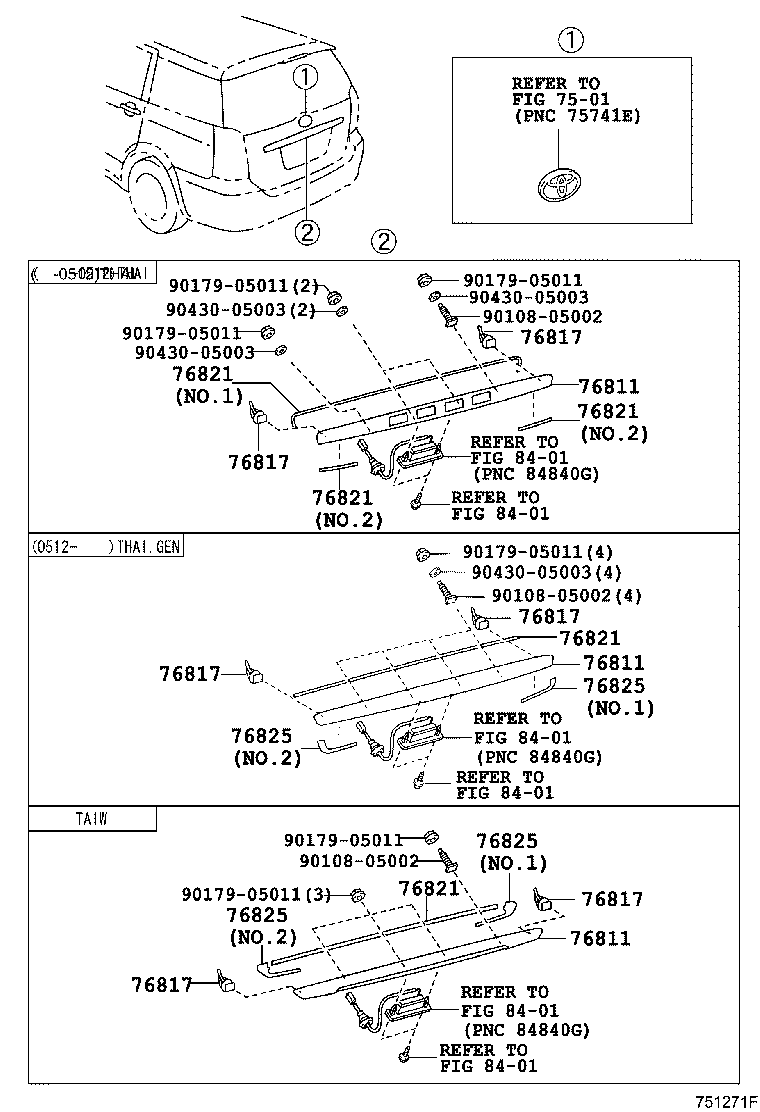

Click highlighted areas on diagram

diagram 7501 76811 76811 76811 76817 76817 76817 76817 76817 76817 76821 76821 76821 76821 76821 76825 76825 76825 76825 8401 8401 8401 8401 8401 8401 9010805002 9010805002 9010805002 9017905011 9017905011 9017905011 9017905011 9017905011 9017905011 9043005003 9043005003 9043005003 9043005003
Part # Description Qty Price
76811 - GARNISH, BACK DOOR, OUTSIDE
76811-68090

ANE11..TH

 1
76811-68100

ANE11..06S..TH

WITH(BACK MONITOR)

 1
76811-68030

ANE11..TH

 1
76811 - GARNISH, BACK DOOR, OUTSIDE
76811-68090

ANE11..TH

 1
76811-68100

ANE11..06S..TH

WITH(BACK MONITOR)

 1
76811-68030

ANE11..TH

 1
76811 - GARNISH, BACK DOOR, OUTSIDE
76811-68090

ANE11..TH

 1
76811-68100

ANE11..06S..TH

WITH(BACK MONITOR)

 1
76811-68030

ANE11..TH

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-44020

ANE11..TH

 2
76817-44020

ANE1#,ZNE10

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-44020

ANE11..TH

 2
76817-44020

ANE1#,ZNE10

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-44020

ANE11..TH

 2
76817-44020

ANE1#,ZNE10

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-44020

ANE11..TH

 2
76817-44020

ANE1#,ZNE10

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-44020

ANE11..TH

 2
76817-44020

ANE1#,ZNE10

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-44020

ANE11..TH

 2
76817-44020

ANE1#,ZNE10

 2
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-68020

ANE11..TH

NO.2

 2
76821-68010

ANE11..TH

NO.1

 1
76821-68030

ANE1#,ZNE10

 1
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-68020

ANE11..TH

NO.2

 2
76821-68010

ANE11..TH

NO.1

 1
76821-68030

ANE1#,ZNE10

 1
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-68020

ANE11..TH

NO.2

 2
76821-68010

ANE11..TH

NO.1

 1
76821-68030

ANE1#,ZNE10

 1
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-68020

ANE11..TH

NO.2

 2
76821-68010

ANE11..TH

NO.1

 1
76821-68030

ANE1#,ZNE10

 1
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-68020

ANE11..TH

NO.2

 2
76821-68010

ANE11..TH

NO.1

 1
76821-68030

ANE1#,ZNE10

 1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76835-68021

ANE1#,ZNE10

NO.2

 1
76825-68021

ANE1#,ZNE10

NO.1

 1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76835-68021

ANE1#,ZNE10

NO.2

 1
76825-68021

ANE1#,ZNE10

NO.1

 1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76835-68021

ANE1#,ZNE10

NO.2

 1
76825-68021

ANE1#,ZNE10

NO.1

 1
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76835-68021

ANE1#,ZNE10

NO.2

 1
76825-68021

ANE1#,ZNE10

NO.1

 1
Common parts
90108-05002
90179-05011
90430-05003
Linked diagrams
7501
8401
