ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )20E,20Q,ZAER

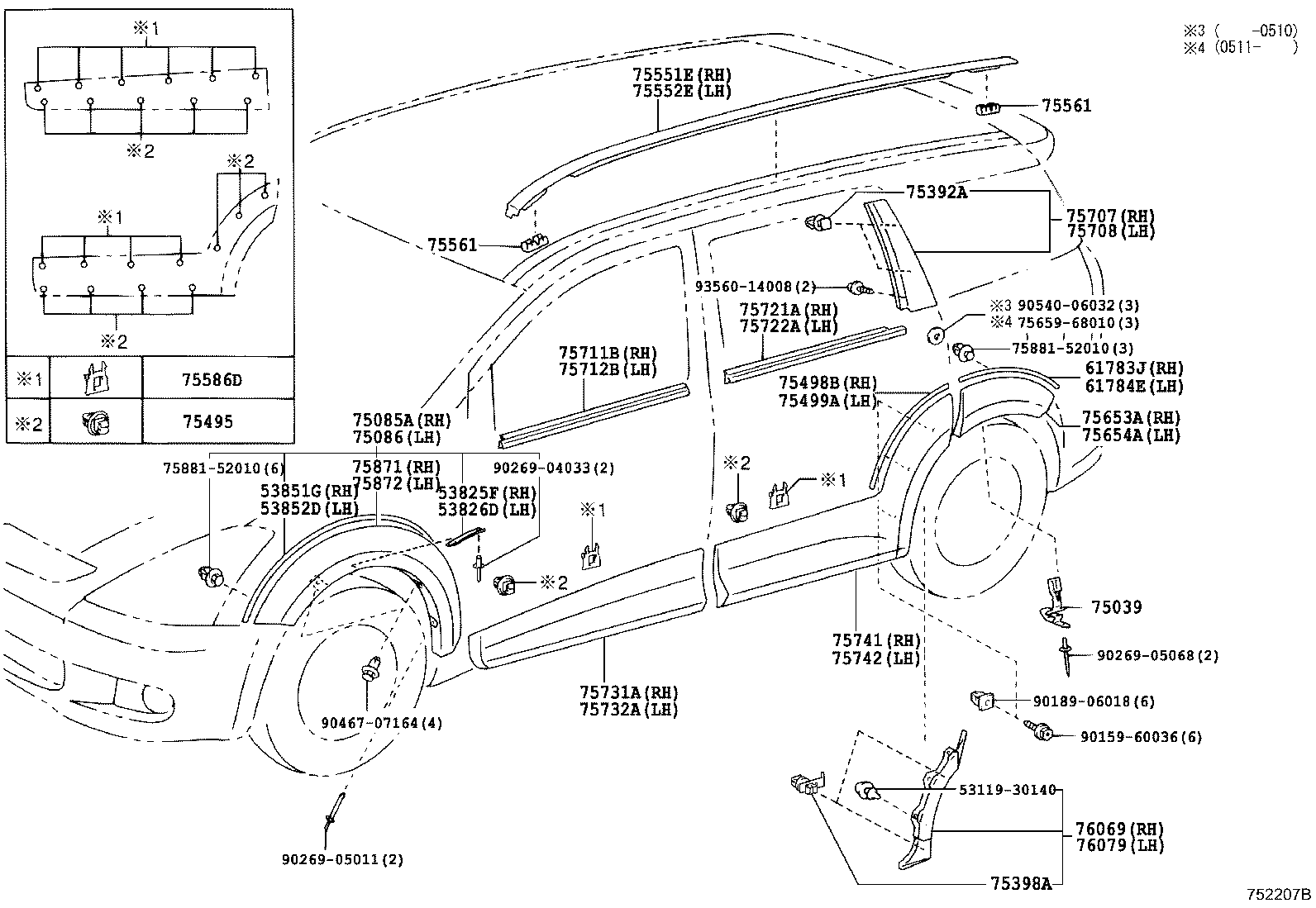

Click highlighted areas on diagram

diagram 5311930140 53825F 53826D 53851G 53852D 61783J 61784E 75039 75085A 75086 75392A 75398A 75495 75498B 75499A 75551E 75552E 75561 75561 75586D 75653A 75654A 7565968010 75707 75708 75711B 75712B 75721A 75722A 75731A 75732A 75741 75742 75871 75872 7588152010 7588152010 76069 76079 9015960036 9018906018 9026904033 9026905011 9026905068 9046707164 9054006032 9356014008
Part # Description Qty Price
53825F - PROTECTOR, FRONT FENDER, UPPER RH
53825-68010

ANE11

 1
53825-68010

ANE11..06S

 1
53826D - PROTECTOR, FRONT FENDER, UPPER LH
53826-68010

ANE11..06S

 1
53826-68010

ANE11

 1
53851G - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-68010B2

ANE11..TH

GRAY,1D0 ,586

 1
53851-68010B0

ANE11..TH

LT. GRAY,070 ,1E7

 1
53851-68010C0

ANE11..TH

BLACK,209 ,3N8 ,3P0 ,8N8

 1
53851-68010B2

ANE11..TH

GRAY,1D0 ,1D4 ,4R0 ,586

 1
53851-68010C0

ANE11..TH

BLACK,1E9 ,209 ,3M8 ,3N8 ,3P0 ,8L4 ,8N8 ,8P4

 1
53852D - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-68010B2

ANE11..TH

GRAY,1D0 ,586

 1
53852-68010C0

ANE11..TH

BLACK,209 ,3N8 ,3P0 ,8N8

 1
53852-68010B2

ANE11..TH

GRAY,1D0 ,1D4 ,4R0 ,586

 1
53852-68010C0

ANE11..TH

BLACK,1E9 ,209 ,3M8 ,3N8 ,3P0 ,8L4 ,8N8 ,8P4

 1
53852-68010B0

ANE11..TH

LT. GRAY,070 ,1E7

 1
61783J - PAD, REAR WHEEL OPENING EXTENSION, NO.2
61783-68010C0

ANE11..TH

BLACK,209 ,3N8 ,3P0 ,8N8

 1
61783-68010B0

ANE11..TH

LT. GRAY,070 ,1E7

 1
61783-68010B2

ANE11..TH

GRAY,1D0 ,1D4 ,4R0 ,586

 1
61783-68010B2

ANE11..TH

GRAY,1D0 ,586

 1
61783-68010C0

ANE11..TH

BLACK,1E9 ,209 ,3M8 ,3N8 ,3P0 ,8L4 ,8N8 ,8P4

 1
61784E - PAD, REAR WHEEL OPENING EXTENSION, NO.2
61784-68010C0

ANE11..TH

BLACK,1E9 ,209 ,3M8 ,3N8 ,3P0 ,8L4 ,8N8 ,8P4

 1
61784-68010B0

ANE11..TH

LT. GRAY,070 ,1E7

 1
61784-68010B2

ANE11..TH

GRAY,1D0 ,1D4 ,4R0 ,586

 1
61784-68010B2

ANE11..TH

GRAY,1D0 ,586

 1
61784-68010C0

ANE11..TH

BLACK,209 ,3N8 ,3P0 ,8N8

 1
75039 - CLIP SUB-ASSY, OUTSIDE MOULDING
75039-68010

ANE11..TH

 2
75039-68010

ANE11

 2
75085A - MOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, RH
75085-68010B5

ANE11..TH

SILVER ME.,1D0

 1
75085-68010D0

ANE11..TH

SUPER RED 5,3P0

 1
75085-68010F1

ANE11..TH

CHAMPAGNE ME.,586

 1
75085-68010C4

ANE11

BLACK MC.,209

 1
75086 - MOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, LH
75086-68010F1

ANE11..TH

CHAMPAGNE ME.,586

 1
75086-68010B5

ANE11..TH

SILVER ME.,1D0

 1
75086-68010C4

ANE11

BLACK MC.,209

 1
75086-68010D0

ANE11..TH

SUPER RED 5,3P0

 1
75392A - RETAINER, OUTSIDE MOULDING, NO.1
75392-33010

ANE1#,ZNE10

 4
75392-33010

ANE11..TH

 4
75398A - CLIP, OUTSIDE MOULDING, NO.5
75398-68010

ANE11

 4
75398-68010

ANE11..TH

 4
75495 - CLIP, OUTSIDE MOULDING, NO.4
75495-35010

ANE11..TH

 24
75495-35010

ANE11

 24
75498B - SEAL, OUTSIDE MOULDING, NO.2
76927-68010B2

ANE11..TH

GRAY,1D0 ,586

 1
76927-68010C0

ANE11..TH

BLACK,1E9 ,209 ,3M8 ,3N8 ,3P0 ,8L4 ,8N8 ,8P4

 1
76927-68010B0

ANE11..TH

LT. GRAY,070 ,1E7

 1
76927-68010B2

ANE11..TH

GRAY,1D0 ,1D4 ,4R0 ,586

 1
76927-68010C0

ANE11..TH

BLACK,209 ,3N8 ,3P0 ,8N8

 1
75499A - SEAL, OUTSIDE MOULDING, NO.3
76928-68020B2

ANE11..TH

GRAY,1D0 ,1D4 ,4R0 ,586

 1
76928-68020B0

ANE11..TH

LT. GRAY,070 ,1E7

 1
76928-68020C0

ANE11..TH

BLACK,209 ,3N8 ,3P0 ,8N8

 1
76928-68020B2

ANE11..TH

GRAY,1D0 ,586

 1
76928-68020C0

ANE11..TH

BLACK,1E9 ,209 ,3M8 ,3N8 ,3P0 ,8L4 ,8N8 ,8P4

 1
75551E - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-68010

ANE11,ZNE10..RHD

 1
75551-68010

ANE11..TH

 1
75552E - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-68010

ANE11,ZNE10..RHD

 1
75552-68010

ANE11..TH

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-33030

ANE12;ANE11..06S

 4
75561-33030

ANE1#,ZNE10

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-33030

ANE12;ANE11..06S

 4
75561-33030

ANE1#,ZNE10

 4
75586D - RETAINER, QUARTER GARNISH FRONT MOULDING, NO.2
75586-68010

ANE11..TH

 20
75586-68010

ANE11

 20
75653A - MOULDING, QUARTER, OUTSIDE REAR RH
75653-68900

ANE11

 1
75653-68900

ANE11..06S

 1
75654A - MOULDING, QUARTER, OUTSIDE REAR LH
75654-68900

ANE11

 1
75654-68900

ANE11..06S

 1
75707 - MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75707-68010

ANE11,ZNE10..RHD

 1
75707-68010

ANE11..TH

 1
75708 - MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75708-68010

ANE11..TH

 1
75708-68010

ANE11,ZNE10..RHD

 1
75711B - MOULDING, FRONT DOOR BELT, RH
75711-68010

ANE11

 1
75711-68011

ANE1#,ZNE10

 1
75712B - MOULDING, FRONT DOOR BELT, LH
75712-68011

ANE1#,ZNE10

 1
75712-68010

ANE11

 1
75721A - MOULDING, REAR DOOR BELT, RH
75721-68011

ANE1#,ZNE10

 1
75721-68010

ANE11

 1
75722A - MOULDING, REAR DOOR BELT, LH
75722-68010

ANE11

 1
75722-68011

ANE1#,ZNE10

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-68900

ANE11..06S

PAINT REQ.

 1
75731-68900

ANE11

PAINT REQ.

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-68900

ANE11

PAINT REQ.

 1
75732-68900

ANE11..06S

PAINT REQ.

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-68900

ANE11..06S

PAINT REQ.

 1
75741-68900

ANE11

PAINT REQ.

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-68900

ANE11

PAINT REQ.

 1
75742-68900

ANE11..06S

PAINT REQ.

 1
75871 - MOULDING, FRONT FENDER WHEEL OPENING, RH
75871-68900

ANE11..06S

 1
75871-68900

ANE11

 1
75872 - MOULDING, FRONT FENDER WHEEL OPENING, LH
75872-68900

ANE11

 1
75872-68900

ANE11..06S

 1
76069 - COVER SUB-ASSY, REAR DOOR MUDGUARD, RH
76069-68010

ANE11

 1
76069-68010

ANE11..TH

 1
76079 - COVER SUB-ASSY, REAR DOOR MUDGUARD, LH
76079-68010

ANE11

 1
76079-68010

ANE11..TH

 1
Common parts
53119-30140
75659-68010
75881-52010
90159-60036
90189-06018
90269-04033
90269-05011
90269-05068
90467-07164
90540-06032
93560-14008
