ANE11R-JWPQKT (2005)
Toyota Wish
Production
Dec 2005
-
Oct 2009
Engine
1AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312- )

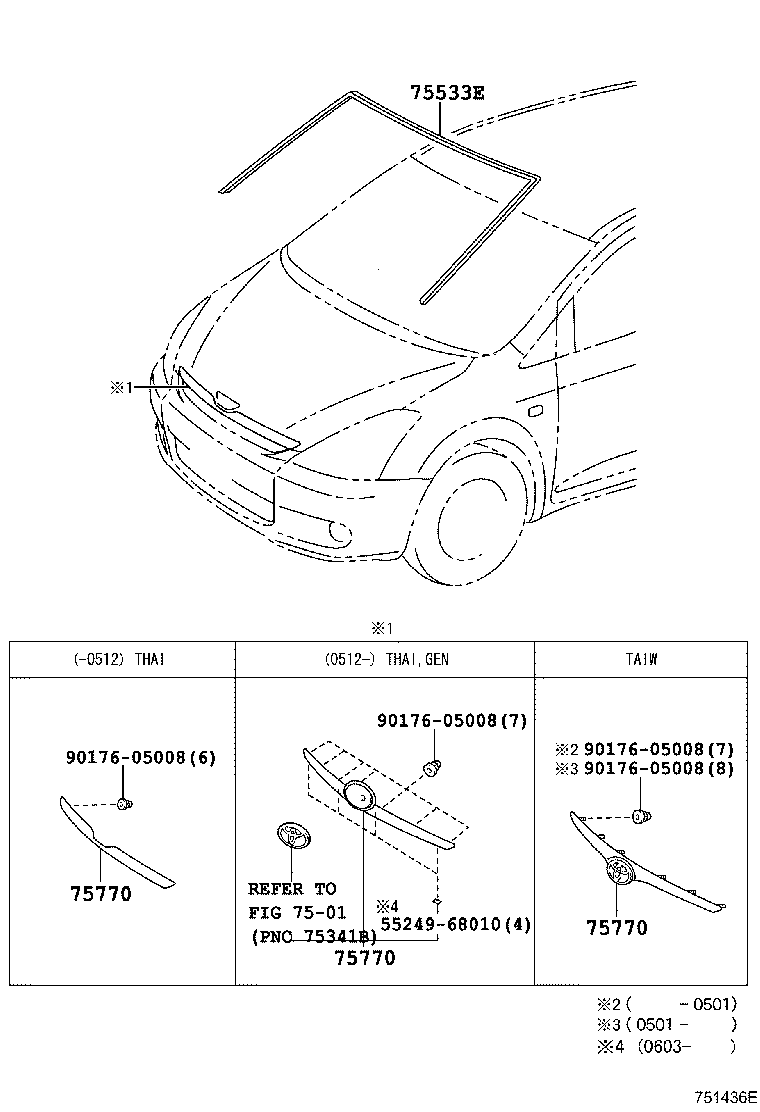

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75533E - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75533-68010 |
ANE11,ZNE10..RHD |
1 | ||
| 75533-68010 |
ANE11..TH |
1 | ||
| 75770 - MOULDING ASSY, HOOD, FRONT | ||||
| 75770-68020 |
ANE11..TH PLATED |
1 | ||
| 75770-68060 |
ANE11..TH PLATED |
1 | ||
| 75770 - MOULDING ASSY, HOOD, FRONT | ||||
| 75770-68020 |
ANE11..TH PLATED |
1 | ||
| 75770-68060 |
ANE11..TH PLATED |
1 | ||
| 75770 - MOULDING ASSY, HOOD, FRONT | ||||
| 75770-68020 |
ANE11..TH PLATED |
1 | ||
| 75770-68060 |
ANE11..TH PLATED |
1 | ||
| Common parts | ||||
| 55249-68010 | ||||
| 90176-05008 | ||||
| Linked diagrams | ||||
| 7501 | ||||
