ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

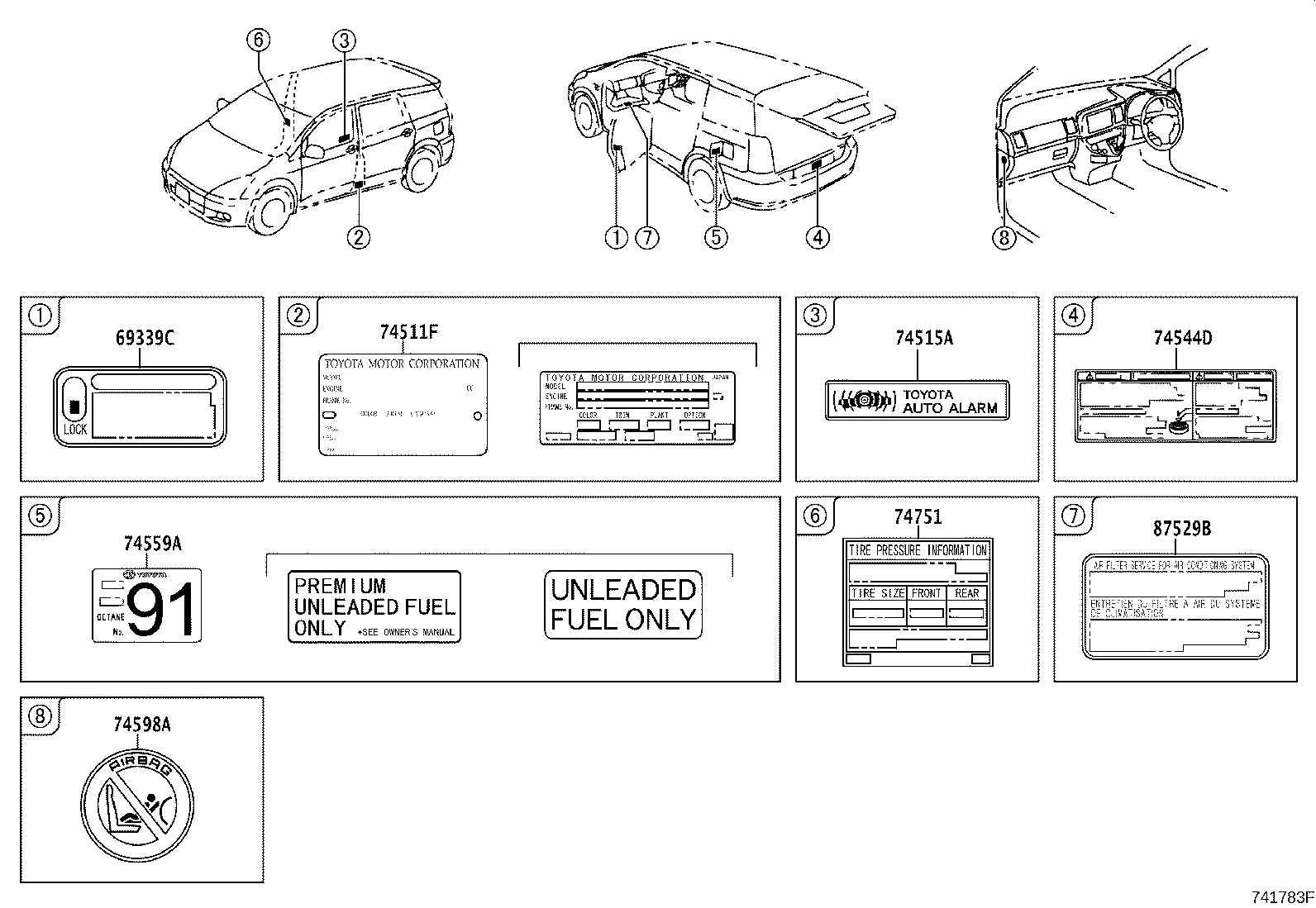

ILLUST NO. 2 OF 2(0512-0910)RHD

Click highlighted areas on diagram

EXTERIOR & INTERIOR

diagram 69339C 74511F 74515A 74544D 74559A 74598A 74751 87529B
Part # Description Qty Price
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-0A010

ANE11..TH

 2
69339-0A010

ANE11..TH

 2
74515A - PLATE, THEFT WARNING
74515-30020

ANE11..06S..TH

S PACKAGE

 2
74515-30020

ANE12;ANE11..06S

 2
74544D - PLATE, TIRE CARRIER CAUTION
74544-68020

ANE11..TH

 1
74544-68020

ANE11,ZNE10..RHD

 1
74559A - PLATE, FUEL CAUTION
74559-02020

ANE11..TH

 1
74559-02020

ANE11..TH

 1
74559-02021

ANE11..TH

 1
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-02040

ANE11..TH

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-0M010

ANE11..06S..TH

 1

ILLUST NO. 1 OF 2(0512-0910)RHD

Click highlighted areas on diagram

ENGINE ROOM

diagram 11285A 11296C 16448A 16793E 88723E
Part # Description Qty Price
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-27020

1AZFE..ANE11..TH

 1
11296-27020

1AZFE..ANE11..TH

 1
16448A - PLATE, RADIATOR CAUTION
16448-22010

1AZFE,1ZZFE..ANE11,ZNE10..RHD

 1
16448-22010

1AZFE..ANE11..TH

 1
16793E - LABEL, COOLING FAN CAUTION
16793-22010

1AZFE..ANE11..TH

 1
16793-22010

1AZFE,1ZZFE..ANE11,ZNE10..RHD

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-02080

ANE11..TH

 1
