ANE11R-JWPQKT (2005)
Toyota Wish
Production
Dec 2005
-
Oct 2009
Engine
1AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

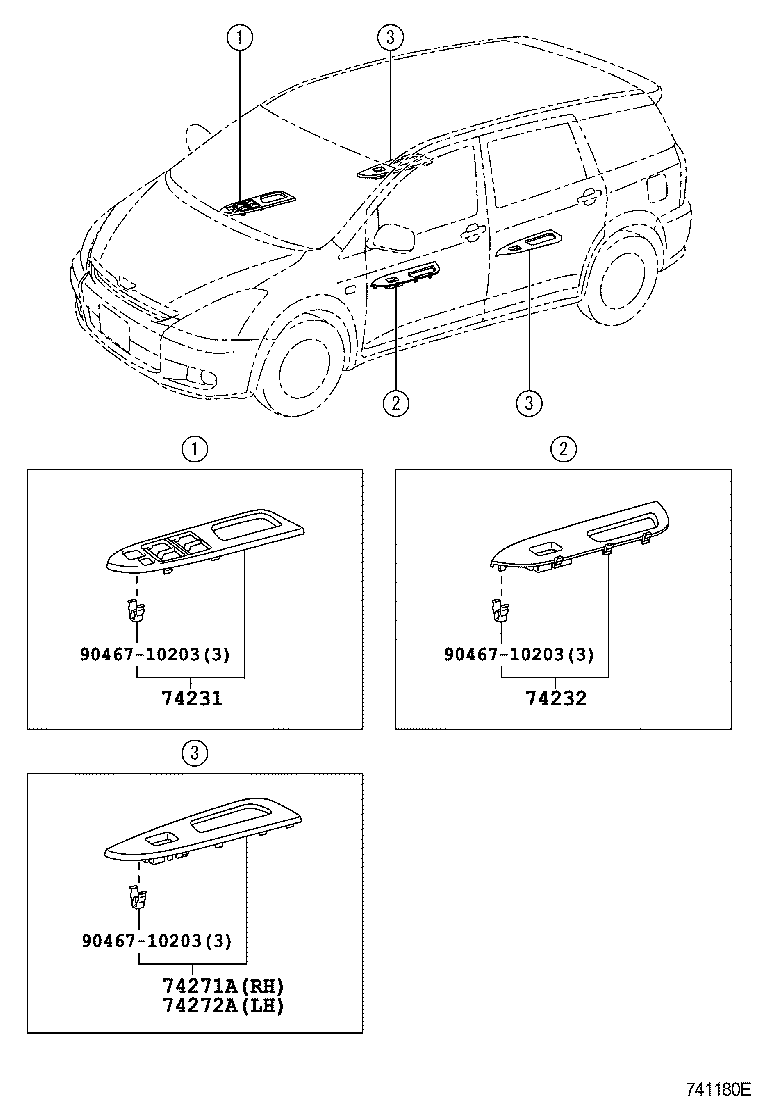

ILLUST NO. 1 OF 2(0312-0910)RHD
Click highlighted areas on diagram
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-68060 |
ANE11..TH |
1 | ||
| 74231-68020 |
ANE11..TH |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-68020 |
ANE11..TH |
1 | ||
| 74232-68060 |
ANE11..TH |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-68020 |
ANE11..TH |
1 | ||
| 74271-68060 |
ANE11..TH |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-68020 |
ANE11..TH |
1 | ||
| 74272-68060 |
ANE11..TH |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||

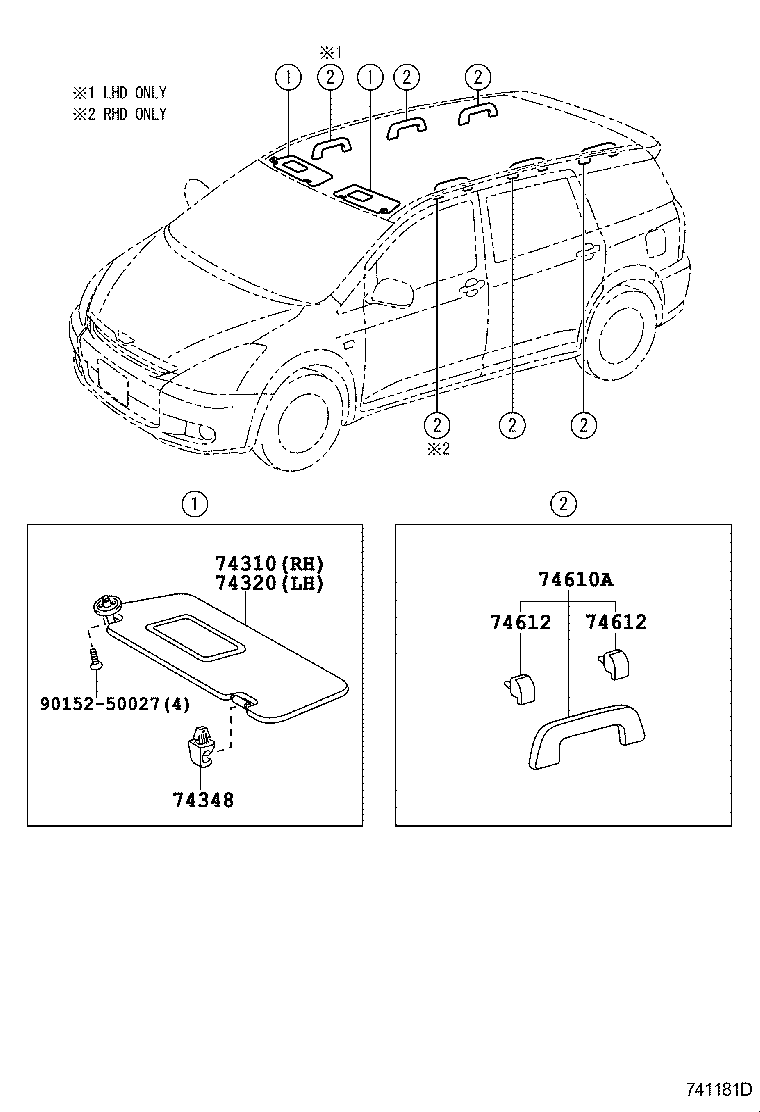

ILLUST NO. 2 OF 2(0312-0910)
Click highlighted areas on diagram
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-68030B0 |
ANE11..TH LT.GRAY,TRIM1# |
1 | ||
| 74310-68030B0 |
ANE11,ZNE10..RHD LT.GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-68030B0 |
ANE11..TH LT.GRAY,TRIM1# |
1 | ||
| 74320-68030B0 |
ANE11,ZNE10..RHD LT.GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-0D040B0 |
ANE11..TH LT.GRAY,TRIM1# |
2 | ||
| 74348-0D040B0 |
ANE11..TH LT.GRAY,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-68010B0 |
ANE12;ANE11..06S LT.GRAY,TRIM1# |
5 | ||
| 74610-68010B0 |
ANE1#,ZNE10 LT.GRAY,TRIM1# |
5 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-68010B0 |
ANE12;ANE11..06S LT.GRAY,TRIM1# |
10 | ||
| 74612-68010B0 |
ANE1#,ZNE10 LT.GRAY,TRIM1# |
10 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-68010B0 |
ANE12;ANE11..06S LT.GRAY,TRIM1# |
10 | ||
| 74612-68010B0 |
ANE1#,ZNE10 LT.GRAY,TRIM1# |
10 | ||
| Common parts | ||||
| 90152-50027 | ||||
