ANE11R-JWPQKT (2005)
Toyota Wish

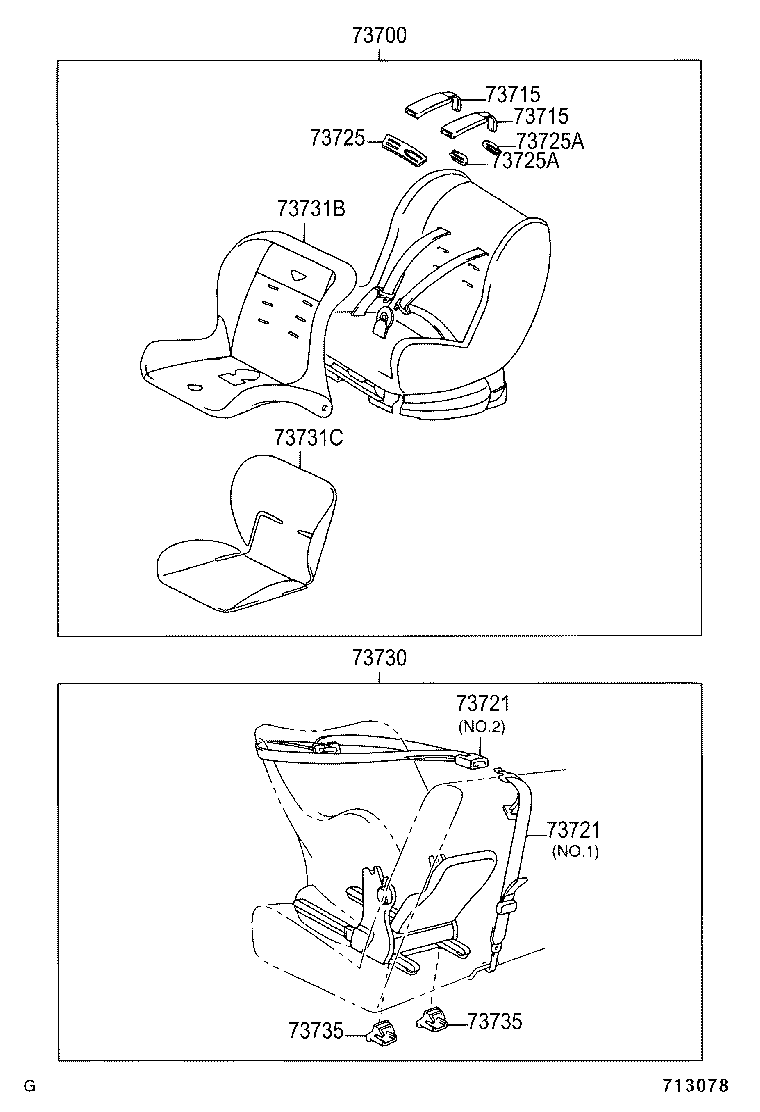

ILLUST NO. 4 OF 4(0312-0910)
SEAT ASSY, CHILD RESTRAINT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73700 - SEAT ASSY, CHILD RESTRAINT | ||||
| 73700-68010 |
ANE11..TH |
1 | ||
| 73700-68010 |
ANE1#,ZNE10 |
1 | ||
| 73715 - PROTECTOR, CHILD RESTRAINT SEAT BELT | ||||
| 73715-68010 |
ANE1#,ZNE10 |
1 | ||
| 73715-68010 |
ANE11..TH |
1 | ||
| 73715 - PROTECTOR, CHILD RESTRAINT SEAT BELT | ||||
| 73715-68010 |
ANE1#,ZNE10 |
1 | ||
| 73715-68010 |
ANE11..TH |
1 | ||
| 73721 - BELT, CHILD RESTRAINT SEAT | ||||
| 73721-68010 |
ANE11..TH NO.1 |
1 | ||
| 73721-68020 |
ANE1#,ZNE10 NO.2 |
1 | ||
| 73721-68020 |
ANE11..TH NO.2 |
1 | ||
| 73721-68010 |
ANE1#,ZNE10 NO.1 |
1 | ||
| 73721 - BELT, CHILD RESTRAINT SEAT | ||||
| 73721-68010 |
ANE11..TH NO.1 |
1 | ||
| 73721-68020 |
ANE1#,ZNE10 NO.2 |
1 | ||
| 73721-68020 |
ANE11..TH NO.2 |
1 | ||
| 73721-68010 |
ANE1#,ZNE10 NO.1 |
1 | ||
| 73725 - CLIP, CHILD RESTRAINT SEAT BELT | ||||
| 73725-68010 |
ANE11..TH |
1 | ||
| 73725-68010 |
ANE1#,ZNE10 |
1 | ||
| 73725A - CLIP, CHILD RESTRAINT SEAT BELT | ||||
| 73725-68020 |
ANE1#,ZNE10 |
1 | ||
| 73725-68020 |
ANE11..TH |
1 | ||
| 73725A - CLIP, CHILD RESTRAINT SEAT BELT | ||||
| 73725-68020 |
ANE1#,ZNE10 |
1 | ||
| 73725-68020 |
ANE11..TH |
1 | ||
| 73730 - BASE ASSY, CHILD RESTRAINT SEAT | ||||
| 73730-68010 |
ANE11..TH |
1 | ||
| 73730-68010 |
ANE1#,ZNE10 |
1 | ||
| 73731B - COVER, CHILD RESTRAINT SEAT, NO.1 | ||||
| 73731-68010 |
ANE11..TH |
1 | ||
| 73731-68010 |
ANE1#,ZNE10 |
1 | ||
| 73731C - COVER, CHILD RESTRAINT SEAT, NO.2 | ||||
| 73731-68020 |
ANE1#,ZNE10 |
1 | ||
| 73731-68020 |
ANE11..TH |
1 | ||
| 73735 - CUP, CHILD RESTRAINT SEAT GUIDE | ||||
| 73735-68010 |
ANE11..TH |
1 | ||
| 73735-68010 |
ANE1#,ZNE10 |
1 | ||
| 73735 - CUP, CHILD RESTRAINT SEAT GUIDE | ||||
| 73735-68010 |
ANE11..TH |
1 | ||
| 73735-68010 |
ANE1#,ZNE10 |
1 | ||

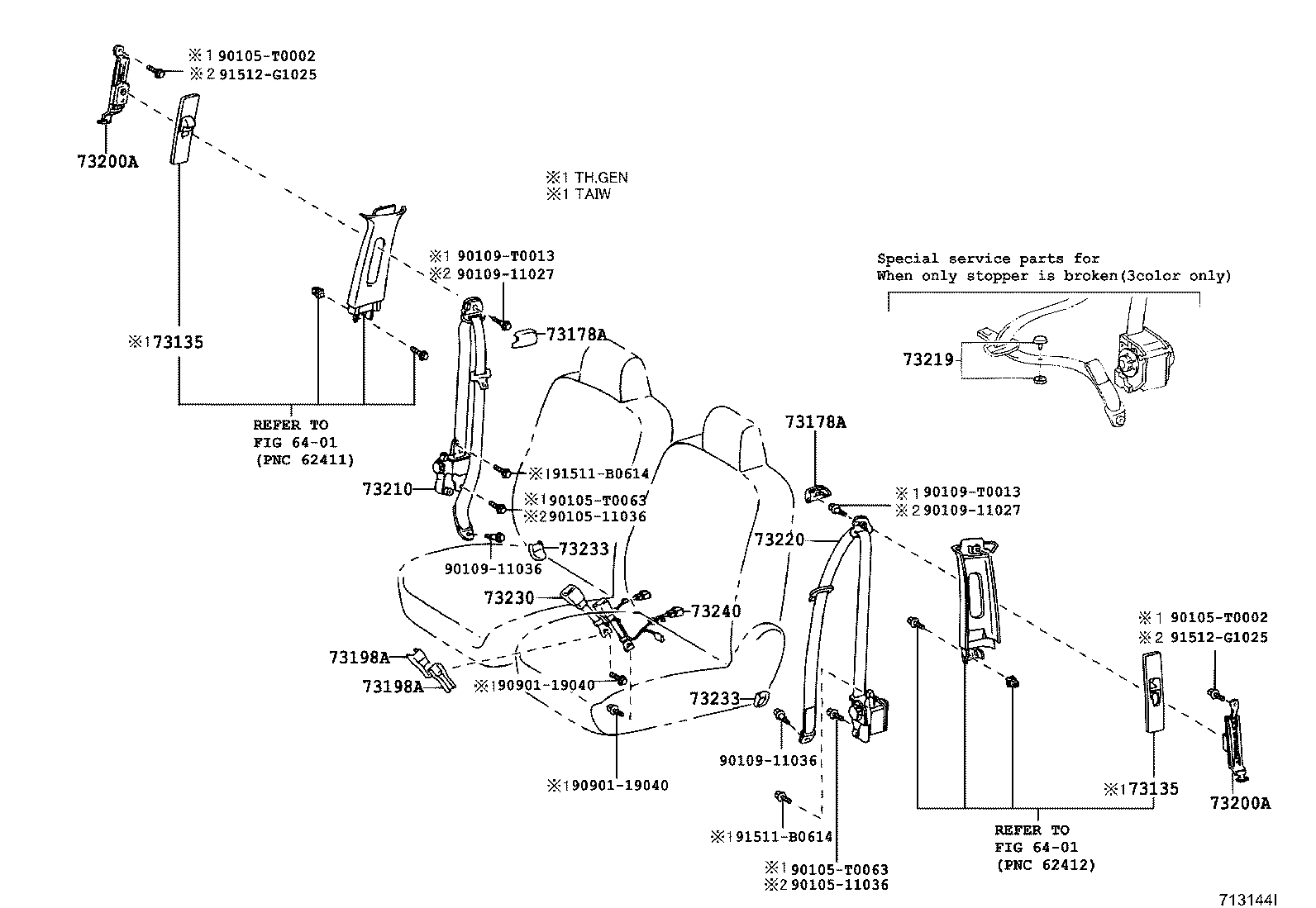

ILLUST NO. 1 OF 4(0312-0910)
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-28020B0 |
ANE11,ZNE10..RHD LT.GRAY,TRIM1# |
2 | ||
| 73135-28020B0 |
ANE11..TH LT.GRAY,TRIM1# |
2 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-28020B0 |
ANE11,ZNE10..RHD LT.GRAY,TRIM1# |
2 | ||
| 73135-28020B0 |
ANE11..TH LT.GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
ANE11,ZNE10..RHD LT.GRAY,TRIM1# |
2 | ||
| 73178-33020B3 |
ANE11..TH LT.GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
ANE11,ZNE10..RHD LT.GRAY,TRIM1# |
2 | ||
| 73178-33020B3 |
ANE11..TH LT.GRAY,TRIM1# |
2 | ||
| 73198A - COVER, FRONT SEAT BELT INNER ANCHOR, RH | ||||
| 73198-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
2 | ||
| 73198-68010C0 |
ANE11..TH BLACK,TRIM1# |
2 | ||
| 73198-68010C0 |
ANE11..06S..TH LIMITED PACKAGE,BLACK,TRIM1# |
1 | ||
| 73198A - COVER, FRONT SEAT BELT INNER ANCHOR, RH | ||||
| 73198-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
2 | ||
| 73198-68010C0 |
ANE11..TH BLACK,TRIM1# |
2 | ||
| 73198-68010C0 |
ANE11..06S..TH LIMITED PACKAGE,BLACK,TRIM1# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02090B0 |
ANE11,ZNE10..RHD LT.GRAY,TRIM1# |
2 | ||
| 73200-02020B0 |
ANE11 LT.GRAY,TRIM1#,THAILAND SPEC |
2 | ||
| 73200-02090B0 |
ANE11..TH LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02090B0 |
ANE11,ZNE10..RHD LT.GRAY,TRIM1# |
2 | ||
| 73200-02020B0 |
ANE11 LT.GRAY,TRIM1#,THAILAND SPEC |
2 | ||
| 73200-02090B0 |
ANE11..TH LT.GRAY,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 73210-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ANE11..TH BLACK |
1 | ||
| 73219-33030 |
ANE11..TH BEIGE |
1 | ||
| 73219-33020 |
ANE1#,ZNE10 GRAY |
1 | ||
| 73219-33010 |
ANE1#,ZNE10 BLACK |
1 | ||
| 73219-33020 |
ANE11..TH GRAY |
1 | ||
| 73219-33030 |
ANE1#,ZNE10 BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-68011C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 73220-68011C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 73230-68040C0 |
ANE11..06S..TH LIMITED PACKAGE,BLACK,TRIM1# |
1 | ||
| 73230-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-02020B0 |
ANE11..TH DK.GRAY,TRIM1# |
2 | ||
| 73233-02020B0 |
ANE11,ZNE10..RHD DK.GRAY,TRIM1# |
2 | ||
| 73233-02020B0 |
ANE11..06S..TH LIMITED PACKAGE,DK.GRAY,TRIM1# |
2 | ||
| 73233-02020B0 |
ANE11..TH DK.GRAY,TRIM1# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-02020B0 |
ANE11..TH DK.GRAY,TRIM1# |
2 | ||
| 73233-02020B0 |
ANE11,ZNE10..RHD DK.GRAY,TRIM1# |
2 | ||
| 73233-02020B0 |
ANE11..06S..TH LIMITED PACKAGE,DK.GRAY,TRIM1# |
2 | ||
| 73233-02020B0 |
ANE11..TH DK.GRAY,TRIM1# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-68020C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 73230-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-T0002 | ||||
| 90105-T0063 | ||||
| 90109-11027 | ||||
| 90109-11036 | ||||
| 90109-T0013 | ||||
| 90901-19040 | ||||
| 91511-B0614 | ||||
| 91512-G1025 | ||||
| Linked diagrams | ||||
| 6401 | ||||

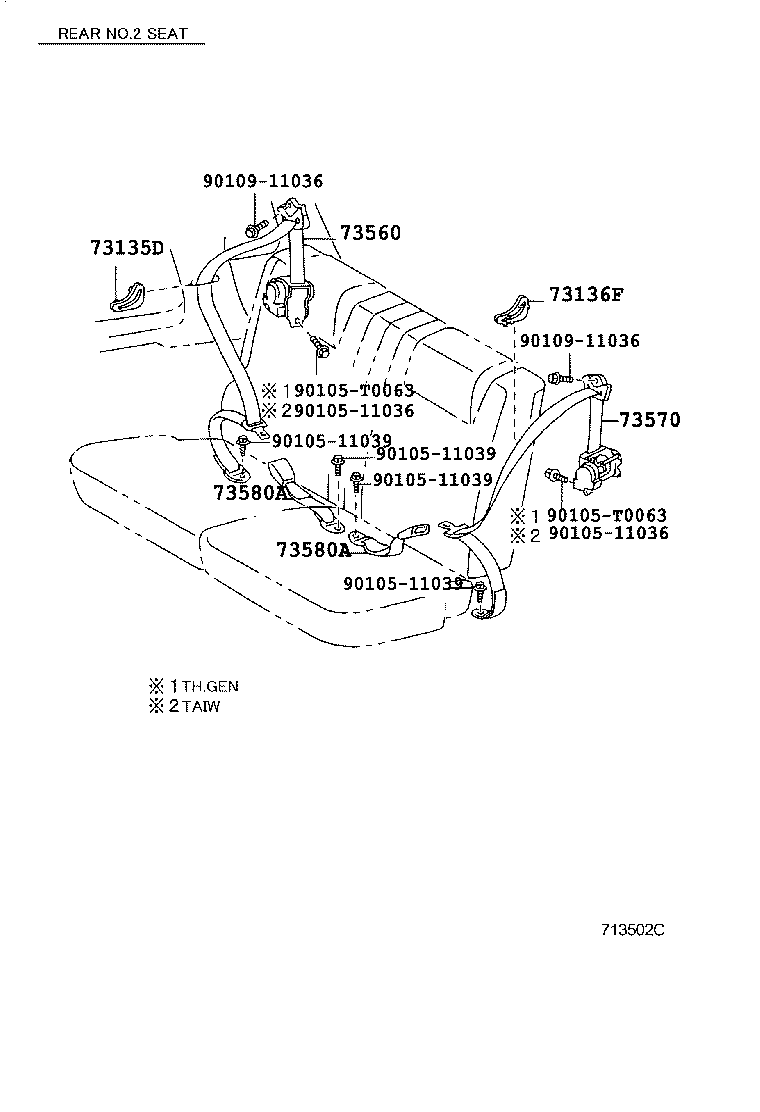

ILLUST NO. 3 OF 4(0312-0910)
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135D - COVER, SHOULDER BELT ANCHOR, NO.1 RH | ||||
| 73135-68020B0 |
ANE1#,ZNE10 LT.GRAY,TRIM1# |
1 | ||
| 73135-68020B0 |
ANE12;ANE11..06S LT.GRAY,TRIM1# |
1 | ||
| 73136F - COVER, SHOULDER BELT ANCHOR, NO.1 LH | ||||
| 73136-68020B0 |
ANE12;ANE11..06S LT.GRAY,TRIM1# |
1 | ||
| 73136-68020B0 |
ANE1#,ZNE10 LT.GRAY,TRIM1# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 73560-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 73570-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-68010C0 |
ANE11..TH BLACK,TRIM1# |
2 | ||
| 73580-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
2 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-68010C0 |
ANE11..TH BLACK,TRIM1# |
2 | ||
| 73580-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
2 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11039 | ||||
| 90105-T0063 | ||||
| 90109-11036 | ||||
ILLUST NO. 2 OF 4(0312-0910)RHD
REAR NO.1 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135C - COVER, SHOULDER BELT ANCHOR, NO.2, RH | ||||
| 73135-68010B0 |
ANE11..TH LT.GRAY,TRIM1# |
1 | ||
| 73135-68010B0 |
ANE11,ZNE10..RHD LT.GRAY,TRIM1# |
1 | ||
| 73135C - COVER, SHOULDER BELT ANCHOR, NO.2, RH | ||||
| 73135-68010B0 |
ANE11..TH LT.GRAY,TRIM1# |
1 | ||
| 73135-68010B0 |
ANE11,ZNE10..RHD LT.GRAY,TRIM1# |
1 | ||
| 73136E - COVER, SHOULDER BELT ANCHOR, NO.2, LH | ||||
| 73136-68010B0 |
ANE11,ZNE10..RHD LT.GRAY,TRIM1# |
1 | ||
| 73136-68010B0 |
ANE11..TH LT.GRAY,TRIM1# |
1 | ||
| 73136E - COVER, SHOULDER BELT ANCHOR, NO.2, LH | ||||
| 73136-68010B0 |
ANE11,ZNE10..RHD LT.GRAY,TRIM1# |
1 | ||
| 73136-68010B0 |
ANE11..TH LT.GRAY,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 73360-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 73360-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 73370-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 73370-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020B7 |
ANE11..TH MD.GRAY,TRIM1# |
2 | ||
| 73371-44020B6 |
ANE11,ZNE10..RHD DK.GRAY,TRIM1# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020B7 |
ANE11..TH MD.GRAY,TRIM1# |
2 | ||
| 73371-44020B6 |
ANE11,ZNE10..RHD DK.GRAY,TRIM1# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020B7 |
ANE11..TH MD.GRAY,TRIM1# |
2 | ||
| 73371-44020B6 |
ANE11,ZNE10..RHD DK.GRAY,TRIM1# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-44020B7 |
ANE11..TH MD.GRAY,TRIM1# |
2 | ||
| 73371-44020B6 |
ANE11,ZNE10..RHD DK.GRAY,TRIM1# |
2 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-68030C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 73380-68030C0 |
ANE11..06S..TH BLACK,TRIM1# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-68030C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 73380-68030C0 |
ANE11..06S..TH BLACK,TRIM1# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73390-68020C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 73390-68020C0 |
ANE11..06S..TH BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 58559-68010 | ||||
| 72702-68010 | ||||
| 90105-11036 | ||||
| 90105-T0063 | ||||
| 90109-11036 | ||||
| 90179-11010 | ||||
