ANE11R-JWPQKT (2005)
Toyota Wish
(0312-0910)TH

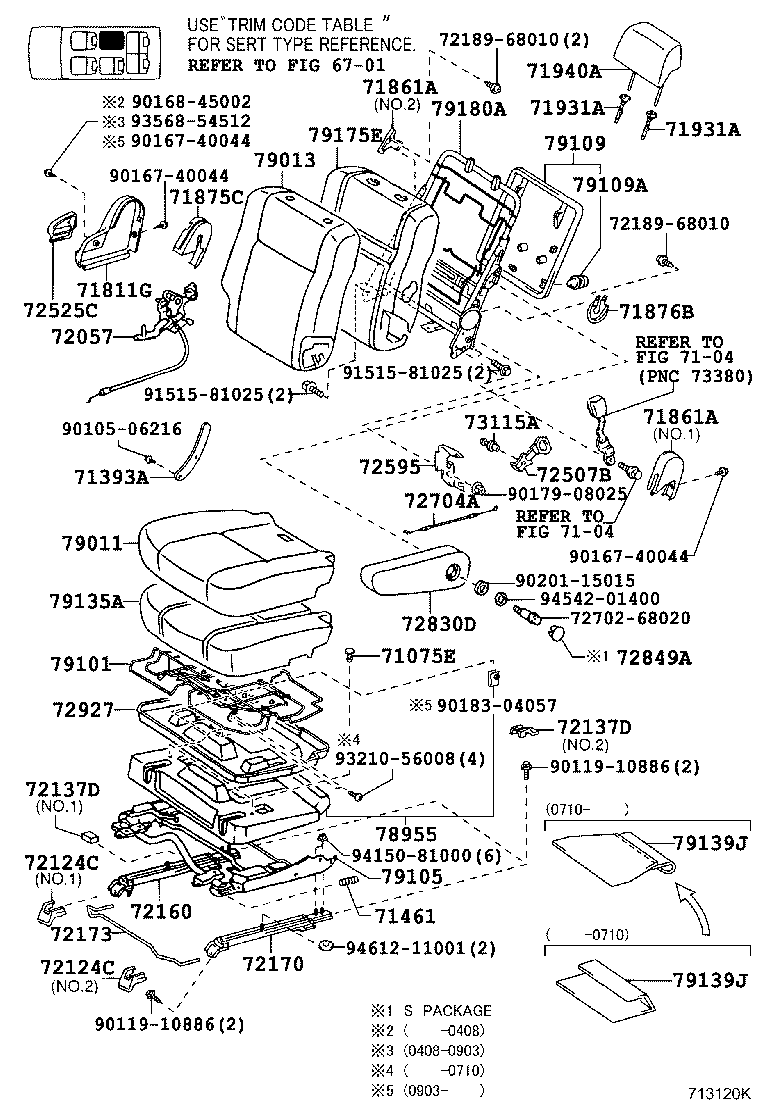

REAR NO.1 SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 71769-60010C0 |
ANE11..TH BLACK,TRIM1# |
4 | ||
| 71769-60010C0 |
ANE11..06S..TH BLACK,TRIM1# |
4 | ||
| 71393A - BAND, REAR SEAT CUSHION, RH | ||||
| 71393-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71393-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71461 - SPRING, REAR SEAT CUSHION | ||||
| 71461-68010 |
ANE11..TH |
1 | ||
| 71461-68010 |
ANE1#,ZNE10 |
1 | ||
| 71811G - SHIELD, REAR SEAT CUSHION, RH | ||||
| 71811-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71811-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71811-68011C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71861A - SHIELD, REAR SEAT CUSHION, INNER RH | ||||
| 71861-68070C0 |
ANE11..TH BLACK,TRIM1#,NO.1 |
1 | ||
| 71861-68060C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.2 |
1 | ||
| 71861-68070C0 |
ANE11..06S..TH BLACK,TRIM1#,NO.1 |
1 | ||
| 71861-68060C0 |
ANE11..TH BLACK,TRIM1#,NO.2 |
1 | ||
| 71861A - SHIELD, REAR SEAT CUSHION, INNER RH | ||||
| 71861-68070C0 |
ANE11..TH BLACK,TRIM1#,NO.1 |
1 | ||
| 71861-68060C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.2 |
1 | ||
| 71861-68070C0 |
ANE11..06S..TH BLACK,TRIM1#,NO.1 |
1 | ||
| 71861-68060C0 |
ANE11..TH BLACK,TRIM1#,NO.2 |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71875-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28060 |
ANE11..TH |
1 | ||
| 71876-28060 |
ANE11..TH |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..06S..TH W/O(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71956-47010C0 |
ANE11..06S..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..06S..TH W(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71970-47010C0 |
ANE11..06S..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-02130C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-02370C0 |
ANE11..TH W(LOCK)&W(BUTTON),BLACK,TRIM1# |
2 | ||
| 71930-44020C0 |
ANE11..06S..TH W(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..06S..TH W/O(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71956-47010C0 |
ANE11..06S..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..06S..TH W(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71970-47010C0 |
ANE11..06S..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-02130C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-02370C0 |
ANE11..TH W(LOCK)&W(BUTTON),BLACK,TRIM1# |
2 | ||
| 71930-44020C0 |
ANE11..06S..TH W(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-68010C1 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71940-0M010B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
2 | ||
| 71940-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
2 | ||
| 71940-68010C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71940-0M010B1 |
ANE11..06S..TH DK.GRAY,TRIM1# |
2 | ||
| 71940-68010C2 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-68010 |
ANE1# |
1 | ||
| 72057-68011 |
ANE1#,ZNE10 |
1 | ||
| 72124C - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72137-68010C0 |
ANE11..TH BLACK,TRIM1#,NO.1 |
2 | ||
| 72137-68060C0 |
ANE11..TH BLACK,TRIM1#,NO.2 |
2 | ||
| 72137-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.1 |
2 | ||
| 72137-68060C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.2 |
2 | ||
| 72124C - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72137-68010C0 |
ANE11..TH BLACK,TRIM1#,NO.1 |
2 | ||
| 72137-68060C0 |
ANE11..TH BLACK,TRIM1#,NO.2 |
2 | ||
| 72137-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.1 |
2 | ||
| 72137-68060C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.2 |
2 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-68020C0 |
ANE11..TH BLACK,TRIM1#,NO.1 |
1 | ||
| 72137-68050C0 |
ANE11..TH BLACK,TRIM1#,NO.2 |
1 | ||
| 72137-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.1 |
1 | ||
| 72137-68050C0 |
ANE11..06S..TH BLACK,TRIM1#,NO.2 |
1 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-68020C0 |
ANE11..TH BLACK,TRIM1#,NO.1 |
1 | ||
| 72137-68050C0 |
ANE11..TH BLACK,TRIM1#,NO.2 |
1 | ||
| 72137-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.1 |
1 | ||
| 72137-68050C0 |
ANE11..06S..TH BLACK,TRIM1#,NO.2 |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-68030 |
ANE11..TH LH SEAT |
1 | ||
| 72160-68010 |
ANE11..TH RH SEAT |
1 | ||
| 72160-68010 |
ANE1#,ZNE10 RH SEAT |
1 | ||
| 72160-68030 |
ANE11..06S LH SEAT |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-68030 |
ANE11..06S |
1 | ||
| 72170-68030 |
ANE11..TH |
1 | ||
| 72173 - HANDLE, REAR SEAT TRACK ADJUSTING | ||||
| 72173-68030 |
ANE11..TH |
2 | ||
| 72173-68010 |
ANE11..TH |
2 | ||
| 72173-68010 |
ANE11..TH |
2 | ||
| 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH | ||||
| 72507-68011C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72507-68011C0 |
ANE11..06S..TH BLACK,TRIM1# |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-47020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 72525-47020C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72595 - BASE, RECLINING REMOTE CONTROL, RH | ||||
| 72596-68011 |
ANE11..TH LH SEAT |
1 | ||
| 72595-68011 |
ANE11,ZNE10..RHD RH SEAT |
1 | ||
| 72596-68011 |
ANE11,ZNE10..RHD LH SEAT |
1 | ||
| 72595-68011 |
ANE11..TH RH SEAT |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-68013 |
ANE1#,ZNE10 |
1 | ||
| 72704-68012 |
ANE11 |
1 | ||
| 72830D - ARMREST ASSY, REAR SEAT, RH | ||||
| 72880-68010C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 72880-0M010B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 72880-68010C1 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
1 | ||
| 72880-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
1 | ||
| 72849A - CAP, SEAT ARMREST, NO.2 | ||||
| 71877-26020C0 |
ANE11..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71877-26020C0 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71877-26020C0 |
ANE11..06S..TH BLACK,TRIM1# |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-68020B0 |
ANE11..06S..TH DARK GRAY,TRIM1# |
1 | ||
| 72927-68020B0 |
ANE11..TH DARK GRAY,TRIM1# |
1 | ||
| 73115A - CLIP, BELT COMFORT, NO.1 | ||||
| 73115-68010 |
ANE11,ZNE10..RHD |
2 | ||
| 73115-68010 |
ANE11..TH |
2 | ||
| 78955 - COVER, REAR SEAT UNDER TRAY RH | ||||
| 78955-68030C0 |
ANE11..TH BLACK,TRIM1#,RH SEAT |
1 | ||
| 78955-68020C0 |
ANE11..TH BLACK,TRIM1#,LH SEAT |
1 | ||
| 78955-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,LH SEAT |
1 | ||
| 78955-68030C0 |
ANE11..06S..TH BLACK,TRIM1#,RH SEAT |
1 | ||
| 78955-68031C0 |
ANE11..06S..TH BLACK,TRIM1#,RH SEAT |
1 | ||
| 78955-68021C0 |
ANE11..TH BLACK,TRIM1#,LH SEAT |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
1 | ||
| 79011-0M020C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 79011-0M070B0 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 79011-0M010B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-0M020C1 |
ANE11 S PACKAGE,BLACK,TRIM11 |
1 | ||
| 79013-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
1 | ||
| 79013-0M050B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 79013-0M070B0 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79101-68020 |
ANE11..TH |
1 | ||
| 79101-68020 |
ANE11..06S..TH |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-68020 |
ANE11..TH |
1 | ||
| 79105-68020 |
ANE11..06S..TH |
1 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 79109-68010B0 |
ANE11..TH S PACKAGE,DARK GRAY,TRIM1# |
1 | ||
| 79109-0M010B0 |
ANE11..TH DARK GRAY,TRIM1# |
1 | ||
| 79109-68010B0 |
ANE11..06S..TH S PACKAGE,DARK GRAY,TRIM1# |
1 | ||
| 79109-0M010B0 |
ANE11..06S..TH DARK GRAY,TRIM1# |
1 | ||
| 79109A - CLIP (FOR NO.1 SEAT BACK BOARD) | ||||
| 67771-12080 |
ANE12;ANE11..06S |
2 | ||
| 67771-12080 |
ANE1#,ZNE10 |
2 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-0M010 |
ANE11..TH |
1 | ||
| 79135-0M010 |
ANE11..06S..TH |
1 | ||
| 79139J - CLOTH, NO.1 SEAT CUSHION RH | ||||
| 79139-68010 |
ANE11..06S..TH |
1 | ||
| 79139-68020 |
ANE11..06S..TH |
1 | ||
| 79139-0M020 |
ANE11..TH |
1 | ||
| 79139-68010 |
ANE11..TH |
1 | ||
| 79139J - CLOTH, NO.1 SEAT CUSHION RH | ||||
| 79139-68010 |
ANE11..06S..TH |
1 | ||
| 79139-68020 |
ANE11..06S..TH |
1 | ||
| 79139-0M020 |
ANE11..TH |
1 | ||
| 79139-68010 |
ANE11..TH |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-0M030 |
ANE11..TH |
1 | ||
| 79175-0M050 |
ANE11..06S..TH |
1 | ||
| 79175-0M070 |
ANE11..06S..TH S PACKAGE |
1 | ||
| 79175-0M010 |
ANE11..TH S PACKAGE |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79203-0M020 |
ANE11 |
1 | ||
| 79203-68020 |
ANE11 S PACKAGE |
1 | ||
| 79203-0M021 |
ANE11..06S..TH |
1 | ||
| 79203-0M050 |
ANE11..06S..TH S PACKAGE |
1 | ||
| 79203-68021 |
ANE11..06S..TH S PACKAGE |
1 | ||
| Common parts | ||||
| 72189-68010 | ||||
| 72702-68020 | ||||
| 90105-06216 | ||||
| 90119-10886 | ||||
| 90167-40044 | ||||
| 90168-45002 | ||||
| 90179-08025 | ||||
| 90183-04057 | ||||
| 90201-15015 | ||||
| 91515-81025 | ||||
| 93210-56008 | ||||
| 93568-54512 | ||||
| 94150-81000 | ||||
| 94542-01400 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 6701 | ||||
| 7104 | ||||
(0312-0910)TH

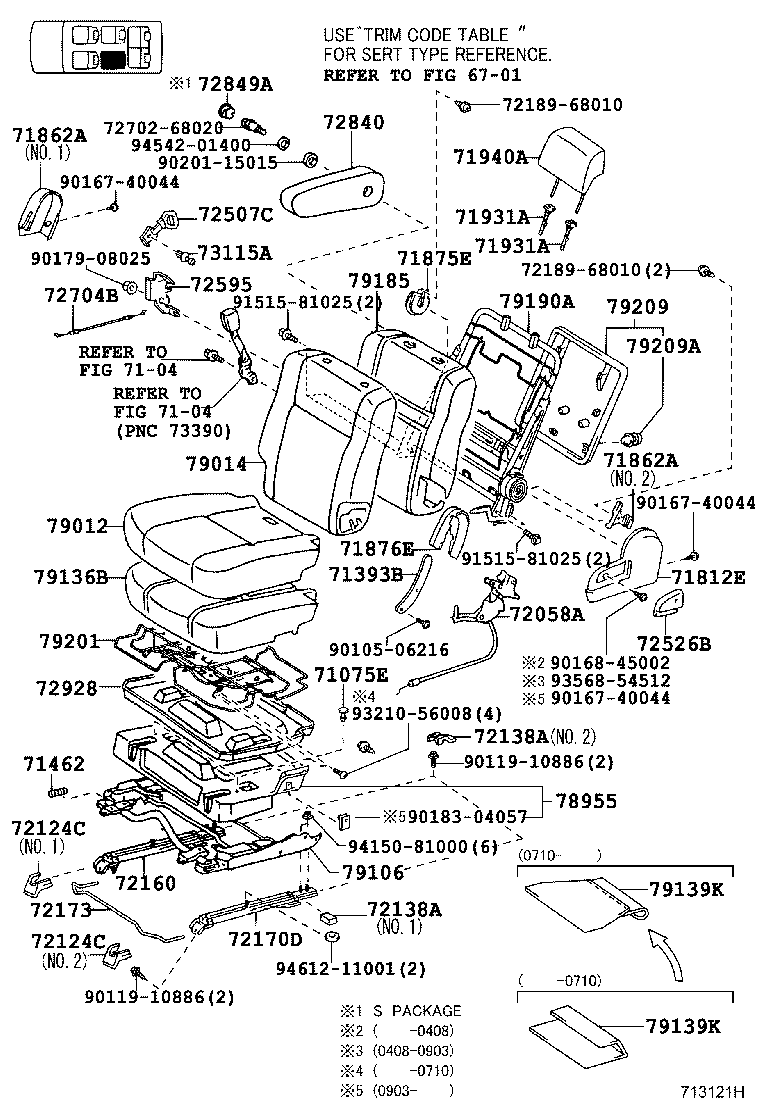

REAR NO.1 SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 71769-60010C0 |
ANE11..TH BLACK,TRIM1# |
4 | ||
| 71769-60010C0 |
ANE11..06S..TH BLACK,TRIM1# |
4 | ||
| 71393B - BAND, REAR SEAT CUSHION, LH | ||||
| 71393-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71393-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71462 - SPRING, REAR SEAT CUSHION, NO.2 | ||||
| 71461-68010 |
ANE1#,ZNE10 |
1 | ||
| 71461-68010 |
ANE11..TH |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71812-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71812-68011C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71862A - SHIELD, REAR SEAT CUSHION, INNER LH | ||||
| 71862-68030C0 |
ANE11..TH BLACK,TRIM1#,NO.2 |
1 | ||
| 71862-68020C0 |
ANE11..TH BLACK,TRIM1#,NO.1 |
1 | ||
| 71862-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.1 |
1 | ||
| 71862-68030C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.2 |
1 | ||
| 71862A - SHIELD, REAR SEAT CUSHION, INNER LH | ||||
| 71862-68030C0 |
ANE11..TH BLACK,TRIM1#,NO.2 |
1 | ||
| 71862-68020C0 |
ANE11..TH BLACK,TRIM1#,NO.1 |
1 | ||
| 71862-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.1 |
1 | ||
| 71862-68030C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.2 |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28060 |
ANE11..TH |
1 | ||
| 71875-28060 |
ANE11..TH |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-68020C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71876-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..06S..TH W/O(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71956-47010C0 |
ANE11..06S..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..06S..TH W(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71970-47010C0 |
ANE11..06S..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-02130C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-02370C0 |
ANE11..TH W(LOCK)&W(BUTTON),BLACK,TRIM1# |
2 | ||
| 71930-44020C0 |
ANE11..06S..TH W(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..06S..TH W/O(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71956-47010C0 |
ANE11..06S..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..06S..TH W(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71970-47010C0 |
ANE11..06S..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-02130C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-02370C0 |
ANE11..TH W(LOCK)&W(BUTTON),BLACK,TRIM1# |
2 | ||
| 71930-44020C0 |
ANE11..06S..TH W(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-68010C1 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71940-0M010B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
2 | ||
| 71940-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
2 | ||
| 71940-68010C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71940-0M010B1 |
ANE11..06S..TH DK.GRAY,TRIM1# |
2 | ||
| 71940-68010C2 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-68010 |
ANE1# |
1 | ||
| 72058-68011 |
ANE1#,ZNE10 |
1 | ||
| 72124C - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72137-68010C0 |
ANE11..TH BLACK,TRIM1#,NO.1 |
2 | ||
| 72137-68060C0 |
ANE11..TH BLACK,TRIM1#,NO.2 |
2 | ||
| 72137-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.1 |
2 | ||
| 72137-68060C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.2 |
2 | ||
| 72124C - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72137-68010C0 |
ANE11..TH BLACK,TRIM1#,NO.1 |
2 | ||
| 72137-68060C0 |
ANE11..TH BLACK,TRIM1#,NO.2 |
2 | ||
| 72137-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.1 |
2 | ||
| 72137-68060C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.2 |
2 | ||
| 72138A - COVER, REAR SEAT TRACK, LH | ||||
| 72137-68050C0 |
ANE11..TH BLACK,TRIM1#,NO.2 |
1 | ||
| 72137-68020C0 |
ANE11..TH BLACK,TRIM1#,NO.1 |
1 | ||
| 72137-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.1 |
1 | ||
| 72137-68050C0 |
ANE11..06S..TH BLACK,TRIM1#,NO.2 |
1 | ||
| 72138A - COVER, REAR SEAT TRACK, LH | ||||
| 72137-68050C0 |
ANE11..TH BLACK,TRIM1#,NO.2 |
1 | ||
| 72137-68020C0 |
ANE11..TH BLACK,TRIM1#,NO.1 |
1 | ||
| 72137-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.1 |
1 | ||
| 72137-68050C0 |
ANE11..06S..TH BLACK,TRIM1#,NO.2 |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-68030 |
ANE11..TH LH SEAT |
1 | ||
| 72160-68010 |
ANE11..TH RH SEAT |
1 | ||
| 72160-68010 |
ANE1#,ZNE10 RH SEAT |
1 | ||
| 72160-68030 |
ANE11..06S LH SEAT |
1 | ||
| 72170D - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-68020 |
ANE11..TH |
1 | ||
| 72170-68020 |
ANE1#,ZNE10 |
1 | ||
| 72173 - HANDLE, REAR SEAT TRACK ADJUSTING | ||||
| 72173-68030 |
ANE11..TH |
2 | ||
| 72173-68010 |
ANE11..TH |
2 | ||
| 72173-68010 |
ANE11..TH |
2 | ||
| 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH | ||||
| 72507-68031C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72507-68031C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-47020C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72526-47020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 72595 - BASE, RECLINING REMOTE CONTROL, RH | ||||
| 72596-68011 |
ANE11..TH LH SEAT |
1 | ||
| 72595-68011 |
ANE11,ZNE10..RHD RH SEAT |
1 | ||
| 72596-68011 |
ANE11,ZNE10..RHD LH SEAT |
1 | ||
| 72595-68011 |
ANE11..TH RH SEAT |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-68013 |
ANE1#,ZNE10 |
1 | ||
| 72704-68012 |
ANE11 |
1 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72890-68010C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 72890-68010C1 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
1 | ||
| 72890-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
1 | ||
| 72890-0M010B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 72849A - CAP, SEAT ARMREST, NO.2 | ||||
| 71877-26020C0 |
ANE11..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71877-26020C0 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71877-26020C0 |
ANE11..06S..TH BLACK,TRIM1# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-68020B0 |
ANE11..06S..TH DARK GRAY,TRIM1# |
1 | ||
| 72928-68020B0 |
ANE11..TH DARK GRAY,TRIM1# |
1 | ||
| 73115A - CLIP, BELT COMFORT, NO.1 | ||||
| 73115-68010 |
ANE11,ZNE10..RHD |
2 | ||
| 73115-68010 |
ANE11..TH |
2 | ||
| 78955 - COVER, REAR SEAT UNDER TRAY RH | ||||
| 78955-68030C0 |
ANE11..TH BLACK,TRIM1#,RH SEAT |
1 | ||
| 78955-68020C0 |
ANE11..TH BLACK,TRIM1#,LH SEAT |
1 | ||
| 78955-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,LH SEAT |
1 | ||
| 78955-68030C0 |
ANE11..06S..TH BLACK,TRIM1#,RH SEAT |
1 | ||
| 78955-68031C0 |
ANE11..06S..TH BLACK,TRIM1#,RH SEAT |
1 | ||
| 78955-68021C0 |
ANE11..TH BLACK,TRIM1#,LH SEAT |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79021-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
1 | ||
| 79021-0M020C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 79021-0M070B0 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 79021-0M010B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79023-0M020C1 |
ANE11 S PACKAGE,BLACK,TRIM11 |
1 | ||
| 79023-0M050B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 79023-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
1 | ||
| 79023-0M070B0 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-68010 |
ANE11..TH |
1 | ||
| 79106-68010 |
ANE11,ZNE10..RHD |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79235-0M010 |
ANE11..TH |
1 | ||
| 79235-0M010 |
ANE11..06S..TH |
1 | ||
| 79139K - CLOTH, NO.1 SEAT CUSHION LH | ||||
| 79139-68010 |
ANE11..TH |
1 | ||
| 79139-68030 |
ANE11..06S..TH |
1 | ||
| 79139-68010 |
ANE11..06S..TH |
1 | ||
| 79139-0M030 |
ANE11..TH |
1 | ||
| 79139K - CLOTH, NO.1 SEAT CUSHION LH | ||||
| 79139-68010 |
ANE11..TH |
1 | ||
| 79139-68030 |
ANE11..06S..TH |
1 | ||
| 79139-68010 |
ANE11..06S..TH |
1 | ||
| 79139-0M030 |
ANE11..TH |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79275-0M060 |
ANE11..06S..TH |
1 | ||
| 79275-0M080 |
ANE11..06S..TH S PACKAGE |
1 | ||
| 79275-0M020 |
ANE11..TH S PACKAGE |
1 | ||
| 79275-0M040 |
ANE11..TH |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79204-0M020 |
ANE11 |
1 | ||
| 79204-68020 |
ANE11 S PACKAGE |
1 | ||
| 79204-0M050 |
ANE11..06S..TH S PACKAGE |
1 | ||
| 79204-68021 |
ANE11..06S..TH S PACKAGE |
1 | ||
| 79204-0M021 |
ANE11..06S..TH |
1 | ||
| 79201 - FRAME SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79201-68020 |
ANE11..TH |
1 | ||
| 79201-68020 |
ANE11..06S..TH |
1 | ||
| 79209 - BOARD SUB-ASSY, NO.2 SEAT BACK | ||||
| 79207-0M010B0 |
ANE11..TH DARK GRAY,TRIM1# |
1 | ||
| 79207-0M010B0 |
ANE11..06S..TH DARK GRAY,TRIM1# |
1 | ||
| 79207-68010B0 |
ANE11..06S..TH S PACKAGE,DARK GRAY,TRIM1# |
1 | ||
| 79207-68010B0 |
ANE11..TH S PACKAGE,DARK GRAY,TRIM1# |
1 | ||
| 79209A - CLIP (FOR NO.2 SEAT BACK BOARD) | ||||
| 67771-12080 |
ANE12;ANE11..06S |
2 | ||
| 67771-12080 |
ANE1#,ZNE10 |
2 | ||
| Common parts | ||||
| 72189-68010 | ||||
| 72702-68020 | ||||
| 90105-06216 | ||||
| 90119-10886 | ||||
| 90167-40044 | ||||
| 90168-45002 | ||||
| 90179-08025 | ||||
| 90183-04057 | ||||
| 90201-15015 | ||||
| 91515-81025 | ||||
| 93210-56008 | ||||
| 93568-54512 | ||||
| 94150-81000 | ||||
| 94542-01400 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 6701 | ||||
| 7104 | ||||
(0312-0910)

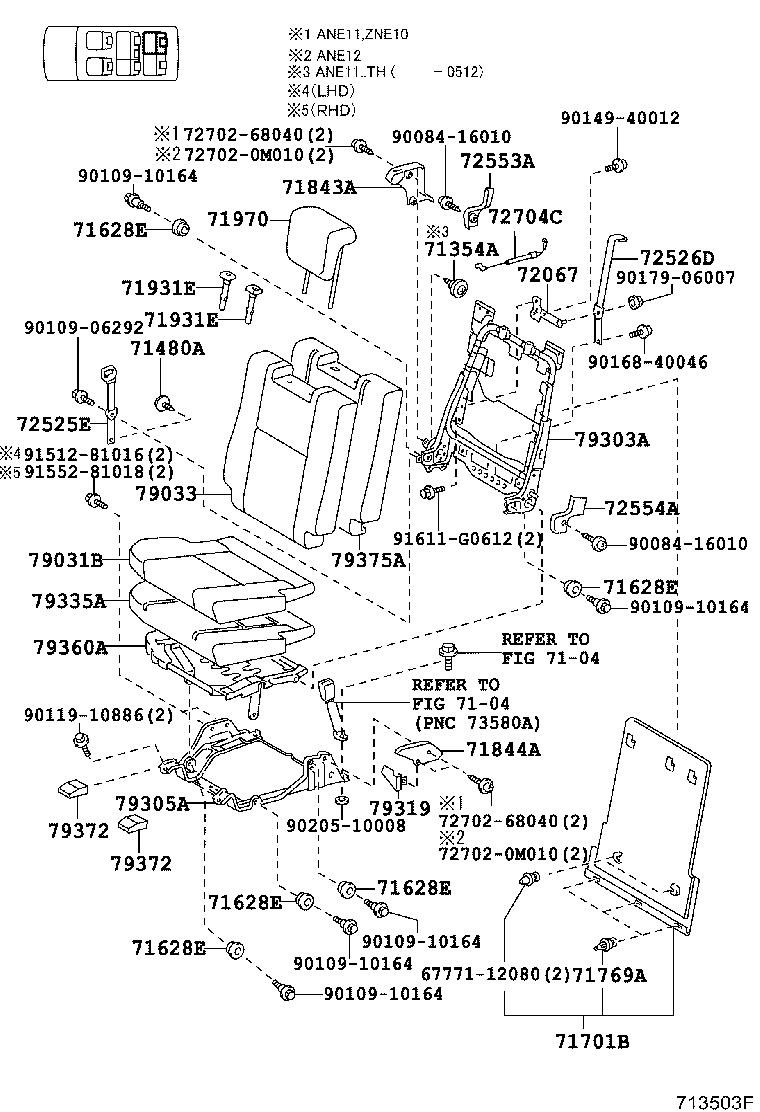

REAR NO.2 SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-06048C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
2 | ||
| 90467-06048C0 |
ANE11..TH BLACK,TRIM1# |
2 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-44010 |
ANE1#,ZNE10 |
10 | ||
| 71628-44010 |
ANE12;ANE11..06S |
10 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-44010 |
ANE1#,ZNE10 |
10 | ||
| 71628-44010 |
ANE12;ANE11..06S |
10 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-44010 |
ANE1#,ZNE10 |
10 | ||
| 71628-44010 |
ANE12;ANE11..06S |
10 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-44010 |
ANE1#,ZNE10 |
10 | ||
| 71628-44010 |
ANE12;ANE11..06S |
10 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-44010 |
ANE1#,ZNE10 |
10 | ||
| 71628-44010 |
ANE12;ANE11..06S |
10 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-68010B0 |
ANE11..TH DARK GRAY,TRIM1# |
1 | ||
| 71701-68010B0 |
ANE11,ZNE10..RHD DARK GRAY,TRIM1# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 67771-28050 |
ANE1#,ZNE10 |
6 | ||
| 67771-28050 |
ANE12;ANE11..06S |
6 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71843-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71844-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..06S..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-44020C0 |
ANE11..06S..TH W(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..06S..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-02370C0 |
ANE11..TH W(LOCK)&W(BUTTON),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-02130C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..06S..TH W/O(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..06S..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-44020C0 |
ANE11..06S..TH W(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..06S..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-02370C0 |
ANE11..TH W(LOCK)&W(BUTTON),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-02130C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..06S..TH W/O(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-68030C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71940-68030C1 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71940-68090B0 |
ANE11..TH DK.GRAY,TRIM1# |
2 | ||
| 71940-68090B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
2 | ||
| 71940-68090B1 |
ANE11..06S..TH DK.GRAY,TRIM1# |
2 | ||
| 71940-68030C2 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-68010 |
ANE12;ANE11..06S |
1 | ||
| 72067-68010 |
ANE1#,ZNE10 |
1 | ||
| 72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH | ||||
| 72525-68020C1 |
ANE11..TH BLACK,TRIM1#,RH SEAT |
1 | ||
| 72525-68040C0 |
ANE11..TH BLACK,TRIM1#,LH SEAT |
1 | ||
| 72525-68040C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,LH SEAT |
1 | ||
| 72525-68020C1 |
ANE11,ZNE10..RHD BLACK,TRIM1#,RH SEAT |
1 | ||
| 72526D - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH | ||||
| 72525-0M040C0 |
ANE11..TH BLACK,TRIM1# |
2 | ||
| 72525-0M040C0 |
ANE11..TH BLACK,TRIM1# |
2 | ||
| 72553A - PROTECTOR, RECLINING COVER, RH | ||||
| 72553-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72553-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 72554A - PROTECTOR, RECLINING COVER, LH | ||||
| 72554-68020C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72554-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 72704C - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-68020 |
ANE11..TH |
1 | ||
| 72704-68040 |
ANE1#,ZNE10 |
1 | ||
| 79031B - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79031-0M040B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 79031-0M050B0 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 79031-0M010 |
ANE11 |
1 | ||
| 79031-0M020C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 79031-0M050B2 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 79031-0M040B1 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79033-0M020C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 79033-0M040B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 79033-0M050B0 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 79033-0M010 |
ANE11..TH |
1 | ||
| 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79303-68020 |
ANE11,ZNE10..RHD |
1 | ||
| 79303-68010 |
ANE11..TH |
1 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79305-68010 |
ANE11,ZNE10..RHD |
1 | ||
| 79305-68010 |
ANE11..TH |
1 | ||
| 79319 - BRACKET, NO.3 SEAT LEG, RR RH | ||||
| 79319-68010 |
ANE11,ZNE10..RHD |
1 | ||
| 79319-68010 |
ANE11..TH |
1 | ||
| 79335A - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79335-0M010 |
ANE11..TH |
1 | ||
| 79335-0M030 |
ANE11..TH |
1 | ||
| 79360A - SPRING ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79360-68010 |
ANE11..TH |
1 | ||
| 79360-68010 |
ANE11,ZNE10..RHD |
1 | ||
| 79372 - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-68010C0 |
ANE11..TH BLACK,TRIM1# |
4 | ||
| 79372-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
4 | ||
| 79372 - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-68010C0 |
ANE11..TH BLACK,TRIM1# |
4 | ||
| 79372-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
4 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79375-0M040 |
ANE11..06S..TH |
1 | ||
| 79375-0M010 |
ANE11..TH S PACKAGE |
1 | ||
| 79375-0M050 |
ANE11..06S..TH S PACKAGE |
1 | ||
| 79375-0M030 |
ANE11..TH |
1 | ||
| Common parts | ||||
| 67771-12080 | ||||
| 72702-0M010 | ||||
| 72702-68040 | ||||
| 90084-16010 | ||||
| 90109-06292 | ||||
| 90109-10164 | ||||
| 90119-10886 | ||||
| 90149-40012 | ||||
| 90168-40046 | ||||
| 90179-06007 | ||||
| 90205-10008 | ||||
| 91512-81016 | ||||
| 91552-81018 | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0312-0910)

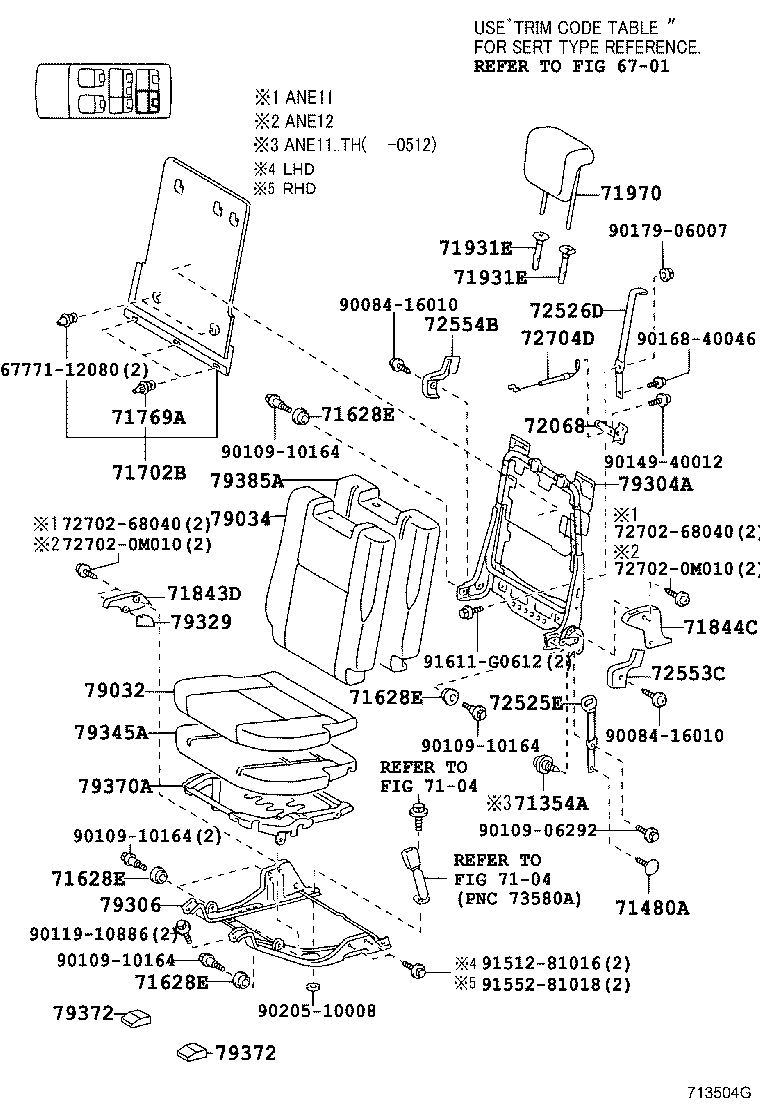

REAR NO.2 SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-06048C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
2 | ||
| 90467-06048C0 |
ANE11..TH BLACK,TRIM1# |
2 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-44010 |
ANE1#,ZNE10 |
10 | ||
| 71628-44010 |
ANE12;ANE11..06S |
10 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-44010 |
ANE1#,ZNE10 |
10 | ||
| 71628-44010 |
ANE12;ANE11..06S |
10 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-44010 |
ANE1#,ZNE10 |
10 | ||
| 71628-44010 |
ANE12;ANE11..06S |
10 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-44010 |
ANE1#,ZNE10 |
10 | ||
| 71628-44010 |
ANE12;ANE11..06S |
10 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-68010B0 |
ANE11,ZNE10..RHD DARK GRAY,TRIM1# |
1 | ||
| 71702-68010B0 |
ANE11..TH DARK GRAY,TRIM1# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 67771-28050 |
ANE1#,ZNE10 |
6 | ||
| 67771-28050 |
ANE12;ANE11..06S |
6 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-68020C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71843-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-68020C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71844-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..06S..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-44020C0 |
ANE11..06S..TH W(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..06S..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-02370C0 |
ANE11..TH W(LOCK)&W(BUTTON),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-02130C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..06S..TH W/O(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..06S..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-44020C0 |
ANE11..06S..TH W(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..06S..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-02370C0 |
ANE11..TH W(LOCK)&W(BUTTON),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-02130C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..06S..TH W/O(LOCK),S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-68030C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71940-68030C1 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71940-68090B0 |
ANE11..TH DK.GRAY,TRIM1# |
2 | ||
| 71940-68090B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
2 | ||
| 71940-68090B1 |
ANE11..06S..TH DK.GRAY,TRIM1# |
2 | ||
| 71940-68030C2 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-68010 |
ANE11..TH |
1 | ||
| 72068-68010 |
ANE11,ZNE10..RHD |
1 | ||
| 72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH | ||||
| 72525-68020C1 |
ANE11..TH BLACK,TRIM1#,RH SEAT |
1 | ||
| 72525-68040C0 |
ANE11..TH BLACK,TRIM1#,LH SEAT |
1 | ||
| 72525-68040C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,LH SEAT |
1 | ||
| 72525-68020C1 |
ANE11,ZNE10..RHD BLACK,TRIM1#,RH SEAT |
1 | ||
| 72526D - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH | ||||
| 72525-0M040C0 |
ANE11..TH BLACK,TRIM1# |
2 | ||
| 72525-0M040C0 |
ANE11..TH BLACK,TRIM1# |
2 | ||
| 72553C - PROTECTOR, RECLINING COVER, RH | ||||
| 72553-68020C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72553-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 72554B - PROTECTOR, RECLINING COVER, LH | ||||
| 72554-68030C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72554-68030C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 72704D - CABLE, REAR NO.2 SEAT RECLINING CONTROL | ||||
| 72704-68030 |
ANE11 S PACKAGE |
1 | ||
| 72704-68020 |
ANE11..TH |
1 | ||
| 72704-68040 |
ANE1#,ZNE10 |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79032-0M020C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 79032-0M010 |
ANE11 |
1 | ||
| 79032-0M050B0 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 79032-0M040B1 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 79032-0M040B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 79032-0M050B2 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79034-0M040B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 79034-0M010 |
ANE11..TH |
1 | ||
| 79034-0M050B0 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 79034-0M020C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79304-68020 |
ANE11,ZNE10..RHD |
1 | ||
| 79304-68010 |
ANE11..TH |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79306-68010 |
ANE11..TH |
1 | ||
| 79306-68010 |
ANE11,ZNE10..RHD |
1 | ||
| 79329 - BRACKET, NO.3 SEAT LEG, RR LH | ||||
| 79329-68010 |
ANE11..TH |
1 | ||
| 79329-68010 |
ANE11,ZNE10..RHD |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79345-0M010 |
ANE11..TH |
1 | ||
| 79345-0M030 |
ANE11..TH |
1 | ||
| 79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79370-68010 |
ANE11..TH |
1 | ||
| 79370-68010 |
ANE11,ZNE10..RHD |
1 | ||
| 79372 - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-68010C0 |
ANE11..TH BLACK,TRIM1# |
4 | ||
| 79372-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
4 | ||
| 79372 - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-68010C0 |
ANE11..TH BLACK,TRIM1# |
4 | ||
| 79372-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
4 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79385-0M010 |
ANE11..TH S PACKAGE |
1 | ||
| 79385-0M030 |
ANE11..TH |
1 | ||
| 79385-0M050 |
ANE11..06S..TH S PACKAGE |
1 | ||
| 79385-0M040 |
ANE11..06S..TH |
1 | ||
| Common parts | ||||
| 67771-12080 | ||||
| 72702-0M010 | ||||
| 72702-68040 | ||||
| 90084-16010 | ||||
| 90109-06292 | ||||
| 90109-10164 | ||||
| 90119-10886 | ||||
| 90149-40012 | ||||
| 90168-40046 | ||||
| 90179-06007 | ||||
| 90205-10008 | ||||
| 91512-81016 | ||||
| 91552-81018 | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 6701 | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
