ANE11R-JWPQKT (2005)
Toyota Wish
(0312-0910)TH

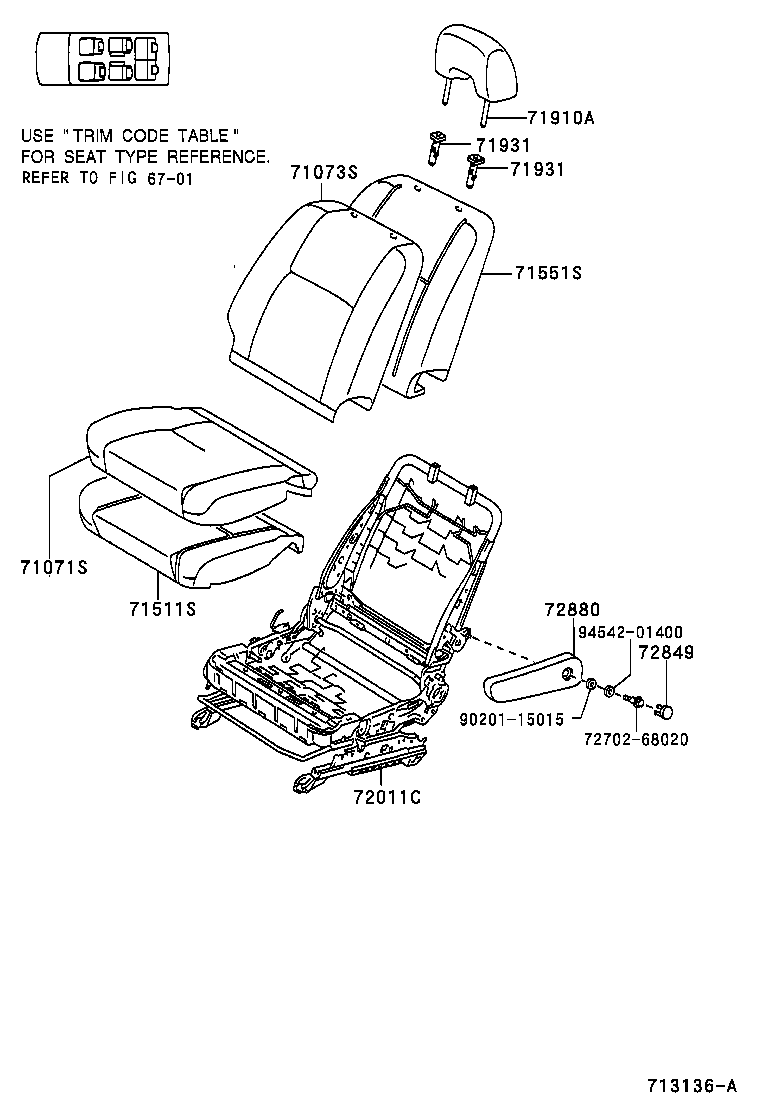

RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0M020C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 71071-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
1 | ||
| 71071-0M010B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 71071-0M050B0 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71071-0M040B0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0M020C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 71073-0M070B0 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71073-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
1 | ||
| 71073-0M050B0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,DK.GRAY,TRIM1# |
1 | ||
| 71073-0M060B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0M010 |
ANE11..TH |
1 | ||
| 71511-0M030 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE |
1 | ||
| 71511-0M010 |
ANE11..TH |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0M010 |
ANE11..06S..TH S PACKAGE |
1 | ||
| 71551-0M040 |
ANE11..TH |
1 | ||
| 71551-0M050 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE |
1 | ||
| 71551-0M010 |
ANE11..TH S PACKAGE |
1 | ||
| 71551-0M040 |
ANE11..06S..TH |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-68010C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71910-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
2 | ||
| 71910-68010C1 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71910-0M010B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-02370C0 |
ANE11..TH W(LOCK)&W(BUTTON),BLACK,TRIM1# |
2 | ||
| 71931-02130C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-02370C0 |
ANE11..TH W(LOCK)&W(BUTTON),BLACK,TRIM1# |
2 | ||
| 71931-02130C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 71110-68010 |
ANE11..TH |
1 | ||
| 71110-68090 |
ANE11..TH |
1 | ||
| 72849 - CAP, SEAT ARMREST, NO.2 | ||||
| 72848-28030C0 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1#,DRIVER |
1 | ||
| 71877-26020C0 |
ANE11..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71877-26020C0 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1#,PASSENGER |
1 | ||
| 72848-28030C0 |
ANE11..06S..TH BLACK,TRIM1# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72890-0M040B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 72880-68010C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 72880-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
1 | ||
| 72890-68060C0 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 72702-68020 | ||||
| 90201-15015 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 6701 | ||||
(0312-0910)TH
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0M020C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 71072-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
1 | ||
| 71072-0M010B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 71072-0M050B0 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0M020C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 71074-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
1 | ||
| 71074-0M050B0 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71074-0M010B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-0M010 |
ANE11..TH |
1 | ||
| 71052-0M010 |
ANE11..TH |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0M010 |
ANE11..TH S PACKAGE |
1 | ||
| 71552-0M040 |
ANE11..TH |
1 | ||
| 71552-0M010 |
ANE11..06S..TH S PACKAGE |
1 | ||
| 71552-0M040 |
ANE11..06S..TH |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-13040 |
ANE11..TH |
1 | ||
| 71630-13040 |
ANE11..TH |
1 | ||
| 71771A - BOARD, FRONT SEAT BACK | ||||
| 71771-68010C1 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71771-68010C1 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-68010C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71910-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
2 | ||
| 71910-68010C1 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71910-0M010B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-02370C0 |
ANE11..TH W(LOCK)&W(BUTTON),BLACK,TRIM1# |
2 | ||
| 71931-02130C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-02370C0 |
ANE11..TH W(LOCK)&W(BUTTON),BLACK,TRIM1# |
2 | ||
| 71931-02130C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 71120-0M010 |
ANE11..TH |
1 | ||
| 71120-68030 |
ANE11..TH |
1 | ||
| 71120-68030 |
ANE11..TH |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ANE11,ZNE10..RHD |
4 | ||
| 72125-13040 |
ANE11..TH |
4 | ||
| 72125-13040 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE |
2 | ||
| 72849 - CAP, SEAT ARMREST, NO.2 | ||||
| 72848-28030C0 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1#,DRIVER |
1 | ||
| 71877-26020C0 |
ANE11..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71877-26020C0 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1#,PASSENGER |
1 | ||
| 72848-28030C0 |
ANE11..06S..TH BLACK,TRIM1# |
1 | ||
| 72874 - BRACKET, FRONT SEAT CENTER ARMREST, LH | ||||
| 72874-68010 |
ANE11..TH |
1 | ||
| 72874-68010 |
ANE11..TH |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-68010C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 72890-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
1 | ||
| 72890-68010C1 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
1 | ||
| 72890-0M010B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 74553D - LABEL, FRONT SEAT CAUTION | ||||
| 74553-0M010 |
ANE11..TH |
1 | ||
| 74553-0M010 |
ANE11..TH |
1 | ||
| Common parts | ||||
| 67771-12080 | ||||
| 72702-68020 | ||||
| 82666-58030 | ||||
| 90201-15015 | ||||
| 94542-01400 | ||||

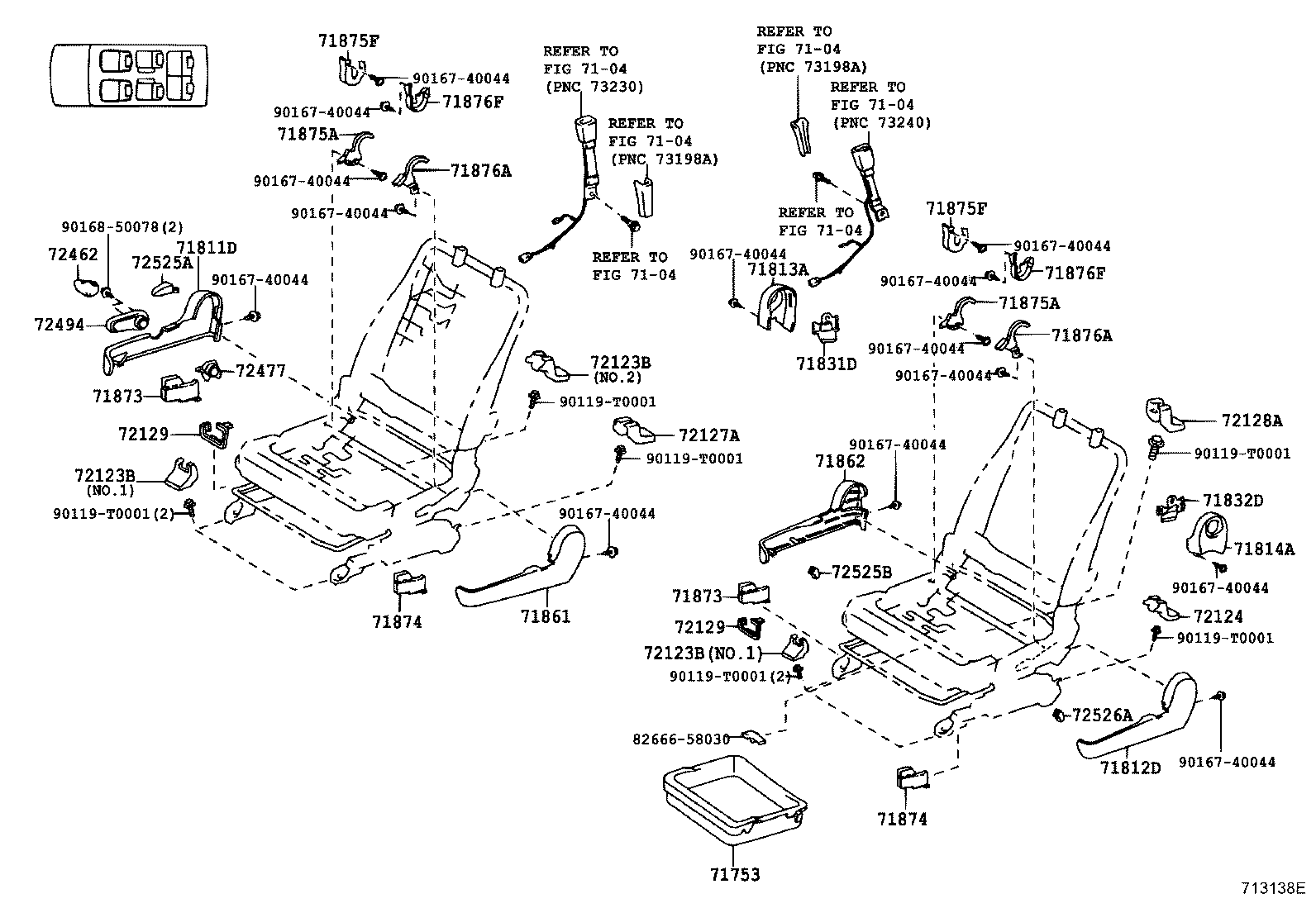

(0312-0910)TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-52010 |
ANE11..TH |
1 | ||
| 71753-52010 |
ANE11..TH |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52150C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71811-06050C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1# |
1 | ||
| 71811-52150C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52140C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71812-52140C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71813-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71814-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-68010 |
ANE11..TH |
1 | ||
| 71831-68010 |
ANE11..TH |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-68010 |
ANE11..TH |
1 | ||
| 71832-68010 |
ANE11..TH |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-68020C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71861-0M010C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1# |
1 | ||
| 71861-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71862-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-68010C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71873-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,PASSENGER |
1 | ||
| 71873-52040C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,DRIVER |
1 | ||
| 71873-0M010C0 |
ANE11..06S..TH LIMITED PACKAGE,BLACK,TRIM1# |
1 | ||
| 71873-52040C0 |
ANE11..TH BLACK,TRIM1#,DRIVER |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-68010C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71873-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,PASSENGER |
1 | ||
| 71873-52040C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,DRIVER |
1 | ||
| 71873-0M010C0 |
ANE11..06S..TH LIMITED PACKAGE,BLACK,TRIM1# |
1 | ||
| 71873-52040C0 |
ANE11..TH BLACK,TRIM1#,DRIVER |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-68010C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71874-52050C0 |
ANE11..TH BLACK,TRIM1#,DRIVER |
1 | ||
| 71874-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,PASSENGER |
1 | ||
| 71874-52050C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,DRIVER |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-68010C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71874-52050C0 |
ANE11..TH BLACK,TRIM1#,DRIVER |
1 | ||
| 71874-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,PASSENGER |
1 | ||
| 71874-52050C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,DRIVER |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52030C0 |
ANE11..TH BLACK,TRIM1# |
2 | ||
| 71875-52030C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1# |
1 | ||
| 71875-52030C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
2 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52030C0 |
ANE11..TH BLACK,TRIM1# |
2 | ||
| 71875-52030C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1# |
1 | ||
| 71875-52030C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
2 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-68030C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71875-06060C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1#,DRIVER |
1 | ||
| 71875-58060 |
ANE11..TH DRIVER |
1 | ||
| 71875-68030C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71875-58060 |
ANE11,ZNE10..RHD DRIVER |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-68030C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71875-06060C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1#,DRIVER |
1 | ||
| 71875-58060 |
ANE11..TH DRIVER |
1 | ||
| 71875-68030C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71875-58060 |
ANE11,ZNE10..RHD DRIVER |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52030C0 |
ANE11..TH BLACK,TRIM1# |
2 | ||
| 71876-52030C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1# |
1 | ||
| 71876-52030C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52030C0 |
ANE11..TH BLACK,TRIM1# |
2 | ||
| 71876-52030C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1# |
1 | ||
| 71876-52030C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
2 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58060 |
ANE11..TH DRIVER |
1 | ||
| 71876-68030C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71876-58060 |
ANE11,ZNE10..RHD DRIVER |
1 | ||
| 71876-06060C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1#,DRIVER |
1 | ||
| 71876-68030C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58060 |
ANE11..TH DRIVER |
1 | ||
| 71876-68030C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71876-58060 |
ANE11,ZNE10..RHD DRIVER |
1 | ||
| 71876-06060C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1#,DRIVER |
1 | ||
| 71876-68030C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-68010C0 |
ANE11..TH BLACK,TRIM1#,NO.1 |
4 | ||
| 72123-68020C0 |
ANE11..TH BLACK,TRIM1#,NO.2 |
1 | ||
| 72123-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.2 |
1 | ||
| 72123-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.1 |
4 | ||
| 72123-68010C0 |
ANE11..06S..TH LIMITED PACKAGE,BLACK,TRIM1#,NO.1 |
2 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-68010C0 |
ANE11..TH BLACK,TRIM1#,NO.1 |
4 | ||
| 72123-68020C0 |
ANE11..TH BLACK,TRIM1#,NO.2 |
1 | ||
| 72123-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.2 |
1 | ||
| 72123-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.1 |
4 | ||
| 72123-68010C0 |
ANE11..06S..TH LIMITED PACKAGE,BLACK,TRIM1#,NO.1 |
2 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-68010C0 |
ANE11..TH BLACK,TRIM1#,NO.1 |
4 | ||
| 72123-68020C0 |
ANE11..TH BLACK,TRIM1#,NO.2 |
1 | ||
| 72123-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.2 |
1 | ||
| 72123-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,NO.1 |
4 | ||
| 72123-68010C0 |
ANE11..06S..TH LIMITED PACKAGE,BLACK,TRIM1#,NO.1 |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 72123-68020C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72127-0M010C0 |
ANE11..06S..TH LIMITED PACKAGE,BLACK,TRIM1# |
1 | ||
| 72127-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 72128-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-68020C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 72129-68010C0 |
ANE11..TH BLACK,TRIM1#,DRIVER |
1 | ||
| 72129-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,PASSENGER |
1 | ||
| 72129-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,DRIVER |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-68020C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 72129-68010C0 |
ANE11..TH BLACK,TRIM1#,DRIVER |
1 | ||
| 72129-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,PASSENGER |
1 | ||
| 72129-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,DRIVER |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-60010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72462-60010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-52010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72477-52010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-60020C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72494-60020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 72525-58030C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-68050C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72525-68050C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-68030C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72526-68030C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 82666-58030 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| Linked diagrams | ||||
| 7104 | ||||

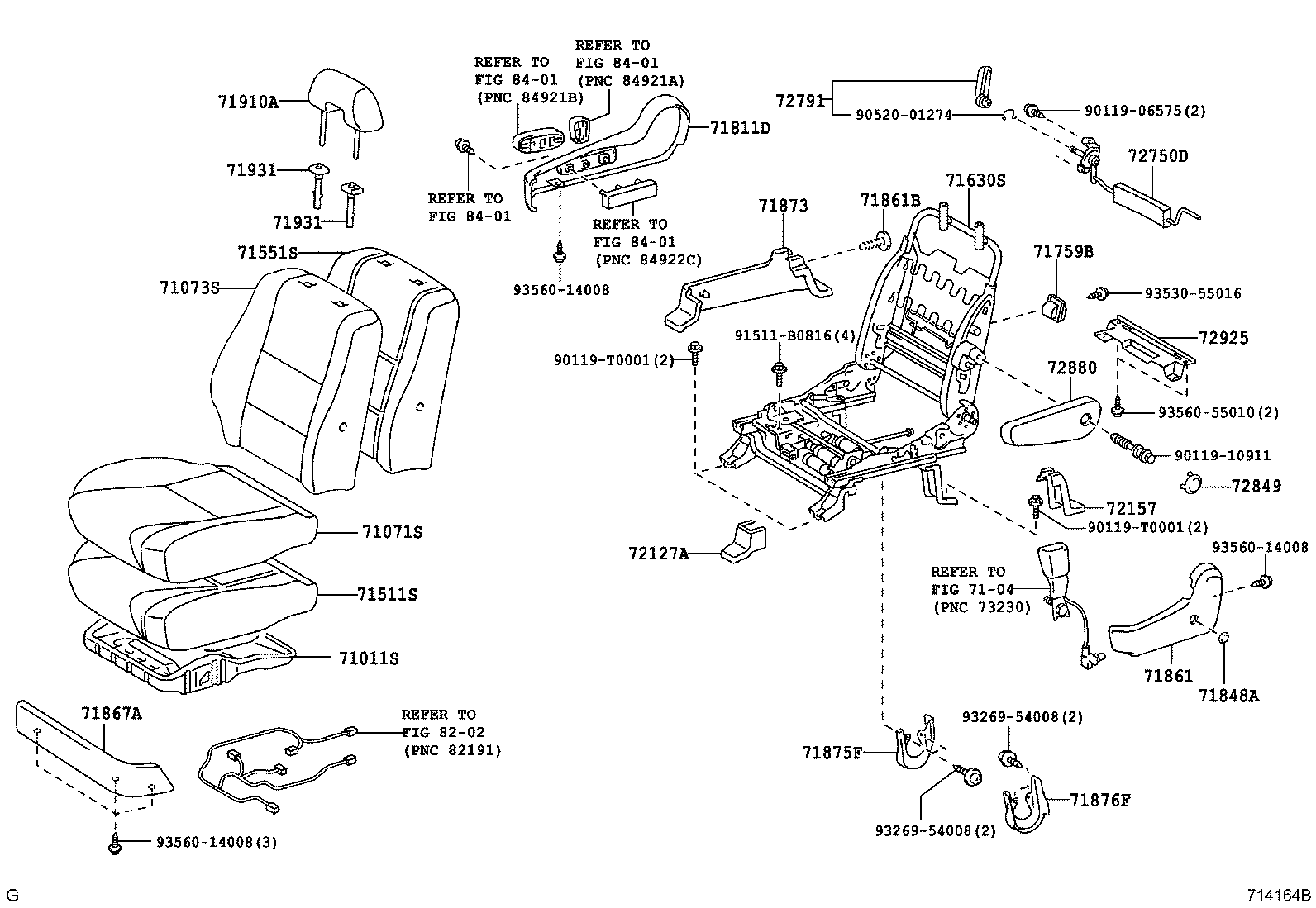

(0512-0910)TH
RH-W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-06060 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0M020C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 71071-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
1 | ||
| 71071-0M010B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 71071-0M050B0 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71071-0M040B0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0M020C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 71073-0M070B0 |
ANE11..06S..TH S PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 71073-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
1 | ||
| 71073-0M050B0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,DK.GRAY,TRIM1# |
1 | ||
| 71073-0M060B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0M010 |
ANE11..TH |
1 | ||
| 71511-0M030 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE |
1 | ||
| 71511-0M010 |
ANE11..TH |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0M010 |
ANE11..06S..TH S PACKAGE |
1 | ||
| 71551-0M040 |
ANE11..TH |
1 | ||
| 71551-0M050 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE |
1 | ||
| 71551-0M010 |
ANE11..TH S PACKAGE |
1 | ||
| 71551-0M040 |
ANE11..06S..TH |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-0M030 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-28040C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52150C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71811-06050C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1# |
1 | ||
| 71811-52150C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-0M010C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-68020C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 71861-0M010C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1# |
1 | ||
| 71861-68020C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 90467-07161C0 |
ANE11..06S..TH LIMITED PACKAGE,BLACK,TRIM1# |
2 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-0M020C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-68010C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71873-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,PASSENGER |
1 | ||
| 71873-52040C0 |
ANE11,ZNE10..RHD BLACK,TRIM1#,DRIVER |
1 | ||
| 71873-0M010C0 |
ANE11..06S..TH LIMITED PACKAGE,BLACK,TRIM1# |
1 | ||
| 71873-52040C0 |
ANE11..TH BLACK,TRIM1#,DRIVER |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-68030C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71875-06060C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1#,DRIVER |
1 | ||
| 71875-58060 |
ANE11..TH DRIVER |
1 | ||
| 71875-68030C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71875-58060 |
ANE11,ZNE10..RHD DRIVER |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58060 |
ANE11..TH DRIVER |
1 | ||
| 71876-68030C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71876-58060 |
ANE11,ZNE10..RHD DRIVER |
1 | ||
| 71876-06060C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1#,DRIVER |
1 | ||
| 71876-68030C0 |
ANE11..TH BLACK,TRIM1#,PASSENGER |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-68010C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71910-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
2 | ||
| 71910-68010C1 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71910-0M010B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-02370C0 |
ANE11..TH W(LOCK)&W(BUTTON),BLACK,TRIM1# |
2 | ||
| 71931-02130C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71931-47010C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-47010C0 |
ANE11..TH W(LOCK),BLACK,TRIM1# |
2 | ||
| 71930-02370C0 |
ANE11..TH W(LOCK)&W(BUTTON),BLACK,TRIM1# |
2 | ||
| 71931-02130C0 |
ANE11..TH W/O(LOCK),BLACK,TRIM1# |
2 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-68010C0 |
ANE11..TH BLACK,TRIM1# |
1 | ||
| 72127-0M010C0 |
ANE11..06S..TH LIMITED PACKAGE,BLACK,TRIM1# |
1 | ||
| 72127-68010C0 |
ANE11,ZNE10..RHD BLACK,TRIM1# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-0M010C0 |
ANE11..06S..TH LIMITED PACKAGE,BLACK,TRIM1# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-0M020 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-22020C0 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE,BLACK,TRIM1# |
1 | ||
| 72849 - CAP, SEAT ARMREST, NO.2 | ||||
| 72848-28030C0 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1#,DRIVER |
1 | ||
| 71877-26020C0 |
ANE11..TH S PACKAGE,BLACK,TRIM1# |
2 | ||
| 71877-26020C0 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1#,PASSENGER |
1 | ||
| 72848-28030C0 |
ANE11..06S..TH BLACK,TRIM1# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72890-0M040B0 |
ANE11..06S..TH DK.GRAY,TRIM1# |
1 | ||
| 72880-68010C0 |
ANE11 S PACKAGE,BLACK,TRIM1# |
1 | ||
| 72880-0M010B0 |
ANE11..TH DK.GRAY,TRIM1# |
1 | ||
| 72890-68060C0 |
ANE11..06S..TH S PACKAGE,BLACK,TRIM1# |
1 | ||
| 72925 - COVER, FRONT SEAT CUSHION | ||||
| 72925-02010 |
ANE11..06S..TH LIMITED PACKAGE&FRONT SEAT-D:POWER SEAT P:BACK TABLE |
1 | ||
| Common parts | ||||
| 90119-06575 | ||||
| 90119-10911 | ||||
| 90119-T0001 | ||||
| 90520-01274 | ||||
| 91511-B0816 | ||||
| 93269-54008 | ||||
| 93530-55016 | ||||
| 93560-14008 | ||||
| 93560-55010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
