ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0512-0702)TH

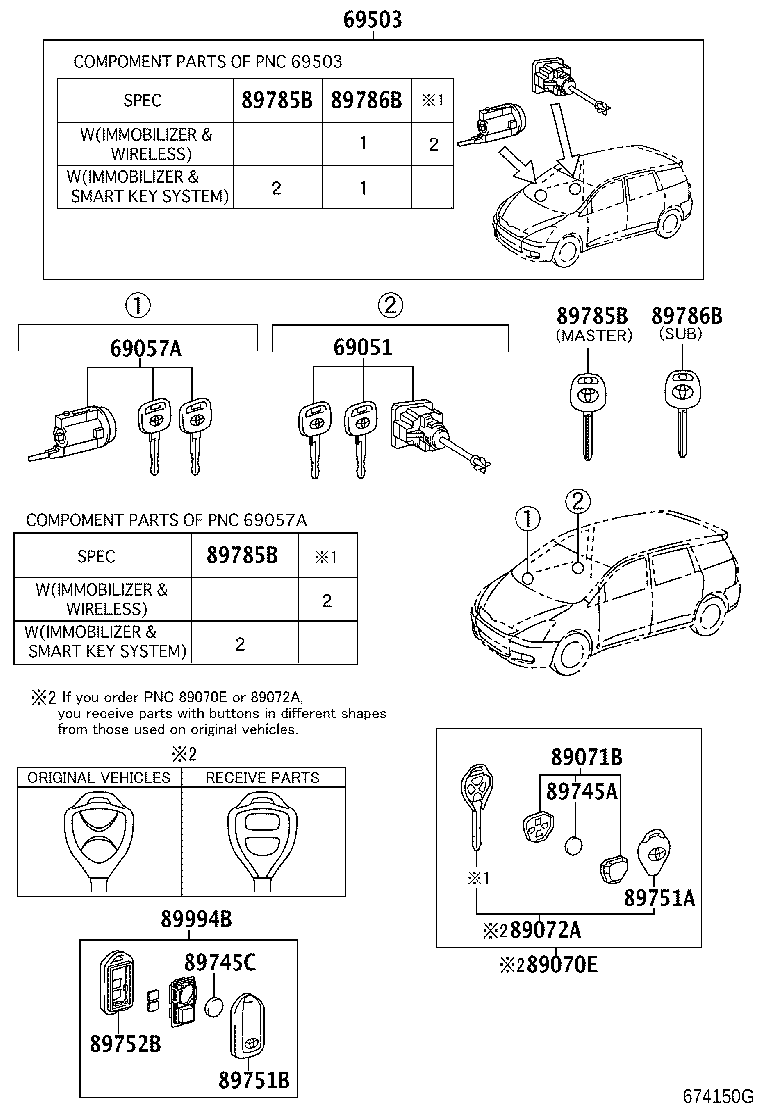

Click highlighted areas on diagram

diagram 69051 69057A 69503 89070E 89071B 89072A 89745A 89745C 89751A 89751B 89752B 89785B 89785B 89785B 89786B 89786B 89994B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-58010

ANE11..TH

 1
69051-58010

ANE11,ZNE10..RHD

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-68060

ANE11..06S..TH

S PACKAGE

 1
69057-68030

ANE11

S PACKAGE

 1
69057-68020

ANE11

 1
69057-68061

ANE11..06S..TH

S PACKAGE

 1
69057-68020

ANE11..06S..TH

 1
69503 - CYLINDER SET, LOCK
69005-68050

ANE11..TH

 1
69005-68060

ANE11..TH

S PACKAGE

 1
69005-68050

ANE11..06S..TH

 1
69005-68121

ANE11..06S..TH

S PACKAGE

 1
69005-68120

ANE11..06S..TH

S PACKAGE

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-28690

ANE11..06S..TH

S PACKAGE

 2
89070-28691

ANE11..06S..TH

S PACKAGE

 2
89070-28470

ANE11..TH

S PACKAGE

 2
89070-28812

ANE11..06S..TH

S PACKAGE

 2
89070-28811

ANE11..06S..TH

S PACKAGE

 2
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-42050

ANE11..TH

S PACKAGE

 2
89071-26041

ANE11..06S..TH

S PACKAGE

 2
89071-28201

ANE11..06S..TH

S PACKAGE

 2
89071-26040

ANE11..06S..TH

S PACKAGE

 2
89071-28202

ANE11..06S..TH

S PACKAGE

 2
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-28300

ANE11..06S..TH

S PACKAGE

 1
89745A - BATTERY, TRANSMITTER
89745-40010

ANE11..TH

S PACKAGE

 2
89745-48030

ANE11..06S..TH

S PACKAGE

 2
89745C - BATTERY, TRANSMITTER
89745-50020

ANE11..TH

S PACKAGE

 2
89745-50020

ANE11..06S..TH

 2
89745-50020

ANE11..TH

 2
89751A - COVER, TRANSMITTER HOUSING
89751-13010

ANE11..TH

S PACKAGE

 2
89751-26010

ANE11..06S..TH

S PACKAGE

 2
89751-28070

ANE11..06S..TH

S PACKAGE

 2
89751B - COVER, TRANSMITTER HOUSING
89751-68010

ANE11..TH

S PACKAGE

 2
89751-68010

ANE11..06S..TH

 2
89751-68010

ANE11..TH

 2
89752B - CASE, TRANSMITTER HOUSING
89752-68010

ANE11..TH

S PACKAGE

 2
89752-68010

ANE11..06S..TH

 2
89752-68010

ANE11..TH

 2
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60160

ANE11..TH

 1
89785-60160

ANE11..06S..TH

 1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60160

ANE11..TH

 1
89785-60160

ANE11..06S..TH

 1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60160

ANE11..TH

 1
89785-60160

ANE11..06S..TH

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

ANE11..TH

BLANK KEY

 1
89786-60170

ANE11..TH

BLANK KEY

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

ANE11..TH

BLANK KEY

 1
89786-60170

ANE11..TH

BLANK KEY

 1
89994B - TRANSMITTER, ELECTRICAL KEY
89994-68030

ANE11..TH

S PACKAGE

 2
89994-68030

ANE11..TH

 2
89994-68030

ANE11..06S..TH

 2

(0702- )TH

Click highlighted areas on diagram

diagram 69051 69057A 69503 89070E 89071B 89072A 8907A 89745A 89745C 89751A 89751B 89752A 89752B 89785B 89785B 89785B 89786B 89786B 89994B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-58010

ANE11..TH

 1
69051-58010

ANE11,ZNE10..RHD

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-68060

ANE11..06S..TH

S PACKAGE

 1
69057-68030

ANE11

S PACKAGE

 1
69057-68020

ANE11

 1
69057-68061

ANE11..06S..TH

S PACKAGE

 1
69057-68020

ANE11..06S..TH

 1
69503 - CYLINDER SET, LOCK
69005-68050

ANE11..TH

 1
69005-68060

ANE11..TH

S PACKAGE

 1
69005-68050

ANE11..06S..TH

 1
69005-68121

ANE11..06S..TH

S PACKAGE

 1
69005-68120

ANE11..06S..TH

S PACKAGE

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-28690

ANE11..06S..TH

S PACKAGE

 2
89070-28691

ANE11..06S..TH

S PACKAGE

 2
89070-28470

ANE11..TH

S PACKAGE

 2
89070-28812

ANE11..06S..TH

S PACKAGE

 2
89070-28811

ANE11..06S..TH

S PACKAGE

 2
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-42050

ANE11..TH

S PACKAGE

 2
89071-26041

ANE11..06S..TH

S PACKAGE

 2
89071-28201

ANE11..06S..TH

S PACKAGE

 2
89071-26040

ANE11..06S..TH

S PACKAGE

 2
89071-28202

ANE11..06S..TH

S PACKAGE

 2
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-28300

ANE11..06S..TH

S PACKAGE

 1
8907A - SWITCH SET, TRANSMITTER
8907A-28010

ANE11..06S..TH

S PACKAGE

 2
89745A - BATTERY, TRANSMITTER
89745-40010

ANE11..TH

S PACKAGE

 2
89745-48030

ANE11..06S..TH

S PACKAGE

 2
89745C - BATTERY, TRANSMITTER
89745-50020

ANE11..TH

S PACKAGE

 2
89745-50020

ANE11..06S..TH

 2
89745-50020

ANE11..TH

 2
89751A - COVER, TRANSMITTER HOUSING
89751-13010

ANE11..TH

S PACKAGE

 2
89751-26010

ANE11..06S..TH

S PACKAGE

 2
89751-28070

ANE11..06S..TH

S PACKAGE

 2
89751B - COVER, TRANSMITTER HOUSING
89751-68010

ANE11..TH

S PACKAGE

 2
89751-68010

ANE11..06S..TH

 2
89751-68010

ANE11..TH

 2
89752A - CASE, TRANSMITTER HOUSING
89752-28050

ANE11..06S..TH

S PACKAGE

 1
89752B - CASE, TRANSMITTER HOUSING
89752-68010

ANE11..TH

S PACKAGE

 2
89752-68010

ANE11..06S..TH

 2
89752-68010

ANE11..TH

 2
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60160

ANE11..TH

 1
89785-60160

ANE11..06S..TH

 1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60160

ANE11..TH

 1
89785-60160

ANE11..06S..TH

 1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60160

ANE11..TH

 1
89785-60160

ANE11..06S..TH

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

ANE11..TH

BLANK KEY

 1
89786-60170

ANE11..TH

BLANK KEY

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

ANE11..TH

BLANK KEY

 1
89786-60170

ANE11..TH

BLANK KEY

 1
89994B - TRANSMITTER, ELECTRICAL KEY
89994-68030

ANE11..TH

S PACKAGE

 2
89994-68030

ANE11..TH

 2
89994-68030

ANE11..06S..TH

 2
