ANE11R-JWPQKT (2005)
Toyota Wish
Production
Dec 2005
-
Oct 2009
Engine
1AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312- )

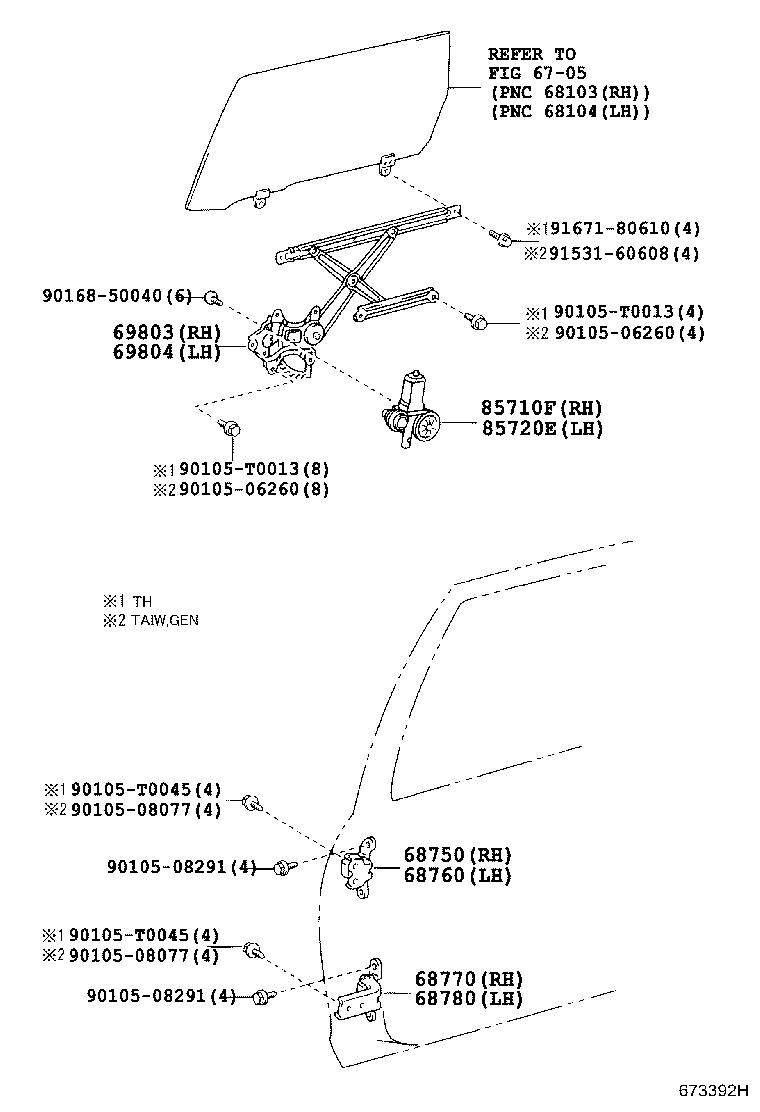

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-20120 |
ANE11..TH |
1 | ||
| 68750-20120 |
ANE12;ANE11..06S |
1 | ||
| 68750-20121 |
ANE1#,ZNE10 |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-20120 |
ANE11..TH |
1 | ||
| 68760-20121 |
ANE1#,ZNE10 |
1 | ||
| 68760-20120 |
ANE12;ANE11..06S |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-52030 |
ANE11..TH |
1 | ||
| 68770-52031 |
ANE1#,ZNE10 |
1 | ||
| 68770-52030 |
ANE12;ANE11..06S |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-52030 |
ANE11..TH |
1 | ||
| 68780-52030 |
ANE12;ANE11..06S |
1 | ||
| 68780-52031 |
ANE1#,ZNE10 |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-68010 |
ANE11..TH |
1 | ||
| 69803-68010 |
ANE11,ZNE10..RHD |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-68010 |
ANE11..TH |
1 | ||
| 69804-68010 |
ANE11,ZNE10..RHD |
1 | ||
| 85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85710-58010 |
ANE11,ZNE10..RHD |
1 | ||
| 85710-58010 |
ANE11..TH |
1 | ||
| 85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85720-58010 |
ANE11,ZNE10..RHD |
1 | ||
| 85720-58010 |
ANE11..TH |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90105-08077 | ||||
| 90105-08291 | ||||
| 90105-T0013 | ||||
| 90105-T0045 | ||||
| 90168-50040 | ||||
| 91531-60608 | ||||
| 91671-80610 | ||||
| Linked diagrams | ||||
| 6705 | ||||
