ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

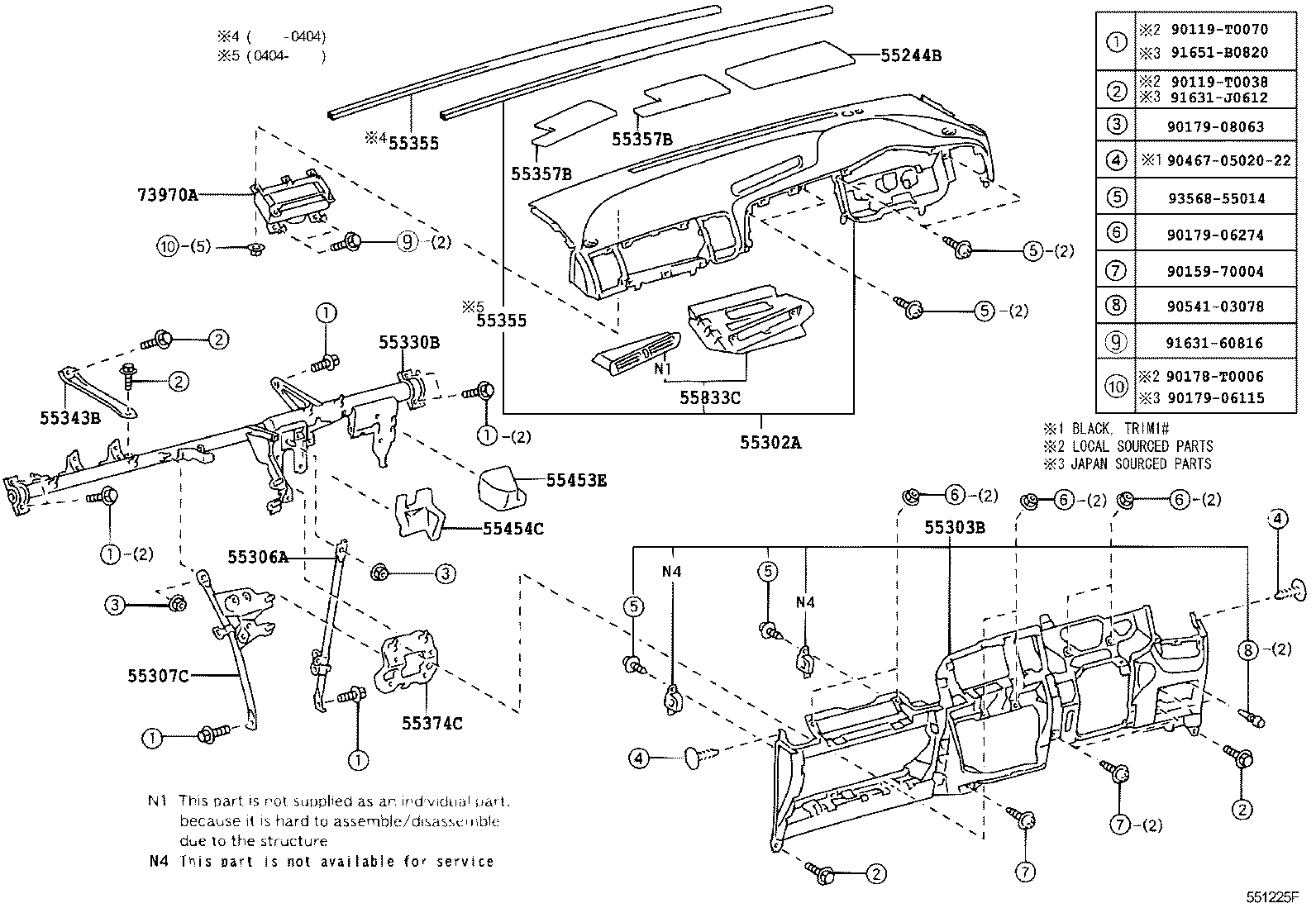

ILLUST NO. 1 OF 2(0312- )RHD

Click highlighted areas on diagram

diagram 55244B 55302A 55303B 55306A 55307C 55330B 55343B 55355 55355 55357B 55357B 55374C 55453E 55454C 55833C 73970A 90119T0038 90119T0070 9015970004 90178T0006 9017906115 9017906274 9017908063 904670502022 9054103078 9163160816 91631J0612 91651B0820 9356855014
Part # Description Qty Price
55244B - SILENCER, FRONT PANEL SIDE, NO.2
55244-63010

ANE11..TH

 1
55244-63010

ANE11,ZNE10..RHD

 1
55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER
55300-68010B0

ANE11

DK.GRAY,TRIM1#

 1
55300-68012B0

ANE11,ZNE10..RHD

DK.GRAY,TRIM1#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55310-68010B0

ANE11..TH

DK.GRAY,TRIM1#

 1
55310-68010B0

ANE11,ZNE10..RHD

DK.GRAY,TRIM1#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-68010

ANE11..TH

 1
55306-68010

ANE11,ZNE10..RHD

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-68010

ANE11,ZNE10..RHD

 1
55307-68010

ANE11..TH

 1
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-68010

ANE11..TH

 1
55330-68010

ANE11..TH

 1
55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER
55343-21010

ANE11..TH

 1
55343-21010

ANE11,ZNE10..RHD

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-68010

ANE12;ANE11..06S

 1
55355-68010

ANE1#,ZNE10

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-68010

ANE12;ANE11..06S

 1
55355-68010

ANE1#,ZNE10

 1
55357B - CUSHION, INSTRUMENT PANEL, NO.3
55244-68021

ANE11,ZNE10..RHD

 2
55357-20060

ANE11

 2
55357B - CUSHION, INSTRUMENT PANEL, NO.3
55244-68021

ANE11,ZNE10..RHD

 2
55357-20060

ANE11

 2
55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55349-68010

ANE11..TH

 1
55349-68010

ANE11,ZNE10..RHD

 1
55453E - PAD, INSTRUMENT, LOWER RH
55453-68010

ANE11..TH

 1
55453-68010

ANE11,ZNE10..RHD

 1
55454C - PAD, INSTRUMENT, LOWER LH
55454-68010

ANE11..TH

 1
55454-68010

ANE11,ZNE10..RHD

 1
55833C - CONNECTOR, INSTRUMENT PANEL REGISTER, CENTER
55833-68010B0

ANE11,ZNE10..RHD

DK.GRAY,TRIM1#

 1
55833-68010B0

ANE11..TH

DK.GRAY,TRIM1#

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-68010

ANE11..TH

 1
73970-68010

ANE11,ZNE10..RHD

 1
Common parts
90119-T0038
90119-T0070
90159-70004
90178-T0006
90179-06115
90179-06274
90179-08063
90467-0502022
90541-03078
91631-60816
91631-J0612
91651-B0820
93568-55014

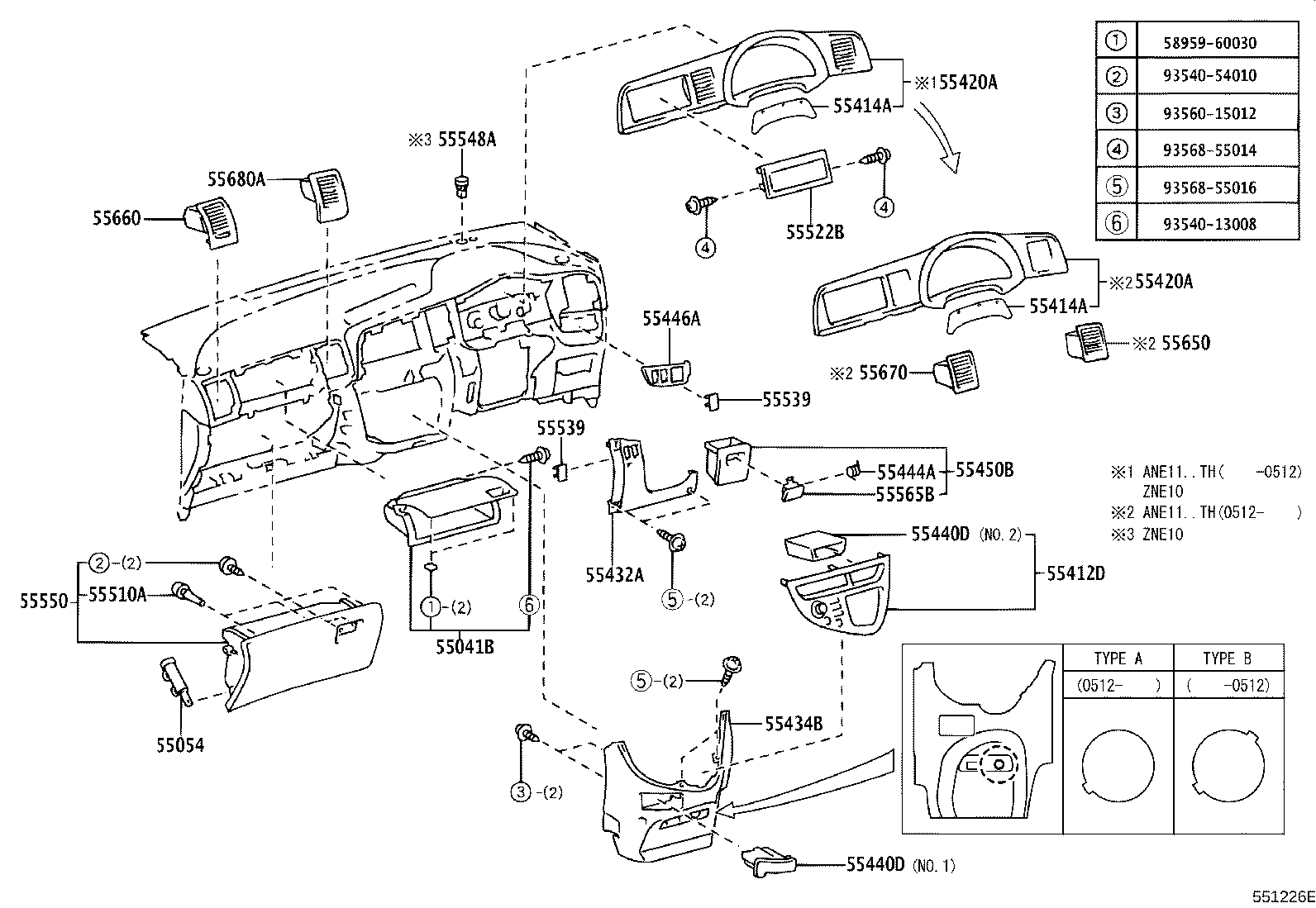

ILLUST NO. 2 OF 2(0312- )RHD

Click highlighted areas on diagram

diagram 55041B 55054 55412D 55414A 55414A 55420A 55420A 55432A 55434B 55440D 55440D 55444A 55446A 55450B 55510A 55522B 55539 55539 55548A 55550 55565B 55650 55660 55670 55680A 5895960030 9354013008 9354054010 9356015012 9356855014 9356855016
Part # Description Qty Price
55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1
55041-68010B0

ANE11

DK.GRAY,TRIM1#

 1
55041-68011B0

ANE11,ZNE10..RHD

DK.GRAY,TRIM1#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-35020

ANE1#,ZNE10

 1
55054-35020

ANE11..TH

 1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55405-68020

ANE11..TH

 1
55405-68050

ANE11..TH

 1
55414A - PANEL, INSTRUMENT CLUSTER FINISH, END
55414-0M020

ANE11..TH

 1
55414-68010

ANE11

 1
55414A - PANEL, INSTRUMENT CLUSTER FINISH, END
55414-0M020

ANE11..TH

 1
55414-68010

ANE11

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55420-68010B0

ANE11

DK.GRAY,TRIM1#

 1
55404-0M020

ANE11..TH

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55420-68010B0

ANE11

DK.GRAY,TRIM1#

 1
55404-0M020

ANE11..TH

 1
55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH
55432-68020B0

ANE11..TH

DK.GRAY,TRIM1#

 1
55432-68020B0

ANE11,ZNE10..RHD

DK.GRAY,TRIM1#

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-68021B0

ANE11,ZNE10..RHD

DK.GRAY,TRIM1#,TYPE A:REFER ILLUST.

 1
55434-68020B0

ANE11..TH

DK.GRAY,TRIM1#,TYPE B:REFER ILLUST.

 1
55440D - BOX ASSY, INSTRUMENT PANEL
55440-68020

ANE11

NO.2

 1
55440-68010B0

ANE11..TH

DK.GRAY,TRIM1#,NO.1

 1
55440-68030

ANE11,ZNE10..RHD

NO.2

 1
55440-68010B0

ANE11,ZNE10..RHD

DK.GRAY,TRIM1#,NO.1

 1
55440D - BOX ASSY, INSTRUMENT PANEL
55440-68020

ANE11

NO.2

 1
55440-68010B0

ANE11..TH

DK.GRAY,TRIM1#,NO.1

 1
55440-68030

ANE11,ZNE10..RHD

NO.2

 1
55440-68010B0

ANE11,ZNE10..RHD

DK.GRAY,TRIM1#,NO.1

 1
55444A - SPRING, INSTRUMENT PANEL BOX
55518-58010

ANE11

 1
55518-28010

ANE11,ZNE10..RHD

 1
55446A - BASE, SWITCH HOLE, NO.1
55446-68010B0

ANE11..TH

DK.GRAY,TRIM1#

 1
55446-68010B0

ANE11,ZNE10..RHD

DK.GRAY,TRIM1#

 1
55450B - BOX ASSY, COIN
55450-68010B0

ANE11,ZNE10..RHD

DK.GRAY,TRIM1#

 1
55450-68010B0

ANE11..TH

DK.GRAY,TRIM1#

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-03015

ANE11..TH

 3
90541-03015

ANE1#,ZNE10

 3
55522B - COVER, RADIO TUNER OPENING
55522-52020

ANE11,ZNE10..RHD

 1
55522-52020

ANE11..TH

 1
55539 - COVER, SPARE SWITCH HOLE
55539-60020B6

ANE12..20J;ANE11..06S..TH

DK.GRAY,TRIM1#

 1
55539-60020B6

ANE1#,ZNE10..20J,20Q,N

DK.GRAY,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-60020B6

ANE12..20J;ANE11..06S..TH

DK.GRAY,TRIM1#

 1
55539-60020B6

ANE1#,ZNE10..20J,20Q,N

DK.GRAY,TRIM1#

 1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-68010B0

ANE11,ZNE10..RHD

DK.GRAY,TRIM1#

 1
55550-68010B0

ANE11..TH

DK.GRAY,TRIM1#

 1
55565B - KNOB, GLOVE COMPARTMENT DOOR LOCK
55565-44010B2

ANE11..TH

DK.GRAY,TRIM1#

 1
55565-44010B2

ANE1#,ZNE10

DK.GRAY,TRIM1#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-68010

ANE11..TH

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-68010B0

ANE11..TH

DK.GRAY,TRIM1#

 1
55660-68010B0

ANE11,ZNE10..RHD

DK.GRAY,TRIM1#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-68010

ANE11..TH

 1
55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4
55680-68010B0

ANE11..TH

DK.GRAY,TRIM1#

 1
55680-68010B0

ANE11,ZNE10..RHD

DK.GRAY,TRIM1#

 1
Common parts
58959-60030
93540-13008
93540-54010
93560-15012
93568-55014
93568-55016
