ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0512-0910)TH

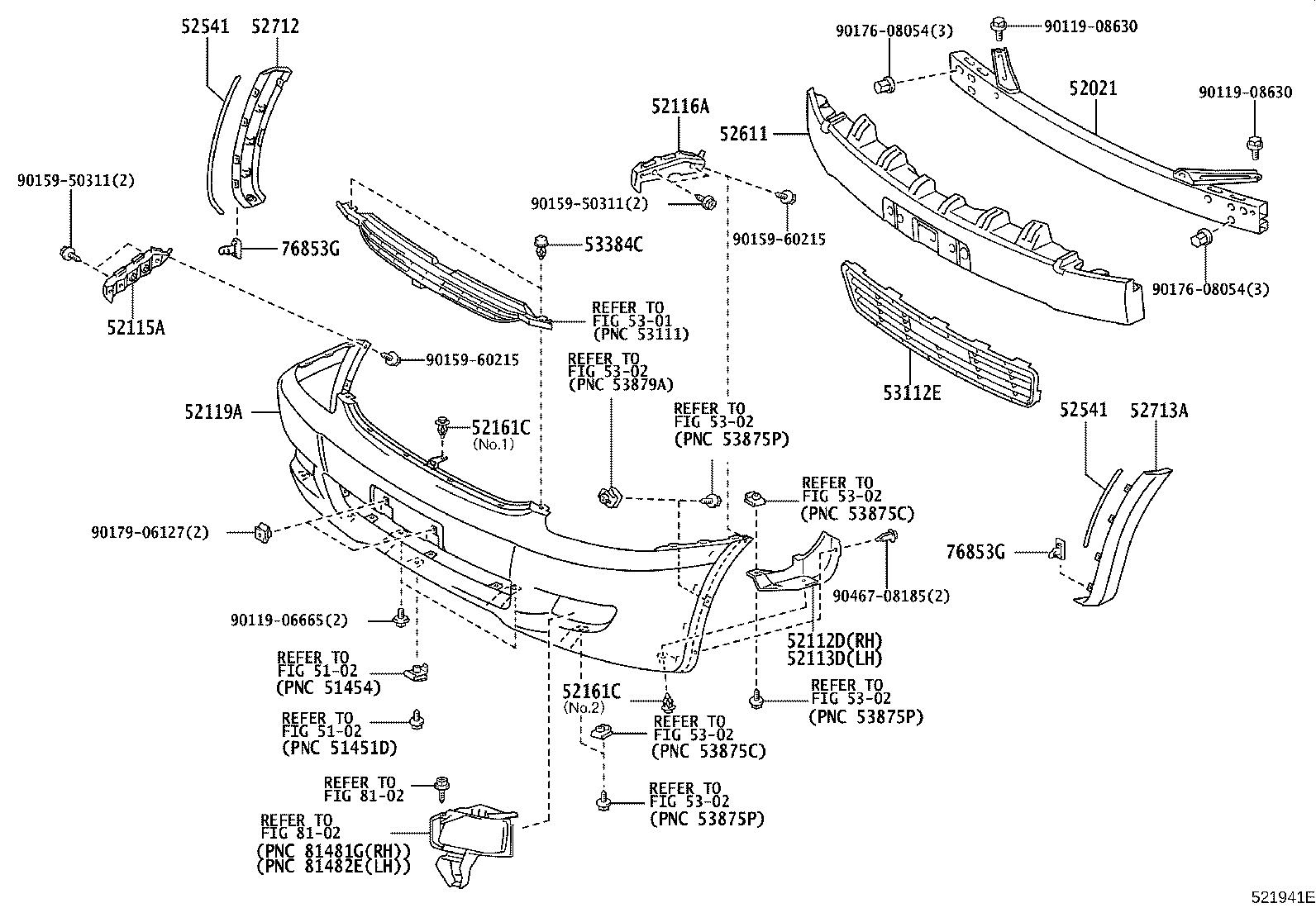

Click highlighted areas on diagram

diagram 5102 5102 52021 52112D 52113D 52115A 52116A 52119A 52161C 52161C 52541 52541 52611 52712 52713A 5301 5302 5302 5302 5302 5302 5302 53112E 53384C 76853G 76853G 8102 8102 9011906665 9011908630 9011908630 9015950311 9015950311 9015960215 9015960215 9017608054 9017608054 9017906127 9046708185
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-68010

ANE11,ZNE10..RHD

 1
52021-68010

ANE11..TH

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-68020

ANE11..TH

NO PAINT REQ.

 1
52112-68010

ANE11..TH

NO PAINT REQ.

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-68010

ANE11..TH

NO PAINT REQ.

 1
52113-68020

ANE11..TH

NO PAINT REQ.

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-68020

ANE11,ZNE10..RHD

 1
52115-68010

ANE12;ANE11..06S

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-68010

ANE12;ANE11..06S

 1
52116-68020

ANE11,ZNE10..RHD

 1
52119A - COVER, FRONT BUMPER
52119-68030B2

ANE11..TH

S PACKAGE,SILVER ME.,1D0

 1
52119-68030C0

ANE11..TH

BLACK MC.,209

 1
52119-68030B0

ANE11..TH

SILVER M.M.,1E7

 1
52119-68030B1

ANE11..TH

DK.GRAY M.M.,1E9

 1
52119-68030D2

ANE11..TH

S PACKAGE,RED M.M.,3N8

 1
52119-68030F0

ANE11..TH

S PACKAGE,CHAMPAGNE ME.,586

 1
52119-68030A1

ANE11..TH

WHITE PEARL CS.,070

 1
52119-68903

ANE11..TH

PAINT REQ.

 1
52119-68030J3

ANE11..TH

S PACKAGE,DK.BLUE MC.,8N8

 1
52119-68030J0

ANE11..TH

DK.BLUE M.M.,8P4

 1
52119-68030D0

ANE11..TH

SUPER RED 5,3P0

 1
52161C - PIECE, FRONT BUMPER
90467-09143

ANE11..TH

NO.2

 2
52161-16010

ANE11..TH

NO.1

 1
52161-16010

ANE11..TH

 1
52161C - PIECE, FRONT BUMPER
90467-09143

ANE11..TH

NO.2

 2
52161-16010

ANE11..TH

NO.1

 1
52161-16010

ANE11..TH

 1
52541 - PROTECTOR, FRONT BUMPER
52541-68010B2

ANE11..TH

GRAY,1D0 ,586

 2
52541-68010B0

ANE11..TH

LT. GRAY,070 ,1E7

 2
52541-68010C0

ANE11..TH

BLACK,1E9 ,209 ,3M8 ,3N8 ,3P0 ,8L4 ,8N8 ,8P4

 2
52541-68021C0

ANE11..TH

BLACK,209 ,3N8 ,3P0 ,8N8

 2
52541-68021B1

ANE11..TH

GRAY,1D0 ,1D4 ,4R0 ,586

 2
52541 - PROTECTOR, FRONT BUMPER
52541-68010B2

ANE11..TH

GRAY,1D0 ,586

 2
52541-68010B0

ANE11..TH

LT. GRAY,070 ,1E7

 2
52541-68010C0

ANE11..TH

BLACK,1E9 ,209 ,3M8 ,3N8 ,3P0 ,8L4 ,8N8 ,8P4

 2
52541-68021C0

ANE11..TH

BLACK,209 ,3N8 ,3P0 ,8N8

 2
52541-68021B1

ANE11..TH

GRAY,1D0 ,1D4 ,4R0 ,586

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-68020

ANE11,ZNE10..RHD

 1
52611-68010

ANE11..TH

 1
52712 - MOULDING, FRONT BUMPER SIDE, RH
52712-68901

ANE11..TH

 1
52713A - MOULDING, FRONT BUMPER SIDE, LH
52713-68901

ANE11..TH

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-68020

ANE11..TH

NO PAINT REQ.

 1
53112-68021

ANE11..TH

NO PAINT REQ.

 1
53384C - CUSHION, HOOD, CENTER
53384-68010

ANE12;ANE11..06S

 2
53384-68010

ANE1#,ZNE10

 2
76853G - RETAINER, FRONT BUMPER GUARD, NO.1
75392-35200

ANE11

 14
75392-35200

ANE11..06S

 14
76853G - RETAINER, FRONT BUMPER GUARD, NO.1
75392-35200

ANE11

 14
75392-35200

ANE11..06S

 14
Common parts
90119-06665
90119-08630
90159-50311
90159-60215
90176-08054
90179-06127
90467-08185
Linked diagrams
5102
5301
5302
8102
