ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

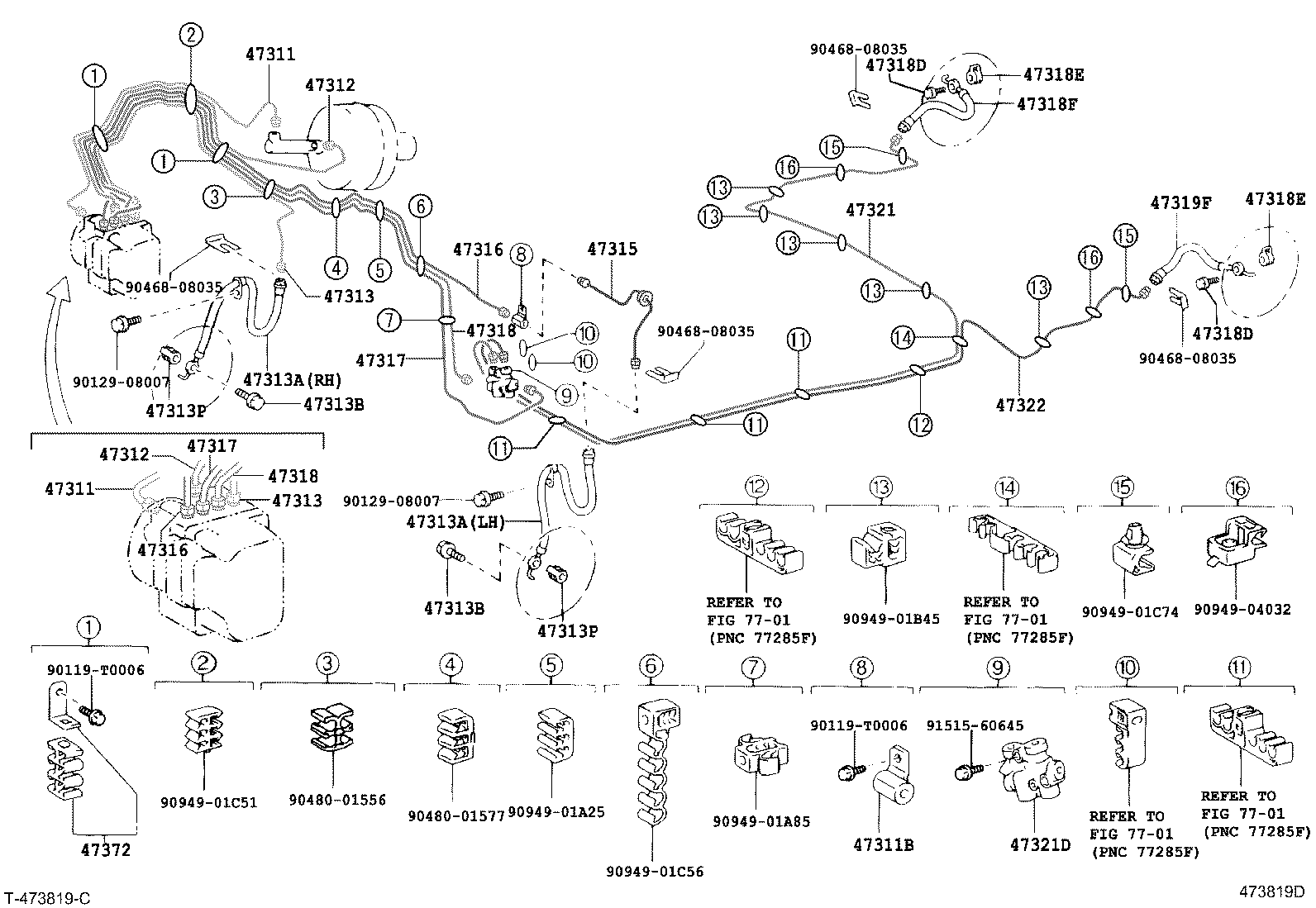

ILLUST NO. 1 OF 2(0312-0910)TH

Click highlighted areas on diagram

diagram 47311 47311 47311B 47312 47312 47313 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47316 47317 47317 47318 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47321D 47322 47372 7701 7701 7701 7701 90119T0006 90119T0006 9012908007 9012908007 9046808035 9046808035 9046808035 9046808035 9048001556 9048001577 9094901A25 9094901A85 9094901B45 9094901C51 9094901C56 9094901C74 9094904032 9151560645
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0M010

ANE11..TH

 1
47311-0M010

ANE11..TH

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-0M010

ANE11..TH

 1
47311-0M010

ANE11..TH

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10167

ANE11,ZNE10..RHD

 1
90412-10167

ANE11..TH

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0M010

ANE11..TH

 1
47312-0M010

ANE11..TH

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0M010

ANE11..TH

 1
47312-0M010

ANE11..TH

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0M010

ANE11..TH

 1
47313-0M010

ANE11..TH

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0M010

ANE11..TH

 1
47313-0M010

ANE11..TH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D63

ANE11..TH

RH

 1
90947-02D64

ANE11

LH

 1
90947-02D63

ANE11

RH

 1
90947-02D64

ANE11..TH

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D63

ANE11..TH

RH

 1
90947-02D64

ANE11

LH

 1
90947-02D63

ANE11

RH

 1
90947-02D64

ANE11..TH

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ANE11..TH

 2
90401-10058

ANE1#,ZNE10

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ANE11..TH

 2
90401-10058

ANE1#,ZNE10

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ANE11..TH

 2
47389-50021

ANE11..TH

 2
47389-50020

ANE11..TH

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ANE11..TH

 2
47389-50021

ANE11..TH

 2
47389-50020

ANE11..TH

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-02250

ANE11..TH

 1
47315-02250

ANE11..TH

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0M010

ANE11..TH

 1
47316-0M010

ANE11..TH

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0M010

ANE11..TH

 1
47316-0M010

ANE11..TH

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0M010

ANE11..TH

 1
47317-0M010

ANE11..TH

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0M010

ANE11..TH

 1
47317-0M010

ANE11..TH

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-0M010

ANE11..TH

 1
47318-0M010

ANE11..TH

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-0M010

ANE11..TH

 1
47318-0M010

ANE11..TH

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ANE1#

 2
90401-10058

ANE11..TH

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ANE1#

 2
90401-10058

ANE11..TH

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ANE11..TH

 2
47389-50020

ANE11..TH

 2
47389-50021

ANE11..TH

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ANE11..TH

 2
47389-50020

ANE11..TH

 2
47389-50021

ANE11..TH

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02A37

ANE11..TH

 1
90947-02A37

ANE11

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02A37

ANE11..TH

 1
90947-02A37

ANE11

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0M010

ANE11..TH

 1
47321-0M010

ANE11..TH

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10140

ANE11..TH

 1
90412-10140

ANE11,ZNE10..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0M010

ANE11..TH

 1
47322-0M010

ANE11..TH

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47374-12050

ANE11,ZNE10..RHD

 2
47374-12050

ANE11..TH

 2
Common parts
90119-T0006
90129-08007
90468-08035
90480-01556
90480-01577
90949-01A25
90949-01A85
90949-01B45
90949-01C51
90949-01C56
90949-01C74
90949-04032
91515-60645
Linked diagrams
7701

ILLUST NO. 2 OF 2(0312-0910)20E,20Q,ZAER

Click highlighted areas on diagram

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 90178T0003 90178T0003 9017906074 9017906074 9163160816 9163160816 9163160816
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-68040

ANE11

 1
44050-68041

ANE11

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ANE11

 2
44545-42090

ANE1#..20E,20Q,ZAER

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ANE11

 2
44545-42090

ANE1#..20E,20Q,ZAER

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ANE11

 3
44546-42090

ANE1#..20E,20Q,ZAER

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ANE11

 3
44546-42090

ANE1#..20E,20Q,ZAER

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ANE11

 3
44546-42090

ANE1#..20E,20Q,ZAER

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-68020

ANE11..TH

 1
44590-68020

ANE11..TH

 1
Common parts
90178-T0003
90179-06074
91631-60816
