ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0910)

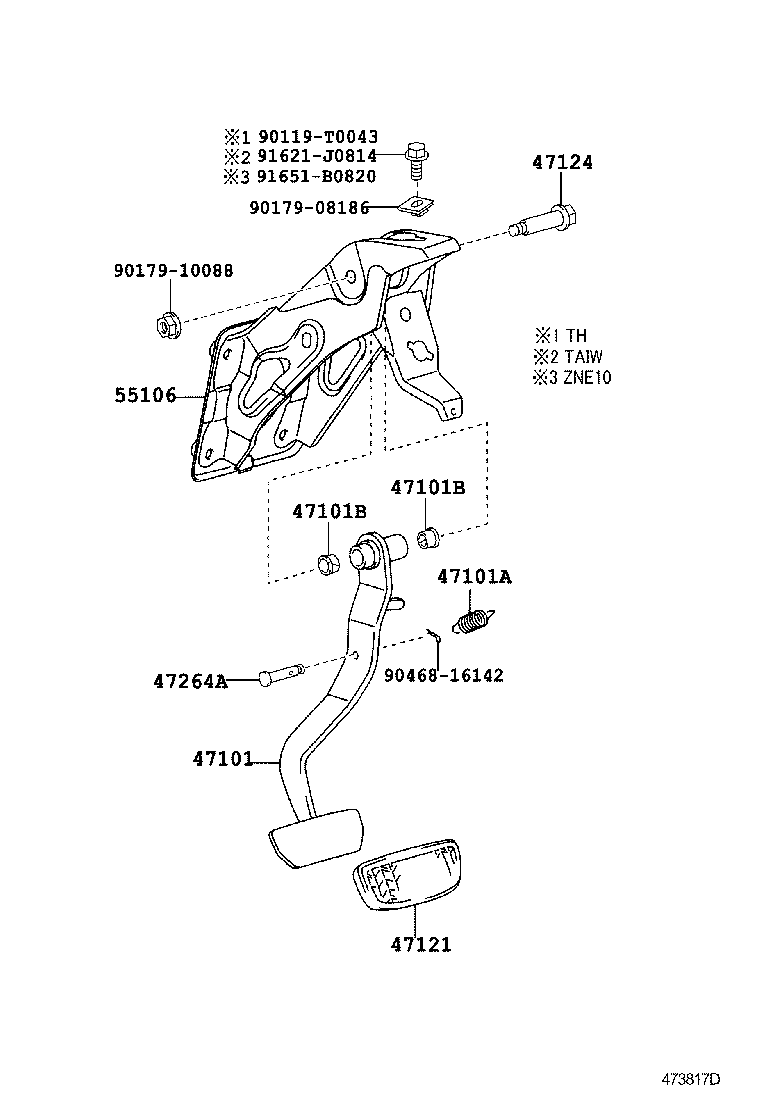

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47264A 55106 90119T0043 9017908186 9017910088 9046816142 91621J0814 91651B0820
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-68010

ANE11,ZNE10..RHD

 1
47101-68010

ANE11..TH

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-15005

ANE1#,ZNE10

 1
90507-15005

ANE11..TH

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

ANE11..TH

 2
90386-13015

ANE1#,ZNE10

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

ANE11..TH

 2
90386-13015

ANE1#,ZNE10

 2
47121 - PAD, BRAKE PEDAL
47121-52010

ANE11..TH

 1
47121-52010

ANE11,ZNE10..RHD

 1
47124 - SHAFT, BRAKE PEDAL
90109-10174

ANE11..TH

 1
90109-10174

ANE1#,ZNE10

 1
47264A - PIN(FOR PUSH ROD)
90249-08051

ANE1#,ZNE10

 1
90249-08051

ANE11..TH

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-68010

ANE11,ZNE10..RHD

 1
55106-68010

ANE11..TH

 1
Common parts
90119-T0043
90179-08186
90179-10088
90468-16142
91621-J0814
91651-B0820
