ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

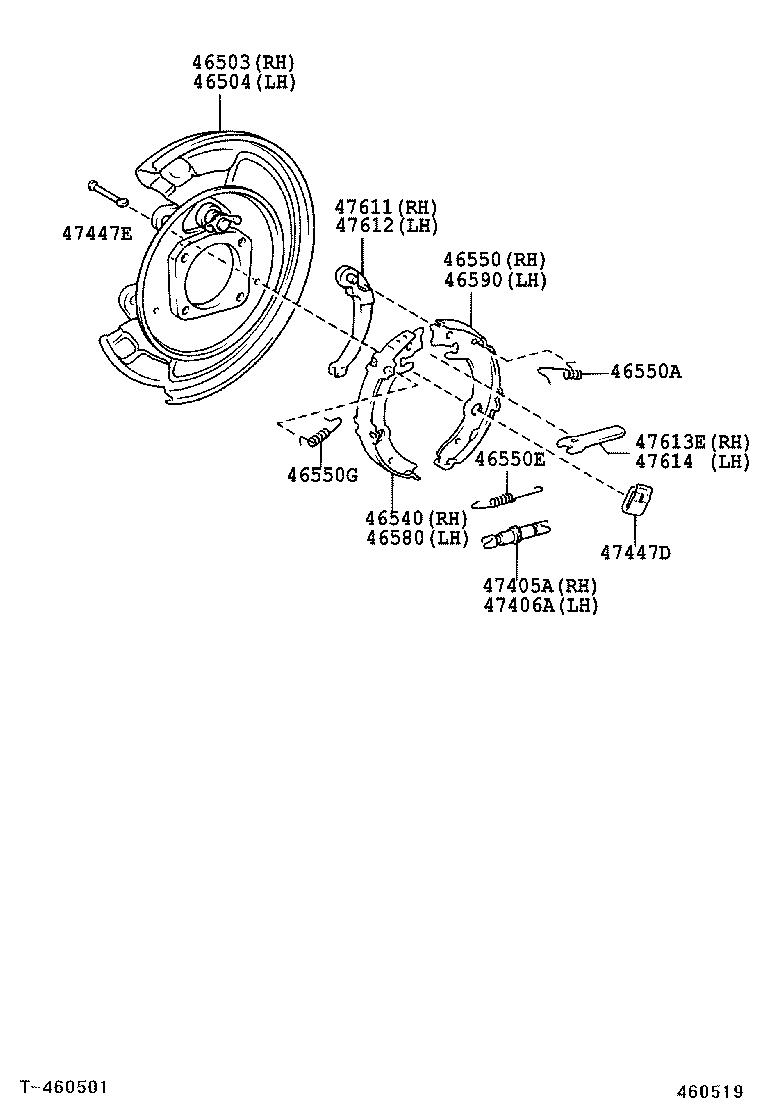

ILLUST NO. 2 OF 2(0312-0910)ANE1#

Click highlighted areas on diagram

diagram 46503 46504 46540 46550 46550A 46550E 46550G 46580 46590 47405A 47406A 47447D 47447E 47611 47612 47613E 47614
Part # Description Qty Price
46503 - PLATE SUB-ASSY, PARKING BRAKE, RH
46503-68011

ANE11..TH

 1
46503-68012

ANE11..TH

 1
46503-68011

ANE11..TH

 1
46504 - PLATE SUB-ASSY, PARKING BRAKE, LH
46504-68011

ANE11..TH

 1
46504-68012

ANE11..TH

 1
46504-68011

ANE11..TH

 1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-20080

ANE11..TH

 1
46540-20080

ANE11..TH

 1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46540-20080

ANE11..TH

 1
46540-20080

ANE11..TH

 1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90905-06045

ANE11..TH

RH

 1
90905-06044

ANE11..TH

LH

 1
90905-06045

ANE11..TH

RH

 1
90905-06044

ANE11..TH

LH

 1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90905-06046

ANE11..TH

 2
90905-06046

ANE11..TH

 2
46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
90905-06043

ANE11..TH

 2
90905-06043

ANE11..TH

 2
46580 - SHOE ASSY, PARKING BRAKE, LH NO.1
46540-20080

ANE11..TH

 1
46540-20080

ANE11..TH

 1
46590 - SHOE ASSY, PARKING BRAKE, LH NO.2
46540-20080

ANE11..TH

 1
46540-20080

ANE11..TH

 1
47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47405-32010

ANE11..TH

 1
47405-32010

ANE11..TH

 1
47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47406-32010

ANE11..TH

 1
47406-32010

ANE11..TH

 1
47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
47446-32010

ANE11..TH

 4
47446-32010

ANE11..TH

 4
47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47447-11010

ANE11..TH

 4
47447-11010

ANE11..TH

 4
47611 - LEVER, PARKING BRAKE SHOE, RH
47601-32030

ANE11..TH

 1
47601-32030

ANE11..TH

 1
47612 - LEVER, PARKING BRAKE SHOE, LH
47602-32030

ANE11..TH

 1
47602-32030

ANE11..TH

 1
47613E - STRUT, PARKING BRAKE SHOE, RH
47613-32030

ANE11..TH

 1
47613-32030

ANE11..TH

 1
47614 - STRUT, PARKING BRAKE SHOE, LH
47613-32030

ANE11..TH

 1
47613-32030

ANE11..TH

 1

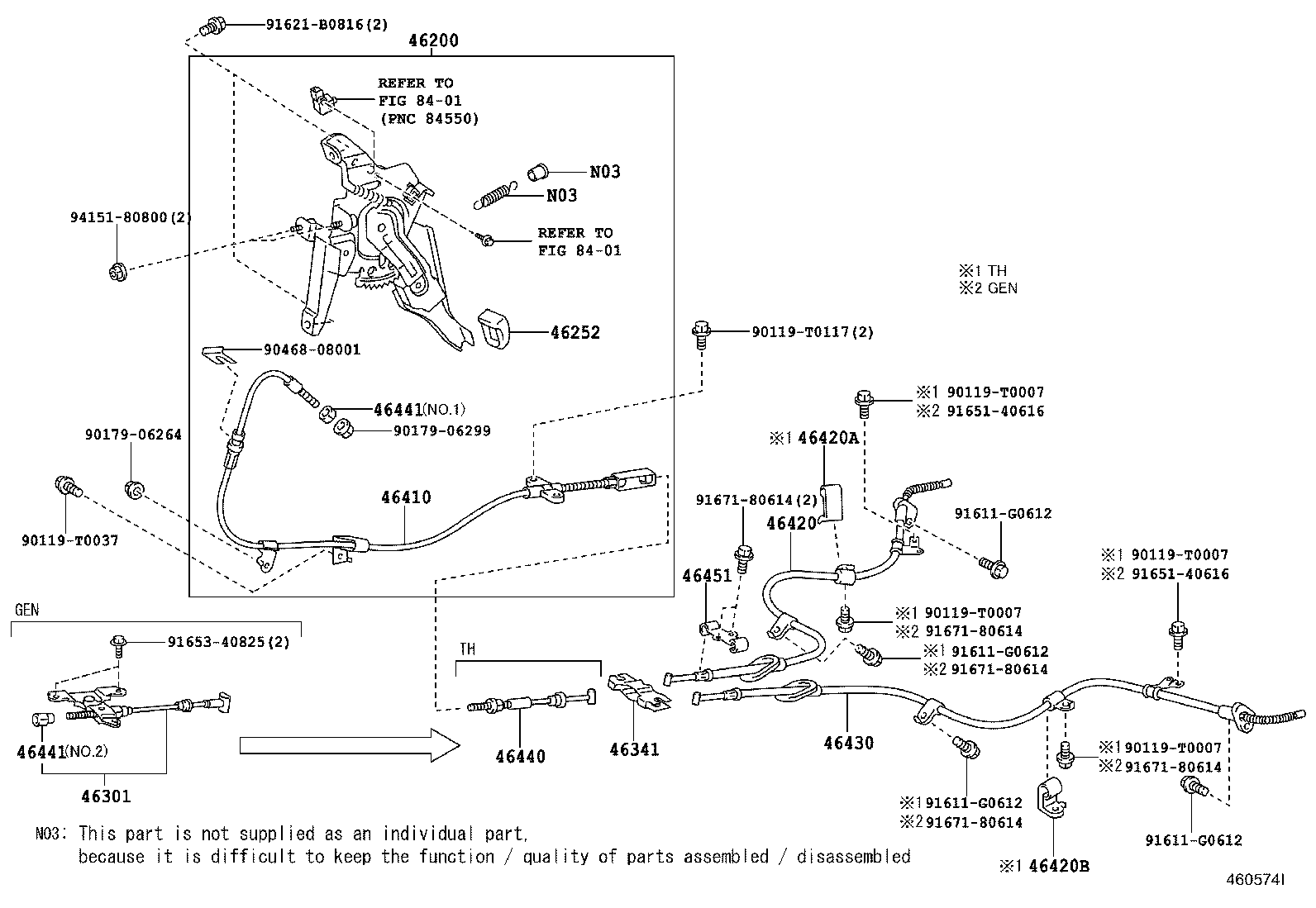

ILLUST NO. 1 OF 2(0312-0910)RHD

Click highlighted areas on diagram

diagram 46200 46252 46301 46341 46410 46420 46420A 46420B 46430 46440 46441 46441 46451 8401 8401 90119T0007 90119T0007 90119T0007 90119T0007 90119T0037 90119T0117 9017906264 9017906299 9046808001 91611G0612 91611G0612 91611G0612 91611G0612 91621B0816 9165140616 9165140616 9165340825 9167180614 9167180614 9167180614 9167180614 9167180614 9415180800
Part # Description Qty Price
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-68020

ANE11..TH

 1
46200-68020

ANE11..TH

 1
46252 - PAD, PARKING PEDAL
46252-68010

ANE11..TH

 1
46252-68010

ANE11,ZNE10..RHD

 1
46341 - EQUALIZER, PARKING BRAKE
46341-20070

ANE11..TH

 1
46341-20070

ANE1#,ZNE10

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-68020

ANE11..TH

 1
46410-68020

ANE11..TH

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-68030

ANE11..TH

 1
46420-68030

ANE11..TH

 1
46420-68070

ANE11..TH

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01C31

ANE11..TH

 1
90949-01C31

ANE11..TH

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01C31

ANE11..TH

 1
90949-01C31

ANE11..TH

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-68030

ANE11..TH

 1
46430-68030

ANE11..TH

 1
46430-68070

ANE11..TH

 1
46440 - CABLE ASSY, PARKING BRAKE, NO.4
46440-68020

ANE11..TH

 1
46440-68020

ANE11..TH

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010

ANE11..TH

NO.1

 1
46441-12010

ANE11,ZNE10..RHD

NO.1

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010

ANE11..TH

NO.1

 1
46441-12010

ANE11,ZNE10..RHD

NO.1

 1
46451 - BRACKET, CABLE SUPPORT
46451-68010

ANE11..TH

 1
46451-68010

ANE11,ZNE10..RHD

 1
Common parts
90119-T0007
90119-T0037
90119-T0117
90179-06264
90179-06299
90468-08001
91611-G0612
91621-B0816
91651-40616
91653-40825
91671-80614
94151-80800
Linked diagrams
8401
