ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )RHD

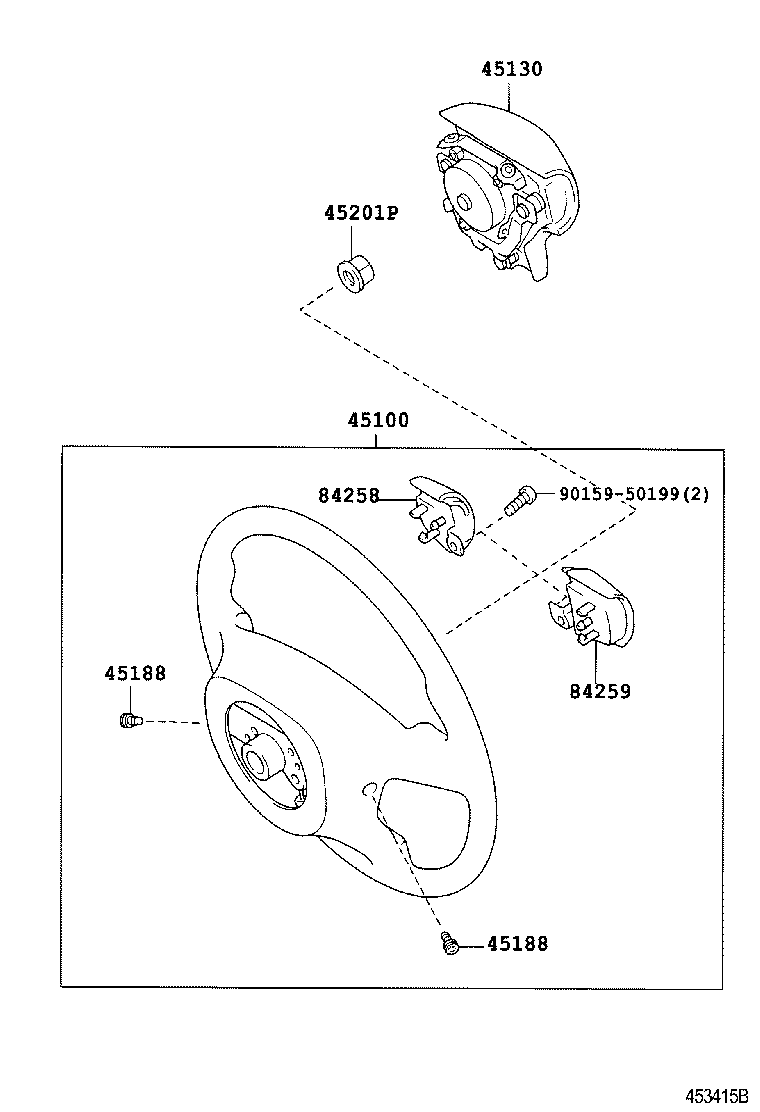

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45188 45188 45201P 84258 84259 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-68060C0

ANE11..TH

3-SPOKE,LEATHER,BLACK,TRIM1#

 1
45100-68120C0

ANE11..06S..TH

3-SPOKE,LEATHER,LIMITED PACKAGE,BLACK,TRIM1#

 1
45100-68060C0

ANE11..TH

3-SPOKE,LEATHER,BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-68020C0

ANE11..TH

BLACK,TRIM1#

 1
45130-68020C0

ANE11,ZNE10..RHD

BLACK,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ANE11..TH

L=18

 2
45188-60010

ANE1#,ZNE10

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ANE11..TH

L=18

 2
45188-60010

ANE1#,ZNE10

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

ANE11..TH

 1
90179-12071

ANE1#,ZNE10

 1
84258 - COVER, STEERING PAD, RH
84258-68020B1

ANE11,ZNE10..RHD

GRAY METALLIC,TRIM1#

 1
84258-68020B1

ANE11..TH

GRAY METALLIC,TRIM1#

 1
84259 - COVER, STEERING PAD, LH
84259-68010B1

ANE11..TH

GRAY METALLIC,TRIM1#

 1
84259-68010B1

ANE11,ZNE10..RHD

GRAY METALLIC,TRIM1#

 1
Common parts
90159-50199

(0512- )06S..TH

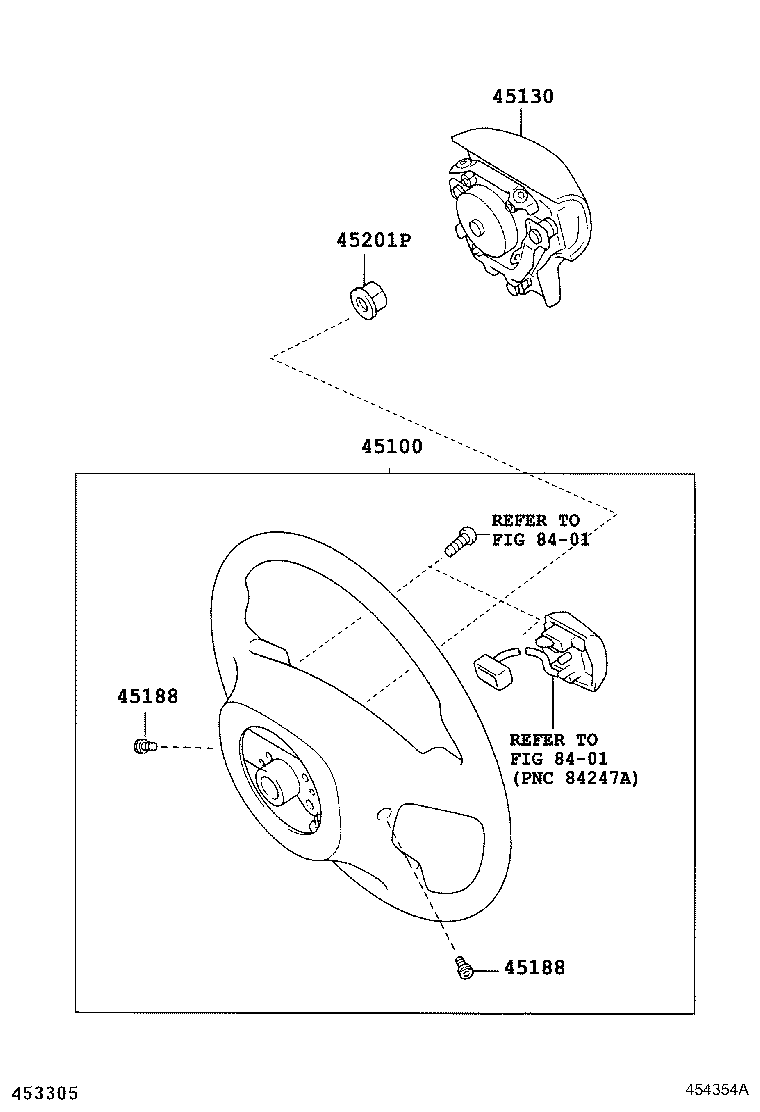

Click highlighted areas on diagram

3-SPOKE,W(STEERING AUDIO SWITCH)

diagram 45100 45130 45188 45188 45201P 8401 8401
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-68060C0

ANE11..TH

3-SPOKE,LEATHER,BLACK,TRIM1#

 1
45100-68120C0

ANE11..06S..TH

3-SPOKE,LEATHER,LIMITED PACKAGE,BLACK,TRIM1#

 1
45100-68060C0

ANE11..TH

3-SPOKE,LEATHER,BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-68020C0

ANE11..TH

BLACK,TRIM1#

 1
45130-68020C0

ANE11,ZNE10..RHD

BLACK,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ANE11..TH

L=18

 2
45188-60010

ANE1#,ZNE10

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ANE11..TH

L=18

 2
45188-60010

ANE1#,ZNE10

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

ANE11..TH

 1
90179-12071

ANE1#,ZNE10

 1
Linked diagrams
8401
