ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

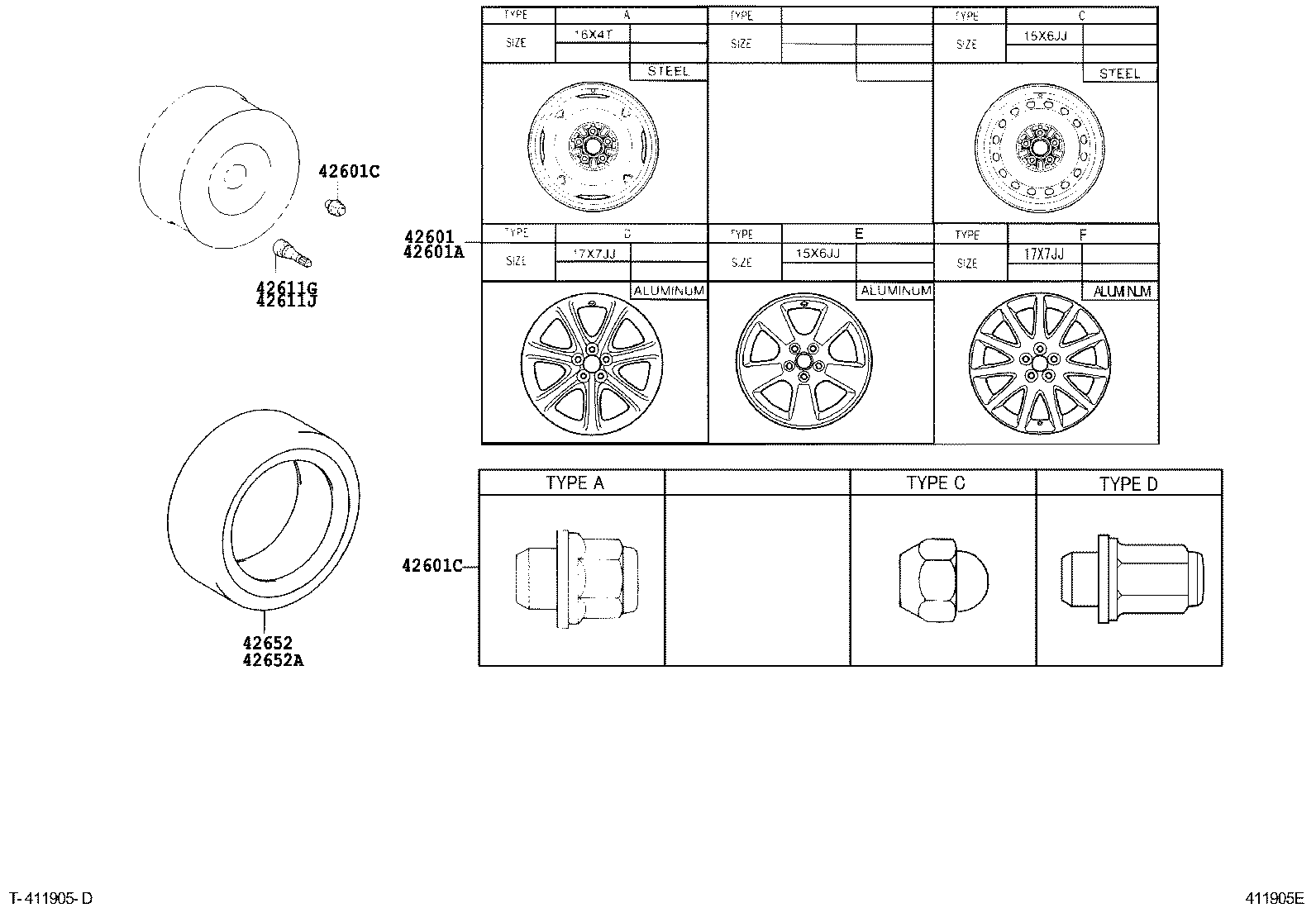

ILLUST NO. 1 OF 3(0312- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42601C 42611G 42611J 42652 42652A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-0M080

ANE11..06S..TH

17X7JJ, #,TYPE F:REFER ILLUST.

 4
42611-68020

ANE11..TH

17X7JJ,OFFSET 45, #,TYPE D:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-32330

ANE11..TH

15X6JJ,OFFSET 45, #,TYPE C:REFER ILLUST.

 1
42611-0M040

ANE11..TH

15X6JJ,TYPE C:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01058

ANE11..06S

TYPE D:REFER ILLUST.

 20
90942-01033

ANE12;ANE11..06S

TYPE A:REFER ILLUST.

 20
42601C - NUT, HUB (FOR AXLE)
90942-01058

ANE11..06S

TYPE D:REFER ILLUST.

 20
90942-01033

ANE12;ANE11..06S

TYPE A:REFER ILLUST.

 20
42611G - VALVE (FOR TUBELESS TIRE)
90080-94031

ANE11..TH

 4
90080-94031

ANE11..TH

 4
90080-94031

ANE11..TH

 4
90080-94031

ANE11..TH

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-94031

ANE11..TH

 1
90080-94031

ANE11..TH

 1
90080-94031

ANE11..TH

 1
90080-94031

ANE11..TH

 1
42652 - TIRE
42652-0M010

ANE11

215/50R17,*B/S

 4
42652-0M010

ANE11..06S..TH

215/50R17,*B/S

 4
42652A - TIRE (FOR SPARE)
42652-0M030

ANE11..TH

195/65R15,*B/S

 1
42652-0M030

ANE11..TH

195/65R15,*B/S

 1

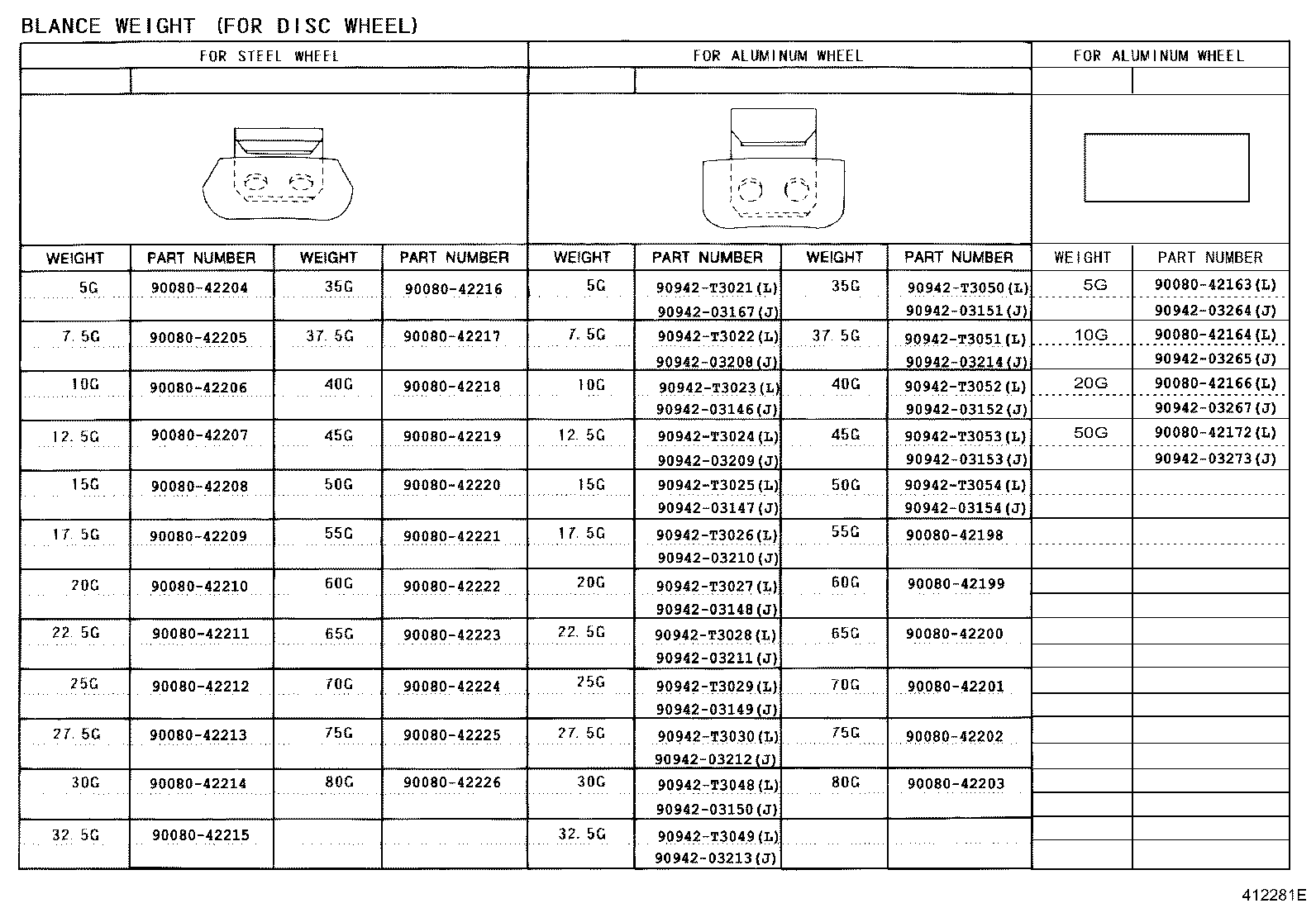

ILLUST NO. 3 OF 3(0312- )ANE1#

Click highlighted areas on diagram

diagram 9008042163 9008042164 9008042166 9008042172 9008042198 9008042199 9008042200 9008042201 9008042202 9008042203 9008042204 9008042205 9008042206 9008042207 9008042208 9008042209 9008042210 9008042211 9008042212 9008042213 9008042214 9008042215 9008042216 9008042217 9008042218 9008042219 9008042220 9008042221 9008042222 9008042223 9008042224 9008042225 9008042226 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203167 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203264 9094203265 9094203267 9094203273 90942T3021 90942T3022 90942T3023 90942T3024 90942T3025 90942T3026 90942T3027 90942T3028 90942T3029 90942T3030 90942T3048 90942T3049 90942T3050 90942T3051 90942T3052 90942T3053 90942T3054
Part # Description Qty Price
Common parts
90080-42163
90080-42164
90080-42166
90080-42172
90080-42198
90080-42199
90080-42200
90080-42201
90080-42202
90080-42203
90080-42204
90080-42205
90080-42206
90080-42207
90080-42208
90080-42209
90080-42210
90080-42211
90080-42212
90080-42213
90080-42214
90080-42215
90080-42216
90080-42217
90080-42218
90080-42219
90080-42220
90080-42221
90080-42222
90080-42223
90080-42224
90080-42225
90080-42226
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03167
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273
90942-T3021
90942-T3022
90942-T3023
90942-T3024
90942-T3025
90942-T3026
90942-T3027
90942-T3028
90942-T3029
90942-T3030
90942-T3048
90942-T3049
90942-T3050
90942-T3051
90942-T3052
90942-T3053
90942-T3054

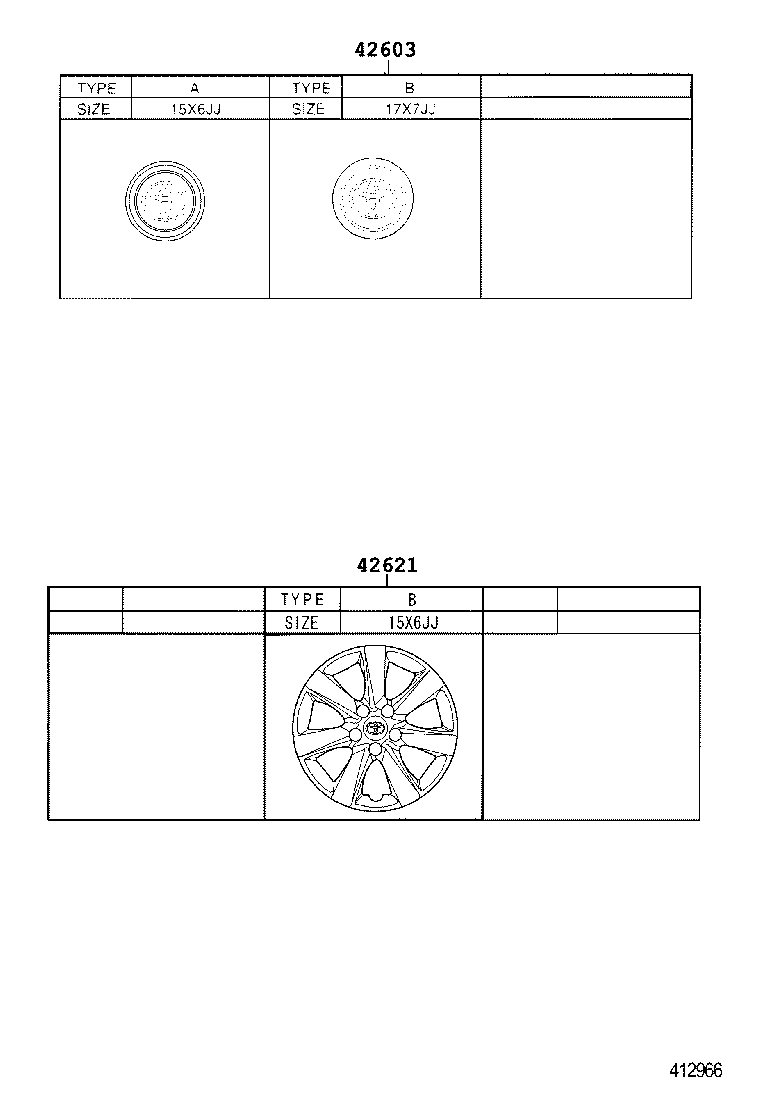

ILLUST NO. 2 OF 3(0312- )

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-52030

ANE11..TH

*ALU,TYPE B:REFER ILLUST.

 4
42603-52030

ANE11..06S

*ALU,TYPE B:REFER TO ILLUSTRATION,TYPE B:REFER ILLUST.

 4
42603-52030

ANE11..TH

*ALU,TYPE B:REFER TO ILLUSTRATION,TYPE B:REFER ILLUST.

 4
42603-52030

ANE11..06S

*ALU,TYPE B:REFER ILLUST.

 4
