ANE11R-JWPQKT (2005)
Toyota Wish
Production
Dec 2005
-
Oct 2009
Engine
1AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312- )ANE1#

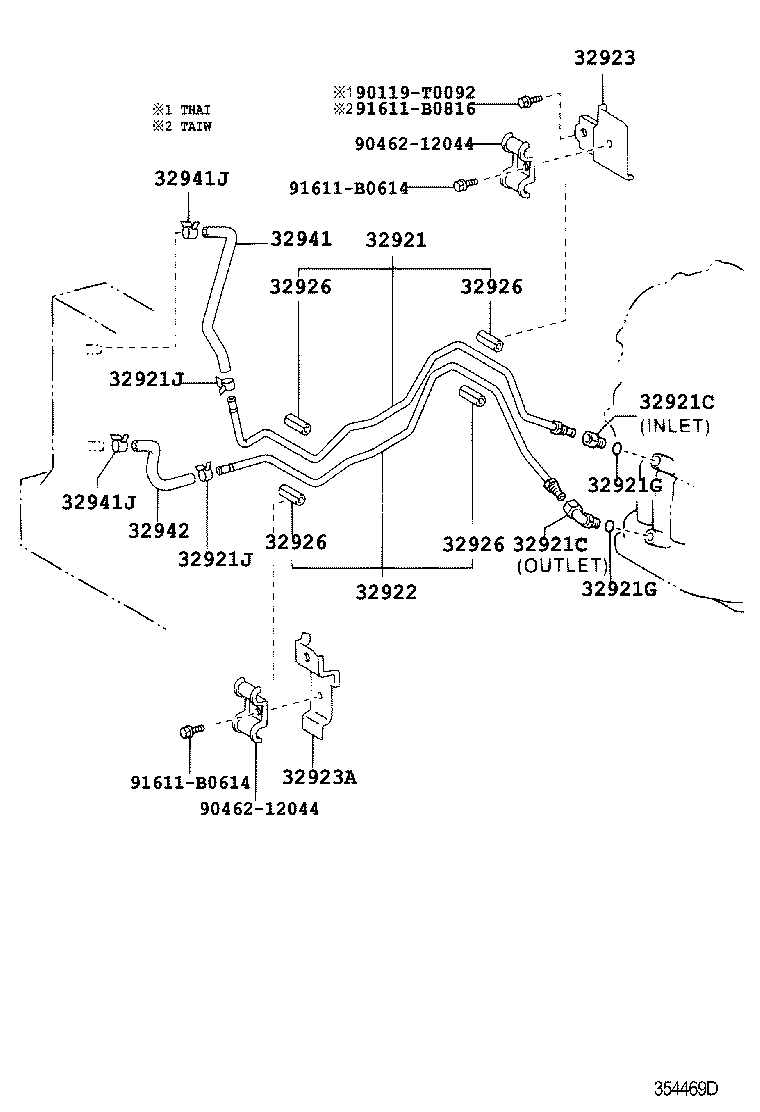

Click highlighted areas on diagram
U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-68010 |
ANE11..TH |
1 | ||
| 32921-68010 |
ANE11..TH |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
ANE11..TH INLET |
1 | ||
| 90407-16010 |
ANE1# INLET |
1 | ||
| 90404-16031 |
ANE11..TH OUTLET |
1 | ||
| 90404-16031 |
ANE1# OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
ANE11..TH INLET |
1 | ||
| 90407-16010 |
ANE1# INLET |
1 | ||
| 90404-16031 |
ANE11..TH OUTLET |
1 | ||
| 90404-16031 |
ANE1# OUTLET |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ANE11..TH |
2 | ||
| 90301-10189 |
ANE1#,ZNE10 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ANE11..TH |
2 | ||
| 90301-10189 |
ANE1#,ZNE10 |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ANE12;ANE11..06S |
2 | ||
| 90467-16022 |
ANE1#,ZNE10 |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ANE12;ANE11..06S |
2 | ||
| 90467-16022 |
ANE1#,ZNE10 |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-68010 |
ANE11..TH |
1 | ||
| 32922-68010 |
ANE11..TH |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-32090 |
ANE11..TH |
1 | ||
| 32923-32090 |
ANE1# |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-63010 |
ANE1# |
1 | ||
| 32923-63010 |
ANE11..TH |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
ANE1# L=35,ID=10 |
4 | ||
| 32926-30020 |
ANE11..TH L=35,ID=10 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
ANE1# L=35,ID=10 |
4 | ||
| 32926-30020 |
ANE11..TH L=35,ID=10 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
ANE1# L=35,ID=10 |
4 | ||
| 32926-30020 |
ANE11..TH L=35,ID=10 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
ANE1# L=35,ID=10 |
4 | ||
| 32926-30020 |
ANE11..TH L=35,ID=10 |
4 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32943-68010 |
ANE11..TH |
1 | ||
| 32943-68010 |
ANE1# |
1 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ANE12;ANE11..06S |
2 | ||
| 90466-16004 |
ANE1#,ZNE10 |
2 | ||
| 90467-16022 |
ANE1#,ZNE10 |
2 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
ANE12;ANE11..06S |
2 | ||
| 90466-16004 |
ANE1#,ZNE10 |
2 | ||
| 90467-16022 |
ANE1#,ZNE10 |
2 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32943-68020 |
ANE1# |
1 | ||
| 32943-68020 |
ANE11..TH |
1 | ||
| Common parts | ||||
| 90119-T0092 | ||||
| 90462-12044 | ||||
| 91611-B0614 | ||||
| 91611-B0816 | ||||
