ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

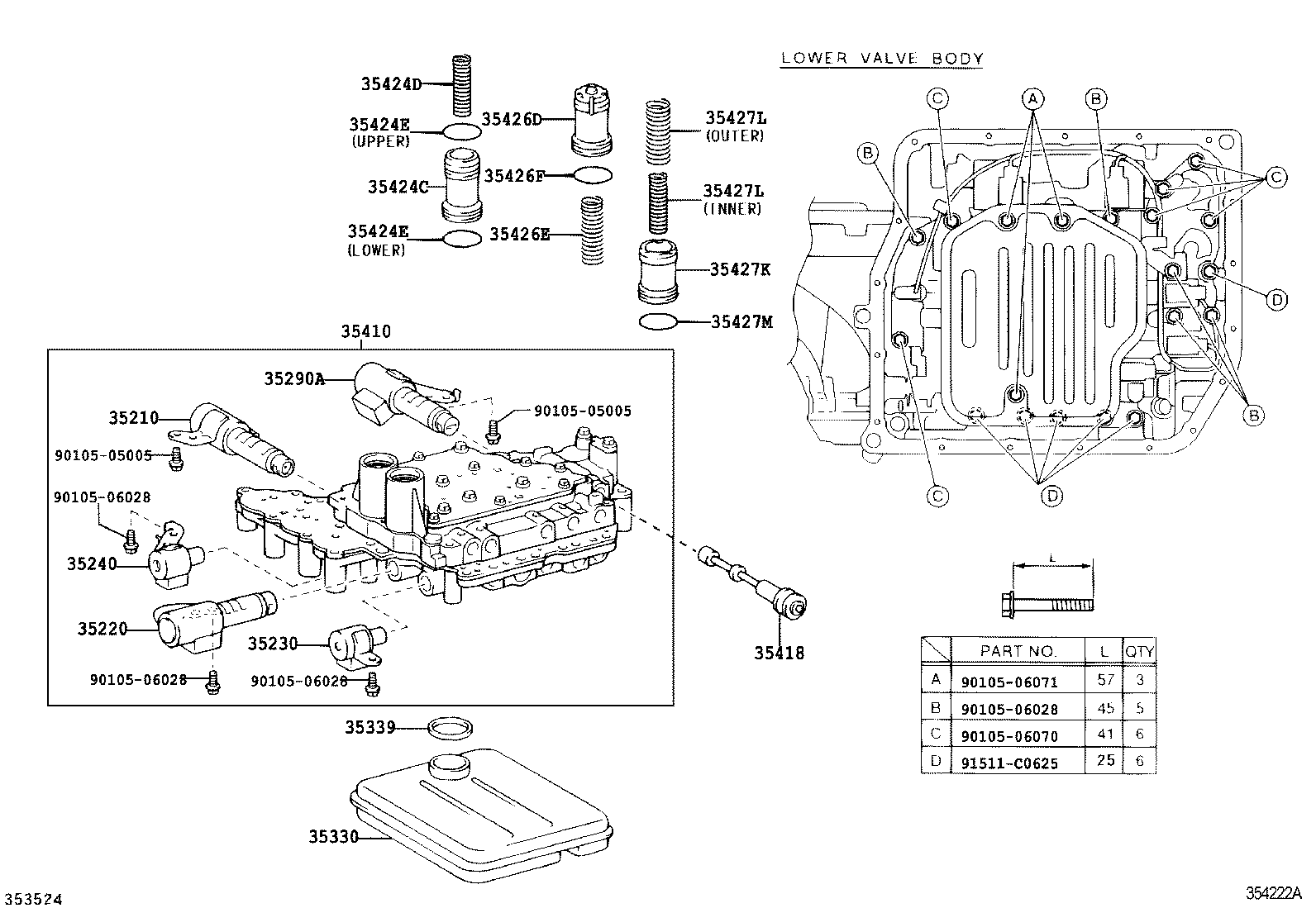

ILLUST NO. 1 OF 2(0312-0910)ANE1#

Click highlighted areas on diagram

U241E

diagram 35210 35220 35230 35240 35290A 35330 35339 35410 35418 35424C 35424D 35424E 35424E 35426D 35426E 35426F 35427K 35427L 35427L 35427M 9010505005 9010505005 9010506028 9010506028 9010506028 9010506028 9010506070 9010506071 91511C0625
Part # Description Qty Price
35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1
35210-21010

ANE11..TH

 1
35210-21010

ANE11..TH

 1
35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2
35220-21010

ANE11..TH

 1
35220-21010

ANE11..TH

 1
35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2
35230-21010

ANE12;ANE11..06S

 1
35230-21010

ANE1#

 1
35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35240-21010

ANE12;ANE11..06S

 1
35240-21010

ANE1#

 1
35290A - SOLENOID ASSY, LINE PRESSURE CONTROL
35290-32010

ANE1#

 1
35290-32010

ANE12;ANE11..06S

 1
35330 - STRAINER ASSY, VALVE BODY OIL
35330-28010

ANE11..TH

 1
35330-28010

ANE1#

 1
35339 - GASKET, OIL STRAINER
90301-32010

ANE1#,ZNE10

 1
90301-32010

ANE11..TH

 1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-42050

ANE1#

 1
35410-42050

ANE11..TH

 1
35418 - VALVE, MANUAL
35418-21011

ANE1#

 1
35418-21011

ANE11..TH

 1
35424C - PISTON, C-1 ACCUMULATOR
35424-28010

ANE11..TH

 1
35424-28010

ANE11..TH

 1
35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
90501-22039

ANE12;ANE11..06S

 1
90501-22039

ANE1#

 1
35424E - RING, O (FOR C-1 ACCUMULATOR PISTON)
90301-27008

ANE11..TH

UPPER

 1
90301-27008

ANE11..TH

UPPER

 1
90301-30007

ANE11..TH

LOWER

 1
90301-30007

ANE11..TH

LOWER

 1
35424E - RING, O (FOR C-1 ACCUMULATOR PISTON)
90301-27008

ANE11..TH

UPPER

 1
90301-27008

ANE11..TH

UPPER

 1
90301-30007

ANE11..TH

LOWER

 1
90301-30007

ANE11..TH

LOWER

 1
35426D - PISTON, C-3 ACCUMULATOR
35406-21010

ANE11..TH

 1
35406-21010

ANE1#

 1
35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
90905-01035

ANE11..TH

 1
90905-01035

ANE1#

 1
35426F - RING, O (FOR C-3 ACCUMULATOR PISTON)
90301-30007

ANE1#

 1
90301-30007

ANE11..TH

 1
35427K - PISTON, B-3 ACCUMULATOR
35427-28010

ANE11..TH

 1
35427-28010

ANE11..TH

 1
35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
90501-22038

ANE11..TH

INNER

 1
90501-25053

ANE1#

OUTER

 1
90501-25053

ANE11..TH

OUTER

 1
90501-22038

ANE1#

INNER

 1
35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
90501-22038

ANE11..TH

INNER

 1
90501-25053

ANE1#

OUTER

 1
90501-25053

ANE11..TH

OUTER

 1
90501-22038

ANE1#

INNER

 1
35427M - RING, O (FOR B-3 ACCUMULATOR PISTON)
90301-28008

ANE11..TH

 1
90301-28008

ANE11..TH

 1
Common parts
90105-05005
90105-06028
90105-06070
90105-06071
91511-C0625

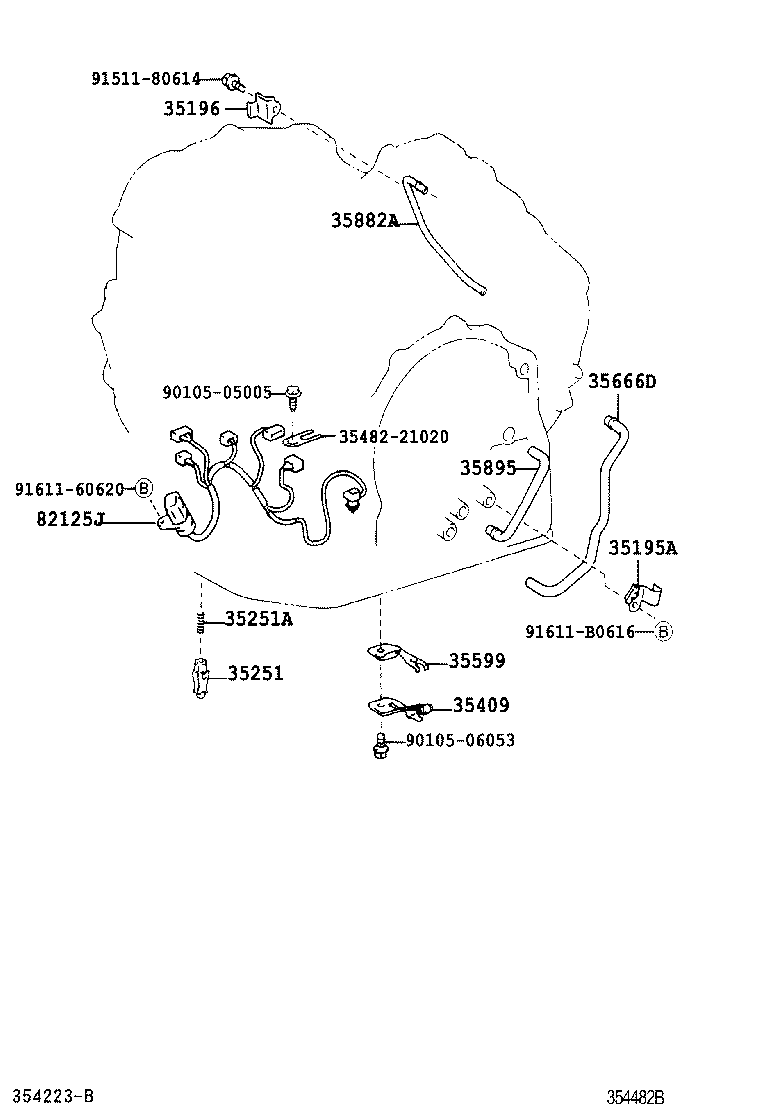

ILLUST NO. 2 OF 2(0312-0910)ANE1#

Click highlighted areas on diagram

U241E

diagram 35195A 35196 35251 35251A 35409 3548221020 35599 35666D 35882A 35895 82125J 9010505005 9010506053 9151180614 9161160620 91611B0616
Part # Description Qty Price
35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1
35195-21010

ANE11..TH

 1
35195-21010

ANE11..TH

 1
35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2
35196-21010

ANE11..TH

 1
35196-21010

ANE11..TH

 1
35251 - BODY, CHECK BALL
35251-30020

ANE11..TH

 1
35251-30020

ANE1#,ZNE10

 1
35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY)
90501-03005

ANE1#,ZNE10

 1
90501-03005

ANE11..TH

 1
35409 - SPRING SUB-ASSY, MANUAL DETENT
35409-21010

ANE11..TH

 1
35409-21010

ANE11..TH

 1
35599 - COVER, MANUAL DETENT SPRING
35599-21010

ANE1#

 1
35599-21010

ANE11..TH

 1
35666D - TUBE, BRAKE APPLY
35666-28020

ANE11..TH

 1
35666-28020

ANE11..TH

 1
35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY
35882-28020

ANE11..TH

 1
35882-28020

ANE11..TH

 1
35895 - TUBE, FRONT CLUTCH APPLY
35895-28010

ANE1#

 1
35895-28010

ANE11..TH

 1
82125J - WIRE, TRANSMISSION
82125-28180

ANE12;ANE11..06S

 1
82125-28180

ANE1#

 1
Common parts
35482-21020
90105-05005
90105-06053
91511-80614
91611-60620
91611-B0616
