ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )1AZFE

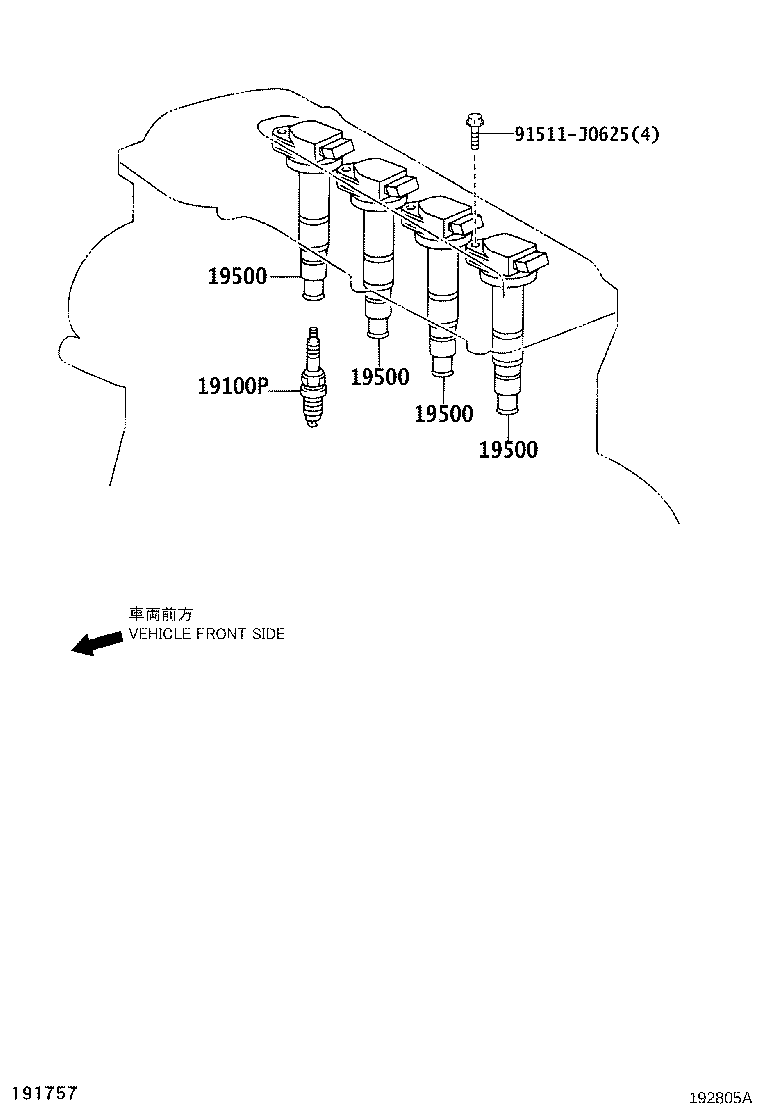

Click highlighted areas on diagram

diagram 19100P 19500 19500 19500 19500 91511J0625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-T1010

1AZFE..ANE1#

IFR6A11

 4
90919-01210

1AZFE..ANE1#

SK20R11

 4
90919-01210

1AZFE..ANE11..TH

SK20R11

 4
19500 - COIL ASSY, IGNITION
90919-02244

1AZFE..ANE11..TH

 4
90919-02244

1AZFE..ANE1#

 4
19500 - COIL ASSY, IGNITION
90919-02244

1AZFE..ANE11..TH

 4
90919-02244

1AZFE..ANE1#

 4
19500 - COIL ASSY, IGNITION
90919-02244

1AZFE..ANE11..TH

 4
90919-02244

1AZFE..ANE1#

 4
19500 - COIL ASSY, IGNITION
90919-02244

1AZFE..ANE11..TH

 4
90919-02244

1AZFE..ANE1#

 4
Common parts
91511-J0625
