ANE11R-JWPQKT (2005)
Toyota Wish
Production
Dec 2005
-
Oct 2009
Engine
1AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312- )1AZFE

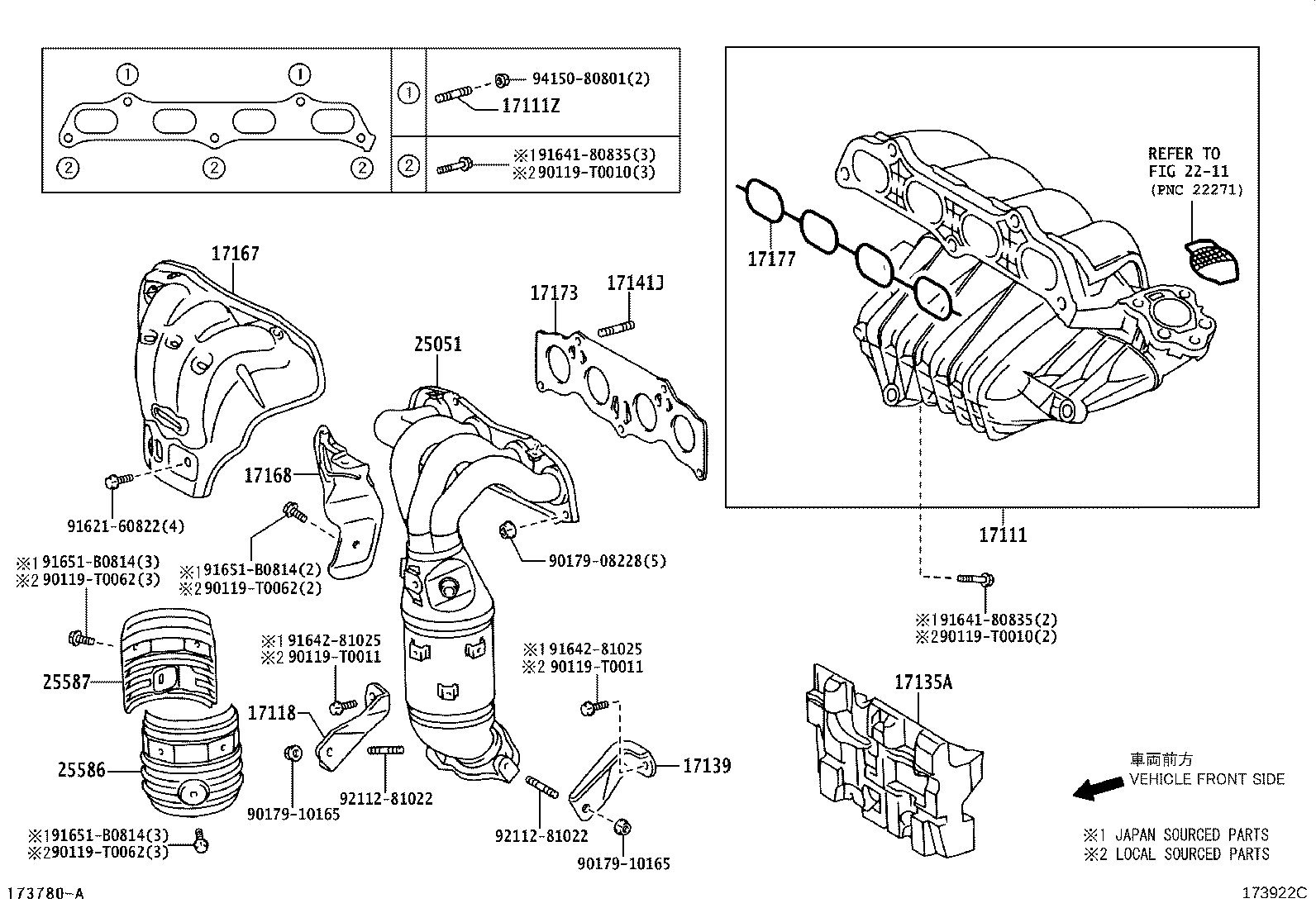

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-0H040 |
1AZFE..ANE12;1AZFE..ANE11..06S |
1 | ||
| 17120-0H040 |
1AZFE..ANE1# (L) |
1 | ||
| 17120-28100 |
1AZFE..ANE1# (J) |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08026 |
1AZFE..ANE11..TH |
2 | ||
| 90126-08026 |
1AZFE..ANE1# |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-28020 |
1AZFE..ANE12;1AZFE..ANE11..06S |
1 | ||
| 17118-28020 |
1AZFE..ANE1# |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-28011 |
1AZFE..ANE1# (J) |
1 | ||
| 17135-0H021 |
1AZFE..ANE1# (L) |
1 | ||
| 17135-28010 |
1AZFE..ANE11 |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-28010 |
1AZFE..ANE1# |
1 | ||
| 17139-28010 |
1AZFE..ANE12;1AZFE..ANE11..06S |
1 | ||
| 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) | ||||
| 90126-08037 |
1AZFE..ANE1# |
5 | ||
| 90126-08037 |
1AZFE..ANE11..TH |
5 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-28031 |
1AZFE..ANE1# |
1 | ||
| 17167-28031 |
1AZFE..ANE11..TH |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-28021 |
1AZFE..ANE11..TH |
1 | ||
| 17168-28021 |
1AZFE..ANE1# |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-28010 |
1AZFE..ANE1# |
1 | ||
| 17173-28010 |
1AZFE..ANE11..TH |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-28010 |
1AZFE..ANE12;1AZFE..ANE11..06S |
1 | ||
| 17177-28010 |
1AZFE..ANE1# |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-28230 |
1AZFE..ANE1# *114=TOYOTA/28230/Y |
1 | ||
| 25051-28230 |
1AZFE..ANE11..TH *114=TOYOTA/28230/Y |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-28031 |
1AZFE..ANE1# |
1 | ||
| 25586-28031 |
1AZFE..ANE11..TH |
1 | ||
| 25587 - INSULATOR, MANIFOLD CONVERTER, NO.2 | ||||
| 25587-28041 |
1AZFE..ANE11..TH |
1 | ||
| 25587-28041 |
1AZFE..ANE1# |
1 | ||
| Common parts | ||||
| 90119-T0010 | ||||
| 90119-T0011 | ||||
| 90119-T0062 | ||||
| 90179-08228 | ||||
| 90179-10165 | ||||
| 91621-60822 | ||||
| 91641-80835 | ||||
| 91642-81025 | ||||
| 91651-B0814 | ||||
| 92112-81022 | ||||
| 94150-80801 | ||||
| Linked diagrams | ||||
| 2211 | ||||
