ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )1AZFE

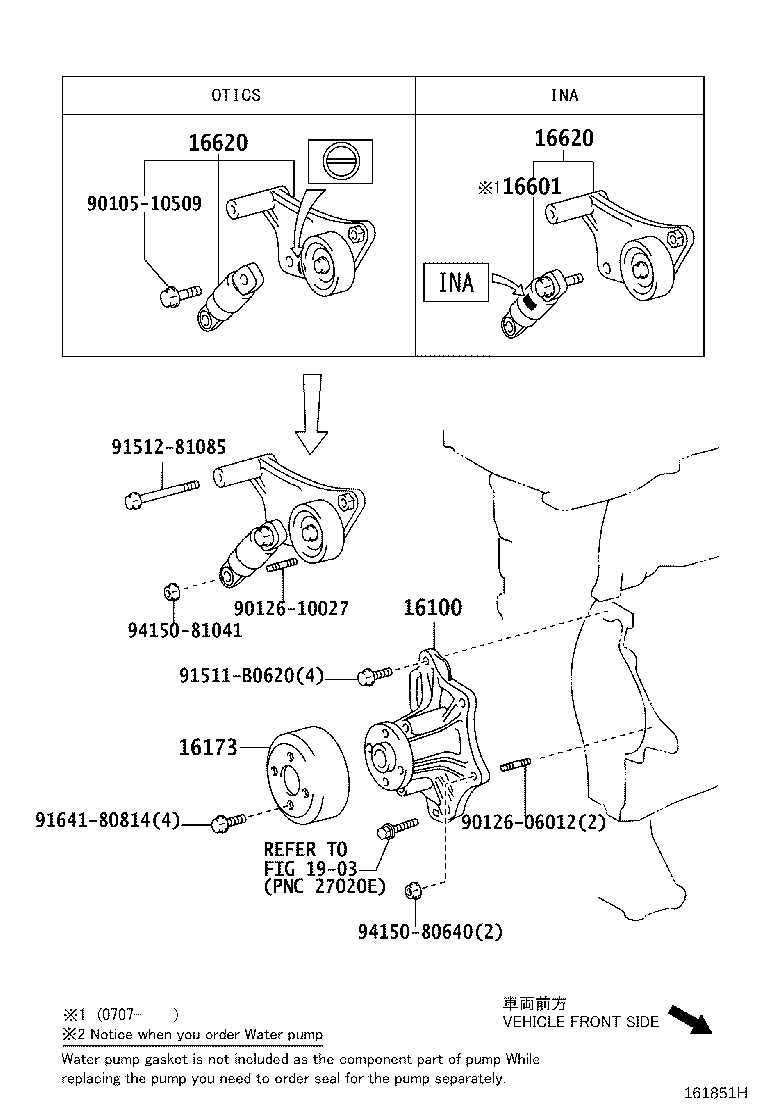

Click highlighted areas on diagram

diagram 16100 16173 16601 16620 16620 1903 9010510509 9012606012 9012610027 91511B0620 9151281085 9164180814 9415080640 9415081041
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-0H030

1AZFE..ANE11..TH

 1
16100-0H020

1AZFE..ANE11..TH

 1
16173 - PULLEY, WATER PUMP
16173-0H010

1AZFE..ANE11..TH

 1
16173-0H020

1AZFE..ANE11..TH

 1
16601 - TENSIONER SUB-ASSY, V-RIBBED BELT
16601-28041

1AZFE..ANE1#

INA

 1
16601-28050

1AZFE..ANE1#

INA

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-28011

1AZFE..ANE11..TH

 1
16620-0W110

1AZFE..ANE11..TH

 1
16620-28012

1AZFE..ANE1#

 1
16620-0W110

1AZFE..ANE12;1AZFE..ANE11..06S

 1
16620-28090

1AZFE..ANE1#

 1
16620-28071

1AZFE..ANE1#

 1
16620-28070

1AZFE..ANE11..TH

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-28011

1AZFE..ANE11..TH

 1
16620-0W110

1AZFE..ANE11..TH

 1
16620-28012

1AZFE..ANE1#

 1
16620-0W110

1AZFE..ANE12;1AZFE..ANE11..06S

 1
16620-28090

1AZFE..ANE1#

 1
16620-28071

1AZFE..ANE1#

 1
16620-28070

1AZFE..ANE11..TH

 1
Common parts
90105-10509
90126-06012
90126-10027
91511-B0620
91512-81085
91641-80814
94150-80640
94150-81041
Linked diagrams
1903
