ANE11R-JWPQKT (2005)

Toyota Wish

Production Dec 2005 - Oct 2009
Engine 1AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

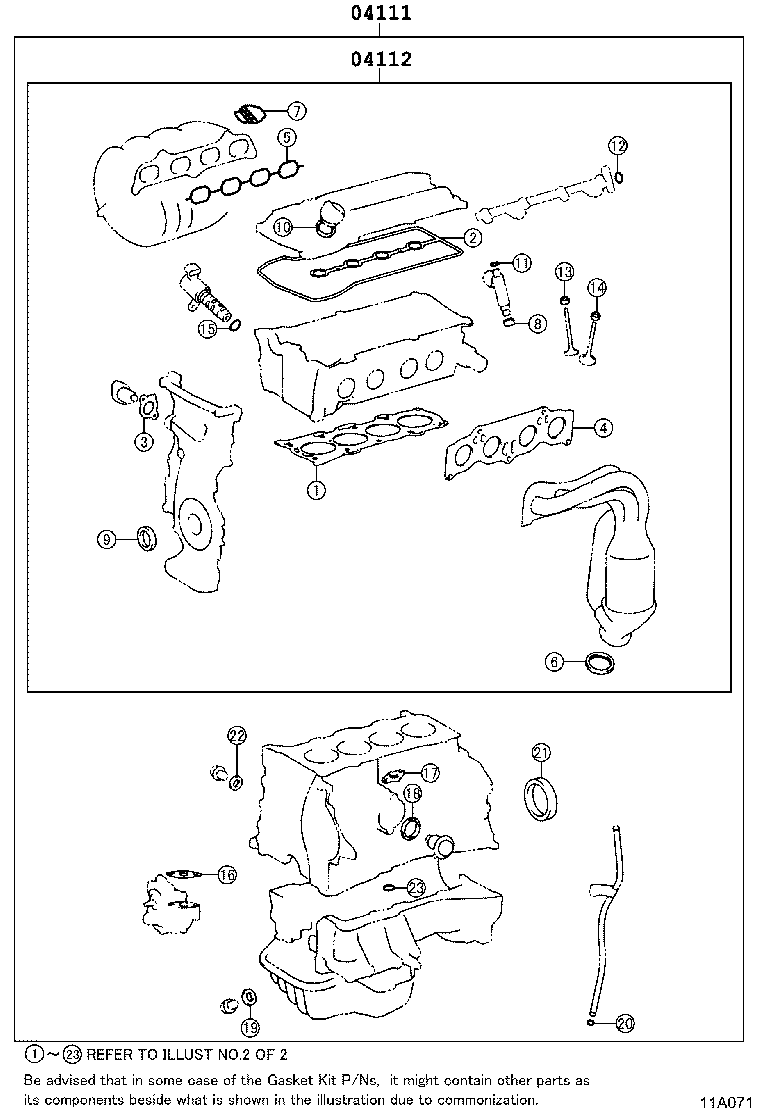

ILLUST NO. 1 OF 2(0312- )1AZFE

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-28405

1AZFE..ANE1#

 1
04111-28403

1AZFE..ANE1#

 1
04111-0H240

1AZFE..ANE11..TH

 1
04111-28404

1AZFE..ANE1#

 1
04111-28401

1AZFE..ANE1#

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-28381

1AZFE..ANE1#

 1
04112-28385

1AZFE..ANE1#

 1
04112-28384

1AZFE..ANE1#

 1
04112-0H220

1AZFE..ANE11..TH

 1
04112-28383

1AZFE..ANE1#

 1

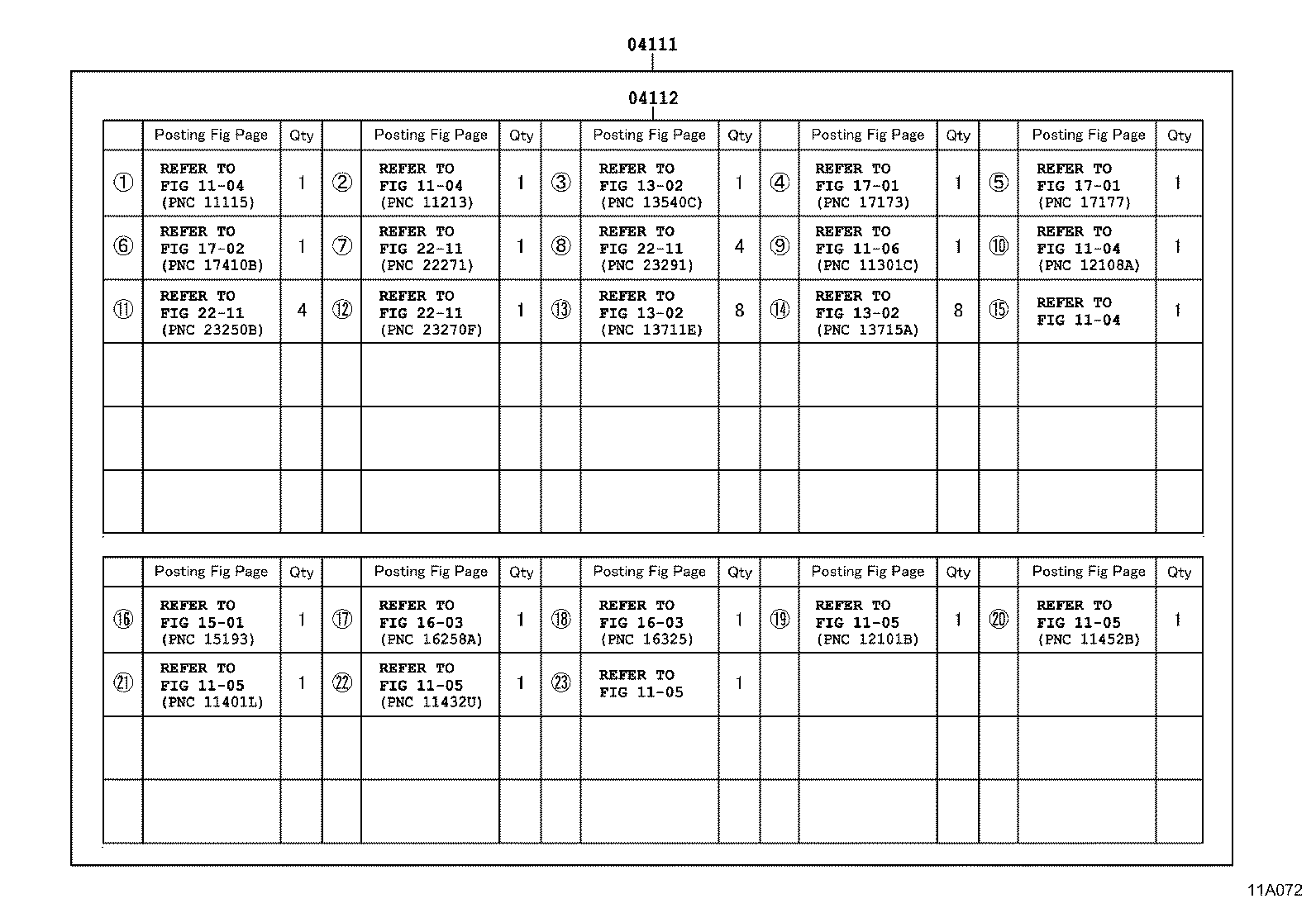

ILLUST NO. 2 OF 2(0312- )1AZFE

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1105 1105 1105 1105 1105 1106 1302 1302 1302 1501 1603 1603 1701 1701 1702 2211 2211 2211 2211
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-28405

1AZFE..ANE1#

 1
04111-28403

1AZFE..ANE1#

 1
04111-0H240

1AZFE..ANE11..TH

 1
04111-28404

1AZFE..ANE1#

 1
04111-28401

1AZFE..ANE1#

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-28381

1AZFE..ANE1#

 1
04112-28385

1AZFE..ANE1#

 1
04112-28384

1AZFE..ANE1#

 1
04112-0H220

1AZFE..ANE11..TH

 1
04112-28383

1AZFE..ANE1#

 1
Linked diagrams
1104
1105
1106
1302
1501
1603
1701
1702
2211
