ANE11L-JWPGKR (2007)
Toyota Wish
Production
Mar 2007
-
Sep 2009
Engine
1AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0703- )TAIW

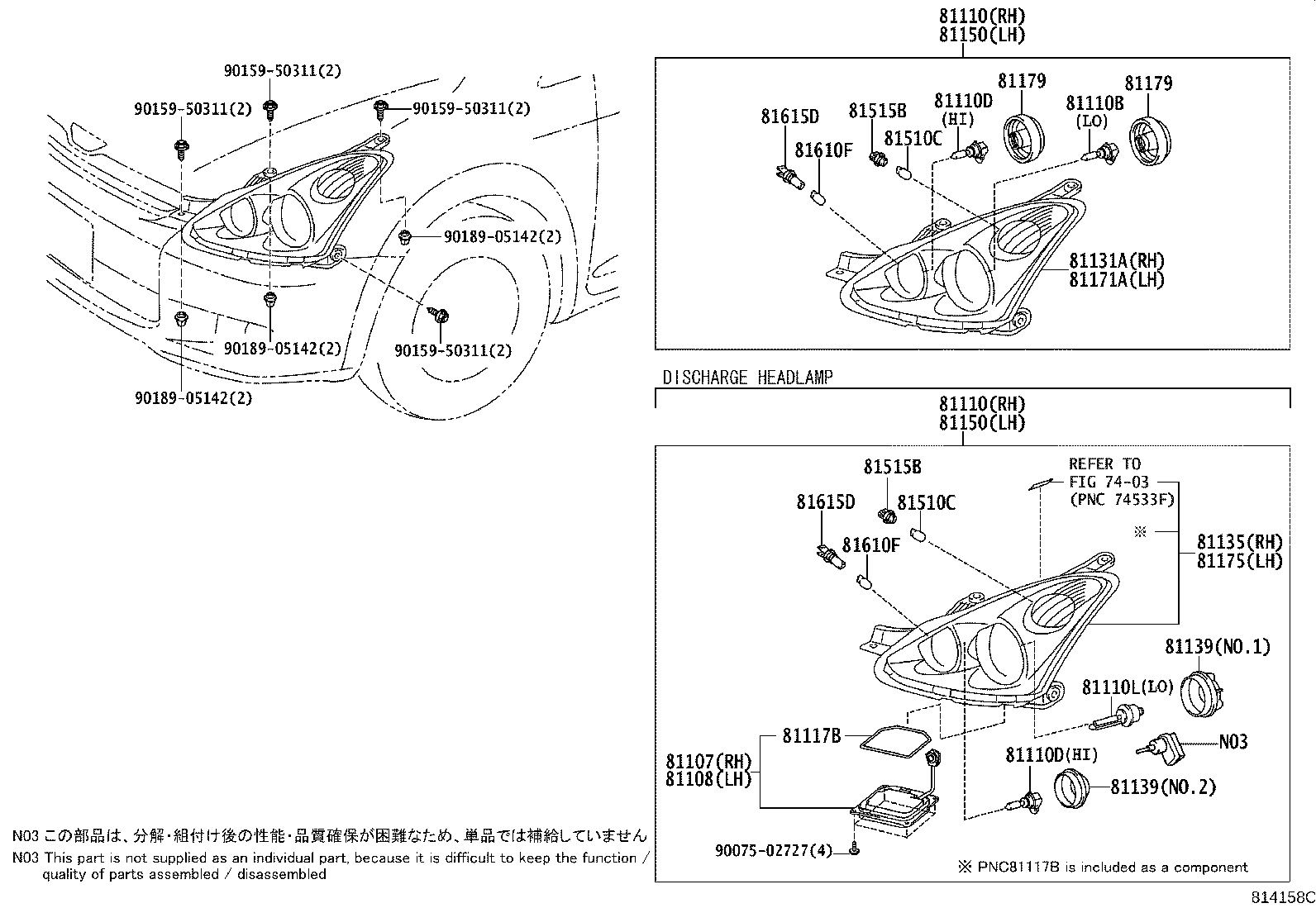

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-8C004 |
ANE1#..20E,ZAER |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-8C004 |
ANE1#..20E,ZAER |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0M040 |
ANE1#..20E,ZAER |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0M040 |
ANE1#..20E,ZAER |
1 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90080-81041 |
ANE1#..TAIW 12V 65W |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90080-81041 |
ANE1#..TAIW 12V 65W |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20013 |
ANE1#..20E,ZAER 45V 35W |
2 | ||
| 90981-20021 |
ANE1#..20E,ZAER 45V 35W |
2 | ||
| 90981-20024 |
ANE1#..20E,ZAER 42V 35W |
2 | ||
| 81117B - GASKET | ||||
| 81117-8C001 |
ANE1#..20E,ZAER |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-8C008 |
ANE1#..20E,ZAER |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81135-8C003 |
ANE1#..20E,ZAER NO.1 |
2 | ||
| 81135-8C008 |
ANE1#..20E,ZAER NO.2 |
2 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81135-8C003 |
ANE1#..20E,ZAER NO.1 |
2 | ||
| 81135-8C008 |
ANE1#..20E,ZAER NO.2 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0M040 |
ANE1#..20E,ZAER |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0M040 |
ANE1#..20E,ZAER |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-8C008 |
ANE1#..20E,ZAER |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ANE1#..TAIW 12V 21W,AMBER |
2 | ||
| 90981-15021 |
ANE1#..TAIW 12V 21W,AMBER |
2 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ANE1#..TAIW 12V 21W,AMBER |
2 | ||
| 90981-15021 |
ANE1#..TAIW 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ANE1#..20E,ZAER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ANE1#..20E,ZAER |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ANE1#..TAIW 12V 5W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ANE1#..TAIW 12V 5W |
2 | ||
| Common parts | ||||
| 90075-02727 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 7403 | ||||
