MXAA54L-GNXMBC (2020)

Toyota Wildlander

Production Apr 2020 - Sep 9999
Engine M20CFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2004- )MXAA5#

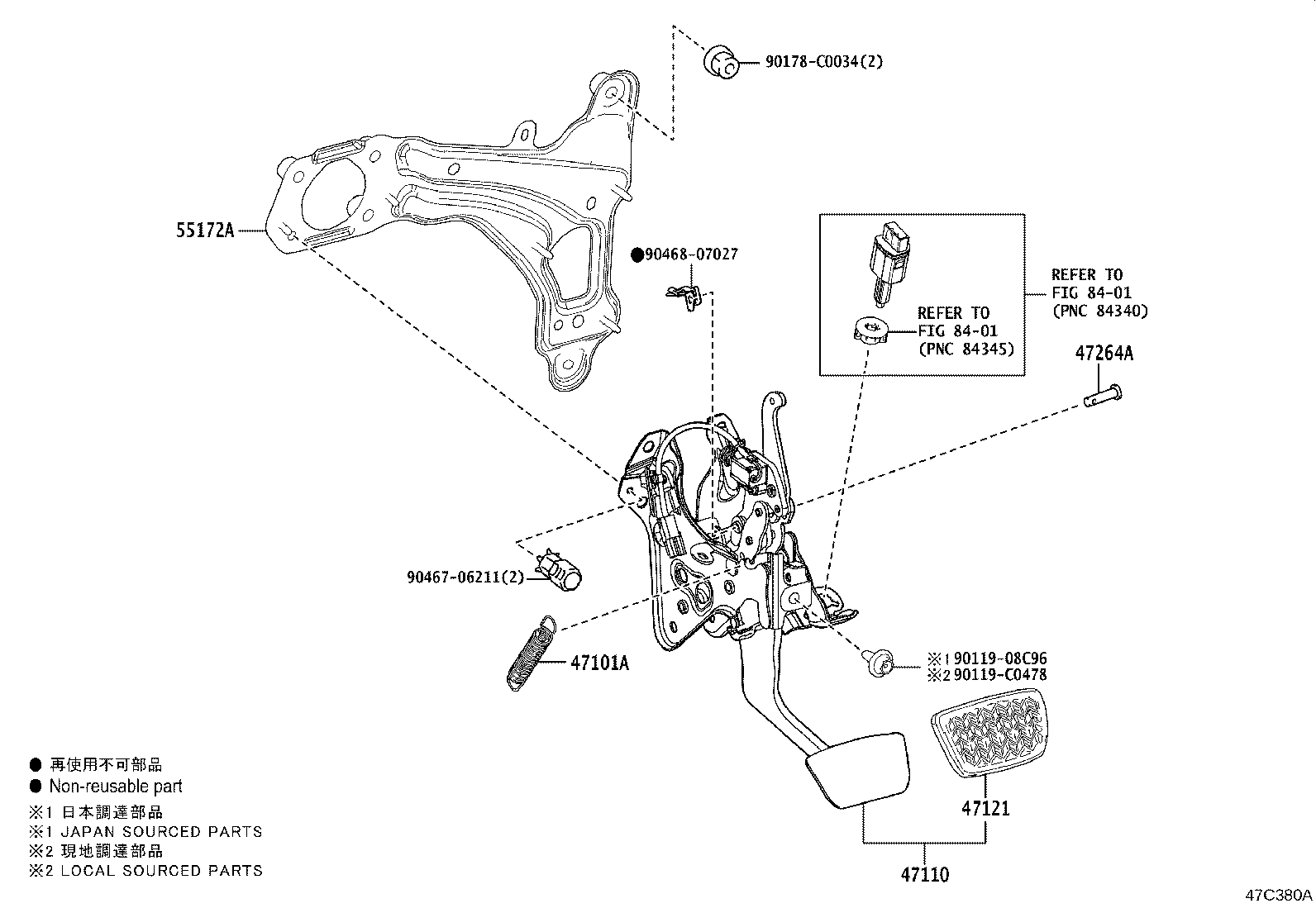

Click highlighted areas on diagram

diagram 47101A 47110 47121 47264A 55172A 8401 8401 9011908C96 90119C0478 90178C0034 9046706211 9046807027
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-12046

AXAH5#,MXAA5#

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-0R150

MXAA5#

 1
47121 - PAD, BRAKE PEDAL
47121-48010

AXAH5#,MXAA5#

 1
47264A - PIN(FOR PUSH ROD)
90240-06028

MXAA5#

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-0R030

AXAH5#,MXAA5#

 1
Common parts
90119-08C96
90119-C0478
90178-C0034
90467-06211
90468-07027
Linked diagrams
8401
