MXAA54L-GNXMBC (2020)
Toyota Wildlander

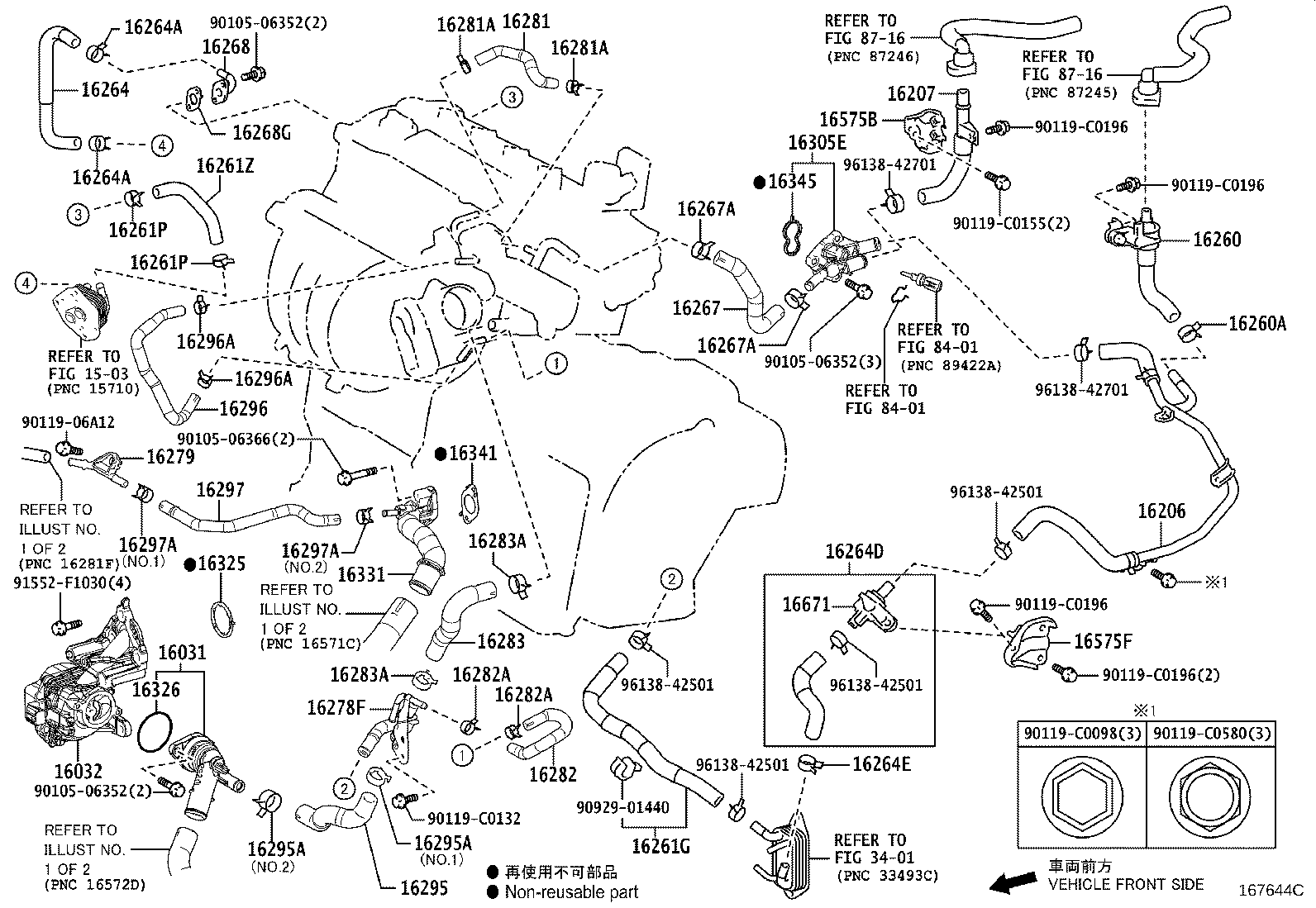

ILLUST NO. 2 OF 2(2004- )M20CFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-F2020 |
M20CFKS..MXAA5# |
1 | ||
| 16032 - HOUSING SUB-ASSY, WATER INLET W/WATER PUMP | ||||
| 16032-F2020 |
M20CFKS..MXAA5# |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-F2020 |
M20CFKS..MXAA5# |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-F2140 |
M20CFKS..MXAA5# |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-F0070 |
M20CFKS..MXAA5# |
1 | ||
| 16260-F0071 |
M20CFKS..MXAA5# |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96138-42501 |
M20CFKS..MXAA5# |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-F2170 |
M20CFKS..MXAA5# |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42101 |
M20CFKS..MXAA5# |
2 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42101 |
M20CFKS..MXAA5# |
2 | ||
| 16261Z - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-F2200 |
M20CFKS..MXAA5# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-F2160 |
M20CFKS..MXAA5# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42101 |
M20CFKS..MXAA5# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42101 |
M20CFKS..MXAA5# |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-F0080 |
M20CFKS..MXAA5# |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42501 |
M20CFKS..MXAA5# |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-F2190 |
M20CFKS..MXAA5# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-42101 |
M20CFKS..MXAA5# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-42101 |
M20CFKS..MXAA5# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-F2140 |
M20CFKS..MXAA5# |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-F2030 |
M20CFKS..MXAA5# |
1 | ||
| 16278F - HOSE, WATER BY-PASS, NO.2 | ||||
| 16278-F2050 |
M20CFKS..MXAA5# |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-F2050 |
M20CFKS..MXAA5# |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-F2130 |
M20CFKS..MXAA5# |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-41501 |
M20CFKS..MXAA5# |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-41501 |
M20CFKS..MXAA5# |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-F2070 |
M20CFKS..MXAA5# |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96138-41501 |
M20CFKS..MXAA5# |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96138-41501 |
M20CFKS..MXAA5# |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-F2050 |
M20CFKS..MXAA5# |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-42501 |
M20CFKS..MXAA5# |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-42501 |
M20CFKS..MXAA5# |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-F2050 |
M20CFKS..MXAA5# |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96138-42701 |
M20CFKS..MXAA5# NO.2:REFER ILLUST. |
1 | ||
| 96138-42501 |
M20CFKS..MXAA5# NO.1:REFER ILLUST. |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96138-42701 |
M20CFKS..MXAA5# NO.2:REFER ILLUST. |
1 | ||
| 96138-42501 |
M20CFKS..MXAA5# NO.1:REFER ILLUST. |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-F2110 |
M20CFKS..MXAA5# |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-41501 |
M20CFKS..MXAA5# |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-41501 |
M20CFKS..MXAA5# |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-F2050 |
M20CFKS..MXAA5# |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96138-41501 |
M20CFKS..MXAA5# NO.2:REFER ILLUST. |
1 | ||
| 90466-C0003 |
M20CFKS..MXAA5# NO.1:REFER ILLUST. |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96138-41501 |
M20CFKS..MXAA5# NO.2:REFER ILLUST. |
1 | ||
| 90466-C0003 |
M20CFKS..MXAA5# NO.1:REFER ILLUST. |
1 | ||
| 16305E - OUTLET SUB-ASSY, WATER BY-PASS | ||||
| 16305-F2020 |
M20CFKS..MXAA5# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-F2040 |
M20CFKS..MXAA5# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-0Y020 |
M20CFKS..MXAA5# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-F2030 |
M20CFKS..MXAA5# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-F2020 |
M20CFKS..MXAA5# |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-24010 |
M20CFKS..MXAA5# |
1 | ||
| 16575B - BRACKET, WATER HOSE CLAMP, NO.2 | ||||
| 16575-F2270 |
M20CFKS..MXAA5# |
1 | ||
| 16575F - BRACKET, WATER HOSE CLAMP, NO.3 | ||||
| 16575-F2280 |
M20CFKS..MXAA5# |
1 | ||
| 16671 - VALVE, WATER | ||||
| 16671-24020 |
M20CFKS..MXAA5# |
1 | ||
| Common parts | ||||
| 90105-06352 | ||||
| 90105-06366 | ||||
| 90119-06A12 | ||||
| 90119-C0098 | ||||
| 90119-C0132 | ||||
| 90119-C0155 | ||||
| 90119-C0196 | ||||
| 90119-C0580 | ||||
| 90929-01440 | ||||
| 91552-F1030 | ||||
| 96138-42501 | ||||
| 96138-42701 | ||||
| Linked diagrams | ||||
| 1503 | ||||
| 3401 | ||||
| 8401 | ||||
| 8716 | ||||

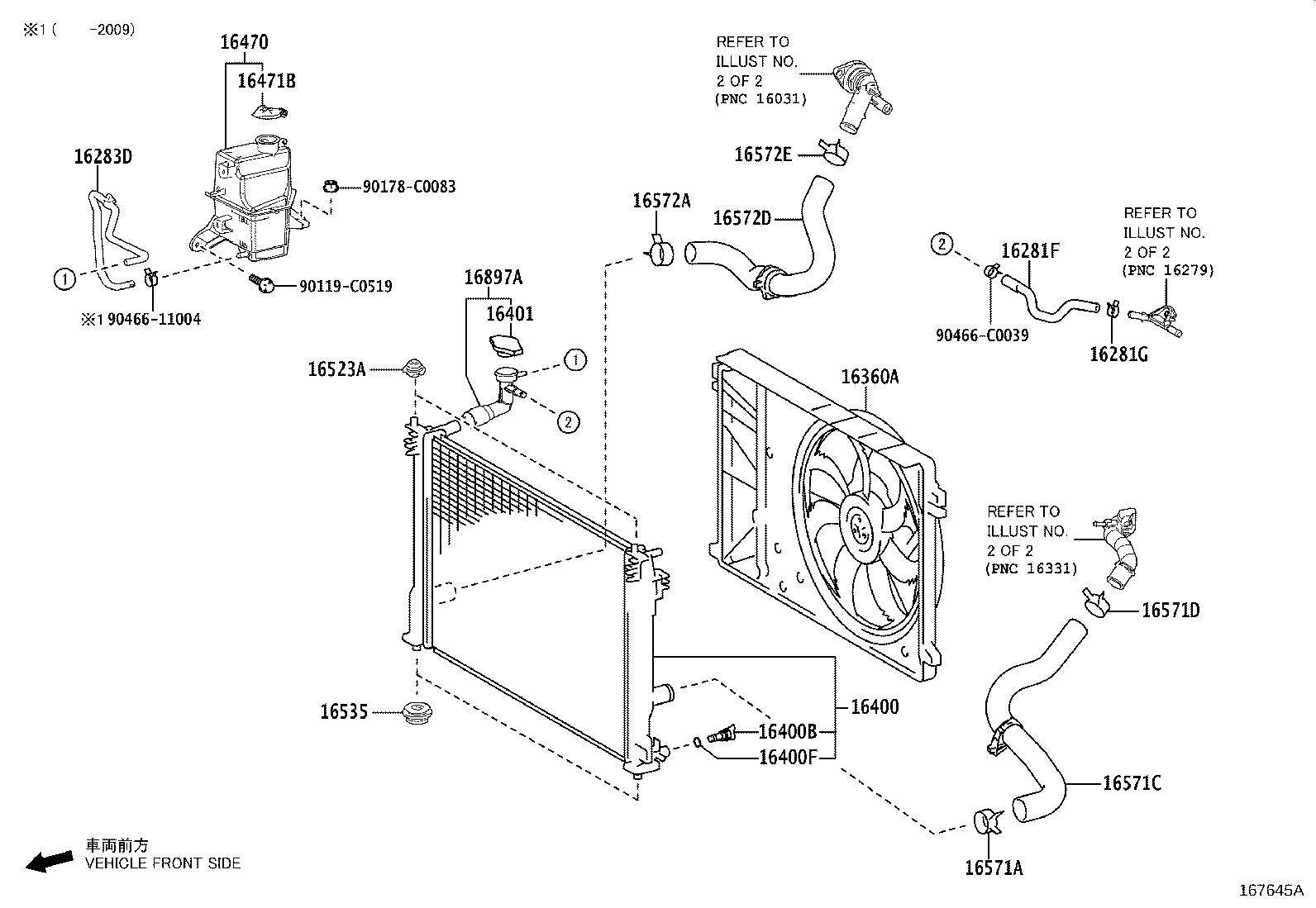

ILLUST NO. 1 OF 2(2004- )M20CFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-F2030 |
M20CFKS..MXAA5# |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-C0003 |
M20CFKS..MXAA5# |
1 | ||
| 16283D - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-F0090 |
M20CFKS..MXAA5# |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-F2130 |
M20CFKS..MXAA54 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0V300 |
M20CFKS..MXAA5# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0H290 |
M20CFKS..MXAA5# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
M20CFKS..MXAA5# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36030 |
M20CFKS..MXAA5# (J) |
1 | ||
| 16401-F0010 |
M20CFKS..MXAA5# (L) |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-F0050 |
M20CFKS..MXAA5# |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16405-F0030 |
M20CFKS..MXAA5# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-F0010 |
M20CFKS..MXAA5# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0V020 |
M20CFKS..MXAA5# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-39002 |
M20CFKS..MXAA5# |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-F2080 |
M20CFKS..MXAA5# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-43002 |
M20CFKS..MXAA5# |
1 | ||
| 90466-C0053 |
M20CFKS..MXAA5# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-39002 |
M20CFKS..MXAA5# |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-F2070 |
M20CFKS..MXAA5# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-43002 |
M20CFKS..MXAA5# |
1 | ||
| 90466-C0053 |
M20CFKS..MXAA5# |
1 | ||
| 16897A - NECK, FILLER | ||||
| 16897-F0090 |
M20CFKS..MXAA5# |
1 | ||
| Common parts | ||||
| 90119-C0519 | ||||
| 90178-C0083 | ||||
| 90466-11004 | ||||
| 90466-C0039 | ||||
