MXAA54L-GNXABC (2020)

Toyota Wildlander

Production Apr 2020 - Sep 9999
Engine M20CFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2004- )MXAA5#

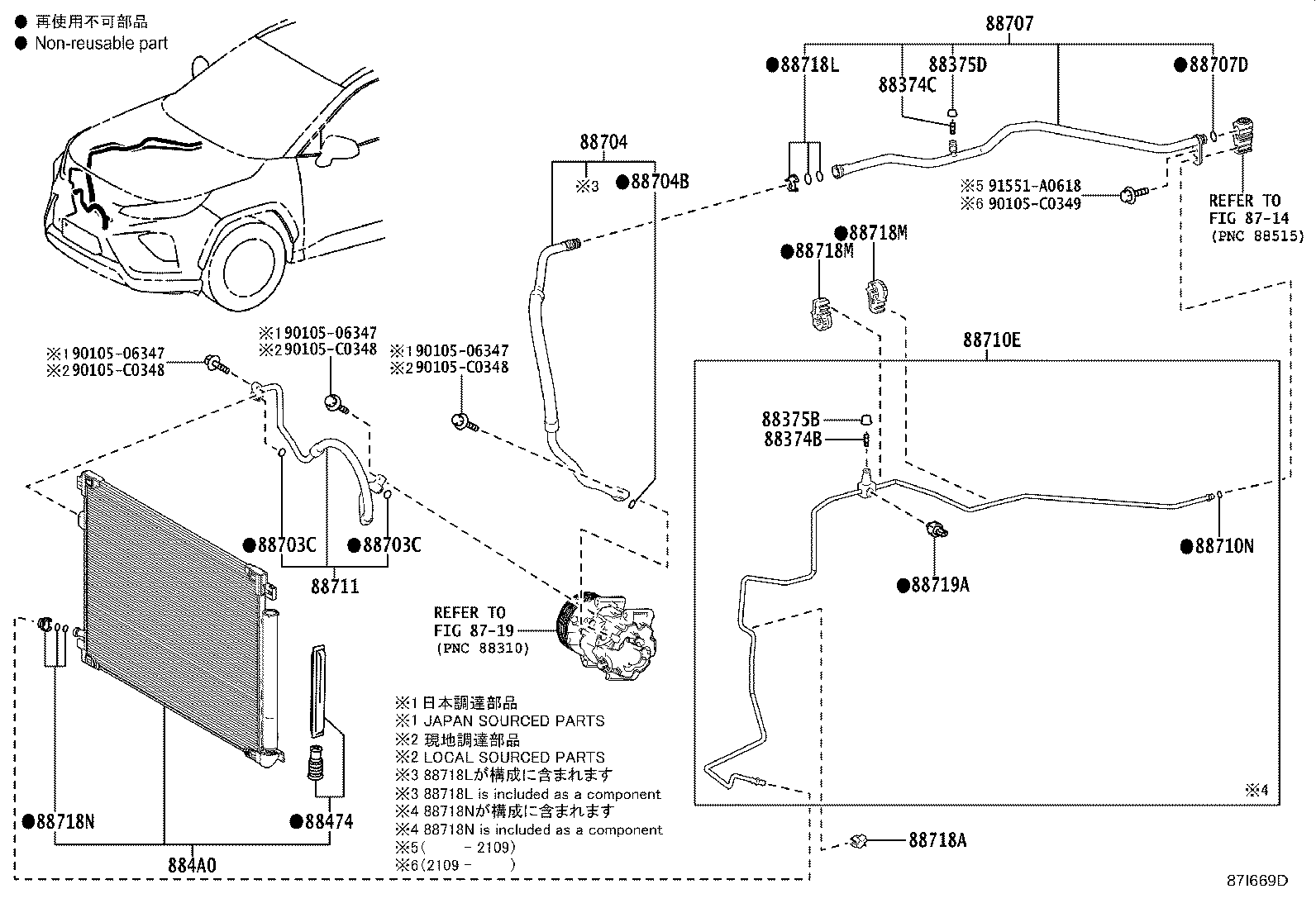

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88474 884A0 88703C 88703C 88704 88704B 88707 88707D 88710E 88710N 88711 88718A 88718L 88718M 88718M 88718N 88719A 9010506347 9010506347 9010506347 90105C0348 90105C0348 90105C0348 90105C0349 91551A0618
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AXAH5#,MXAA5#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AXAH5#,MXAA5#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

AXAH5#,MXAA5#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

AXAH5#,MXAA5#

 1
88474 - DRYER, COOLER
88474-12020

AXAH5#,MXAA5#

 1
884A0 - CONDENSER ASSY, COOLER
884A0-06050

MXAA5#

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

MXAA5#

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

MXAA5#

ID=10.8,OD=15.6

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-0R130

MXAA5#

 1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

AXAH5#,MXAA5#

ID=13.4,OD=18.2

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-0R110

AXAH5#,MXAA5#

 1
88707D - RING, O(FOR SUCTION TUBE)
90099-14121

AXAH5#,MXAA5#

ID=13.4,OD=18.2

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0R070

MXAA5#

 1
88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE
90099-14119

AXAH5#,MXAA5#

ID=6.7,OD=10.3

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0R050

MXAA5#

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-2F110

AXAH5#,MXAA5#

 1
88718L - CLAMP, PIPING
88718-52280

AXAH5#,MXAA5#

 1
88718M - CLAMP, PIPING
88718-33490

AXAH5#,MXAA5#

 2
88718M - CLAMP, PIPING
88718-33490

AXAH5#,MXAA5#

 2
88718N - CLAMP, PIPING
88718-1E150

AXAH5#,MXAA5#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

AXAH5#,MXAA5#

 1
Common parts
90105-06347
90105-C0348
90105-C0349
91551-A0618
Linked diagrams
8714
8719
